TECHNICAL DATA SHEET
ADAPTOR
UHF PLUG – C JACK
54S152-K00A4

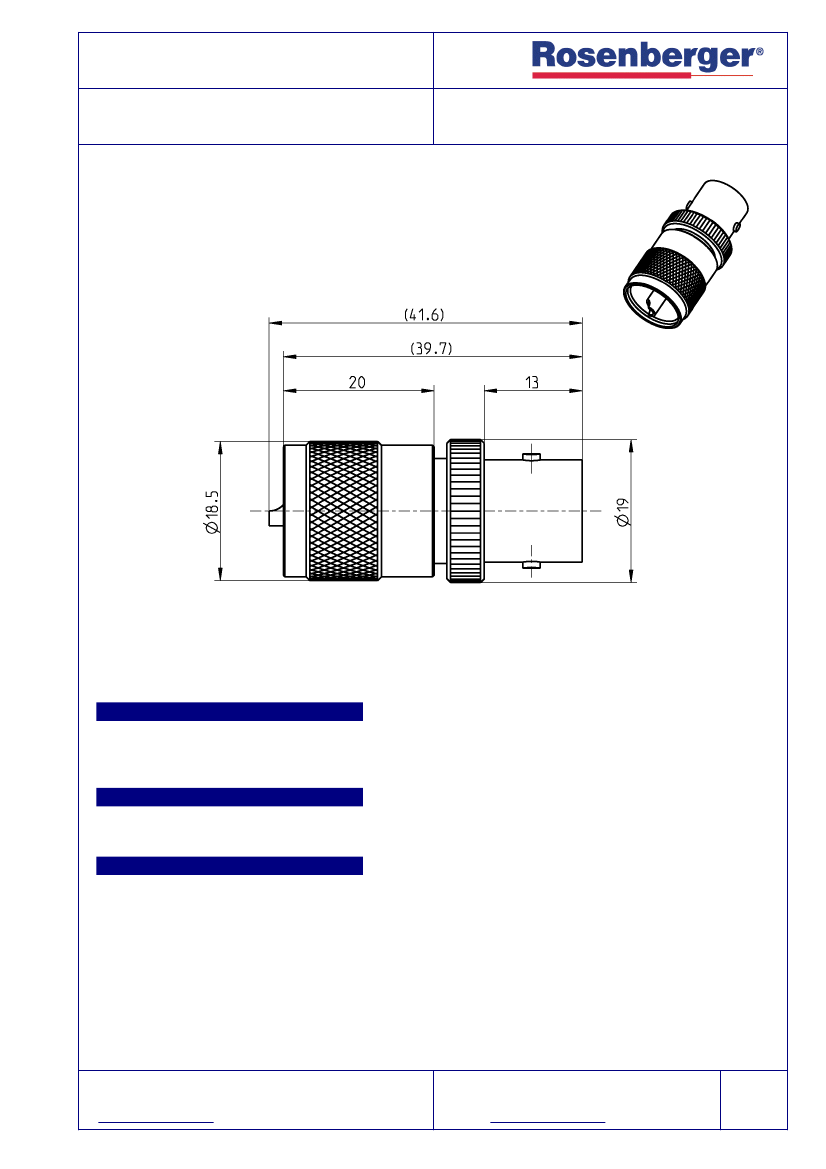

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
UHF side:
C side:
IEC 60169-12
IEC 60169-7, MIL-PRF-39012, VG 95240, DIN 47222
Documents
N/A
Material and plating
Connector parts
Center contact UHF side
Center contact C side
Outer contact
Body
Dielectric
Coupling nut UHF side
Material
Brass
Beryllium copper
Brass
Brass
PTFE
Brass
Plating
Gold, min. 0.8 m, over nickel
Gold, min. 0.8 m, over nickel
Nickel, 2.5-5 m
Nickel, 2.5-5 m
Nickel, 2.5-5 m
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
UHF PLUG – C JACK
Electrical data
Impedance
Frequency
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Contact current (DC)
Power handling
(at 20 °C, sea level, VSWR 1.0)
N/A
DC to 300 MHz
≥
5 x 10
3
MΩ
≤
5 mΩ, UHF side;
≤
5 mΩ, UHF side;
1500 V rms
400 V rms
≤
10 A typ.
400 W typ. @ 300 MHz
54S152-K00A4
≤
1.0 mΩ, C side
≤
0.25 mΩ, C side
Mechanical data
Mating cycles
Center contact captivation: axial
UHF side
min. 500
≥
20 N
C side
min. 500
≥
20 N
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
-25°C to +70°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
G
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
1 pce in bag
37.2 g/pce
