50545-A117A datasheet, PDF - EEWORLD Datasheet

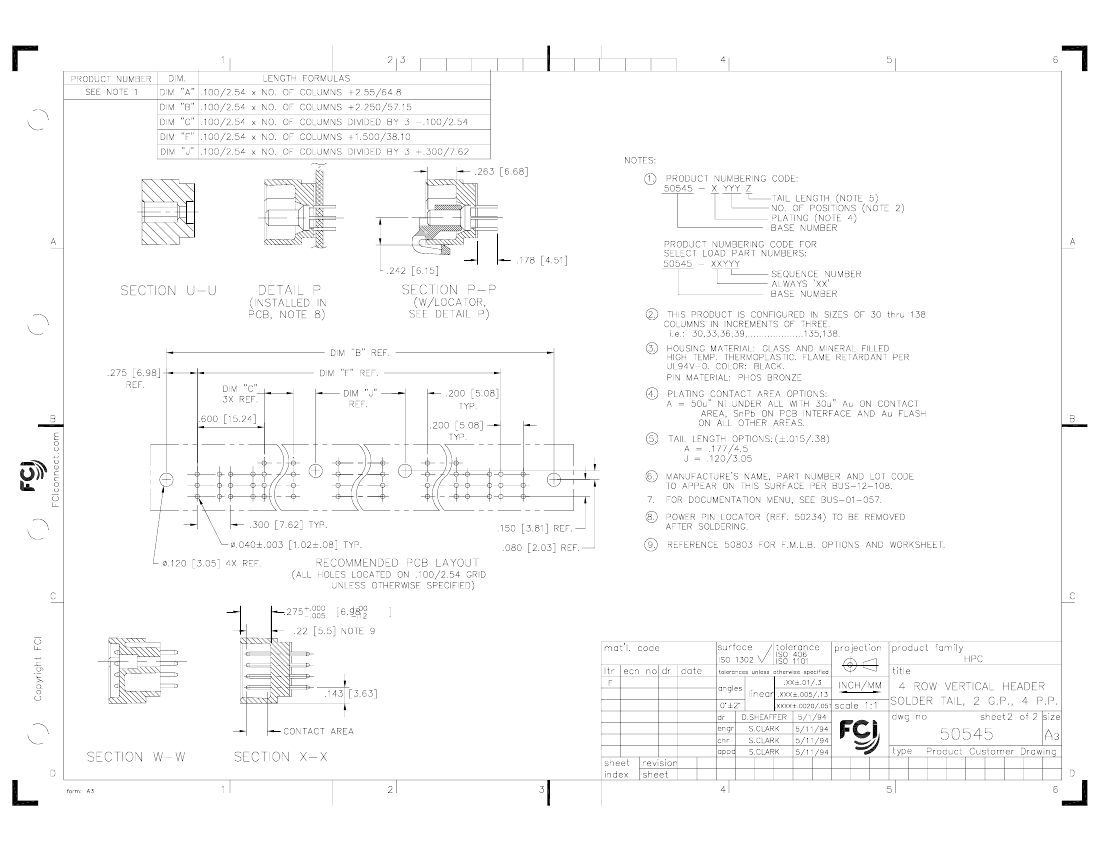

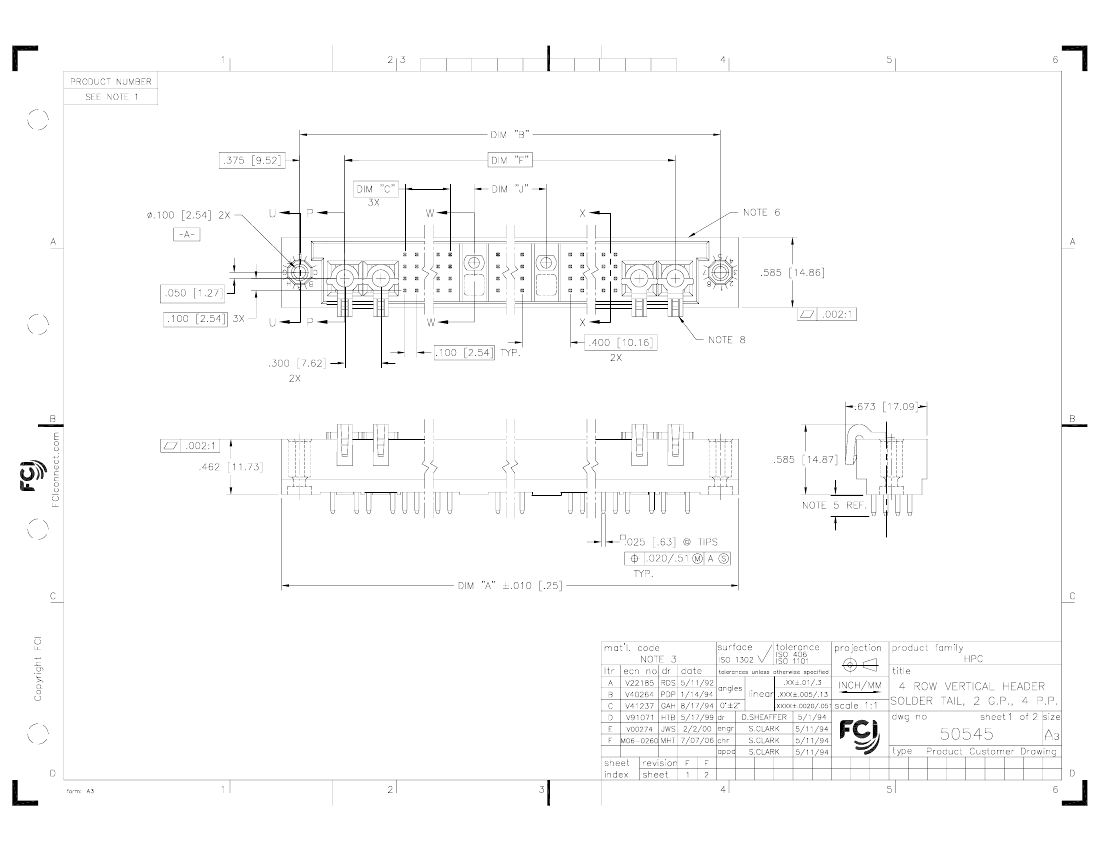

50545-A117A: DescriptionBoard Connector, 468 Contact(s), 4 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size158KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

50545-A117A Overview

Board Connector, 468 Contact(s), 4 Row(s), Male, Straight, Solder Terminal

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	FIRST MAKE LAST BREACK
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	50545
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	468
UL Flammability Code	94V-0
Base Number Matches	1

PDM: Rev:F

STATUS:

Released

Printed: May 13, 2011
