2M801-010-07MT10-5BF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 2M801-010-07MT10-5BF

2M801-010-07MT10-5BF: DescriptionCircular Connector,; CategoryThe connector The connector; File Size338KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

2M801-010-07MT10-5BF Overview

Circular Connector,

2M801-010-07MT10-5BF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Connector type	CIRCULAR CONNECTOR
Manufacturer's serial number	2M801-010-07MT
Base Number Matches	1

Preview

Download Datasheet

View All

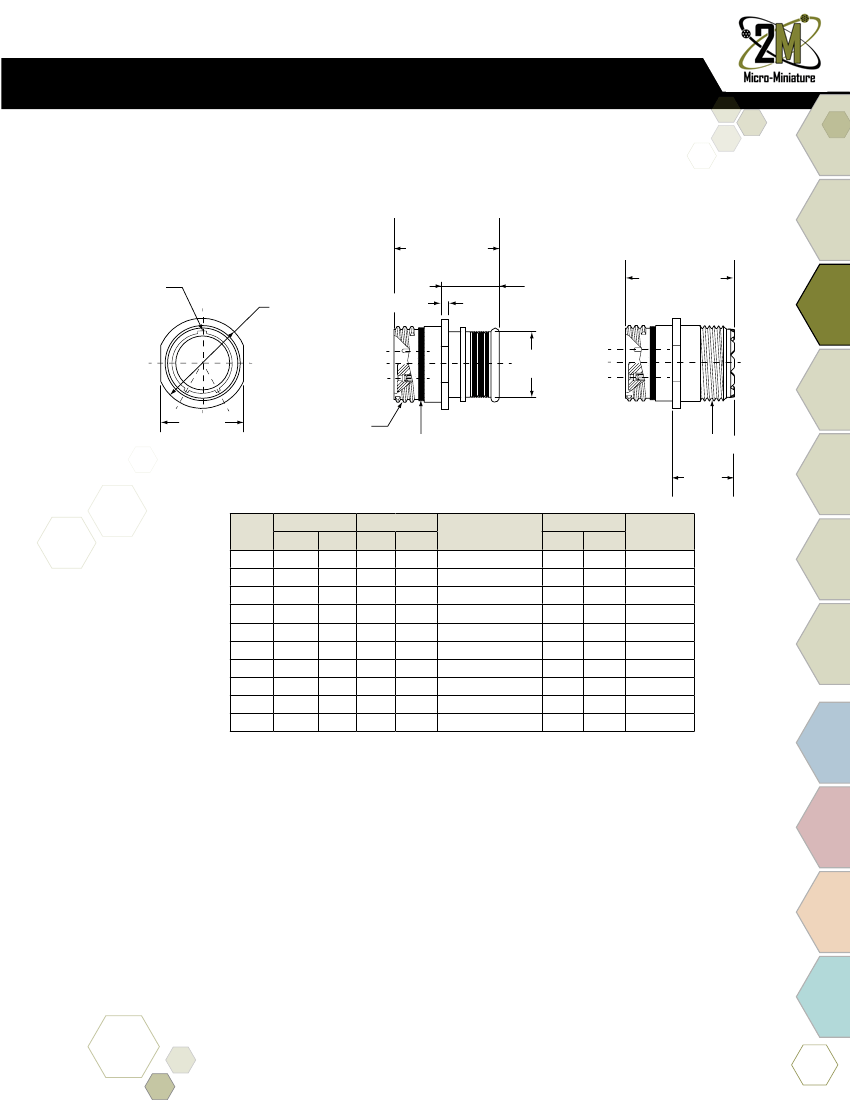

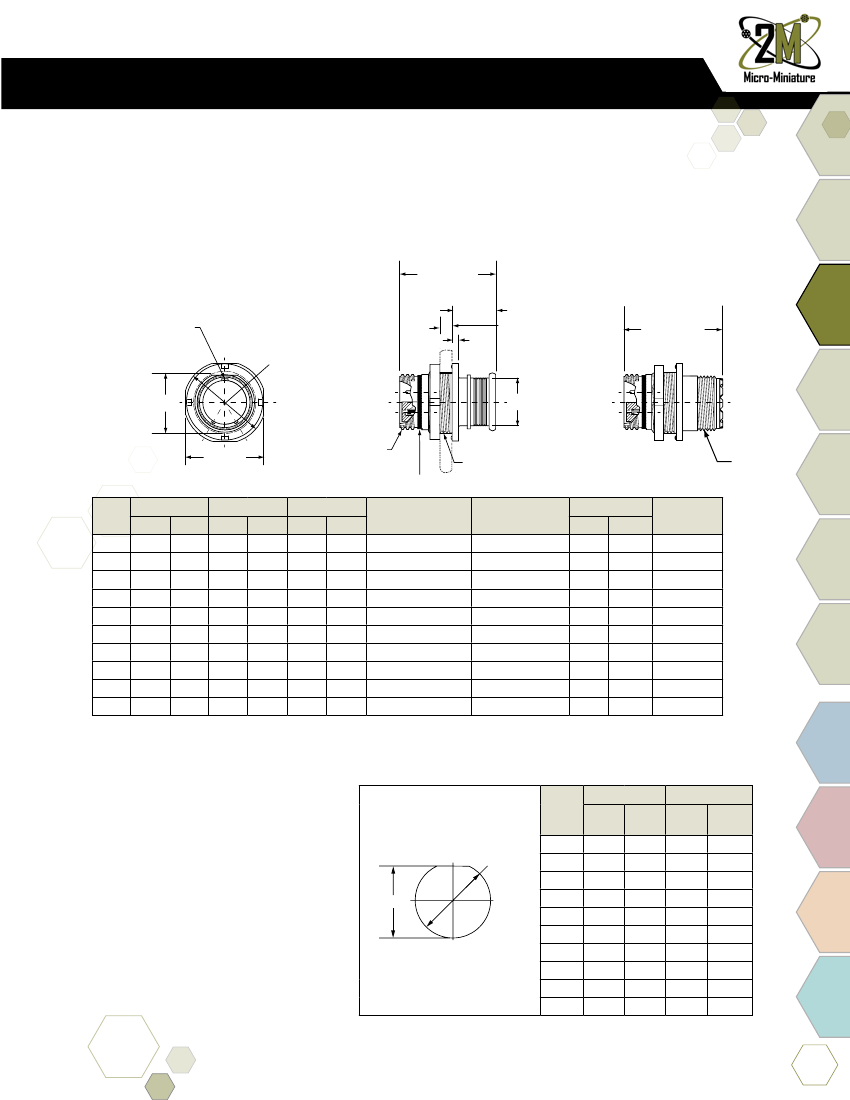

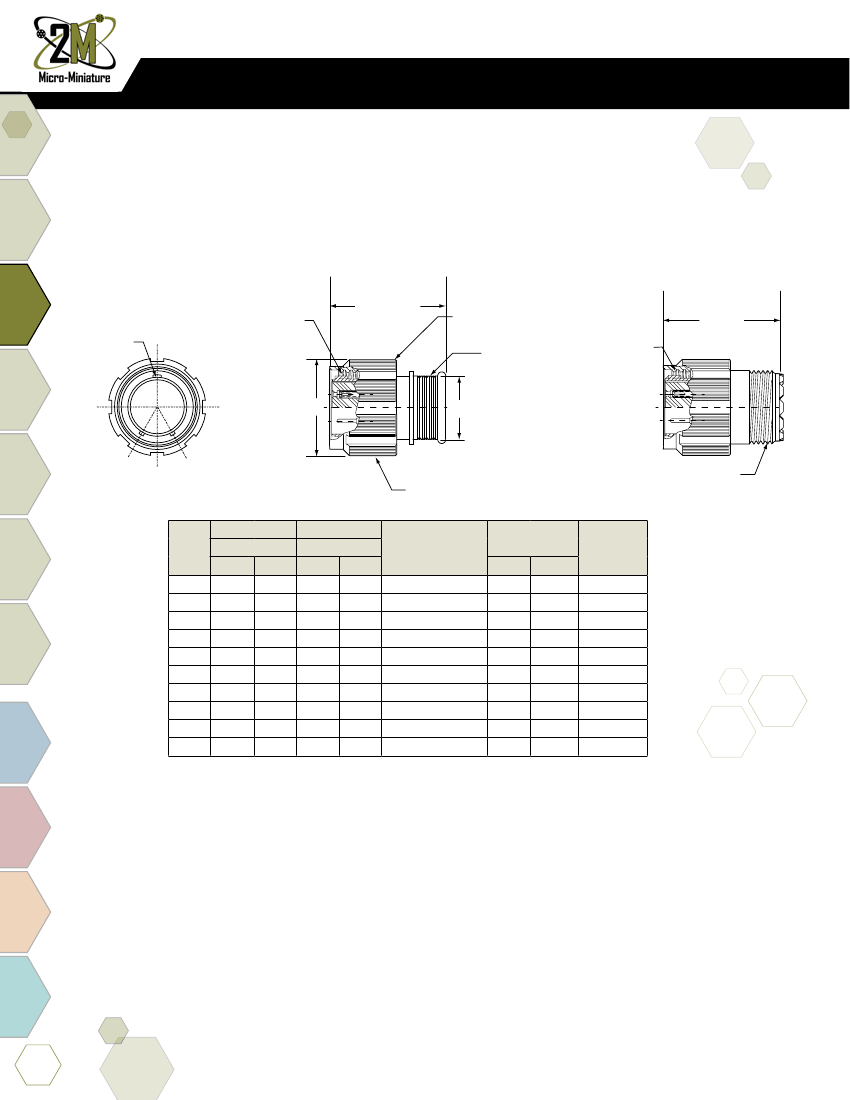

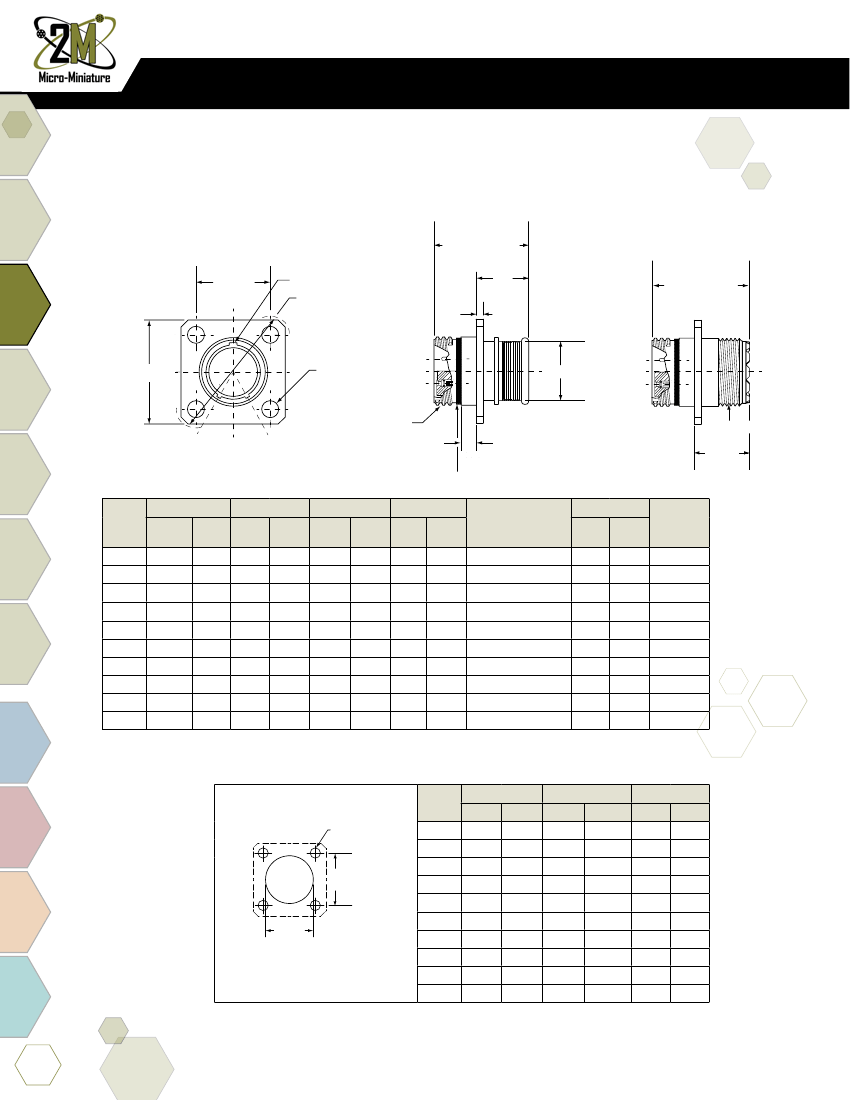

2M801 Dual-Start ACME Threads

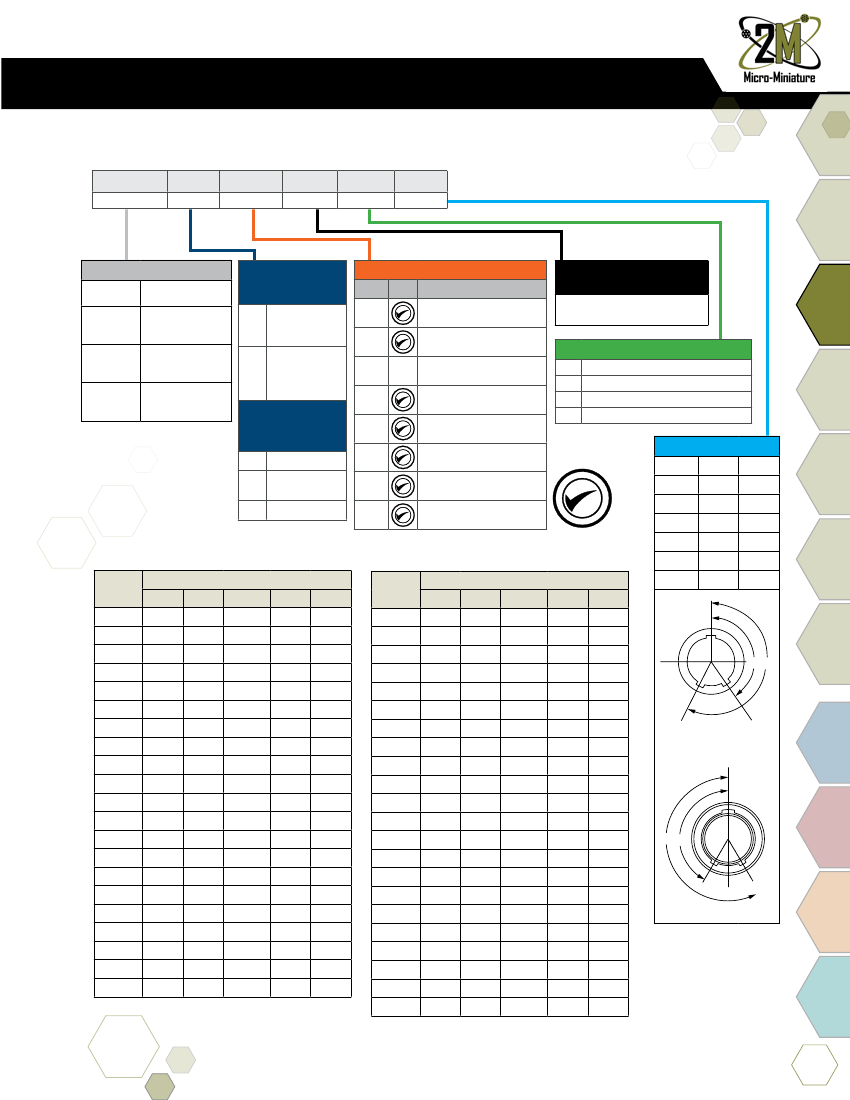

Ordering Guide for 2M801

Contacts

& Tools

Series

Shell Style

Service Class

2M801-0XX

-16

Shell Size-

Contact Type

Insert Arrg.

6-7

Alternate

Position

*add "-501" to the suffix of Jam Nut version to

include a Hex Nut instead of a Spanner Nut.

2M Specs

SERIES

2M801-007

Plugs with Inte-

gral Backshell

2M801-008

Plugs with Rear

Accessory

Thread

2M801-009

Receptacle with

Integral Back-

shell

2M801-010

Receptacle

with Accessory

Thread

SHELL STYLE

2M801-007

2M801-008

-16

Plug with

Anti-Decou-

pling Spring

Self-Locking

Plug with

Ratchet

Mechanism

ZNU

SERVICE CLASS

Finish

pheno

SHELL SIZE - INSERT

ARRANGEMENTS

See Insert Arrangements on

Pages 13-15

2M801

002

Aluminum/Black Anodize

(Non-Conductive)

Aluminum/Electroless

Nickel

Aluminum/Cadmium with

Olive Drab Chromate

pheno

-26

002

CONTACTS

Socket

Pin, less contacts

Socket, less contacts

2M803

pheno

SHELL STYLE

2M801-009

2M801-010

-01

-02

-07

In-Line

Square

Flange

Jam Nut*

002

Aluminum/Nickel-PTFE

(Durmalon)

Stainless Steel/

Passivated

Stainless Steel/

Electroless Nickel

Aluminum/Zinc-Nickel w/

Olive Drab Chromate

Aluminum/Zinc-Nickel

with Black Chromate

pheno

002

pheno

KEYING

pheno

2M804

A°

#12

B°

210°

230°

275°

210°

pheno

150°

75°

95°

140°

75°

95°

pheno

2M805

INSERT ARRANGEMENTS

Insert

Arrg.

5-3

6-1

6-4

6-6

6-7

6-23

7-1

7-10

7-25

8-2

8-13

8-28

8-200

9-4

9-19

9-200

9-201

9-210

10-2

10-5

10-26

No. of Contacts

#23

#20

#20HD

#16

#12

Insert

Arrg.

10-200

10-201

10-202

13-2

13-3

13-7

13-37

13-200

13-201

13-220

16-5

16-12

16-55

16-235

17-7

17-14

17-85

17-241

21-12

21-22

21-130

21-269

INSERT ARRANGEMENTS

No. of Contacts

#23

130

#20

#20HD

#16

2M Filter &

Accessories

A° B°

HD38999

Receptacle View

Micro-D

B° A°

Terrapin

Plug View

Nexus

Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
