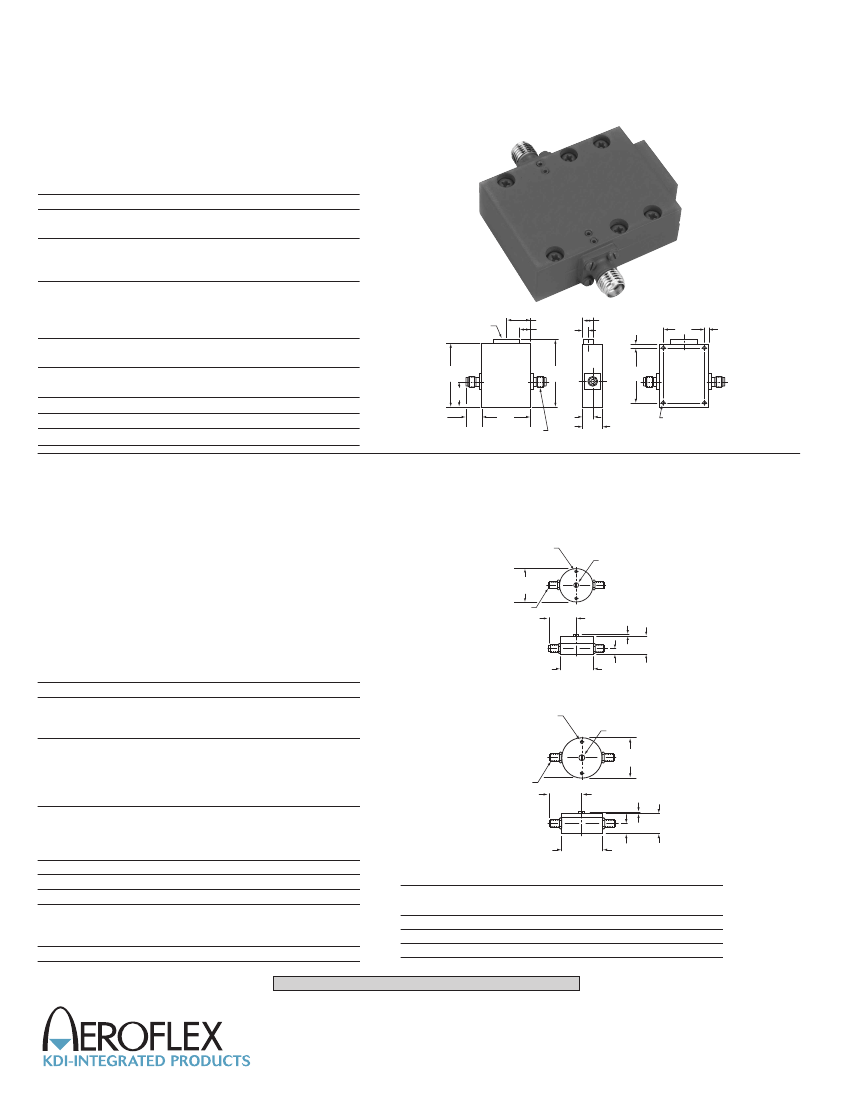

CONTINUOUSLY VARIABLE

PHASE TRIMMER (MECHANICAL)

1–18 GHz

GENERAL INFORMATION

A phase trimmer continuously changes the phase of a microwave sig-

nal by mechanical varying an adjustment screw.

MODEL PV-18

GENERAL SPECIFICATIONS

Frequency Coverage:

VSWR:

Phase Shift:

1 to 18 GHz

1.5:1 maximum (1-8 GHz)

1.9:1 maximum (8-18 GHz)

20 minimum/25 typ. at 1 GHz,

360 minimum/450 typ. at 18 GHz

(at maximum adjustment)

The phase is continuously adjustable

with a 12 to 15 turn screw. The large

number of turns allows for accurate

phase settings.

1 dB maximum (1-8 GHz)

1.5 dB maximum (8-18 GHz)

3 WCW and 3KW Peak maximum

operational

–55 C to +85 C

SMA female

Guaranteed

Phase Adjustment:

SCREWDRIVER

ADJUST

.65[16,5]

.28[7,11]

.24

[6,1]

.12

[3,05]

.10[2,5]

1.000

[25,4]

.10

[2,5]

Insertion Loss:

RF Power:

Operating Temperature:

Connectors:

Monotonicity:

1.60

[40,6]

.65

[16,5]

.30

[7,6]

1.20

[30,5]

1.73

[43,94]

1.400

[35,6]

.25

[6,4]

CONN "SMA" FEMALE

INTERFACE PER MIL-C-39012

(2) PL

.49

[12,45]

2-56UNC -2B

X.15 DP. (4) MTG HOLES

RUGGEDIZED SMA CONNECTORS

PHASE SHIFTER (MECHANICAL)

DC 7 GHz – 10 WATTS

GENERAL INFORMATION

Self Locking:

Internal mechanism eliminates the need for a locking

nut. Ideal for phase trimming in densely packaged systems with

minimum accessibility.

Linear:

Nominally linear phase over the frequency range.

Optimized for Wireless OEM Applications.

0.094 X 0.25

[2,4 X 6,4] DEEP

FOR #2-56 UNC-2A

SCREWS, 2 PLACES

.920

[23,4]

SMA FEMALE

2 PLACES

SERIES PV-980

0.188[4,8] PHASE ADJ

SHAFT, SCREW CLOCKWISE

FOR INCREASING PHASE

0.95

[24,1]

0.04

[1,0]

0.63

[16,0]

GENERAL SPECIFICATIONS

Nominal Impedance:

Frequency Coverage:

Model PV-980-1 & PV-980-2:

Model PV-980-3

Incremental Phase Shift:

Model PV-980-1

Model PV-980-2

Model PV-980-3

Insertion Phase:

Model PV-980-1

Model PV-980-2

Model PV-980-3

Phase vs Frequency:

Maximum SWR:

Power Rating:

Temperature Range:

Operating:

Storage:

Connectors:

50Ω

DC to 3.0 GHz

DC to 7.0 GHz

140° Minimum @ 3.0 GHz

200° Minimum @ 3.0 GHz

170° Minimum @ 7.0 GHz

85° Minimum @ 3.0 GHz

560° (Typical) @ 3.0 GHz

780° (Typical) @ 3.0 GHz

700° (Typical) @ 7.0 GHz

Nominally linear response

1.35

10 watts average

–50 C to 85 C

–50 C to 125 C

SMA female

Model

PV-980-1

PV-980-2

PV-980-3

0.140 X 0.12

[3,6 X 3,1] DEEP

FOR #4-40 UNC-2A

SCREWS, 2 PLACES

1.13

[28,7]

0.20

[5,1]

Model PV-980-3

0.250[6,4] PHASE ADJ

SHAFT, SCREW CLOCKWISE

FOR INCREASING PHASE

1.188

[30,2]

SMA FEMALE

2 PLACES

1.03

[26,2]

0.12

[3,1]

0.63

[16,0]

1.48

[37,6]

0.30

[7,6]

Model PV-980-1 & PV-980-2

1.5

0.50 dB

0.30 dB

0.50 dB

Frequency (GHz)

3.0

0.90 dB

0.45 dB

0.50 dB

7.0

–

–-

0.50 dB

KEY:

Inches[Millimeters] .XX ±.03 .XXX ±.010 [.X ±0.8 .XX ±0.25]

60 South Jefferson Road, Whippany, NJ 07981

Tel: 973-887-8100 • Fax: 973-884-0445

email: sales@aeroflex-kdi.com

See us on the web @ www.aeroflex-kdi.com

8-10-07
