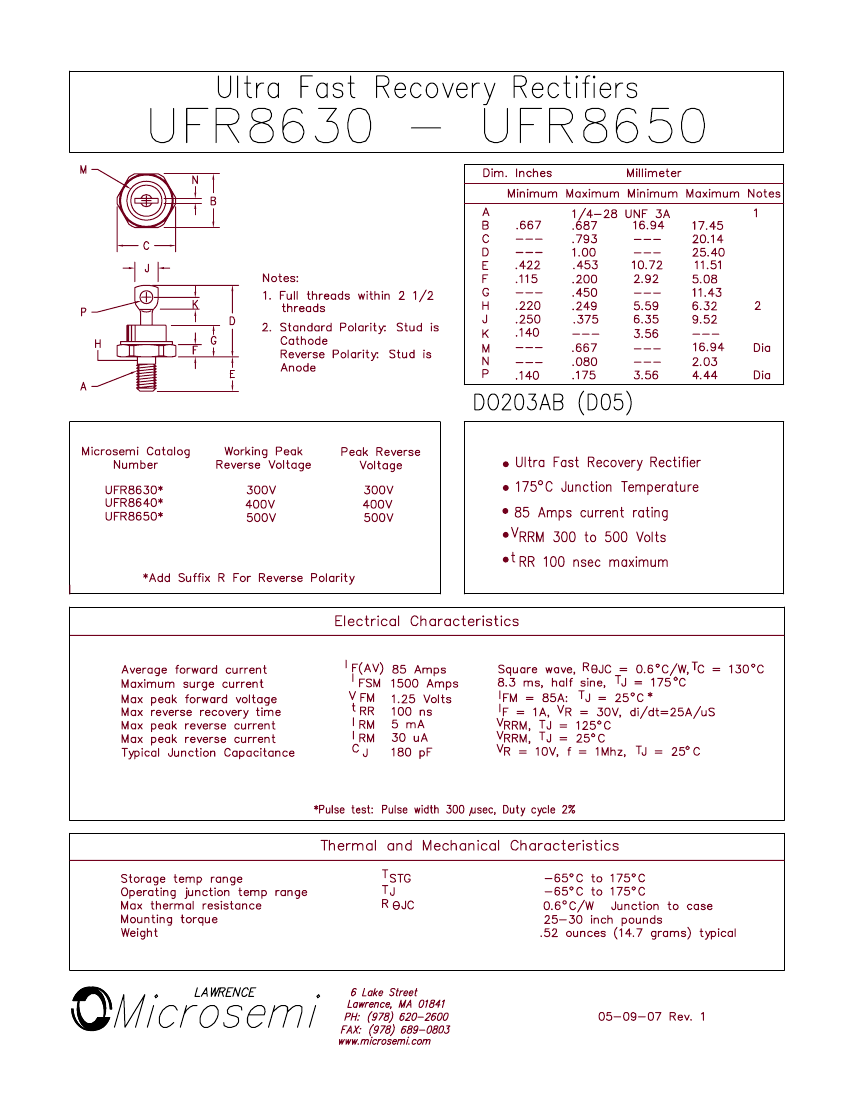

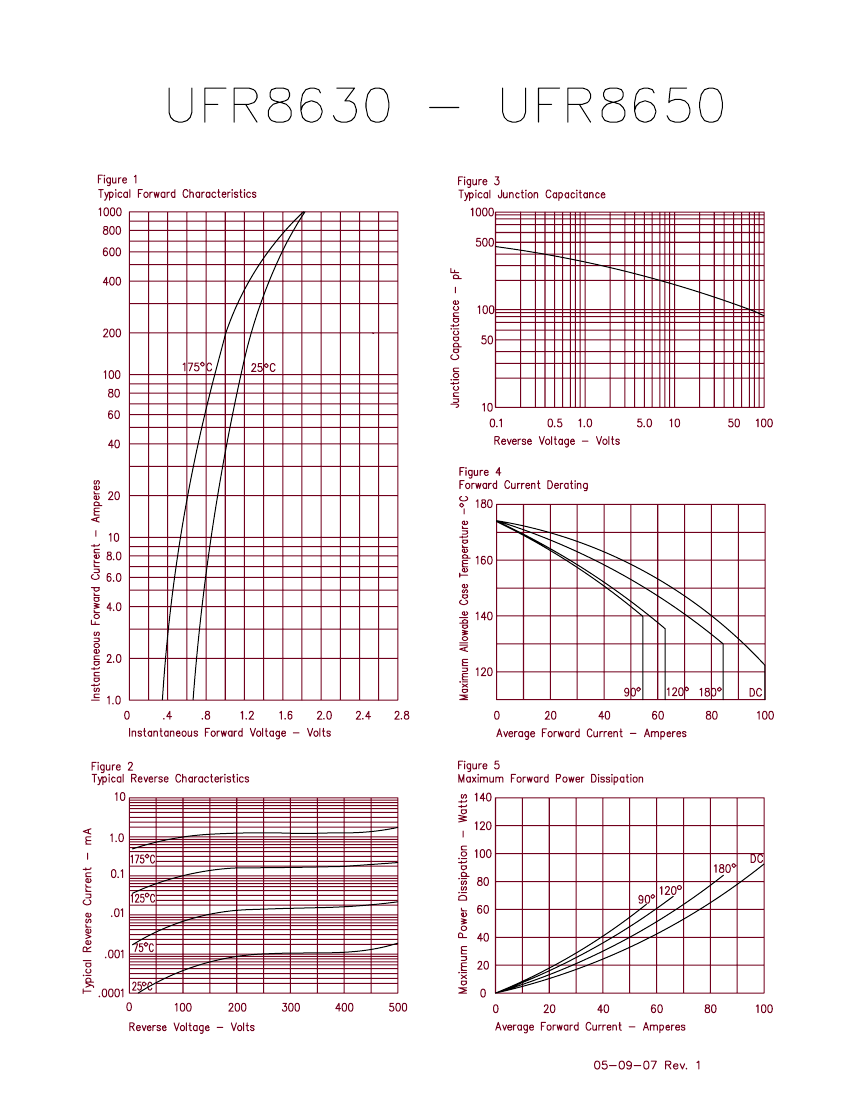

UFR8650E3 datasheet, PDF - EEWORLD Datasheet

UFR8650E3: DescriptionRectifier Diode, 1 Phase, 1 Element, 85A, 500V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN; CategoryDiscrete semiconductor diode; File Size123KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UFR8650E3 Overview

Rectifier Diode, 1 Phase, 1 Element, 85A, 500V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN

Parameter Name	Attribute value
package instruction	DO-5, 1 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-203AB
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	1500 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	85 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Maximum repetitive peak reverse voltage	500 V
Maximum reverse recovery time	0.1 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

	UFR8650E3	UFR8650RE3
Description	Rectifier Diode, 1 Phase, 1 Element, 85A, 500V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 85A, 500V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN
package instruction	DO-5, 1 PIN	DO-5, 1 PIN
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	ANODE
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-203AB	DO-203AB
JESD-30 code	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	1500 A	1500 A
Number of components	1	1
Phase	1	1
Number of terminals	1	1
Maximum operating temperature	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C
Maximum output current	85 A	85 A
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT
Maximum repetitive peak reverse voltage	500 V	500 V
Maximum reverse recovery time	0.1 µs	0.1 µs
surface mount	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER
Base Number Matches	1	1
