B-233R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> B-233R

B-233R: DescriptionPOWER/SIGNAL RELAY, 3PDT, MOMENTARY, 0.25A (COIL), 28VDC (COIL), PANEL MOUNT; CategoryMechanical and electronic products relay; File Size56KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

B-233R Overview

POWER/SIGNAL RELAY, 3PDT, MOMENTARY, 0.25A (COIL), 28VDC (COIL), PANEL MOUNT

B-233R Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	100.08 mm
body height	107.95 mm
Body length or diameter	106.43 mm
Maximum coil current (DC)	0.25 A
Coil operating voltage (DC)	18 V
Coil release voltage (DC)	1.5 V
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	120A@200VAC
Maximum contact current (AC)	120 A
Maximum contact voltage (AC)	200 V
Contact/Output Power Type	AC
Electrical life	50000 Cycle(s)
Manufacturer's serial number	B-233R
Installation features	PANEL MOUNT
Maximum operating temperature	71 °C
Minimum operating temperature	-55 °C
physical size	106.43mm X 100.08mm X 107.95mm
Guideline	MIL-R-6106
Relay action	MOMENTARY
Relay function	3PDT
Relay type	POWER/SIGNAL RELAY
seal	GASKET SEALED
surface mount	NO
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

HARTMAN Aerospace Power Products

AC Relays

Features:

• 3PDT Main Contacts

• Mechanically Interlocked

• 115/200 VAC, 400 Hz

• 120 Amps

• High Reliability

• Meets many requirements of MIL-R-6106

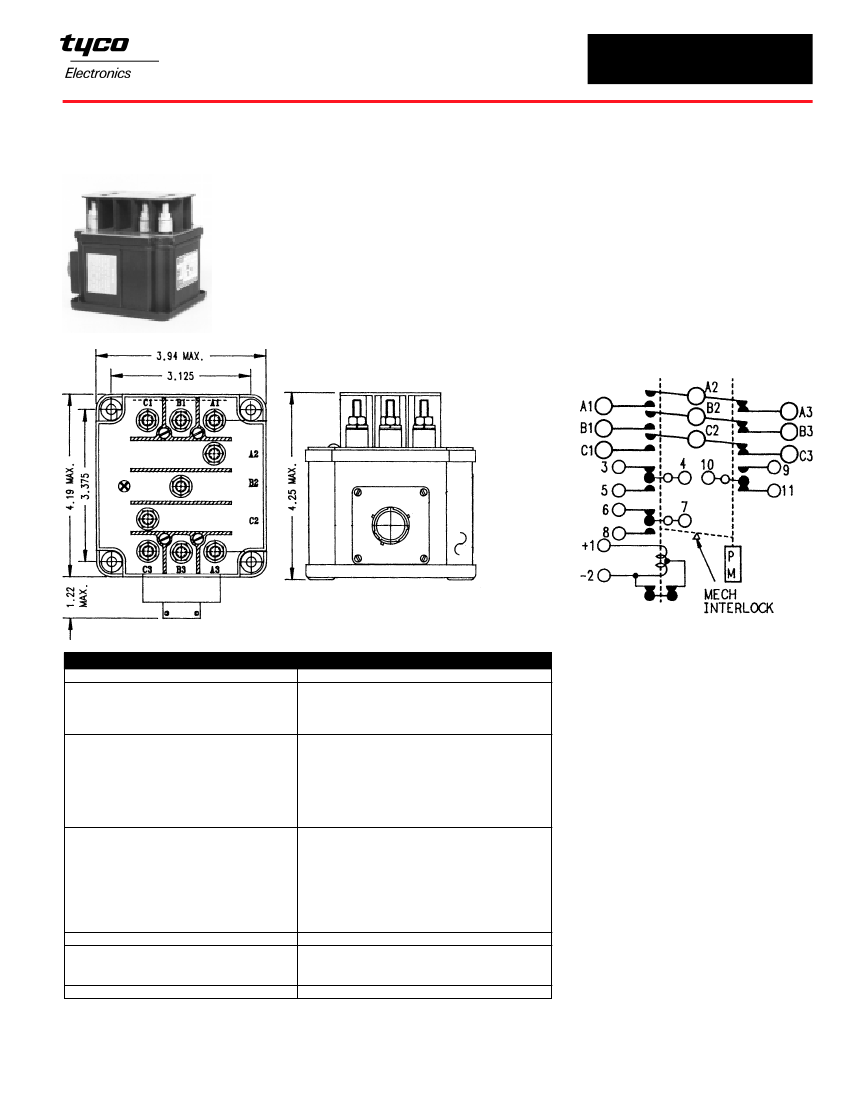

B-233R 3PDT, 120 Amps,

115/200 VAC, 400 Hz

CONTACTOR CONFIGURATION

Dimensions for this product are expressed in inches.

Multiply values by 25.4 for millimeters.

Notes:

PRODUCT SPECIFICATIONS

Construction

Main Contacts:

Configuration

Voltage (Nominal)

Current (Resistive)

Auxiliary Contacts:

Configuration

Voltage (Nominal)

Current

Resistive

Inductive

Lamp

Coil Data:

Duty Cycle

Voltage (Nominal)

Pick-Up Voltage

Drop-Out Voltage

Coil Current @ 28 VDC & +25°C

In-Rush

Hold

Operating Temperature

Life:

Electrical

Mechanical

Weight

Gasket Sealed, Vented

3PDT

115/200 VAC, 400 Hz

120 Amps

3-SPDT

28 VDC

5 Amps

2 Amps

Continuous

28 VDC

18 VDC Maximum

1.5 - 7 VDC

2.5 Amps

0.25 Amps Maximum

-55°C to +71°C

50,000 Cycles

100,000 Cycles

3 Lbs. 3 Oz.

For factory-direct application assistance, contact the HARTMAN

product team at (419) 521-9500, Fax (419) 526-2749.

HARTMAN and TYCO are trademarks.

Catalog (web doc only)

Revised 5-04

www.tycoelectronics.com

Dimensions are in inches and

millimeters unless otherwise

specified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967
