CD5518B thru CD5546B
Zener Diode Chip Series
Rev. V5

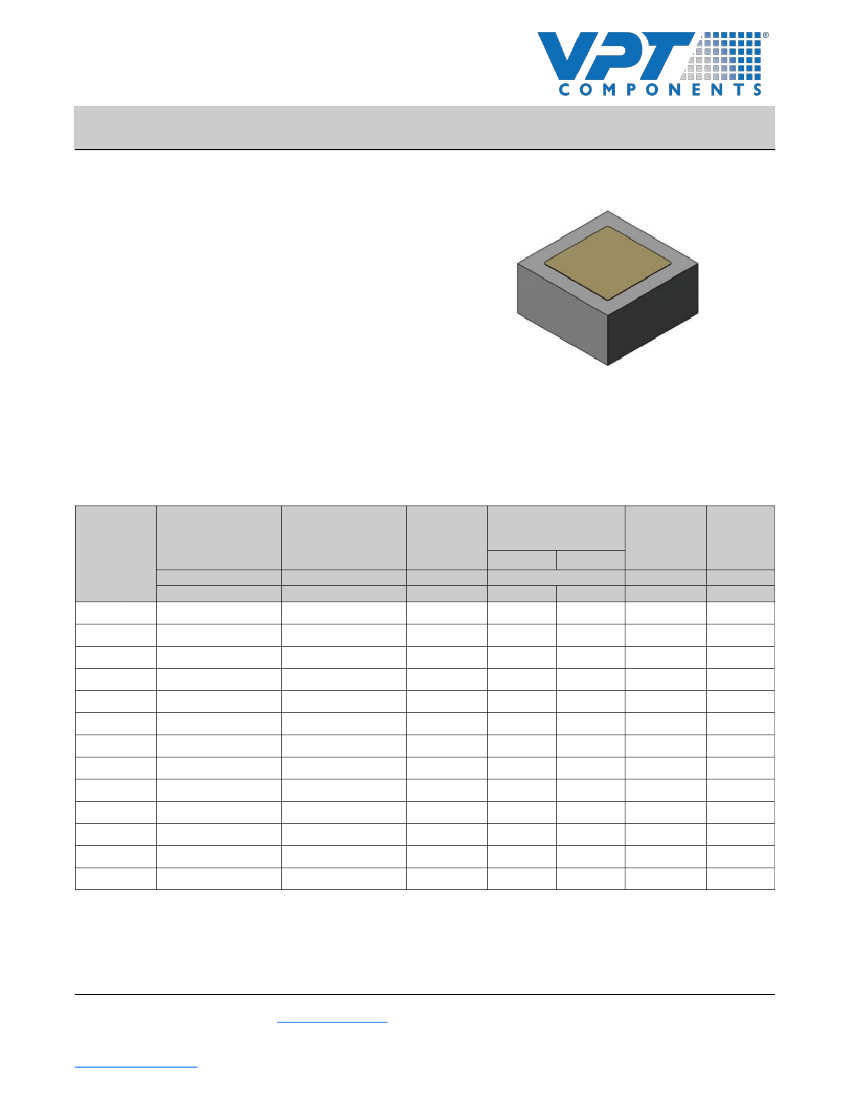

Features
•
All Junctions Completely Protected with Silicon
Dioxide
•
0.5 W Capability with Proper Heat Sinking
•
Electrically Equivalent to 1N5518B
-
1N5546B
•
No suffix indicates 21 mil square die size
•
J15 suffix indicates 13.5 mil square die size
Die
Description
These 0.5 W zener diodes are electrically equivalent
to the 1N5518B
-
1N5546B series diodes. They are
compatible with all wire bonding and die attach
techniques with the exception of solder reflow.
These diodes are also available in JANHC and
JANKC per MIL-PRF-19500/437.
See dimensions on pages 3 and 4.
Electrical Specifications: (T
A
= +25°C unless otherwise specified)
Zener
Voltage
V
Z
@ I
ZT
(Note 1)
Nominal
V
Zener
Test
Current
l
ZT
mAdc
Zener
Impedance
Z
ZT
@ l
ZT
(Note 2)
Maximum
Ohms
Reverse
Leakage
Current
I
R
V
R
Maximum
mAdc
V
Regulation
Factor
ΔV
Z
(Note 3)
V
Low
V
Z
Current
I
ZL
mAdc
Part#
CD5518B
CD5519B
CD5520B
CD5521B
CD5522B
CD5523B
CD5524B
CD55258
CD5526B
CD5527B
CD5528B
CD5529B
CD5530B
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10.0
20
20
20
20
10
5.0
3.0
1.0
1.0
1.0
1.0
1.0
1.0
26
24
22
18
22
26
30
30
30
35
40
45
60
5.0
3.0
1.0
3.0
2.0
2.0
2.0
1.0
1.0
0.5
0.5
0.1
0.05
1.0
1.0
1.0
1.5
2.0
2.5
3.5
5.0
6.2
6.8
7.5
8.2
9.1
0.90
0.90
0.90
0.75
0.60
0.65|
0.30
0.20
0.10
0.05
0.05
0.05
0.10
2.0
2.0
2.0
2.0
1.0
0.25
0.25
0.01
0.01
0.01
0.01
0.01
0.01
(Continued next page)
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
1
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
CD5518B thru CD5546B
Zener Diode Chip Series
Rev. V5
Electrical Specifications: (T
A
= +25°C unless otherwise specified)
Zener
Voltage
V
Z
@ I
ZT
(Note 1)
Nominal
V
Zener
Test
Current
l
ZT
mAdc
Zener
Impedance
Z
ZT
@ l
ZT
(Note 2)
Maximum
Ohms
Reverse
Leakage
Current
I
R
V
R
Maximum
mAdc
V
Regulation
Factor
ΔV
Z
(Note 3)
V
Low
V
Z
Current
I
ZL
mAdc
Part#
CD5531B
CD5532B
CD5533B
CD5534B
CD5535B
CD5536B
CD5537B
CD5538B
CD5539B
CD5540B
CD5541B
CD5542B
CD5543B
CD5544B
CD5545B
CD5546B
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
19.0
20.0
22.0
24.0
25.0
28.0
30.0
33.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1·0
1.0
80
90
90
100
100
100
100
100
100
100
100
100
100
100
100
100
0.05
0.05
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
9.9
10.8
11.7
12.6
13.5
14.4
15.3
16.2
17.1
18.0
19.8
21.6
22.4
25.2
27.0
29.7
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.25
0.30
0.35
0.40
0.45
0.50
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
1. Suffix "B" voltage range equals nominal Zener voltage. + 5%. Suffix "A" equals + 10 %. "C" suffix=.± 2 % and "D" suffix= + 1 %.No Suffix
equals + 20 %. Zener voltage is read using a pulse measurement, 10 milliseconds maximum.
2. Suffix “J15” equals 13.5 mil square die.
3. Zener impedance is derived by superimposing on lZT a 60 Hz rms ac current equal to 10 % of IZT.
4.
ΔVZ
is the maximum difference between VZ-@ IZT and VZ at IZL measured with the device junction in thermal equilibrium at an ambient
temperature of +25°C ±3°C.
2
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
CD5518B thru CD5546B
Zener Diode Chip Series
Rev. V5
Absolute Maximum Ratings
4,5
Forward Voltage
Operating Temperature
Storage Temperature
1.5 V @ 200 mA
-65°C
to +175°C
-65°C
to +175°C

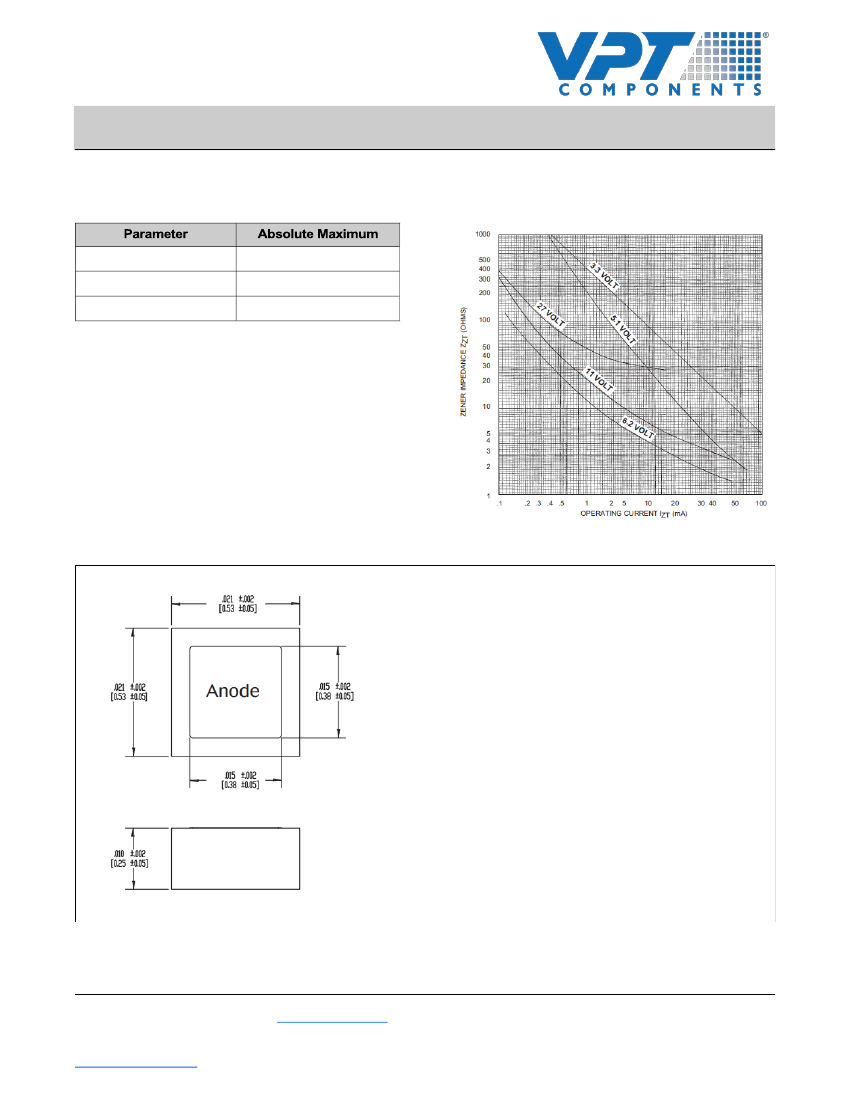

Zener Impedance vs. Operating Current
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. VPT Components does not recommend sustained operation
near these survivability limits.
Die
Top: (anode) AL
Back: (cathode) Au
AL Thickness:
25,000 Å Minimum
Gold Thickness:
4,000 Å Minimum
Chip Thickness:
10 mils
Circuit Layout Data: For Zener operation, cathode must be
operated positive with respect to anode.
Metallization:
3
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
CD5518B thru CD5546B
Zener Diode Chip Series
Rev. V5

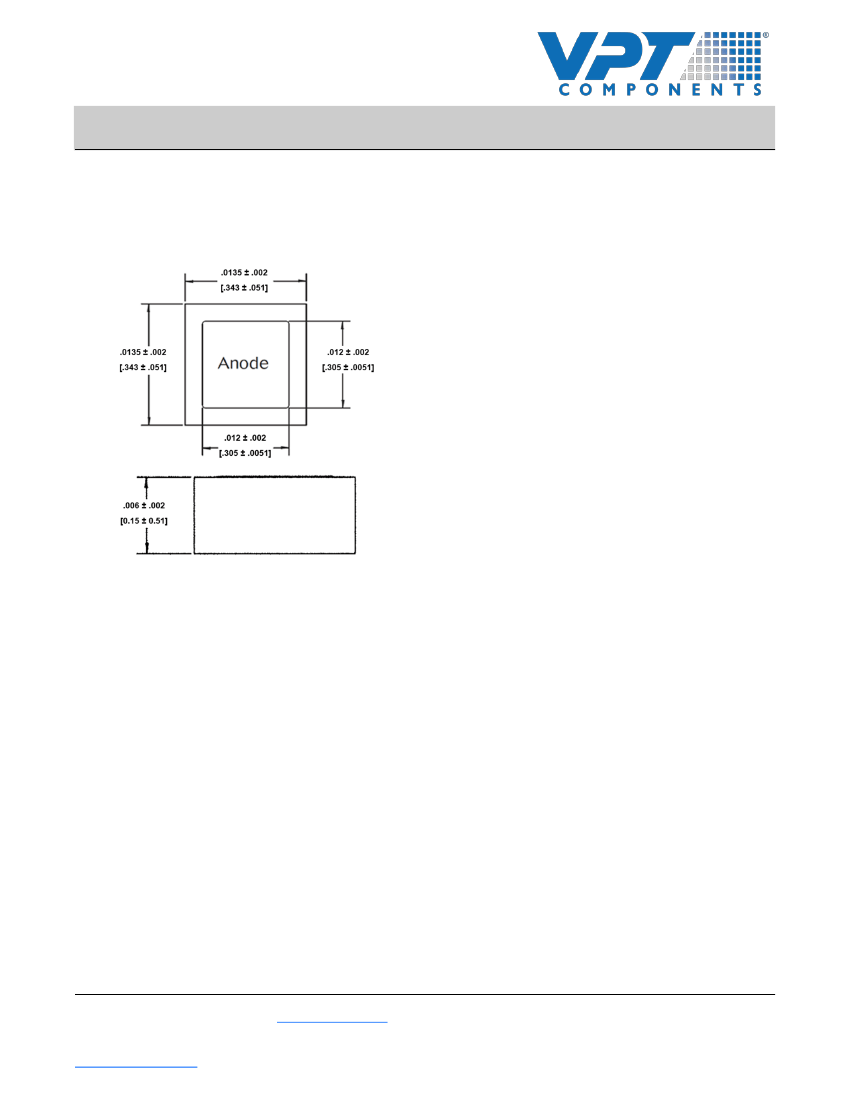

Die (-J15 Dimensions)
Metallization:
Top = (anode)
-
AL,
Back: (cathode)
-
AU,
AL thickness = 18,000 Å minimum
Gold thickness = 7,000 Å Minimum
Chip thickness = 6 mils
Circuit layout data: For Zener operation, cathode
must be operated positive with respect to anode.
4
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
CD5518B thru CD5546B
Zener Diode Chip Series
Rev. V5
VPT COMPONENTS. ALL RIGHTS RESERVED.
Information in this document is provided in connection with VPT Components products. These materials are provided by
VPT Components as a service to its customers and may be used for informational purposes only. Except as provided in VPT
Components Terms and Conditions of Sale for such products or in any separate agreement related to this document, VPT
Components assumes no liability whatsoever. VPT Components assumes no responsibility for errors or omissions in these
materials. VPT Components may make changes to specifications and product descriptions at any time, without notice. VPT
Components makes no commitment to update the information and shall have no responsibility whatsoever for conflicts or
incompatibilities arising from future changes to its specifications and product descriptions. No license, express or implied,
by estoppels or otherwise, to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, RELATING TO
SALE AND/OR USE OF VPT COMPONENTS PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A
PARTICULAR PURPOSE, CONSEQUENTIAL OR INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PA-
TENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. VPT COMPONENTS FURTHER DOES NOT WARRANT THE
ACCURACY OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CON-TAINED WITHIN THESE
MATERIALS. VPT COMPONENTS SHALL NOT BE LIABLE FOR ANY SPECIAL, IN-DIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVE-NUES OR LOST PROFITS, WHICH MAY RESULT FROM THE USE
OF THESE MATERIALS.
VPT Components products are not intended for use in medical, lifesaving or life sustaining applications. VPT Components
customers using or selling VPT Components products for use in such applications do so at their own risk and agree to fully
indemnify VPT Components for any damages resulting from such improper use or sale.
5
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
