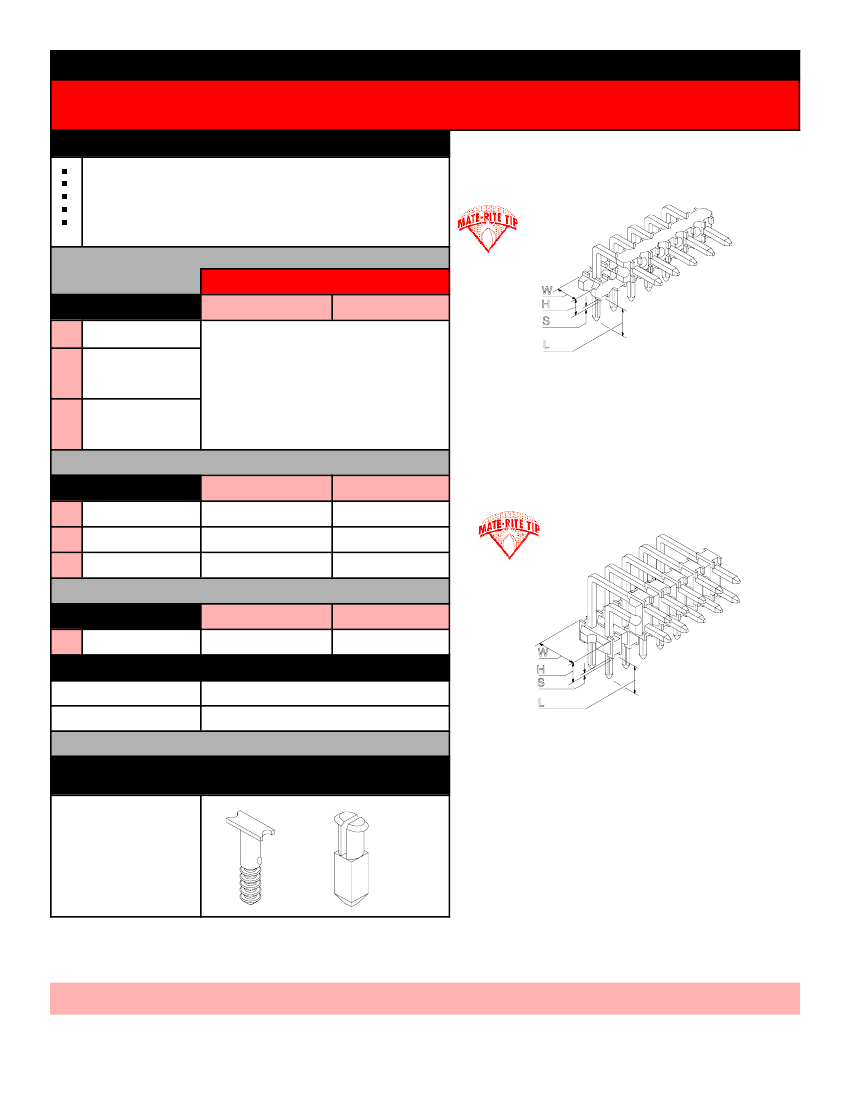

MPEG SERIES
PAGE ONE OF THREE
3,1675,3+($'(5
FEATURES
SINGLE ROW (1 to 40 positions)
Dual insulator design adds mechanical stability
Custom heights available for unusual board spacing
MATE-RITE TIP prevents scraping of mating socket
Insulator standoffs reduce rework due to flux residue
Mates with Crane’s ATP, ATS Series sockets
STANDARD PART DIMENSIONS
MATING
P
A
POST LENGTH
FIRST
INSULATOR
SPACING
SECOND
INSULATOR
SPACING
Single Row
Dual Row
NOTE: Dimensions for P, A and B are
listed in the SELECTED OPTIONS chart
on the next page.
B
DUAL ROW (2 to 80 positions)
Single Row
0.096"/2,44mm
0.098"/2,49mm
0.015"/0,38mm
Dual Row
0.198"/5,03mm
0.098 /2,49mm
0.015"/0,38mm
INSULATOR BODY
W
H
S
WIDTH
HEIGHT
STANDOFF
PC TAIL
L
LENGTH
Single Row
0.125" / 3,18mm
MATERIALS
Dual Row
0.125" / 3,18mm
INSULATOR BODY
POST
Glass Filled Polyester (UL94V-O)
Phosphor Bronze
OPTIONAL HOLD DOWN PEGS (See Special Section In Website
Catalog)
Crane’s unique hold-down
pegs (top and bottom entry
available) secure part to the
PC board preventing
m isalignm ent during
handling or soldering.
See SPECIFICATIONS and PERFORMANCE DATA for more detail
SAMPLE HOTLINE: 1-800-676-7644
CRANE CONNECTORS
• 4700 Smith Road • Cincinnati, Ohio 45212 USA • E-mail Address: info@craneconnectors.com
Phone: (513) 631-4700 • Fax (513) 631-5700 • Toll Free US (800) 676-7644 • Canada (800) 420-7310
MPEG SERIES
0.100" (2,54mm) Centers
0.025" (0,64mm) Square
Mating Posts
PAGE TWO OF THREE
HOW TO ORDER CRANE’S MPEG SERIES
STANDARD PART NUMBER
--
--
PRODUCT SERIES
See note below for insulator options.
MPEG
TOTAL NUMBER OF POSITIONS
SINGLE
DUAL
0-40
02-80
NUMBER OF ROWS
SINGLE
DUAL
S
D
TYPE OF HEADER
RIGHT ANGLE
R
PLATING (Please Reference Plating Chart)
CHOOSE G, T or M, H, L, F
NOTE: Due to the number of options, not all platings are stocked for all lengths. Contact factory for availability.
TAIL (0.125" / 3,18mm)
COINED
KINKED
FINE
LINE*
SQUARE
0.028" / 0,71mm DIAGONAL
0.028" / 0,71mm DIAGONAL
0.018" / 0,46mm DIAGONAL
R
K
F
0.025" / 0,64mm SQUARE
Q
*NOTE: The Fine Line Option is not available in all pin lengths.
SELECTED OPTIONS
Many other sizes are available. Please call
1-800-676-7644 (or E-mail us at
info@craneconnectors.com)
and give us your exact requirements.
POST LENGTH
“P”
0.100" = F
0.100" = F
0.100" = F
0.100" = F
0.100" = F
0.125" = J
0.125" = J
0.125" = J
0.125" = J
0.125" = J
0.230" = B
0.230" = B
0.230" = B
0.230" = B
FIRST INSULATOR
SPACE “A”
0.100" = A
0.200" = F
0.200" = F
0.300" = M
0.100" = A
0.100" = A
0.100" = A
0.150" = C
0.300" = M
0.400" = Q
0.100" = A
0.150" = C
0.200" = F
0.300" = M
SECOND INSUATOR
SPACE “B”
0.200" = F
0.100" = A
0.200" = F
0.200" = F
0.400" = Q
0.150" = C
0.250" = I
0.200" = F
0.300" = M
0.200" = F
0.200" = F
0.150" = C
0.300" = M
0.200" = F
F
F
F
F
F
J
J
J
J
J
B
B
B
B
A
F
F
M
A
A
A
C
M
Q
A
C
F
M
F
A
F
F
Q
C
I
F
M
F
F
C
M
F
INSULATOR OPTION:
Standard insulator color is white. For black insulator, add a “B” (BMPEG) to the beginning of the standard part number. For
high temp plastic (black), add a “G” (GMPEG).
CRANE CONNECTORS - PLATING SPECIFICATIONS
PLATING OPTIONS
CONTACT AREA
Inches (Millimeters)
15
” (0,00038) gold
100
” (0,00254) Tin / Lead
50
” (0,00127) Gold
30
” (0,00076) Gold
10
” (0,00025) Gold
3
” (0,00008) Gold
PC TAIL
Inches (Millimeters)
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
UNDERPLATE
Inches (Millimeters)
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
G
T
M
H
L
F
Selective
Tin / Lead
Selective
Selective
Selective
Selective
STANDARD TAIL OPTIONS ON 0.100" (2,54mm) PIN STRIP HEADERS
STANDARDS
ISO9001
“R”
COINED
The standard “R”
option provides a
coined tail improving
solder action while
m a k i n g i n s e r ti o n
easier.
“K”
KINKED
The “K” option
provides a kinked tail,
reducing unwanted
movement on the PC
board.
“F”
FINE
The “F” option
combines an 0.018"
rounded tail with an
0.025" square post.
This fine line feature
allows more traces
between holes.
“Q”
SQUARE
The “Q” option
provides an 0.025"
square tail for use in
w i r e
w r a p
applications.
UL File No. E120111 (N)
Crane Connectors
File No. A-3620
Recognized to U.S. and
Canadian requirements
under the Component
Recognition Program of
Underwriters Laboratories
Inc.
Registered by UL to ISO9001
under UL’s accreditation by
Raad voor de Certificatie
(RvC), the Dutch Council for
Certification.
ENGINEERING NOTE:
The information presented in this catalog page is accurate to the best of our knowledge. Due to ongoing efforts to advance design and
material performance, the information is subject to change without notice.
SAMPLE HOTLINE: 1-800-676-7644
CRANE CONNECTORS
• 4700 Smith Road • Cincinnati, Ohio 45212 USA • E-mail Address: info@craneconnectors.com
Phone: (513) 631-4700 • Fax (513) 631-5700 • Toll Free US (800) 676-7644 • Canada (800) 420-7310
