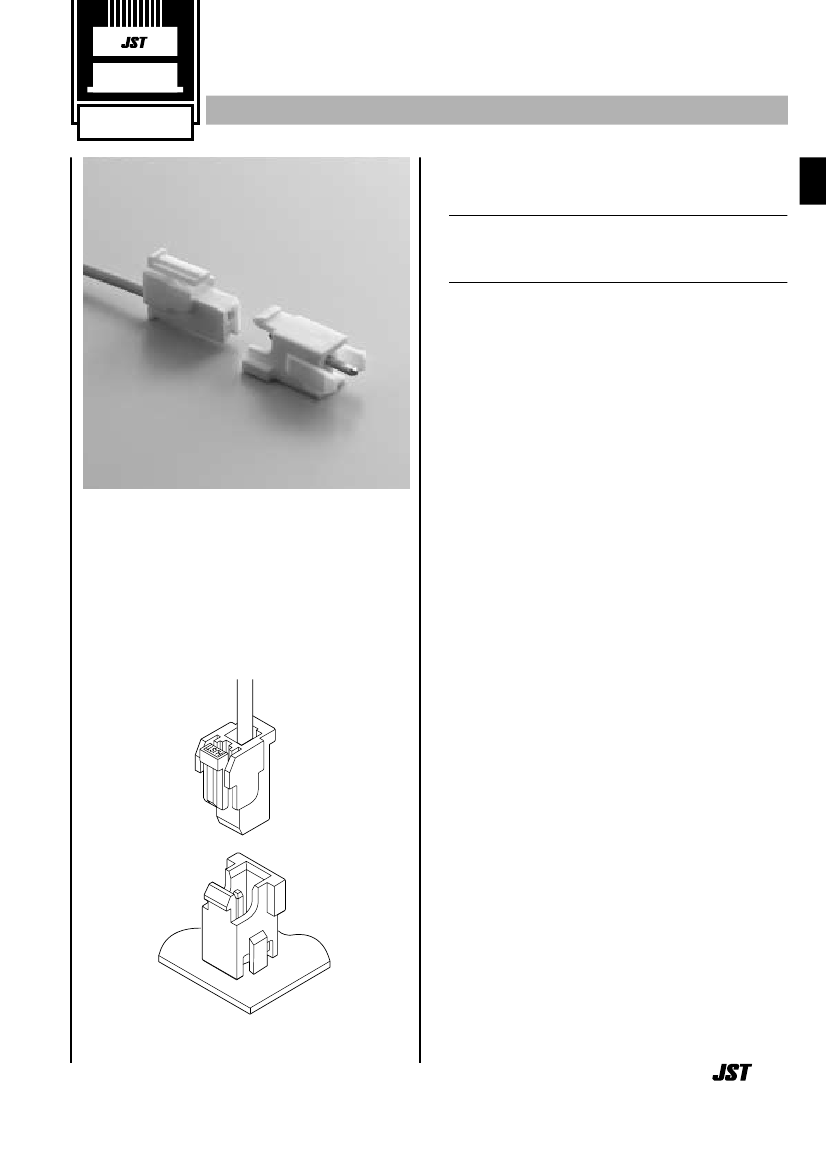

Crimp
VHJ
CONNECTOR
Disconnectable Crimp style connector for
Single-circuit
Features ––––––––––––––––––––––––
• Positioning boss (hook)
The header has a boss (hook) for easy positioning onto the PC
board.
• Locking device
The housing has a locking device which securely mates with
the header, preventing accidental disconnection resulting from
external forces such as the routing of wires during assembly
process or vibration.
The VHJ connector can be used with a
wide variety of signal, power supply, and
output circuits that appear in consumer
electronic products. With 10.6mm (.417")
depth and 18.6mm (.732") height after
assembly, this connector can be applied
to resin coated ("potted") PC boards.
Specifications –––––––––––––––––––
• Current rating: 7A AC, DC (AWG #18)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m Ω max.
After environmental testing/20m Ω max.
• Insulation resistance:
1,000M Ω min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: AWG #22 to #18
• Applicable PC board thickness: 1.6mm(.063")
* Contact JST for details.
185
VHJ
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
10.6(.417)
4.0(.157)
3.8(.150)
Applicable wire
mm
2
0.33 to 0.83
AWG#
22 to 18
Insulation O.D. mm(in.)
1.7 to 3.0(.067 to .118)
Q'ty / reel
4,500
SVH-21T-P1.1
3.0(.118)
Material and Finish
Phosphor bronze, tin-plated
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
1
Model No.
VHJR-1N
Material
Q'ty / bag
1,000
6.2(.244)
10.6(.417)
Nylon 6, UL94V-0, natural (white)
9.2(.362)
14.6(.575)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
VHJR-1N-o o-
(blank)…natural (white)
BK…black BL…blue R…red Y…yellow M…green D…orange
PK…pink
5.4(.213)
4.3(.169)
5.8(.228)
Locking header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
2
9.1(.358)
Model No.
B1P-VHJ
Material and Finish
Post: Copper alloy, copper-undercoated, tin/lead plated
Wafer: Nylon 66, UL94V-0, natural (white)
Q'ty / box
500
13.4(.528)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
B1P-VHJ-o o-
(blank)…natural (white)
BK…black BL…blue R…red Y…yellow M…green O…orange
PK…pink
1.14(.045)
8.0(.315)
186
4.0(.157)
VHJ
CONNECTOR
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
[10.6(.417)]
0.8
±
0.1 (.031
±
.004)
3.6
±
0.1 (.142
±
.004)
1.3
+0.1
0
(.051
+.004
)
0
1.3
+0.1
0
(.051
+.004
)
0
3.6
±
0.1
(.142
±
.004)
Note: Hole dimensions differ according to the kind of printed circuit board and piercing method. If printed circuit boards made of hard material such as FR-4 are
used, the hole dimensions should be larger. The hole dimensions shown above are reference values. Contact JST for details.
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SVH-21T-P1.1
Crimp applicator MKS-L
with safety cover
without safety cover
APLMK SVH21-11
APLNC SVH21-11
Compact crimp applicator MKS-LS
with safety cover
without safety cover
–
–
[3.0(.118)]
0
0
1.65
+0.1
(.065
+.004
) dia.
8.0
±
0.1
(.315
±
.004)
18.6(.732)
Strip-crimp applicator MKS-SC
with safety cover
APLSC SVH21-11
187
