Preliminary
GS816118/36CD-333/300/250
165-Bump BGA
Commercial Temp
Industrial Temp
Features
• IEEE 1149.1 JTAG-compatible Boundary Scan
• 2.5 V or 3.3 V +10%/–10% core power supply
• 2.5 V or 3.3 V I/O supply
• LBO pin for Linear or Interleaved Burst mode
• Internal input resistors on mode pins allow floating mode pins
• Byte Write (BW) and/or Global Write (GW) operation
• Internal self-timed write cycle
• Automatic power-down for portable applications
• JEDEC-standard 165-bump BGA package
1M x 18 and 512K x 36
18Mb Sync Burst SRAMs
333 MHz–250 MHz
2.5 V or 3.3 V V
DD
2.5 V or 3.3 V I/O
Flow Through/Pipeline Reads
The function of the Data Output register can be controlled by the
user via the FT mode pin (Pin 14). Holding the FT mode pin low
places the RAM in Flow Through mode, causing output data to
bypass the Data Output Register. Holding FT high places the
RAM in Pipeline mode, activating the rising-edge-triggered Data
Output Register.
SCD Pipelined Reads
The GS816118/36CD is a SCD (Single Cycle Deselect) pipelined
synchronous SRAM. DCD (Dual Cycle Deselect) versions are
also available. SCD SRAMs pipeline deselect commands one
stage less than read commands. SCD RAMs begin turning off
their outputs immediately after the deselect command has been
captured in the input registers.
Byte Write and Global Write
Byte write operation is performed by using Byte Write enable
(BW) input combined with one or more individual byte write
signals (Bx). In addition, Global Write (GW) is available for
writing all bytes at one time, regardless of the Byte Write control
inputs.
Sleep Mode
Low power (Sleep mode) is attained through the assertion (High)
of the ZZ signal, or by stopping the clock (CK). Memory data is
retained during Sleep mode.
Core and Interface Voltages
The GS816118/36CD operates on a 1.8 V power supply. All input
are 1.8 V compatible. Separate output power (V
DDQ
) pins are used
to decouple output noise from the internal circuits and are 1.8 V
compatible.

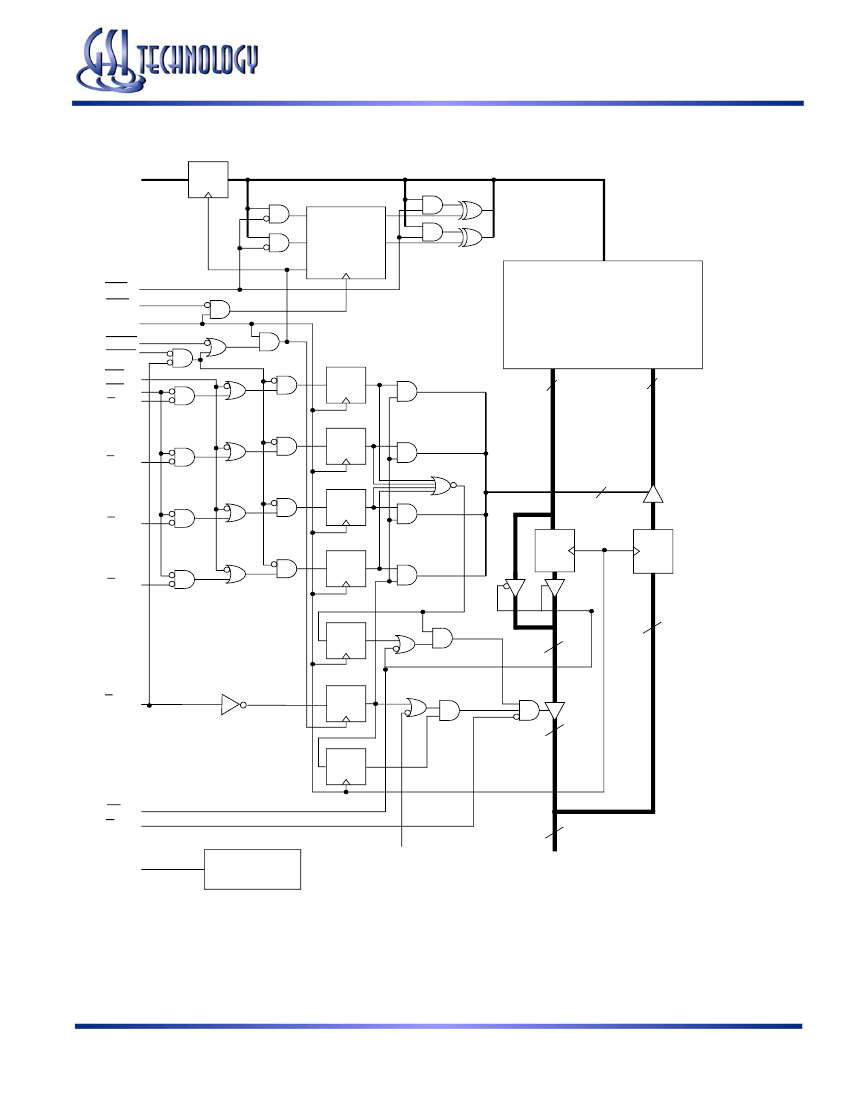

Functional Description
Applications
The GS816118/36CD is an 18,874,368-bit high performance
synchronous SRAM with a 2-bit burst address counter. Although
of a type originally developed for Level 2 Cache applications
supporting high performance CPUs, the device now finds
application in synchronous SRAM applications, ranging from
DSP main store to networking chip set support.
Controls
Addresses, data I/Os, chip enable (E1), address burst control
inputs (ADSP, ADSC, ADV) and write control inputs (Bx, BW,
GW) are synchronous and are controlled by a positive-edge-
triggered clock input (CK). Output enable (G) and power down
control (ZZ) are asynchronous inputs. Burst cycles can be initiated
with either ADSP or ADSC inputs. In Burst mode, subsequent
burst addresses are generated internally and are controlled by
ADV. The burst address counter may be configured to count in
either linear or interleave order with the Linear Burst Order (LBO)
input. The Burst function need not be used. New addresses can be
loaded on every cycle with no degradation of chip performance.
Parameter Synopsis
-333
Pipeline
3-1-1-1
t
KQ
tCycle
Curr
(x18)
Curr
(x32/x36)
t
KQ
tCycle
Curr
(x18)
Curr
(x32/x36)
2.5
3.0
375
435
4.5
4.5
280
335
-300
2.5
3.3
335
390
5.0
5.0
230
270
-250
2.5
4.0
280
330
5.5
5.5
210
240
Unit
ns
ns
mA
mA
ns
ns
mA
mA
Flow Through
2-1-1-1
Rev: 1.00 9/2004
1/29
© 2004, GSI Technology
Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.
Preliminary
GS816118/36CD-333/300/250
GS816118/36CD 165-Bump BGA Pin Description
Symbol
A
0
, A
1
A
DQ
A
DQ
B
DQ
C
DQ
D
B
A
, B
B
, B
C
, B
D
NC
CK
BW
GW
E
1
E
3
E
2
G
ADV
ADSC, ADSP
ZZ
FT
LBO
TMS
TDI
TDO
TCK
MCL
V
DD
V
SS
V
DDQ
Type
I
I
I/O
I
—
I
I
I
I
I
I
I
I
I
I
I
I
I
I
O
I
—
I
I
I
Description
Address field LSBs and Address Counter Preset Inputs
Address Inputs
Data Input and Output pins
Byte Write Enable for DQ
A
, DQ
B
, DQ
C
, DQ
D
I/Os; active low
No Connect
Clock Input Signal; active high
Byte Write—Writes all enabled bytes; active low
Global Write Enable—Writes all bytes; active low
Chip Enable; active low
Chip Enable; active low
Chip Enable; active high
Output Enable; active low
Burst address counter advance enable; active l0w
Address Strobe (Processor, Cache Controller); active low
Sleep mode control; active high
Flow Through or Pipeline mode; active low
Linear Burst Order mode; active low
Scan Test Mode Select
Scan Test Data In
Scan Test Data Out
Scan Test Clock
Must Connect Low
Core power supply
I/O and Core Ground
Output driver power supply
