MKH5146-1-0-1600 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MKH5146-1-0-1600

MKH5146-1-0-1600: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking Mech, Receptacle; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MKH5146-1-0-1600 Overview

Board Connector, 16 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking Mech, Receptacle

MKH5146-1-0-1600 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPATIBLE CONTACT: RFB7808V0.6-0.5, POLARIZATION AVAILABLE
body width	0.236 inch
subject depth	0.669 inch
body length	1.669 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	POLYCARBONATE
MIL compliance	NO
Manufacturer's serial number	MKH5130
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL,VDE
reliability	COMMERCIAL
Terminal length
Termination type	CRIMP
Total number of contacts	16
Maximum wire diameter	20 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

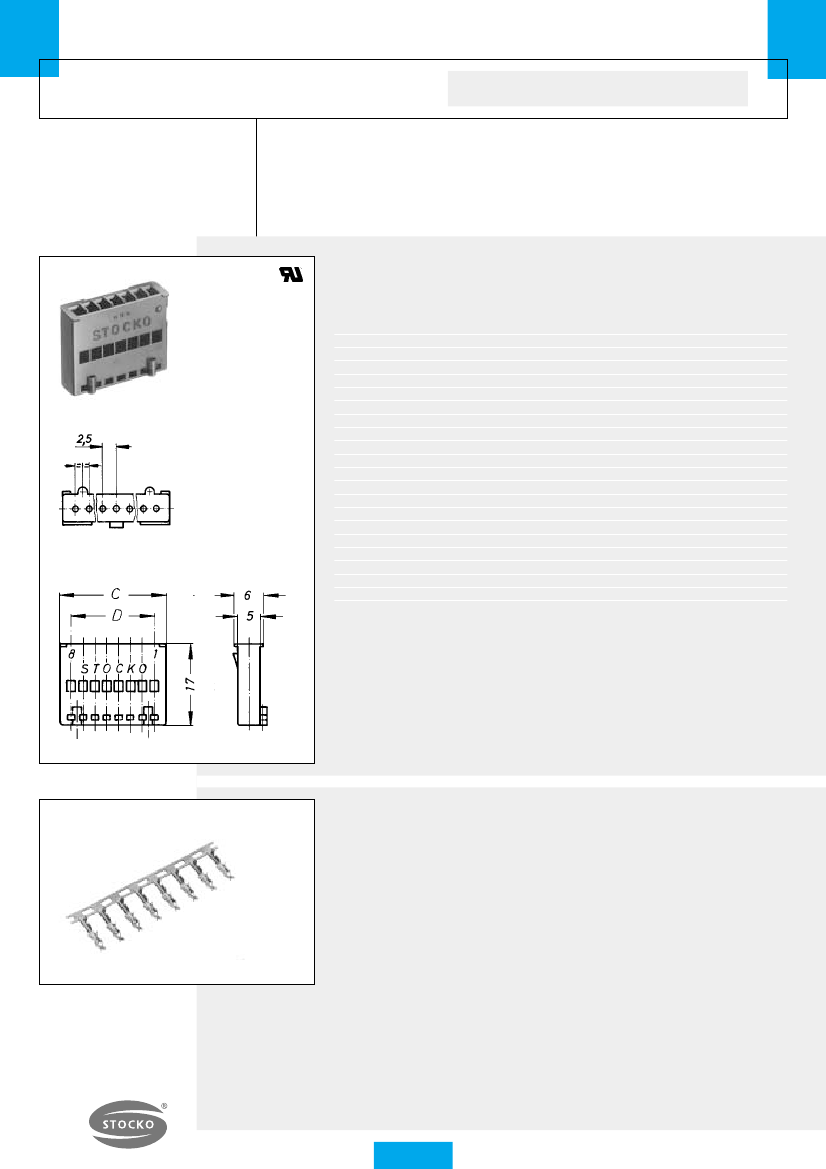

Serie / Series

edergehäuse

F edergehäuse mit Crimpanschluß

Housings with crimp connection

MKH 5130

Serie MKH 5130 für Einzelleiter

Series MKH 5130 for discrete wire

Polzahl

Positions

Artikel-Nummer

Part number

MKH

5131 - 1 - 0 - 200

5132 - 1 - 0 - 200

5133 - 1 - 0 - 300

5134 - 1 - 0 - 400

5135 - 1 - 0 - 500

5136 - 1 - 0 - 600

5137 - 1 - 0 - 700

5138 - 1 - 0 - 800

5139 - 1 - 0 - 900

5140 - 1 - 0 - 1000

5141 - 1 - 0 - 1100

5142 - 1 - 0 - 1200

5143 - 1 - 0 - 1300

5144 - 1 - 0 - 1400

5145 - 1 - 0 - 1500

5146 - 1 - 0 - 1600

5147 - 1 - 0 - 1700

5148 - 1 - 0 - 1800

5149 - 1 - 0 - 1900

5150 - 1 - 0 - 2000

Abmessungen C

Dimensions C

7,5

5,7

9,9

12,4

14,9

17,4

19,9

22,4

24,9

27,4

29,9

32,4

34,9

37,4

39,9

42,4

44,9

47,4

49,9

52,4

Abmessungen D

Dimensions D

2,5

5,0

7,5

10,0

12,5

15,0

17,5

20,0

22,5

25,0

27,5

30,0

32,5

35,0

37,5

40,0

42,5

45,0

47,5

Crimpfeder

RFB 7808 V 0,6 - 0,5 für Leiterquerschnitt 0,07 - 0,5 mm

mit Isolationsdurchmesser max. 1,9 mm.

Crimp contact

RFB 7808 V 0.6 - 0.5 for 0.07 - 0.5 mm

wire size,

max. insulation diameter 1.9 mm.
