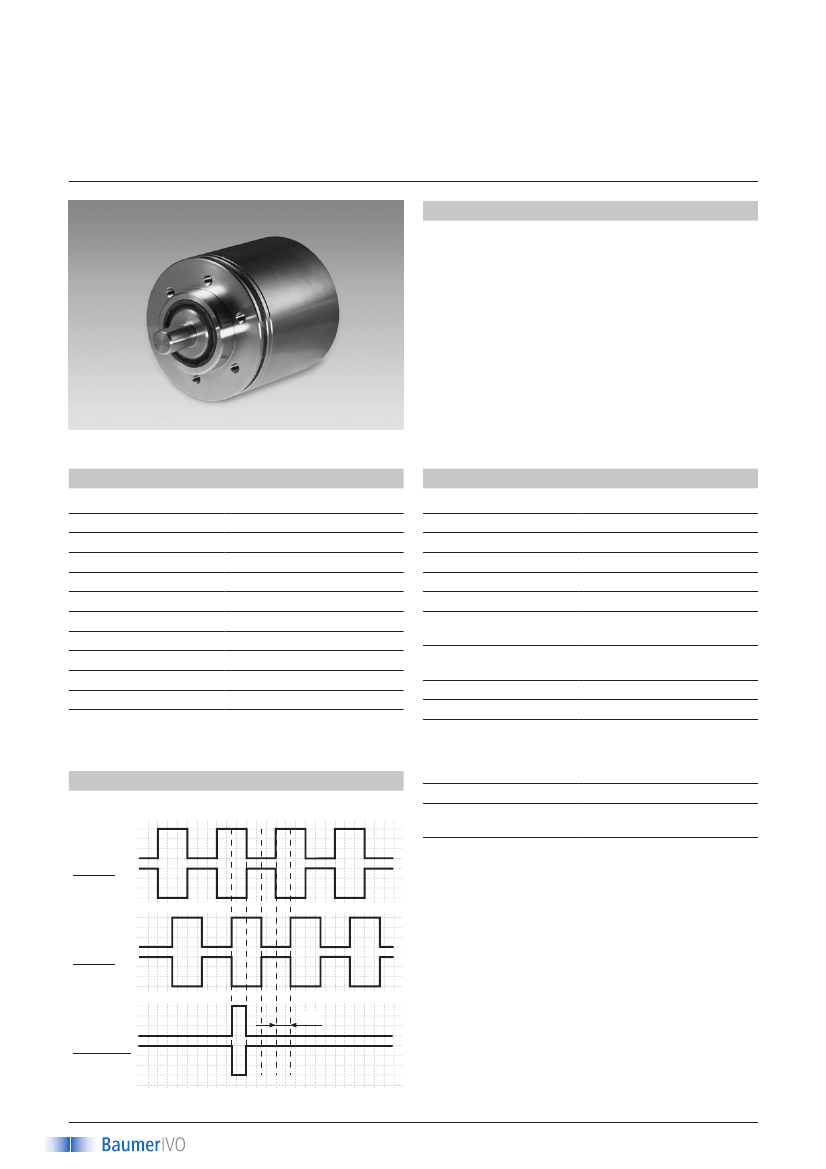

Incremental encoders
EX approval ATEX EEx d IIC T4
Resolution 5...5000 pulses
X 700 - incremental
Features
– Encoder incremental / ATEX
– Optical sensing
– Resolution max. 5000 ppr
–
Clamping flange / shaft ø10 mm
–
Explosion-proof in line with EEx d IIC T4
–
Area of application: EX I/II 2 GD / ATEX 133213X
– Material stainless steel
X 700 with EX-proof housing
Technical data - electrical ratings
Voltage supply
Consumption w/o load
Resolution (steps/turn)
Reference signal
Sensing method
Output frequency
Output signals
Output circuit
Interference immunity
Emitted interference
4.75...30 VDC
≤50 mA
5...5000
Zero pulse, width 90°
Optical
≤300 kHz
A 90° B, N + inverted
Push-pull short-circuit proof
DIN EN 61000-6-2
DIN EN 61000-6-4
Reverse polarity protection Yes
Technical data - mechanical design
Housing
Shaft
Flange
Protection DIN EN 60529
Operating speed
Starting torque
Admitted shaft load
Materials
Operating temperature
Relative humidity
Resistance
ø70 mm
ø10 mm (clamping flange)
Clamping flange
IP 67
≤6000 rpm
≤0.04 Nm
≤60 N axial
≤50 N radial
Housing: stainless steel
Flange: stainless steel
-25...+70 °C
95 % non-condensing
DIN EN 60068-2-6
Vibration 10 g, 12-2000 Hz
DIN EN 60068-2-27
Shock 100 g, 6 ms
1300 g
Cable 2 m (other length upon
request)
Output signals
Clockwise rotating direction when looking at flange.
Track A
Track A
Weight approx.
E-connection
Track B
Track B
90°
Zero pulse
Zero pulse
Optional: other reference impulse.
1
www.baumerivo.com
29/10/2008
Subject to modification in technic and design. Errors and omissions excepted.
EX approval ATEX EEx d IIC T4
Resolution 5...5000 pulses
Incremental encoders
X 700 - incremental
Part number
X 700.I
1
See part number (pulses)
E-connection
32 Cable 2 m, axial
34 Cable 5 m, axial
Voltage supply / signals
1
4.75...30 VDC / push-pull
2
5 VDC / RS422
Flange / Shaft
1
Clamping flange / ø10 mm IP 67
Part number (pulses)
49
36
50
39
(5)
(10)
(25)
(50)
40
41
57
06
(60)
(100)
(128)
(200)
09
13
14
15
(250)
(360)
(400)
(500)
22
23
26
28
(1000)
(1024)
(1500)
(2000)
Terminal assignment
Core no.
#1
#2
#3
#4
#5
#6
#7
#8
Trigger level
Outputs
Output level High
Output level Low
Load High
Load Low
Push-pull
short-circuit proof
>UB -1.4 V (I = -20 mA)
<0.5 V (I = 20 mA)
<20 mA
<20 mA
Core colour
white
brown
green
yellow
grey
pink
blue
red
Assignment
GND
UB
Track A
Track B
Track N
Track A inv.
Track B inv.
Track N inv.
Other pulse numbers upon request.
Example: ordering key 23 = 1024 pulses
Dimensions
~40
ø50
M5x10 (6x60°)
68
10 (21.5)
20
15
3
3
www.baumerivo.com
2
29/10/2008
Subject to modification in technic and design. Errors and omissions excepted.
ø10 g6
ø40 g6
ø30
ø64
ø70
9.5
