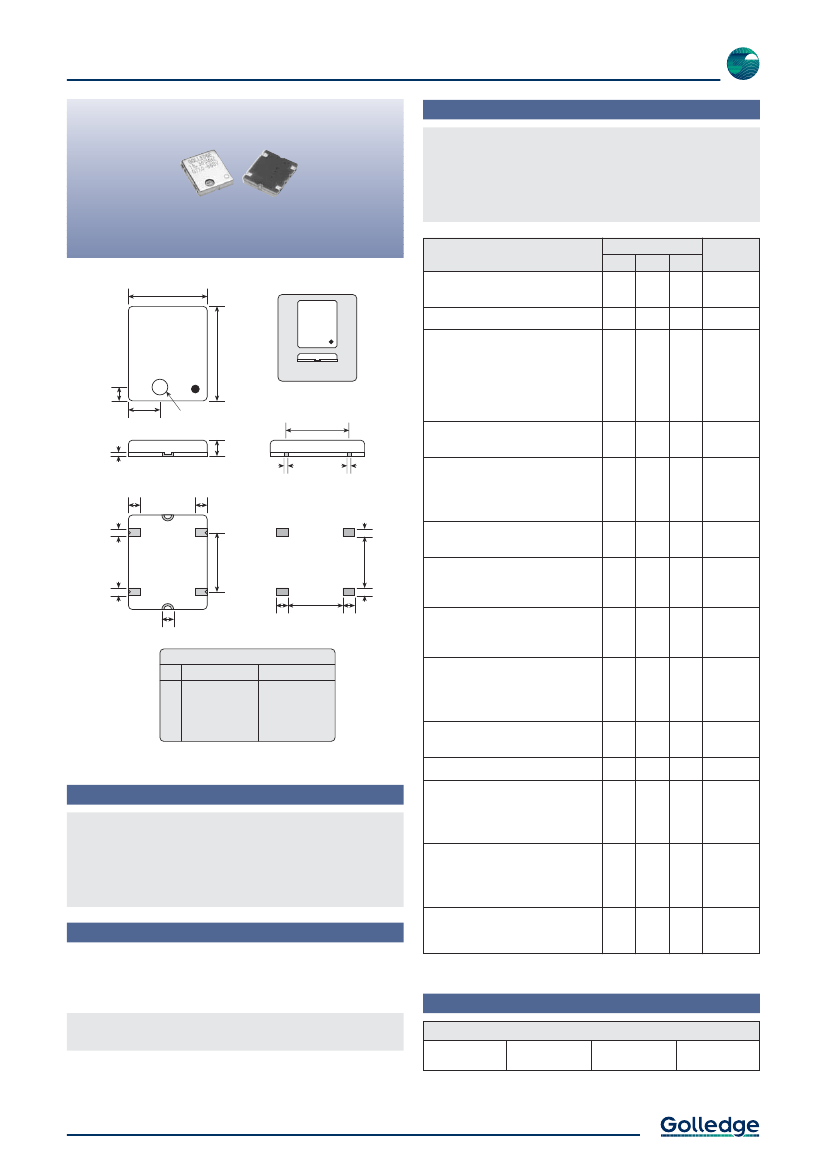

3V & 5V SM TCXO Clipped Sine
Specifications
GTXO-560
GTXO-560T: Internal trimmer
GTXO-560V: Voltage adjustment + trimmer
GTXO-560N: Voltage adjustment, no trimmer
Parameters
9.90
(max)
Variant
T
V
N
Option
Codes
Package style:
with trimmer
without trimmer
Frequency range:
10.0 ~ 40.0MHz
11.80
(max)
ACTUAL SIZE
1.75
(typ)
3.55
(typ)
0.50
Trimmer access hole 2.20Ø
(T and V variants)
2.00
(max)
0.70
1.30
1.00
4
1
7.62
1.00
3
2
1.90
1.40
CONNECTION
PAD
1
2
3
4
Variant T
Not connected
Ground
Output
Supply
Variants V & N
Freq adjustment
Ground
Output
Supply
4
6.50
TOP VIEW
1
1.40
1.90
3
2
6.22
1.30
0.70
7.62
Frequency stability:
±2.5ppm over -40 to +85°C
±2.5ppm over -30 to +75°C
±2.0ppm over -30 to +75°C
±1.5ppm over -20 to +70°C
±1.0ppm over -20 to +70°C
Storage temperature range:
-40 to +85°C
Frequency vs supply voltage:
±0.3ppm (<22.0MHz)
±0.5ppm (<28.0MHz)
±1.0ppm (<40.0MHz)
Frequency vs load change:
±0.3ppm (10k ±10%//10pF±10%)
Ageing (1st yr):
±1.0ppm (<22.0MHz)
±1.5ppm (<28.0MHz)
±2.0ppm (<40.0MHz)
Supply voltage (V
DD
):
+3.0V (±5%)
+3.3V (±5%)
+5.0V (±5%)
Supply current:
2.0mA max (<22.0MHz)
3.0mA max (<28.0MHz)
4.0mA max (<40.0MHz)
Output waveform:
Clipped sine, 0.8V p-p typ
Scale 2:1
Test load:
10k
// 10pF
K
H
G
F
SOLDER PAD LAYOUT
1.40
M
P
Features
«
«
«
3.0V to 5.0V supply, low power consumption
Stabilities down to ±1.0ppm
Industrial temperature range option
Frequency adjustment:
±3ppm min by internal trimmer
±5.0 ~ ±10.0ppm
±8.0 ~ ±14.0ppm
Control voltage range:
+1.5V ±1.0V (3.0V supply)
+1.65V ±1.35V (3.3V supply)
+2.5V ±2.0V (5.0V supply)
Preset frequency:
±0.5ppm / +25°C ±2°C
±2.0ppm / +25°C ±2°C
Standard.
Optional - Please specify required code(s) when ordering
Ordering Information
Product name + variant + option codes (if any) + frequency
eg:
GTXO-560V 13.0MHz
±2.5ppm -30+75°C, 3V supply (standard)
GTXO-560V/GP 13.0MHz
±1.5ppm-20+70°C, 5V supply
Option code X (eg GTXO-560V/X) denotes a custom spec.
Available on T&R - 2k pcs per reel.
Refer to our website for T&R and soldering details.
Standard Frequencies
Frequencies in MHz
10.00000
12.80000
13.00000
14.40000
15.36000
16.00000
19.20000
20.00000
Tel:
+44 1460 256 100
19 Aug 2003
Fax:
+44 1460 256 101
E-mail:
sales@golledge.com
Web:
www.golledge.com
