B04B-DVS-L: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size200KB，3 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

B04B-DVS-L Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

B04B-DVS-L Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TOP ENTRY
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

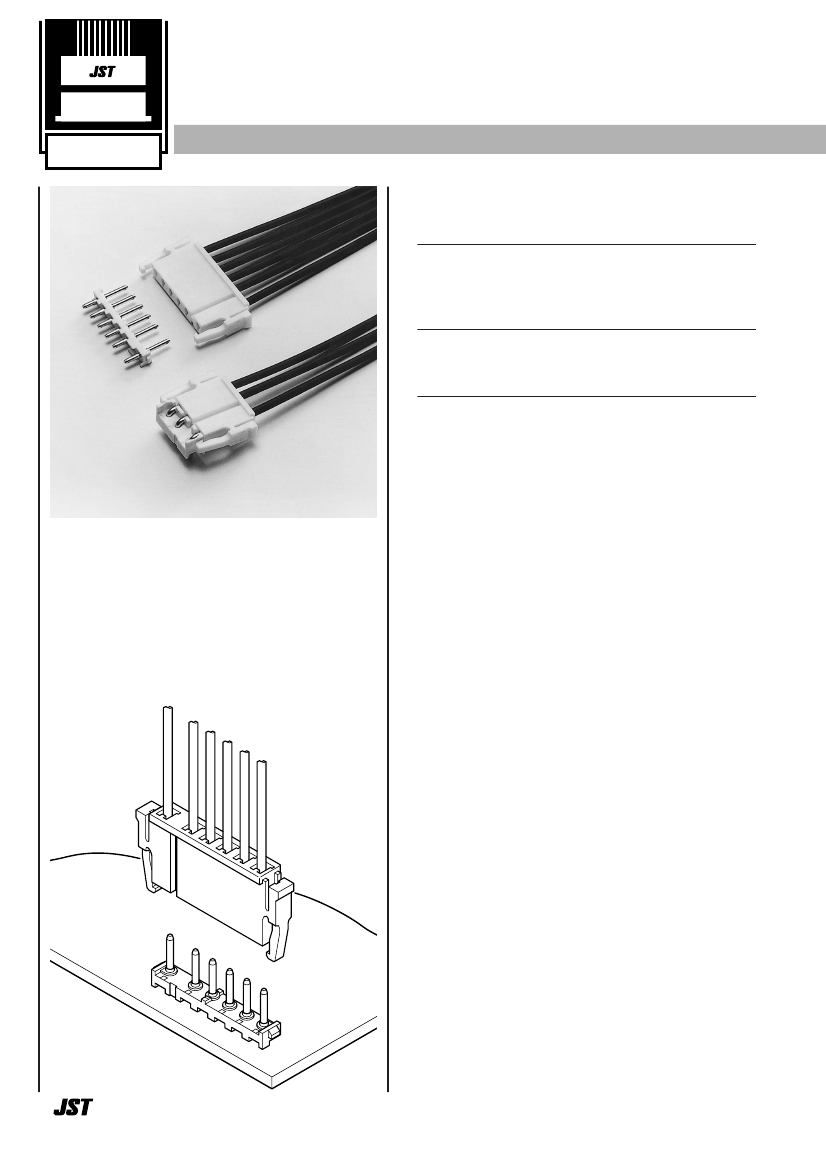

Crimp

CONNECTOR

Disconnectable Crimp style connectors

Features ––––––––––––––––––––––––

• Secure mounting

The housing look feature secures the connector with the

header, ensuring that a stable connection is maintained during

vibration.

5.0mm

pitch

• Twin-beam contacts

Each contact has two wiping areas, ensuring a stable and

reliable connection.

• Housing lances

The lances on the resilient housing ensure each insertion and

secure locking of the contact into housing.

One position has a different pitch than the

others. This provides the connector with

polarization and prevents misinsertion.

Specifications –––––––––––––––––––

• Current rating: 5A AC, DC (AWG #20)

• Voltage rating: 250V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/10m

Ω

max.

After environmental testing/20m

Ω

max.

• Insulation resistance: 1,000M

Ω

min.

• Withstanding voltage: 1,500V AC/minute

• Applicable wire: AWG #24 to #20

0.22 to 0.5mm

• Applicable PC board thickness: 1.6mm

* Compliant with RoHS.

* Temperature Range:

The aforementioned temperature range of this connector is

described in JST Standard Product Specification.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––––

Recognized E60389

Certified LR20812

B04B-DVS-L Related Products

	B04B-DVS-L	B02B-DVS-L(LF)	B02B-DVS-L	B03B-DVS-L	B05B-DVS-L	B06B-DVS-L	S02B-DVS-L	S03B-DVS-L	DVR-05V-S	DVR-06V-S
Description	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	conn DV 2 pos top entry	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 5 Contact(s), 1 Row(s), Female, Crimp Terminal, ROHS COMPLIANT	Board Connector, 6 Contact(s), 1 Row(s), Female, Crimp Terminal, ROHS COMPLIANT
Is it lead-free?	Contains lead	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Lead free	Lead free
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	conform to	conform to
Reach Compliance Code	unknown	-	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TOP ENTRY	-	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	SIDE ENTRY	SIDE ENTRY	COMPATIBLE CONTACT: SDY-01T-P1.6ASV	COMPATIBLE CONTACT: SDY-01T-P1.6ASV
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	-	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	-	-
Contact point gender	MALE	-	MALE	MALE	MALE	MALE	MALE	MALE	FEMALE	FEMALE
Contact material	BRASS	-	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	-	e3	e3	e3	e3	e3	e3	-	-
MIL compliance	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	-	-
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	CABLE	CABLE
Number of rows loaded	1	-	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	5 mm	-	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	-	-
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	CRIMP	CRIMP
Total number of contacts	4	-	2	3	5	6	2	3	5	6
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
