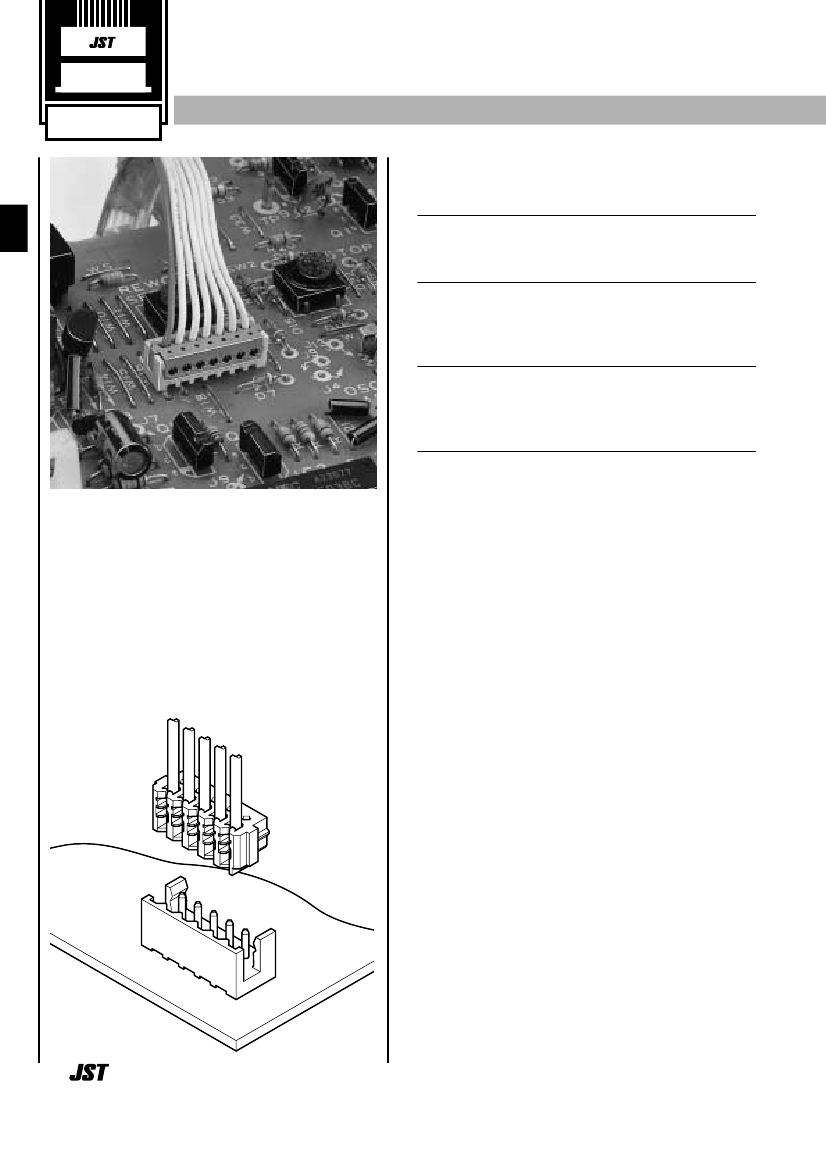

IDC
DR
CONNECTOR
• Compact
2.0mm
(.079") pitch
Disconnectable Insulation displacement connectors
Features–––––––––––––––––––––––
This connector measures 2.0mm (.079") in pitch, 5.0mm
(.197") in mounting height, and 4.8mm (.189") in thickness.
• Twin U-slot insulation displacement section
The insulation displacement section connected to each wire
consists of two tin-plated slots (twin U-slots), which ensures
reliable connection.
• Folded beam double-leaf contact construction
As contact become smaller, their spring strength is reduced.
To solve this problem, a folded beam construction is
employed to increase contact spring strength.
• Strain relief
A strain relief secures the wire insulation to protect the
insulation displacement connection against vibration, impact
and other external forces. A triangular projection on the
shrouded header functions to prevent connector distortion
during connection and disconnection, to reinforce the strain
relief and to prevent the conductor of the insulation
displacement section from being exposed.
Measuring 2.0mm (.079") in pitch, only
5.0mm (.197") in mounting height, and
4.8mm (.189") in thickness, the DR
connector is a compact insulation
displacement connector developed to
meet the needs for miniaturization of
electronic equipment, including VCRs,
cameras and car stereo systems.
Specifications –––––––––––––––––––
• Current rating: 1.0A AC, DC (AWG #26)
• Voltage rating: 100V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m Ω max.
After environmental testing/20m Ω max.
• Insulation resistance:
1,000M Ω min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: UL1571, 1061(Contact JST for details
regarding other UL wires.)
AWG #28, #26
Conductor/7 strands, tin-coated
Insulation O.D./0.9 to 1.0mm(.035" to .039")
• Applicable PC board thickness: 1.2 to 1.6mm(.047" to .063")
* Contact JST for details.
JS
T
T
JS
Standards ––––––––––––––––––––––
248
0
1
Recognized E60389
Certified LR20812
DR
Model No.
Cir-
cuits
2
CONNECTOR

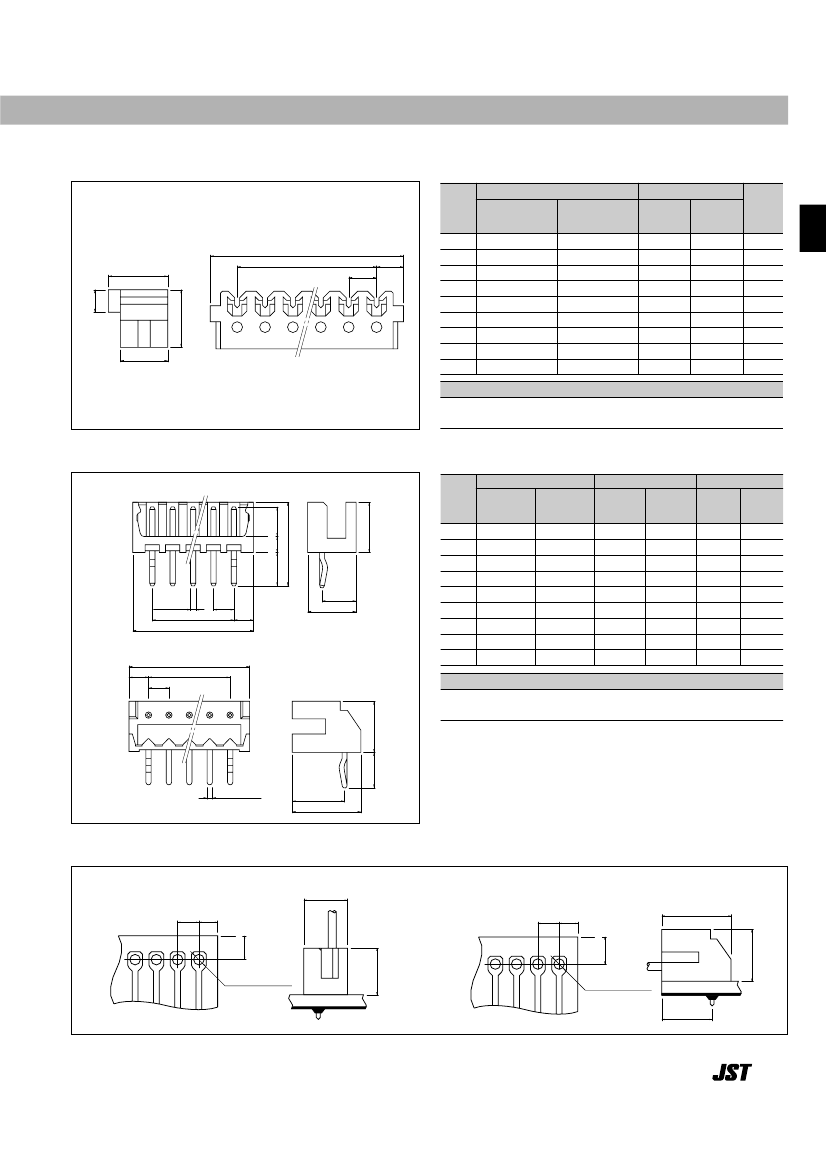

Receptacle –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Dimensions mm(in.)
A
2.0(.079)
4.0(.157)
6.0(.236)
8.0(.315)
10.0(.394)
12.0(.472)
14.0(.551)
16.0(.630)
18.0(.709)
AWG #28
(blue)
02DR-N-E8E
03DR-N-E8E
04DR-N-E8E
05DR-N-E8E
06DR-N-E8E
07DR-N-E8E
08DR-N-E8E
09DR-N-E8E
10DR-N-E8E
AWG #26
(natural/white)
02DR-N-E6S
03DR-N-E6S
04DR-N-E6S
05DR-N-E6S
06DR-N-E6S
07DR-N-E6S
08DR-N-E6S
09DR-N-E6S
10DR-N-E6S
B
6.0(.236)
8.0(.315)
10.0(.394)
12.0(.472)
14.0(.551)
16.0(.630)
18.0(.709)
20.0(.787)
22.0(.866)
Q'ty /
box
2,000
2,000
1,000
1,000
1,000
1,000
1,000
500
500
B
A
4.3(.169)
1.9
(.075)
2.0(.079)
2.0(.079)
3
4
5
4.3(.169)
6
7
JST 8
3.4(.134)
8
9
10
Material and Finish
Contact: Phosphor bronze, tin-plated
Housing: Nylon 66, UL94V-0
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
3.5
1.6 3.0
(.138) (.063) (.118)
8.5(.335)
5.0(.197)
Model No.
Cir-
cuits
2
3
4
5
3.4
(.134)
4.8(.189)
Dimensions mm(in.)
A
2.0(.079)
4.0(.157)
6.0(.236)
8.0(.315)
10.0(.394)
12.0(.472)
14.0(.551)
16.0(.630)
18.0(.709)
Top entry
type
B02-DR
B03-DR
B04-DR
B05-DR
B06-DR
B07-DR
B08-DR
B09-DR
B10-DR
Side entry
type
S02B-DR
S03B-DR
S04B-DR
S05B-DR
S06B-DR
S07B-DR
S08B-DR
S09B-DR
S10B-DR
B
6.0(.236)
8.0(.315)
10.0(.394)
12.0(.472)
14.0(.551)
16.0(.630)
18.0(.709)
20.0(.787)
22.0(.866)
Top
entry
type
2,000
1,000
1,000
1,000
500
500
500
500
500
Q'ty / box
Side
entry
type
1,000
1,000
1,000
1,000
500
500
500
500
500
0.5
(.020)dia.
A
B
2.0
(.079) 2.0
(.079)
6
7
8
9
10
Side entry type
B
2.0(.079)
A
2.0(.079)
JST 8
0.5(.020)dia.
5.4(.213)
6.9(.272)
Material and Finish
5.0(.197)
Pin: Brass, copper-undercoated, tin/lead-plated
Wafer: Nylon 66, UL94V-0, ivory
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
Top entry type
2.0
±
0.05 2.0
(.079
±
.002) (.079)
min.
3.4
(.134)
min.
4.8
(.189)
3.5(.138)
Side entry type
2.0
±
0.05 2.0
(.079
±
.002) (.079)
min.
5.4
(.213)
min.
6.9(.272)
0.75
±
0.05
(.030
±
.002)dia.
5.0(.197)
0.75
±
0.05
(.030
±
.002)dia.
5.4(.213)
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002" ) for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline.
Contact JST for details.
5.0(.197)
249
