CR101-JP-G-S1-15-QF-6: DescriptionROCKER SWITCH,STRAIGHT,SPDT,ON-ON,QUICK CONNECT TERMINAL,ROCKER; CategoryMechanical and electronic products switch; File Size227KB，4 Pages; ManufacturerC&K

Download Datasheet Parametric View All

CR101-JP-G-S1-15-QF-6 Overview

ROCKER SWITCH,STRAIGHT,SPDT,ON-ON,QUICK CONNECT TERMINAL,ROCKER

CR101-JP-G-S1-15-QF-6 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Actuator color	GREEN
Executor completed	MATTE
Actuator length	0.217 inch
Actuator material	POLYCARBONATE
Actuator type	ROCKER
body height	14.5034 mm
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	16A@125VAC
Maximum contact current (AC)	16 A
Contact function	ON-ON
Maximum contact voltage (AC)	125 V
Dielectric withstand voltage	1500VRMS V
Electrical life	10000 Cycle(s)
End contact plating	SILVER
Shell material	NYLON
illumination	LED
Insulation resistance	100000000 Ω
Manufacturer's serial number	CR
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
surface mount	NO
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal length	0.319 inch
Terminal material	COPPER ALLOY
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

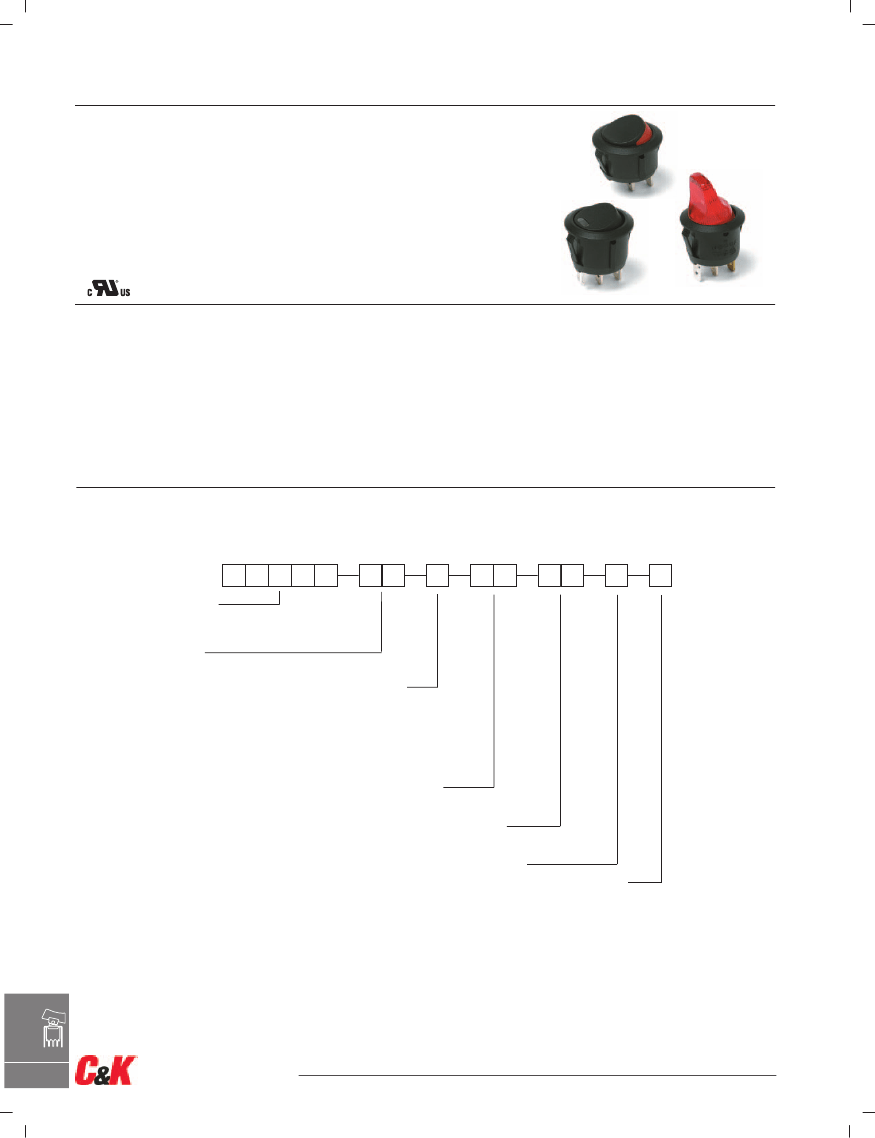

CR Series

Round Single Pole Specialty Rocker Switches

Features/Benefits

•

Round actuator and body

•

Nice styling

•

Multiple illuminated versions

available

•

IP65 splash proof rubber

boot option

UL 61058-1

Specifications

Typical Applications

•

Appliances, small and large

•

Office equipment

•

Computers and peripherals

•

Audio/Video equipment

•

RoHS compliant

Materials

HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), matte finish.

ILLUMINATED ACTUATOR: Polycarbonate, matte finish.

CENTER CONTACTS: Silver plated, copper alloy.

END CONTACTS: Silver plated AgSn02ln03.

ALL TERMINALS: Silver plated, copper alloy.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

CONTACT RATING:

16 AMPS @ 125 VAC, 10 AMPS @ 250 VAC.

ELECTRICAL LIFE: 10,000 make and break cycles at full load.

INSULATION RESISTANCE: 108

Ω

min.

DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.

OPERATING TEMPERATURE: -20ºC to + 85ºC

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown

and described on pages G–83 through G–85. For additional options not shown in catalog, consult Customer Service Center.

Switch Function

CR101

SPDT On-None-On

CR102

SPST On-None-Off

Actuator

Rocker

J2*

Two-tone rocker

Illuminated rocker

J4**

Circle, illuminated rocker

Oval, illuminated rocker

Paddle, rocker

Paddle, illuminated rocker

Actuator Color

Black

White

Red

Red, illuminated

Amber, illuminated

Green, illuminated

Mounting Style/Color

Snap-in, black

Snap-in, white

Termination

.187” quick connect

Contact Rating

Silver

Rocker

Lamp Rating

(NONE)

No lamp

LED

125 VAC neon

250 VAC neon

Refer to table on page 84 for actuator options.

G–78

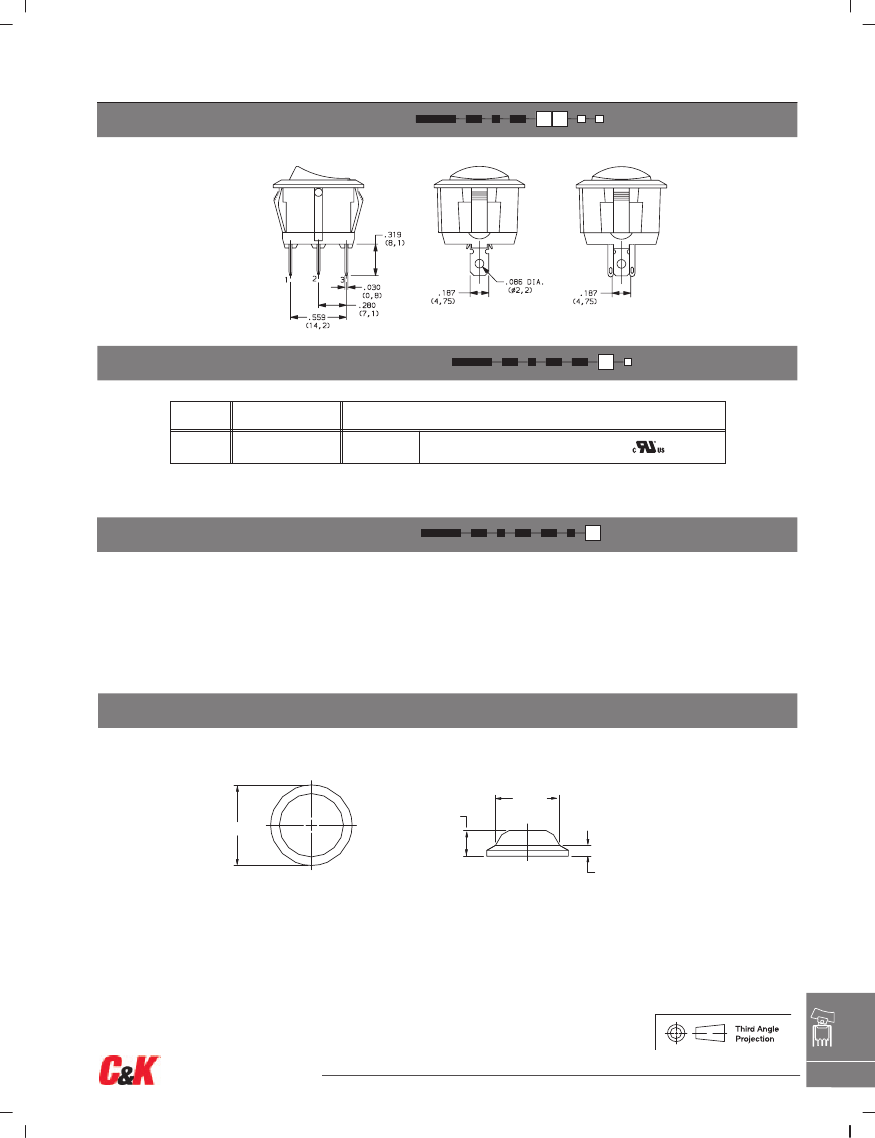

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

www.ck-components.com
