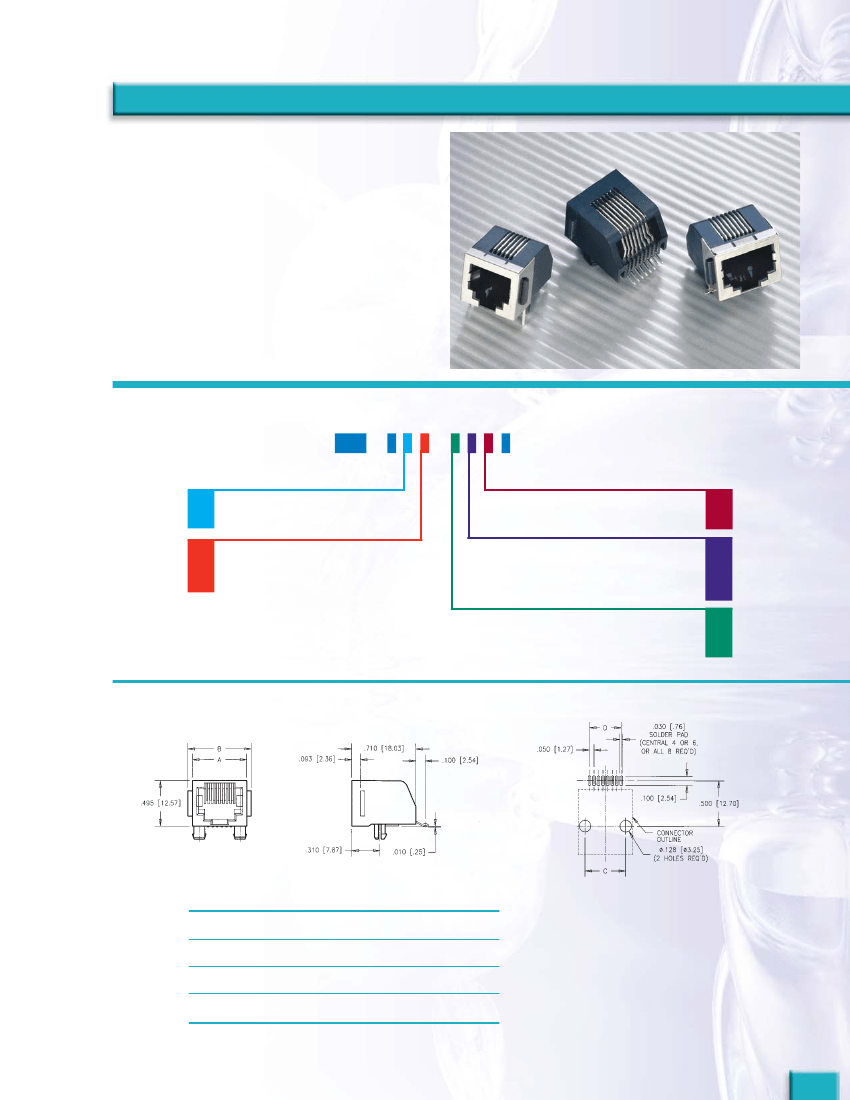

RJA07 Series
SURFACE MOUNT - SINGLE PORT
Specifications
MATERIAL
Housing:
Contacts:
Contact Plating:
Shield:
High Temperature Resistant Nylon
Flammability Rating UL94V-0
Phosphor Bronze
Gold Over Nickel On Mating
Area, Tin-Lead Alloy On Tails
Copper Alloy, Tin-Lead Alloy Plated
E136228
ELECTRICAL
UL File # :
Ordering Information
RJA07
–
1 X X
–
X X X 0
X
NUMBER OF POSITIONS
8 - 8 position
6 - 6 position
NUMBER OF CONTACTS
8 - 8 contacts (8 position)
6 - 6 contacts (6 position)
4 - 4 contacts (6 position)
OPTIONS
1 - without flanged
2 - flanged (must be flanged for ‘shield’ option)
GOLD PLATING
1 - 6 µ inches gold (0.15 microns)
2 - 15 µ inches gold (0.38 microns)
3 - 30 µ inches gold (0.76 microns)
4 - 50 µ inches gold (1.27 microns)
SHIELDING
0 - no shield
2 - through hole shield
3 - surface mount shield
X
X
X
X
NON-SHIELDED

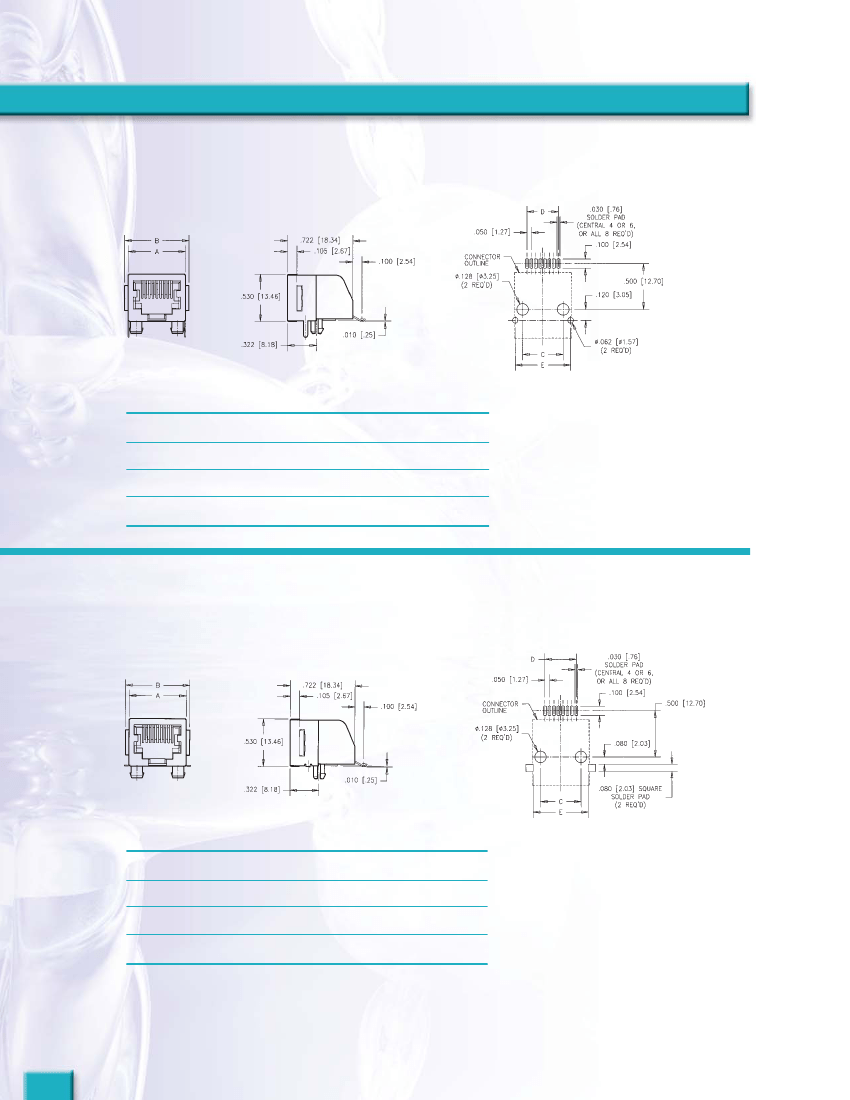

PCB LAYOUT
Number
Number of
of positions contacts
6
4
6
8
6
8
A
.520
[13.21]
.520
[13.21]
.600
[15.24]
B
.620
[15.75]
.620
[15.75]
.700
[17.78]
C
.400
[10.16]
.400
[10.16]
.450
[11.43]
D
.150
[3.81]
.250
[6.35]
.350
[8.89]
Amphenol
®
Canada Corp. Telephone: (416) 754-5656 Fax: (416) 754-8668 E-mail: sales@amphenolcanada.com
23
RJA07 Series
SURFACE MOUNT - SINGLE PORT
Through Hole Shield
PA R T I A LY S H I E L D E D
PCB LAYOUT
Number
Number of
of positions contacts
6
4
6
8
6
8
A
.544
[13.83]
.544
[13.21]
.624
[15.24]
B
.620
[15.75]
.620
[15.75]
.700
[17.78]
C
.400
[10.16]
.400
[10.16]
.450
[11.43]
D
.150
[3.81]
.250
[6.35]
.350
[8.89]
E
.533
[13.54]
.533
[13.54]
.613
[15.57]
Surface Mount Shield
PA R T I A LY S H I E L D E D
PCB LAYOUT
Number
Number of
of positions contacts
6
4
6
8
6
8
A
.544
[13.83]
.544
[13.21]
.624
[15.24]
B
.620
[15.75]
.620
[15.75]
.700
[17.78]
C
.400
[10.16]
.400
[10.16]
.450
[11.43]
D
.150
[3.81]
.250
[6.35]
.350
[8.89]
E
.533
[13.54]
.533
[13.54]
.613
[15.57]
24
