DMD4FRA111: DescriptionCircular DIN Connector, 4 Contact(s), Female, Board Mount, Solid Lead Terminal,; CategoryThe connector The connector; File Size101KB，2 Pages; ManufacturerSwitchcraft

Download Datasheet Parametric Compare View All

DMD4FRA111 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DMD4FRA111	-	-	View	Buy Now

DMD4FRA111 Overview

Circular DIN Connector, 4 Contact(s), Female, Board Mount, Solid Lead Terminal,

DMD4FRA111 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	FEMALE
DIN compliance	YES
Electromagnetic interference shielding	YES
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	DMD
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SOLID LEAD
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

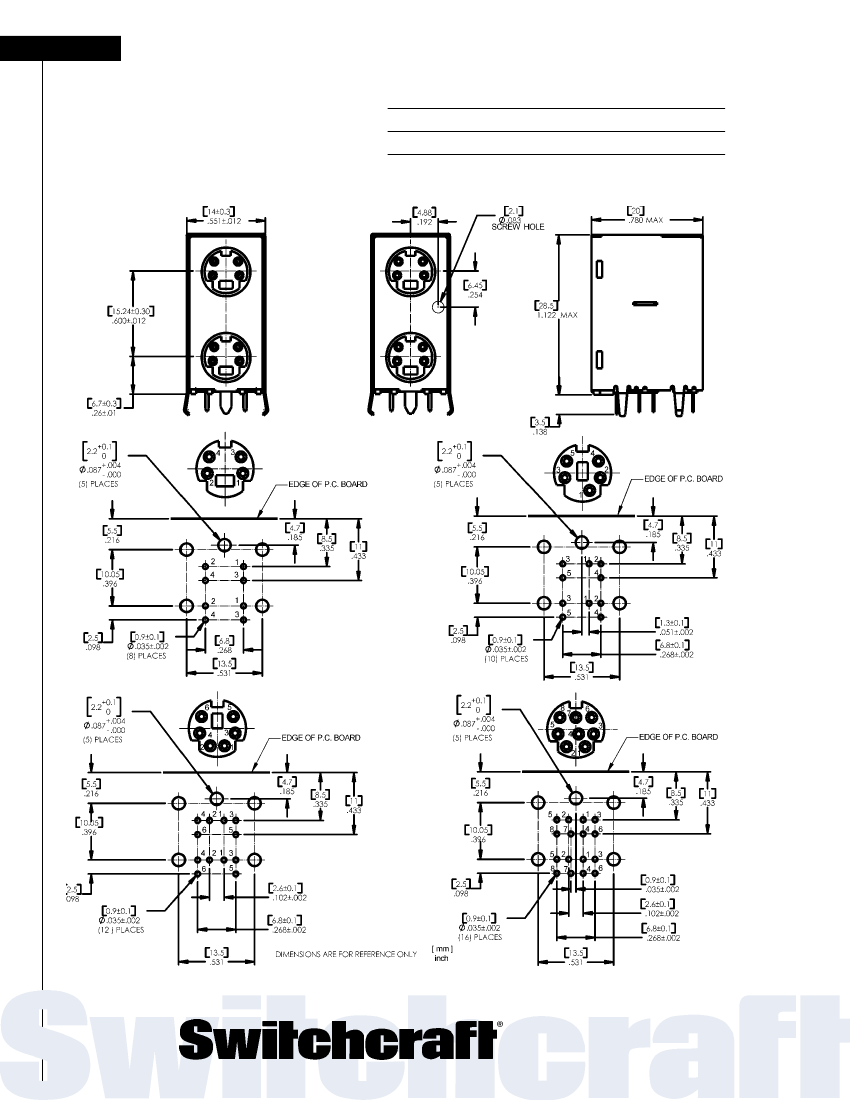

MINI DIN CONNECTORS

DMD*FRA111 SERIES

Switchcraft introduces dual mini-DIN connectors,

complementing our existing line of mini-DIN connec-

tors. The DMD Series is available in 4, 5, 6, and 8

contacts, with or without a mounting hole. The

mounting hole allows the connector to be fastened to

the chassis. All versions are fully shielded to reduce

EMI/RFI emissions. Applications include multimedia,

instrumentation, and data communications.

Features and Benefits

Snap-in terminals facilitate wave soldering

•

Shielded for reduced EMI/RFI emissions

•

Dual stacked version increases PC board

density

•

PRODUCT

BULLETIN

527

Markets

•

Personal Computer

Data Communications

Medical Equipment

Test Equipment

Instrumentation

Video

Specifications

General

Rating: 1A, 100 VAC, 3A, 12 VDC

Contact Resistance: 30m ohms max.

Insulation Resistance: 50m ohms Min.

Dielectric Strength: 250 VAC for 1 minute

Insertion Force: 10.0 lbs. max. (4.5kg Max.)

Withdrawal Force: 1.8 lbs to 7.7 lbs

(0.8 kg to 3.5 kg)

Materials

Body: Black, molded thermoplastic, UL 94V-0

Cover: Copper alloy, tin plated

Contacts: Copper alloy, silver plated

w

.

s

w

i

t

c

h

c

r

a

f

t

.

c

o

m

DMD4FRA111 Related Products

	DMD4FRA111	DMD8FRA111	DMD6FRA111A	DMD6FRA111	DMD8FRA111A
Description	Circular DIN Connector, 4 Contact(s), Female, Board Mount, Solid Lead Terminal,	Circular DIN Connector, 8 Contact(s), Female, Board Mount, Solid Lead Terminal,	Circular DIN Connector, 6 Contact(s), Female, Board Mount, Solid Lead Terminal,	Circular DIN Connector, 6 Contact(s), Female, Board Mount, Solid Lead Terminal,	Circular DIN Connector, 8 Contact(s), Female, Board Mount, Solid Lead Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	SILVER	SILVER	SILVER	SILVER	SILVER
Contact completed and terminated	SILVER	SILVER	SILVER	SILVER	SILVER
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES
Electromagnetic interference shielding	YES	YES	YES	YES	YES
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	DMD	DMD	DMD	DMD	DMD
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD
Total number of contacts	4	8	6	6	8
