FLC32PL471M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> FLC32PL471M

FLC32PL471M: DescriptionGeneral Purpose Inductor, 470uH, 20%, Ferrite-Core, 1210; CategoryPassive components inductor; File Size67KB，1 Pages; ManufacturerRiver Eletec Corp; Environmental Compliance

Download Datasheet Parametric View All

FLC32PL471M Overview

General Purpose Inductor, 470uH, 20%, Ferrite-Core, 1210

FLC32PL471M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	1210
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1210
structure	Chip
core material	Ferrite
Nominal inductance(L)	470 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	FLC32PL
Package height	2.2 mm
Package length	3.2 mm
Package form	SMT
Package width	2.5 mm
series	FLC32PL
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

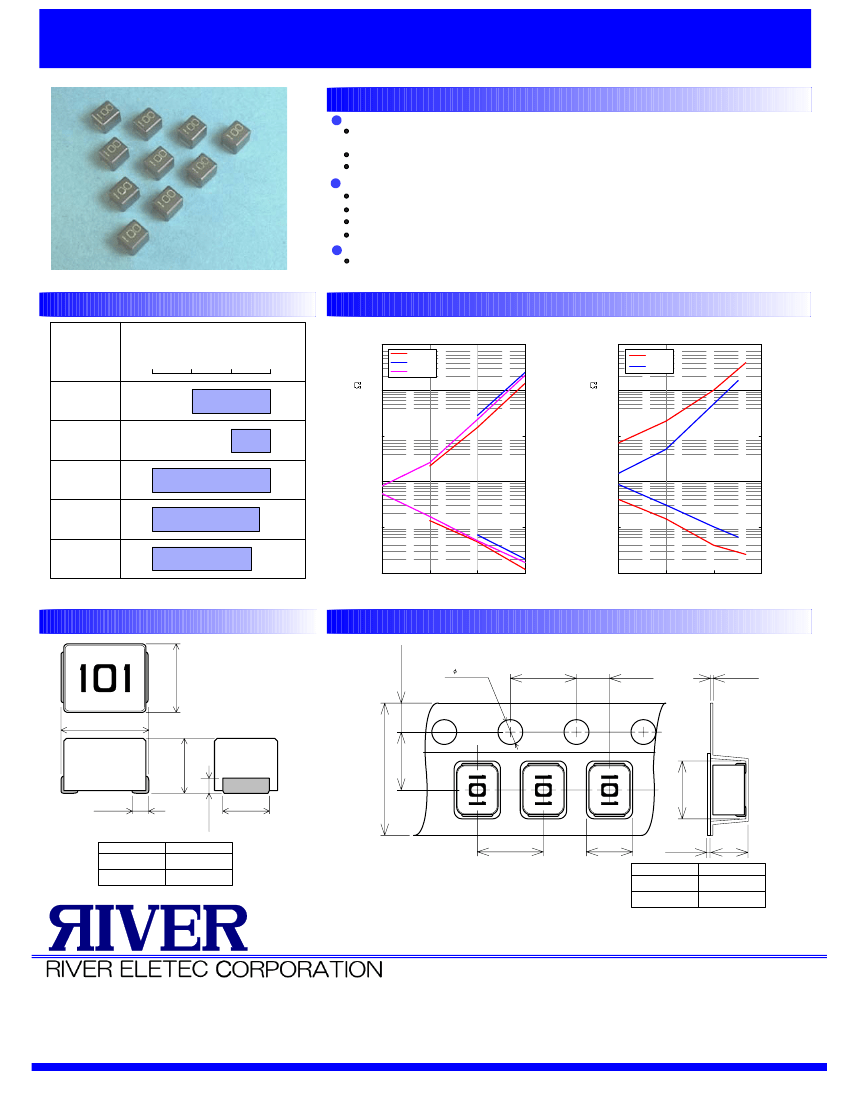

Fixed chip inductor

Features

General

FLC series

Both ferrite case and ceramic case which realized precise dimensions are

available.

Tape feeding is suitable for automatic mounting.

Considering environment impacts, all our products are Lead Free.

As 3225 type, FLC32PS realized unprecedented low DC resistance.

Even lower height(2mmMAX.), FLC32PL realized low DC resistance.

FLC32PC realized both sufficient rated current and low DC resistance.

Ferrite case realized ideal magnetic shielding characteristics.

Same as FLC32P series, unique structure without lead frame realized ideal Q-

f curve.

FLC32P series (Ferrite case)

FLC32 series (Ceramic case)

Inductance range

model

(series)

Electrical characteristics

fig1.Rdc,Idc (FLC32P series)

100

1000000

FLC32PS

FLC32PC

FLC32PL

L range (µH)

100

fig2.Rdc,Idc (FLC32 series)

100

FLC32

FLC32C

1000000

Rdc( )

FLC32PS

(E-6)

100000

Rdc( )

100000

1000

FLC32PC

(E-6)

100

1000

10000

FLC32PL

(E-6)

1000

0.1

1000

0.1

1000

Idc(mA)

(E-12)

(E-6)

470

0.01

100

0.01

100

FLC32C

330

0.001

100

1000

0.001

100

1000

Dimensions

unit:mm

2.5 ± 0.2

Emboss carrier tape

unit:mm

1.75 ± 0.1

1.5

+0.1

0.0

4.0 ± 0.1

2.0 ± 0.05

0.3 ± 0.05

3.2 ± 0.2

3.5 ± 0.05

8.0 ± 0.3

0.6 ± 0.2

0.5 ± 0.2

1.9 ± 0.1

3.5 ± 0.1

FLC32PL

others

1.8 ± 0.2

2.2 ± 0.2

4.0 ± 0.1

2.8 ± 0.1

(0.062)

2.0 ± 0.1

2.3 ± 0.1

FLC32PL

others

Based on JIS C 0806-3

URL http://www.river-ele.co.jp

H E A D O F F I C E:

T O K Y O O F F I C E:

UTSUNO MI YA O FFI CE :

O S A K A O F F I C E:

N A G O Y A O F F I C E:

2-1-1 Fujimigaoka Nirasaki Yamanashi Japan

Phone 81-551-22-1211 Fax 81-551-22-6645

4-40-14 Nishishinjuku Shinjuku-ku Tokyo Japan Phone 81-3-3377-5444 Fax 81-3-3374-2865

Phone 81-268-25-7181 FAX 81-268-25-7159

Phone 81-6-6998-4888 FAX 81-6-6998-4899

R I V E R E L E C T R O N I C S C O R P . ( U S A ) : Phone 310-320-7488 FAX 310-320-0677

Phone 81-52-776-9531 FAX 81-52-776-9532

RIVER ELECTRONICS(SINGAPORE)PTE.LTD. : Phone 65-258-7874 FAX 65-258-7366

A9X

Idc(mA)

FLC32
