SB40-03T(TP-FA) datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SB40-03T(TP-FA)

Preview

SB40-03T(TP-FA): DescriptionRECTIFIER DIODE,SCHOTTKY,30V V(RRM),TO-252VAR; CategoryDiscrete semiconductor diode; File Size79KB，3 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

SB40-03T(TP-FA) Overview

RECTIFIER DIODE,SCHOTTKY,30V V(RRM),TO-252VAR

SB40-03T(TP-FA) Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.45 V
Maximum non-repetitive peak forward current	40 A
Number of components	1
Maximum operating temperature	125 °C
Maximum output current	4 A
Maximum repetitive peak reverse voltage	30 V
Maximum reverse recovery time	0.03 µs
surface mount	YES
technology	SCHOTTKY
Base Number Matches	1

Preview

Download Datasheet

View All

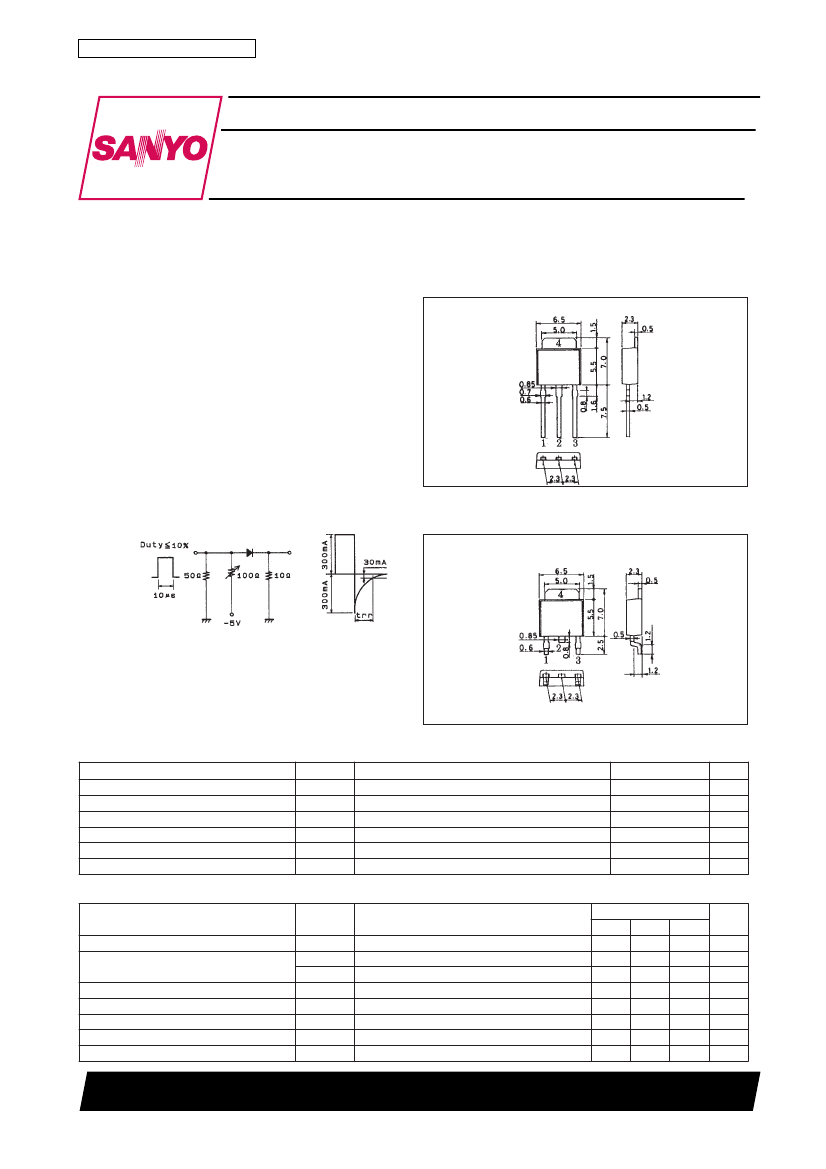

Ordering number:EN4566

SB40-03T

Schottky Barrier Diode

30V, 4A Rectifier

Applications

· High frequency rectification (switching regulators,

converters, choppers).

Package Dimensions

unit:mm

1255A

[SB40-03T]

Features

· Low forward voltage (VF max=0.55V).

· Fast reverse recovery time (trr max=30ns).

· Low switching noise.

· Low leakage current and high reliability due to

highly reliable planar structure.

1:No Contact

2:Cathode

3:Anode

4:Cathode

SANYO:TP

trr Test Circuit

unit:mm

1256A

[SB40-03T]

1:No Contact

2:Cathode

3:Anode

4:Cathode

SANYO:TP-FA

Specifications

Absolute Maximum Ratings

at Ta = 25˚C

Parameter

Repetitive Peak Reverse Voltage

Nonrepetitive Peak Reverse Surge Voltage

Average Output Current

Surge Forward Current

Junction Temperature

Storage Temperature

Symbol

VRRM

VRSM

IO

IFSM

Tj

Tstg

50Hz, resistive load, Tc=105˚C

Conditions

Ratings

30

35

4

40

–55 to +125

Unit

V

A

˚C

50Hz sine wave, 1 cycle

Electrical Characteristics

at Ta = 25˚C

Parameter

Reverse Voltage

Forward Voltage

Reverse Current

Interterminal Capacitance

Reverse Recovery Time

Thermal Resistance (Junction-Ambient)

Thermal Resistance (Junction-Case)

Symbol

VR

VF(1)

VF(2)

IR

C

trr

Rth(j-a)

Rth(j-c)

IR=1mA

IF=4A

IF=1A

VR=15V

VR=10V, f=1MHz

IF=IR=300mA, See sepcified Test Circuit

90

6

160

30

Conditons

Ratings

min

30

0.55

0.45

200

typ

max

Unit

V

µA

pF

ns

˚C/W

SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

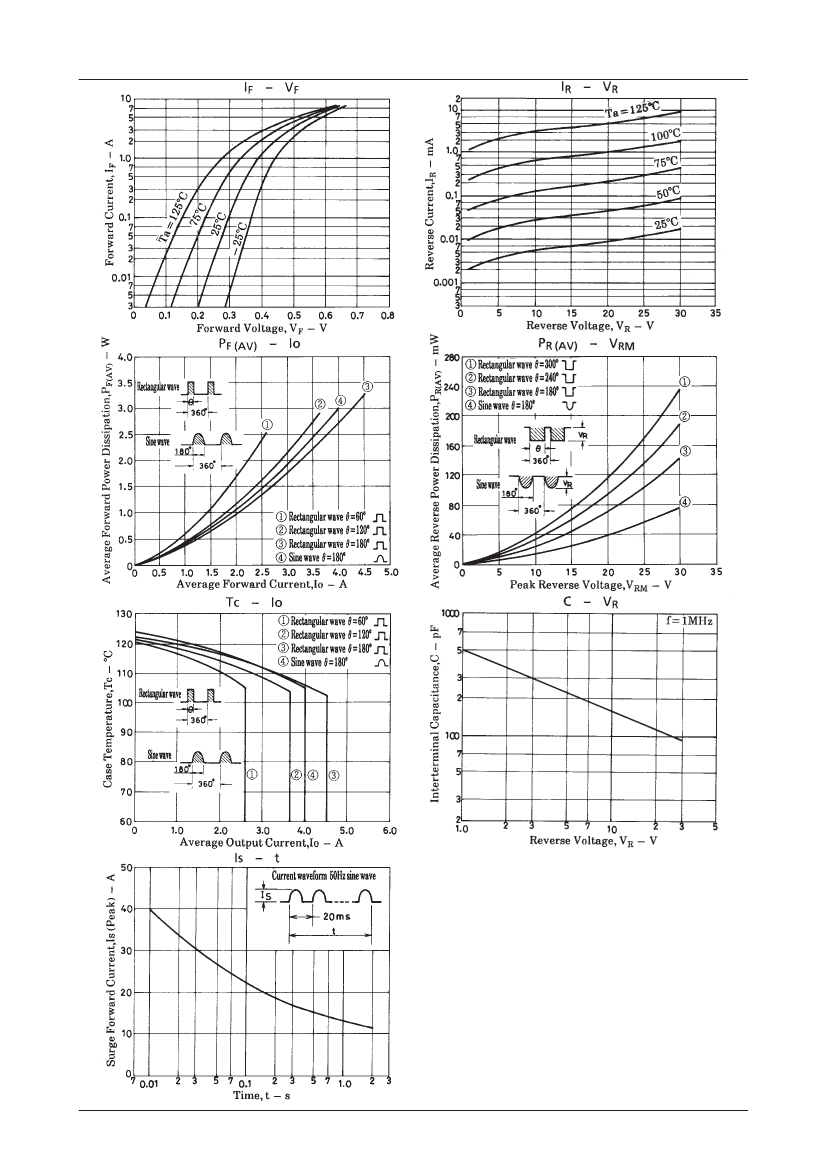

41098HA (KT)/42894YH (KOTO) BX-0023 No.4566-1/3

SB40-03T(TP-FA) Related Products

	SB40-03T(TP-FA)	SB40-03T(TP)
Description	RECTIFIER DIODE,SCHOTTKY,30V V(RRM),TO-252VAR	RECTIFIER DIODE,SCHOTTKY,30V V(RRM),TO-251VAR
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Configuration	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.45 V	0.45 V
Maximum non-repetitive peak forward current	40 A	40 A
Number of components	1	1
Maximum operating temperature	125 °C	125 °C
Maximum output current	4 A	4 A
Maximum repetitive peak reverse voltage	30 V	30 V
Maximum reverse recovery time	0.03 µs	0.03 µs
surface mount	YES	NO
technology	SCHOTTKY	SCHOTTKY
Base Number Matches	1	1
