L7C162PC45 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> L7C162PC45

L7C162PC45: DescriptionSRAM, 16KX4, 45ns, CMOS, PDIP28, DIP-28; Categorystorage storage; File Size677KB，9 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

L7C162PC45 Overview

SRAM, 16KX4, 45ns, CMOS, PDIP28, DIP-28

L7C162PC45 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	DIP,
Reach Compliance Code	unknown
Maximum access time	45 ns
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
memory density	65536 bit
memory width	4
Humidity sensitivity level	3
Number of functions	1
Number of terminals	28
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16KX4
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

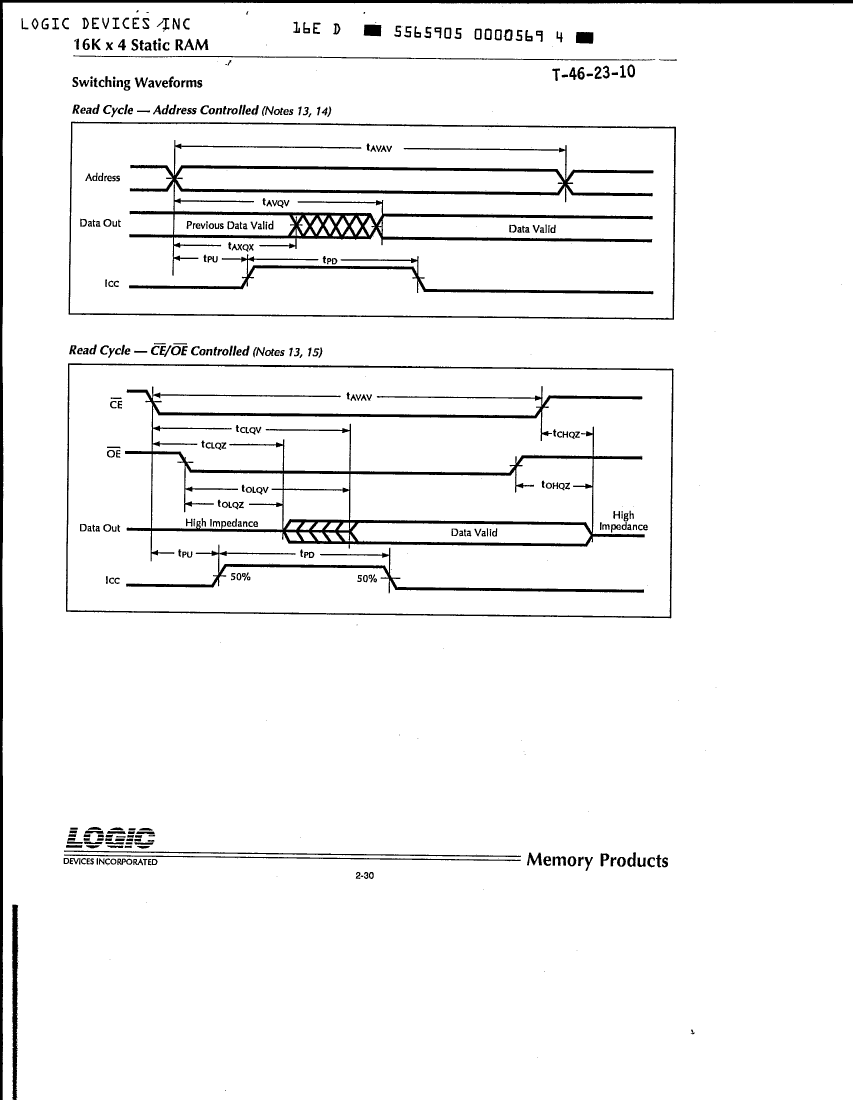

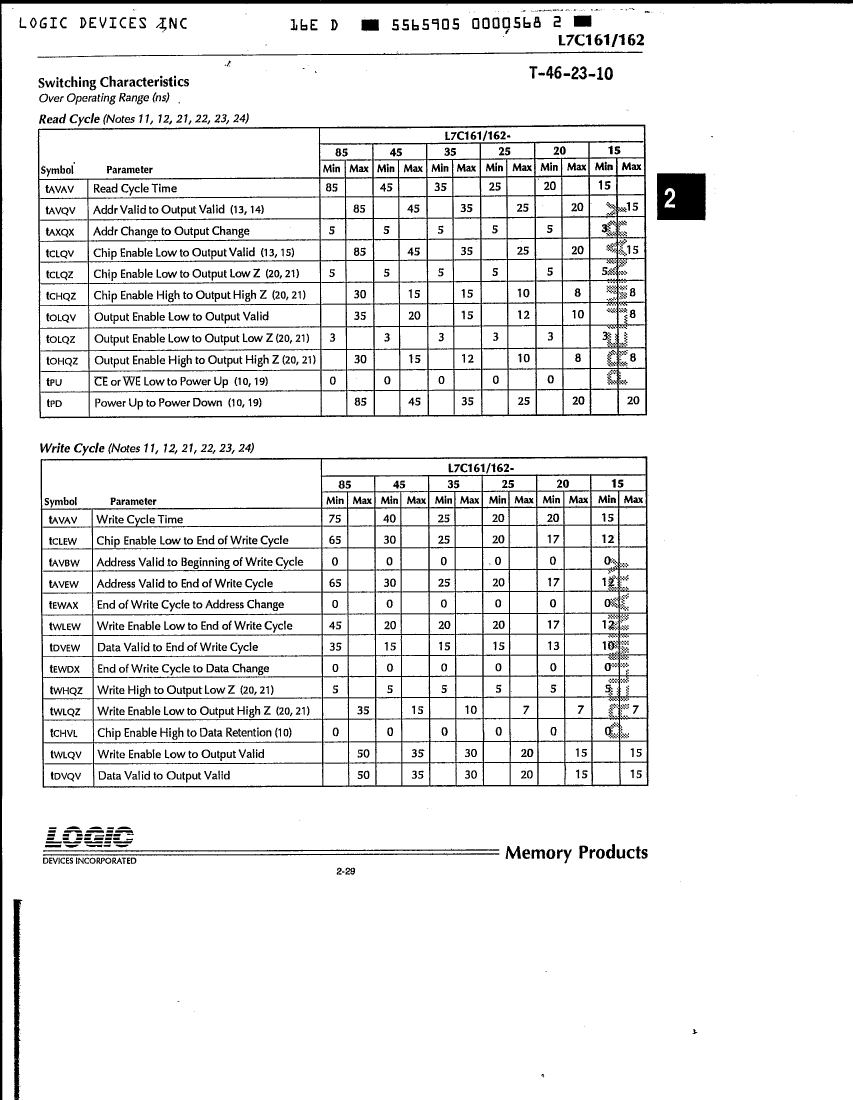

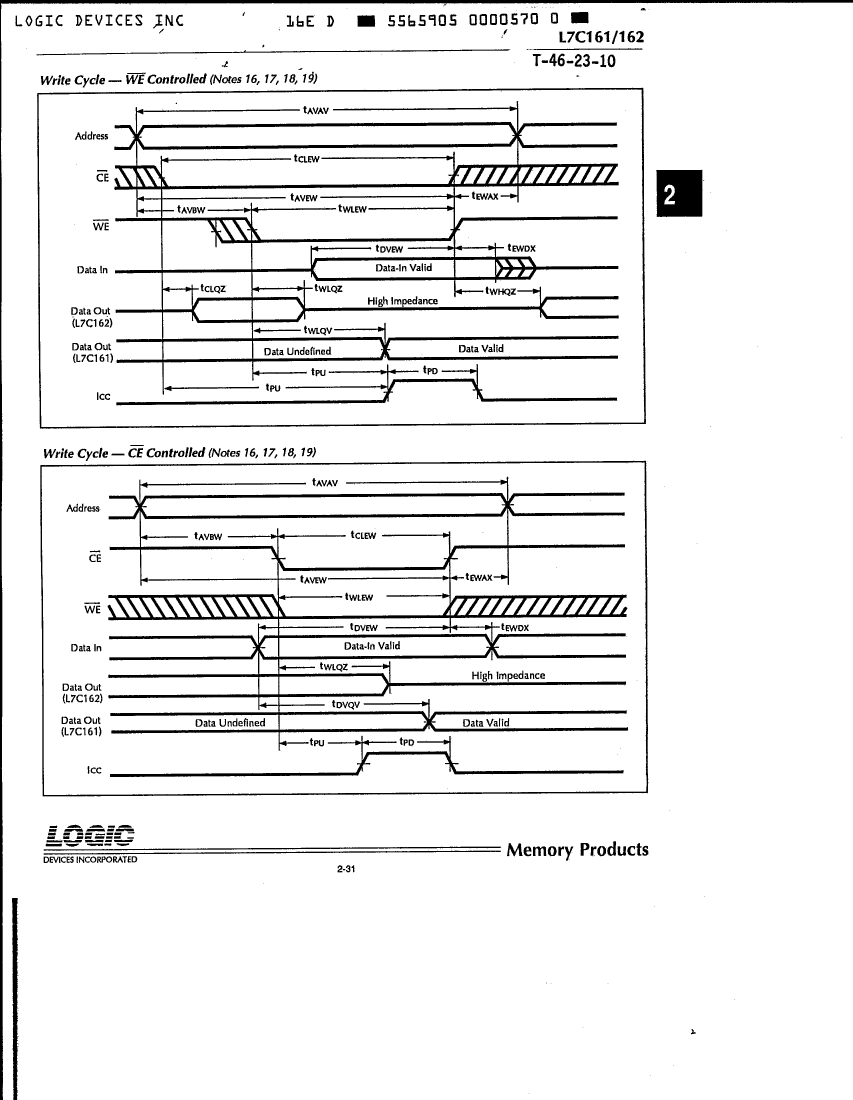

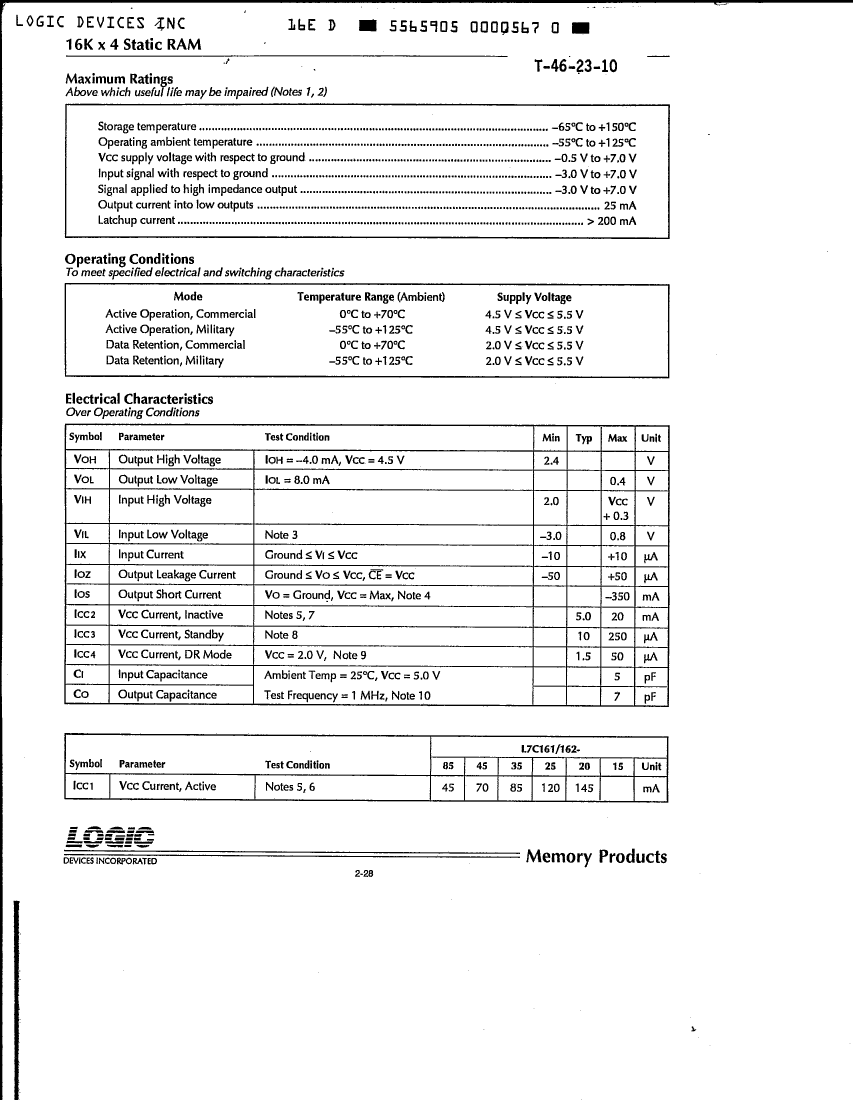

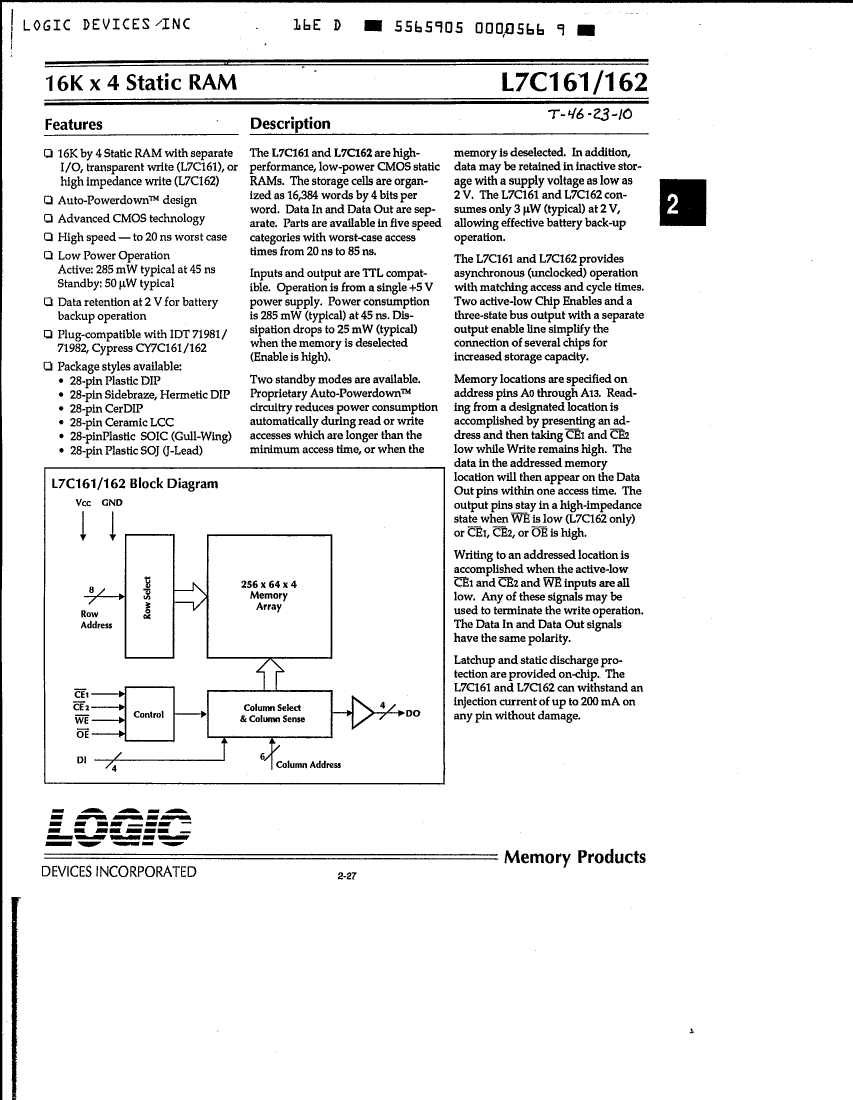

Preview

Download Datasheet

View All

L7C162PC45 Related Products

	L7C162PC45	L7C161KC85	L7C161WC85	L7C162CME85	L7C162DC45	L7C162DME45	L7C162PC85	L7C162WC85
Description	SRAM, 16KX4, 45ns, CMOS, PDIP28, DIP-28	Memory IC	Memory IC	Standard SRAM, 16KX4, 85ns, CMOS, CDIP28	Standard SRAM, 16KX4, 45ns, CMOS, CDIP28	Standard SRAM, 16KX4, 45ns, CMOS, CDIP28	Standard SRAM, 16KX4, 85ns, CMOS, PDIP28	Memory IC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP,	,	,	DIP, DIP28,.3	DIP, DIP28,.3	DIP, DIP28,.3	DIP, DIP28,.3	,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Humidity sensitivity level	3	3	3	3	3	3	3	3
Base Number Matches	1	1	1	1	1	1	1	1
Maximum access time	45 ns	-	-	85 ns	45 ns	45 ns	85 ns	-
JESD-30 code	R-PDIP-T28	-	-	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-PDIP-T28	-
JESD-609 code	e0	-	-	e0	e0	e0	e0	-
memory density	65536 bit	-	-	65536 bit	65536 bit	65536 bit	65536 bit	-
memory width	4	-	-	4	4	4	4	-
Number of terminals	28	-	-	28	28	28	28	-
word count	16384 words	-	-	16384 words	16384 words	16384 words	16384 words	-
character code	16000	-	-	16000	16000	16000	16000	-
Operating mode	ASYNCHRONOUS	-	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-
Maximum operating temperature	70 °C	-	-	125 °C	70 °C	125 °C	70 °C	-
organize	16KX4	-	-	16KX4	16KX4	16KX4	16KX4	-
Package body material	PLASTIC/EPOXY	-	-	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	-
encapsulated code	DIP	-	-	DIP	DIP	DIP	DIP	-
Package shape	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	-	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-
Parallel/Serial	PARALLEL	-	-	PARALLEL	PARALLEL	PARALLEL	PARALLEL	-
Nominal supply voltage (Vsup)	5 V	-	-	5 V	5 V	5 V	5 V	-
surface mount	NO	-	-	NO	NO	NO	NO	-
technology	CMOS	-	-	CMOS	CMOS	CMOS	CMOS	-
Temperature level	COMMERCIAL	-	-	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	-
Terminal surface	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	THROUGH-HOLE	-	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-
Terminal location	DUAL	-	-	DUAL	DUAL	DUAL	DUAL	-
