WMC4S1K-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> WMC4S1K-F

WMC4S1K-F: DescriptionCAPACITOR, FILM/FOIL, POLYPROPYLENE, 80 V, 0.047 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size112KB，2 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

WMC4S1K-F Overview

CAPACITOR, FILM/FOIL, POLYPROPYLENE, 80 V, 0.047 uF, THROUGH HOLE MOUNT

WMC4S1K-F Parametric

Parameter Name	Attribute value
negative deviation	10 %
Minimum operating temperature	-55 Cel
Maximum operating temperature	85 Cel
positive deviation	10 %
Rated DC voltage urdc	80 V
Processing package description	AXIAL LEADED
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Capacitor type	FILM CAPACITOR
capacitance	0.0470 µF
dielectric materials	POLYPROPYLENE
jesd_609_code	e3
Manufacturer Series	WMC
Installation features	THROUGH HOLE MOUNT
packaging shape	TUBULAR PACKAGE
Package Size	Axial
cking_method	TR
Rated AC voltage	50 V
series	WMC
terminal coating	TIN
Terminal shape	WIRE
diameter	5.8 mm
length	15.1 mm
dditional_feature	RATED AC VOLTAGE (V): 50

Preview

Download Datasheet

View All

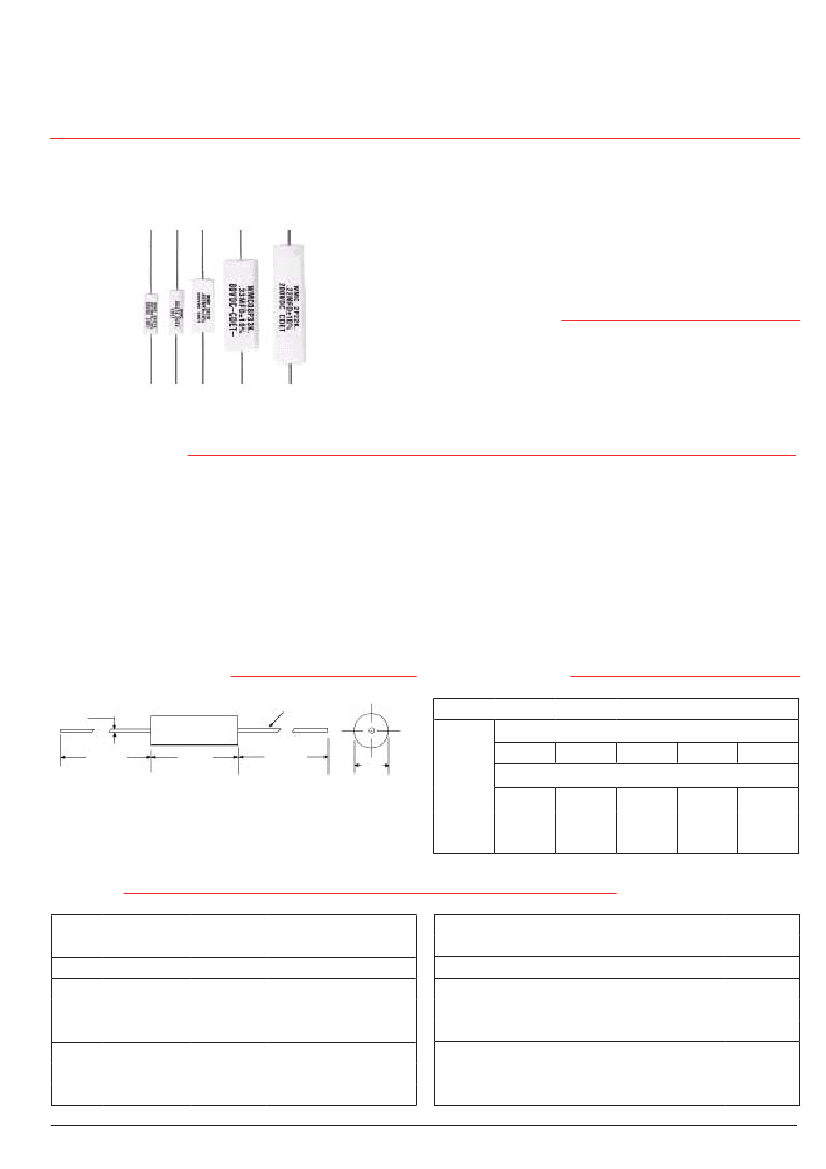

Type WMC

Polyester Film/Foil Capacitors

Axial Lead, Miniature Size for Automatic Insertion

Type WMC axial-leaded polyester ﬁlm/foil capacitors

are ideal for automatic insertion in printed circuit boards.

It is an ultraminiature version of Type WMF and the sec-

tions of these non-inductive capacitors are constructed

with extended foil, polyster ﬁlm, with tinned copper-

clad steel leads.

Highlights

•

Miniature Size

Available on tape and reel

Film/foil construction, non-inductive design

High dV/dt ratings

Good for high pulse applications

Speciﬁcations

Capacitance Range:

Voltage Range:

Capacitance Tolerance:

Temperature Range:

Dielectric Strength:

Dissipation Factor:

Insulation Resistance:

Life Test:

.001 µF to .47 µF

80 to 400 Vdc (50 to 200 Vac, 60 Hz)

±10% standard, ±5% optional

–55 to +125 ºC

(Full-rated voltage at 85 °C–Derate linearly to 50%-rated voltage at 125 °C)

250% of rated voltage for 1 minute

.75% Max. (25 ºC, 1 kHz)

30,000 MΩ x µF, 100,000 MΩ Min.

250 hours at 85 ºC at 125% rated voltage

Outline Drawing

1.5” Min.

(38 mm)

Tinned Copper-Clad Steel Leads

Pulse Ratings

Pulse Capability

Body Length

Rated

Voltage

200

400

≤.437

.531-.593 .656-.718

0.906

1.218

L Max.

1.5” Min.

(38 mm)

Max.

dV/dt — volts per microsecond, maximum

5000

10800

30700

2100

5000

14500

1500

3000

9600

900

1700

3600

690

1260

2600

Lead Diameters:

No. 24 AWG to .282” (6.35mm) diameter

No. 22 AWG .283” (6.38mm) diameter and up

NOTE: Other capacitance values, sizes and performance speciﬁcations

are available. Contact us.

Ratings

Cap

(µF)

Catalog

80 Vdc (50 Vac)

0.0010 WMC08D1K-F

0.0012 WMC08D12K-F

0.0015 WMC08D15K-F

0.0018 WMC08D18K-F

0.0022 WMC08D22K-F

0.0027 WMC08D27K-F

.185 (4.7)

.406 (10.3)

.020 (.5)

0.0033 WMC08D33K-F

0.0039 WMC08D39K-F

0.0047 WMC08D47K-F

0.0056 WMC08D56K-F

0.0068 WMC08D68K-F

0.0082 WMC08D82K-F

Cap

(µF)

Catalog

Part Number Inches (mm) Inches (mm) Inches (mm)

RoHS Compliant

Part Number Inches (mm) Inches (mm) Inches (mm)

80 Vdc (50 Vac)

.185 (4.7)

.406 (10.3)

.020 (.5)

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
