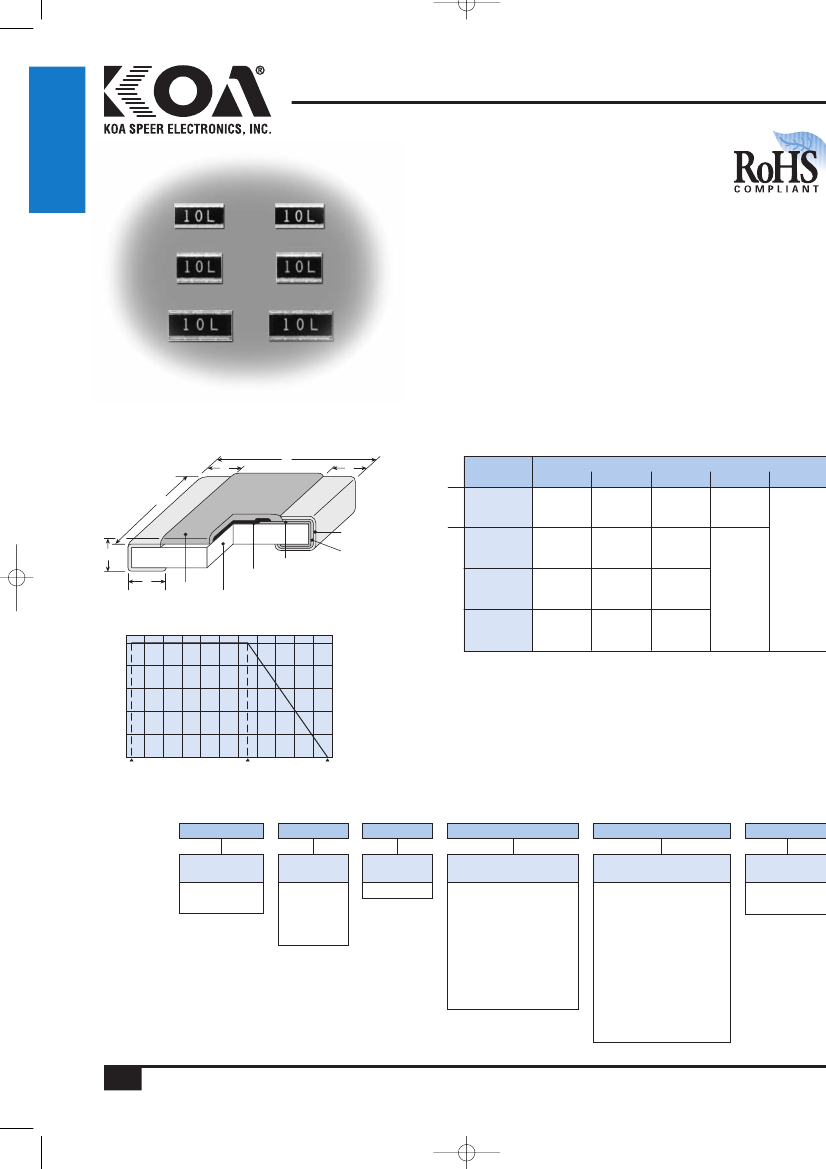

WK73S2JTTE33L0J: Descriptionwide terminal type flat chip resistors; File Size84KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet View All

WK73S2JTTE33L0J Overview

wide terminal type flat chip resistors

Preview

Download Datasheet

View All

WK73

resistors

UNDER

DEVELOP.

wide terminal type flat chip resistors

features

•

Flat chip resistors of wide terminal type

•

High reliability and performance with T.C.R.

±100 x 10

-6

/K, resistance tolerance ±1%

•

Marking: Black protective coat

•

Products with lead-free terminations meet EU RoHS

requirements. Pb located in glass material, electrode

and resistor element is exempt per Annex 1, exemption

5 of EU directive 2005/95/EC

dimensions and construction

Type

(Inch Size Code)

Dimensions

inches

(mm)

(0612)

(1020)

(1218)

(1225)

.063±.006 .126±.006 .012±.008 .018±.006

(1.6±0.15) (3.2±0.15) (0.3±0.2) (0.45±0.15)

.098±.006 .197±.006 .016±.008

(2.5±0.15) (5.0±0.15) (0.4±0.2)

.122±.006 .181±.006 .016±.008 .030±.006

(3.1±0.15) (4.6±0.15) (0.4±0.2) (0.75±0.15)

.122±.006 .252±.006 .018±.008

(3.1±0.15) (6.4±0.15) (0.45±0.2)

Inner

Resistive Electrode

Film

Solder

Plating

.024±.004

(0.6±0.1)

Protective

Coating Ceramic

Substrate

Derating Curve

100

% Rated Power

-60 -40 -20

-55

80 100 120 140 160

155

Ambient Temperature

(°C)

ordering information

New Part #

WK73S

Type

WK73S

WK73R

Size

2B: 0.75W

2H: 1W

2J: 1W

3A: 1.5W

Termination

Material

T: Sn

Packaging

TD: 0612: 7" 2mm pitch

punched paper

TDD: 0612 10" paper tape

TE: 1020, 1218, 1225:

7" punched plastic

TED: 1020, 1218, 1225:

10" punched plastic

For further information on

packaging, please refer

to Appendix A

33L0

Nominal

Resistance

±1%: 3 significant

figures + 1 multiplier

“R” indicates decimal

on value <100Ω

±5%: 2 significant

figures + 1 multiplier

“R” indicates decimal

on values <10Ω

All values less than 0.1Ω

(100mΩ) are expressed in

mΩ with “L” as decimal.

Ex: 33mΩ, 1% = 33L0

Resistance

Tolerance

F: ±1%

J: ±5%

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

11/07/08

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
