TX4-50S-D2ST-MH2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> TX4-50S-D2ST-MH2

TX4-50S-D2ST-MH2: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size271KB，2 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

TX4-50S-D2ST-MH2 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug

TX4-50S-D2ST-MH2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	WITH MOUNTING EARS
Board mount options	BACK BOARD MOUNTING HOLE
body width	0.26 inch
subject depth	0.33 inch
body length	1.878 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	TX4
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	12u inch
polarization key	CENTER
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
Base Number Matches	1

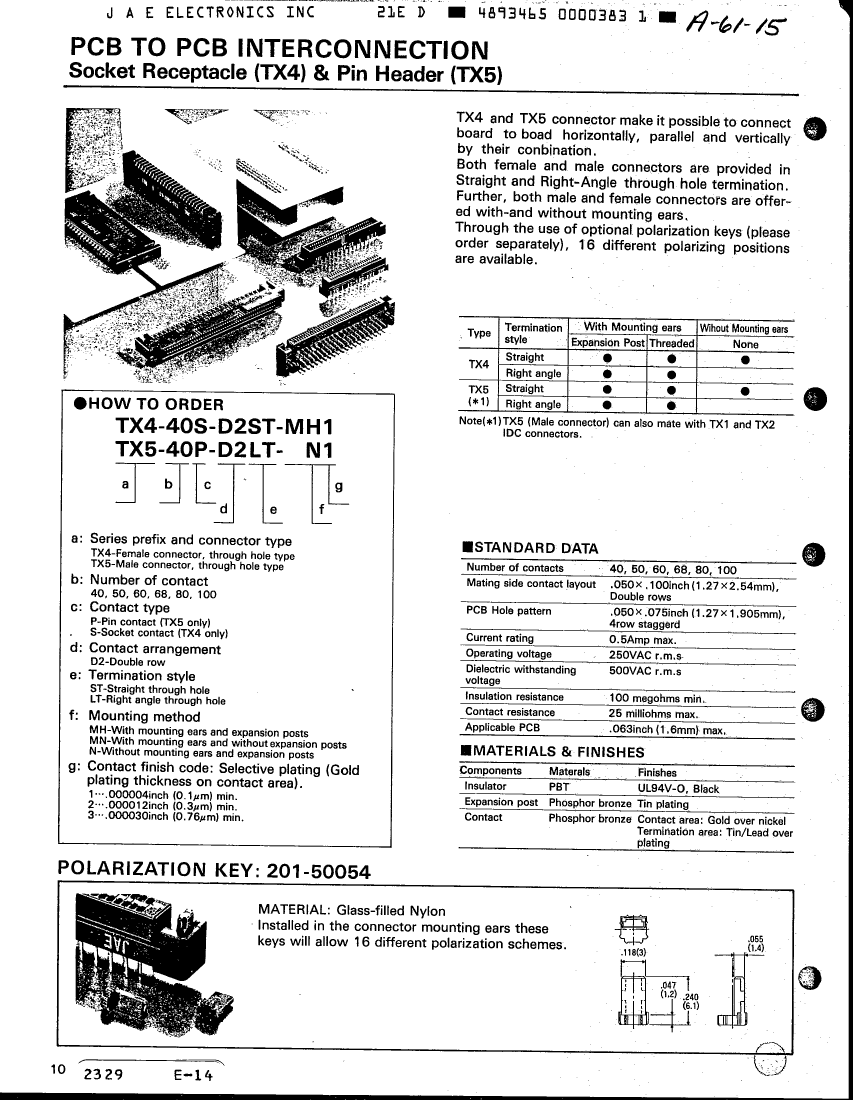

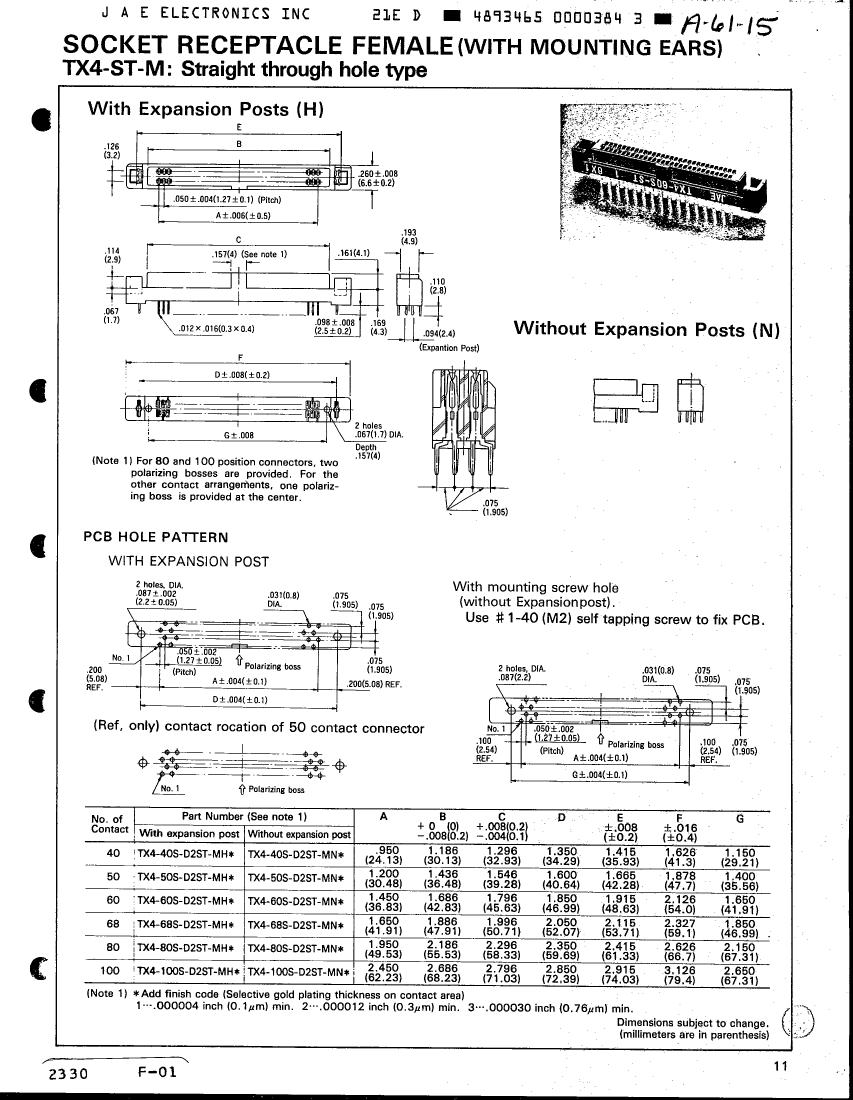

Preview

Download Datasheet

View All

TX4-50S-D2ST-MH2 Related Products

	TX4-50S-D2ST-MH2	TX4-50S-D2ST-MN2	TX4-50S-D2ST-MH3
Description	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug
Reach Compliance Code	unknown	unknown	unknown
Other features	WITH MOUNTING EARS	WITH MOUNTING EARS	WITH MOUNTING EARS
Board mount options	BACK BOARD MOUNTING HOLE	BACK BOARD MOUNTING HOLE	BACK BOARD MOUNTING HOLE
body width	0.26 inch	0.26 inch	0.26 inch
subject depth	0.33 inch	0.33 inch	0.33 inch
body length	1.878 inch	1.878 inch	1.878 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	TX4	TX4	TX4
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	4	4	4
Number of rows loaded	2	2	2
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	1.905 mm	1.905 mm
Plating thickness	12u inch	12u inch	30u inch
polarization key	CENTER	CENTER	CENTER
Rated current (signal)	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.11 inch	0.11 inch	0.11 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	50	50	50
Base Number Matches	1	1	1
