DATA SHEET
LANCW SERIES
•
•
•
•
•
•
•
Wide input voltage range
Regulated outputs
Continuous short-circuit protection
1600VDC I/O Isolation
Metallic case for five-sided shielding
No derating to 70°C
UL/CUL 1950, file #E155800
TO 8 WATTS

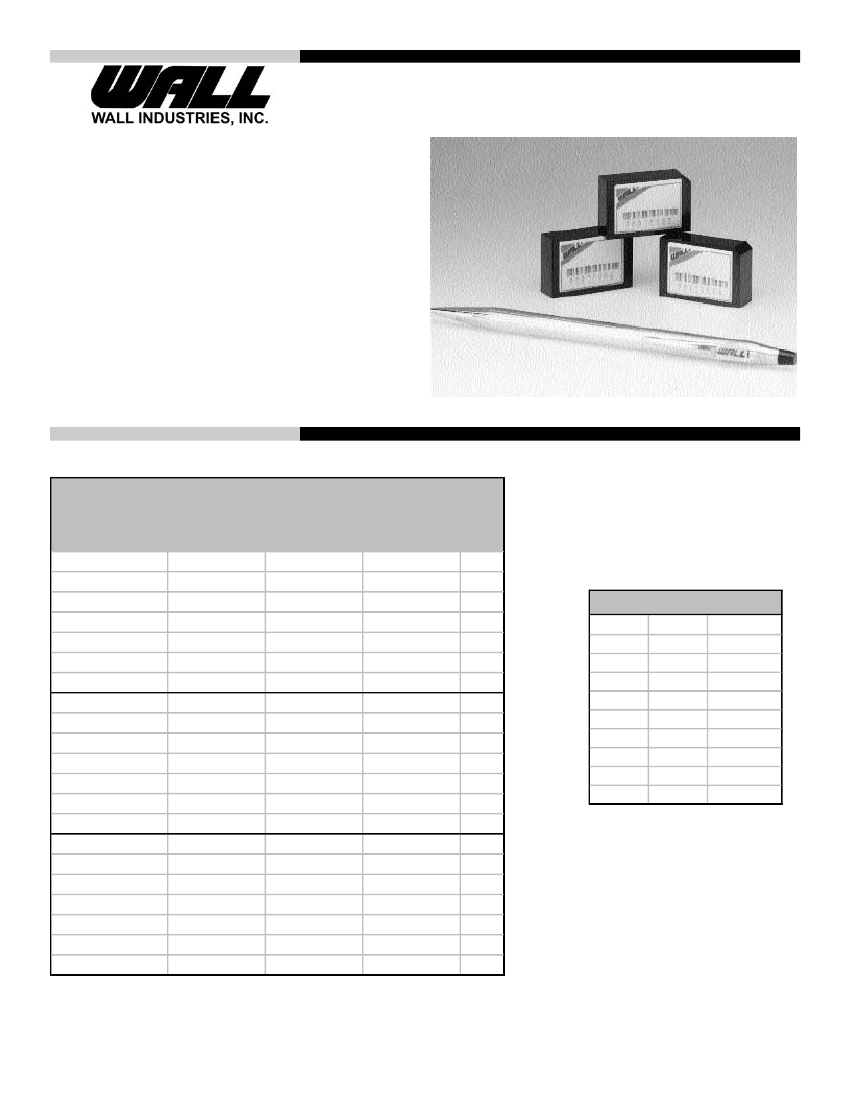

The LANCW series of dc/dc converters offers up
to 8 watts of output power. The LANCW series is
intended to provide power and isolation for
applications requiring high power density.
MODELS
MODEL
LANC123.3W8
LANC1205W8
LANC1212W8
LANC1215W8
LANC1205DW8
LANC1212DW8
LANC1215DW8
LANC243.3W8
LANC2405W8
LANC2412W8
LANC2415W8
LANC2405DW8
LANC2412DW8
LANC2415DW8
LANC483.3W8
LANC4805W8
LANC4812W8
LANC4815W8
LANC4805DW8
LANC4812DW8
LANC4815DW8
INPUT
VOLTAGE
(VDC)
9-18
OUTPUT
VOLTAGE
(VDC)
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
OUTPUT
CURRENT
(mAmp)
2000
1500
666
533
±800
±333
±267
2000
1500
666
533
±800
±333
±267
2000
1500
666
533
±800
±333
±267
EFF.
80%
82%
83%
83%
83%
84%
84%
81%
82%
83%
83%
83%
84%
84%
81%
83%
84%
84%
83%
85%
85%
PIN CONNECTIONS
Pin#
1
2,3
9
10
11
14
15
16
22,23
Single
on/off
-V in
NC
No Pin
NC
+V out
No Pin
-V out
+V in
Dual
on/off
-V in
Common
No Pin
-V out
+V out
No Pin
Common
+V in
18-36
36-75
For negative logic remote on/off, add suffix "R"
5/17/2005
603 778 2300
www.wallindustries.com
1
DATA SHEET
LANCW SERIES
SPECIFICATIONS
INPUT SPECIFICATIONS
Input Voltage Range
Nominal Input
Input Filter
TO 8 WATTS
All specifications apply at 25ºC unless otherwise noted.
SPECIFICATIONS
9-18,18-36,36-75VDC
12,24,48VDC
Pi-Input filter
OUTPUT SPECIFICATIONS
Output current
Votlage Tolerance
Line Regulation
Load Regulation
Ripple/Noise
Short-Circuit Protection
Over-Voltage Protection
See table
±2%
±0.2%
Single ±0.2%, Dual ±1%
50mV p-p typical
Continuous
N/A
GENERAL SPECIFICATIONS
Efficiency (at full load)
Isolation Voltage (input to output)
Isolation Resistance
Switching Frequency
MTBF
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
Storage Temperature
Cooling
Humidity
PHYSICAL SPECIFICATIONS
Shielding
Weight
Case Material
Dimensions
80% to 86%
1600VDC min.
10
9
Ohms
300kHz
MIL217F 7.189 x 10
5
hours
-25 to 71°C
"I" suffix -40°C to +71°C
-55°C to +125°C
Free Air Convection
5% to 95% R.H. (non-condensing)
Five-Sided
1.0oz
Nickel-coated copper, non-conductive baseplate
1.25" x 0.8" x 0.4"
5/17/2005
603 778 2300
www.wallindustries.com
2
DATA SHEET
LANCW SERIES
TO 8 WATTS

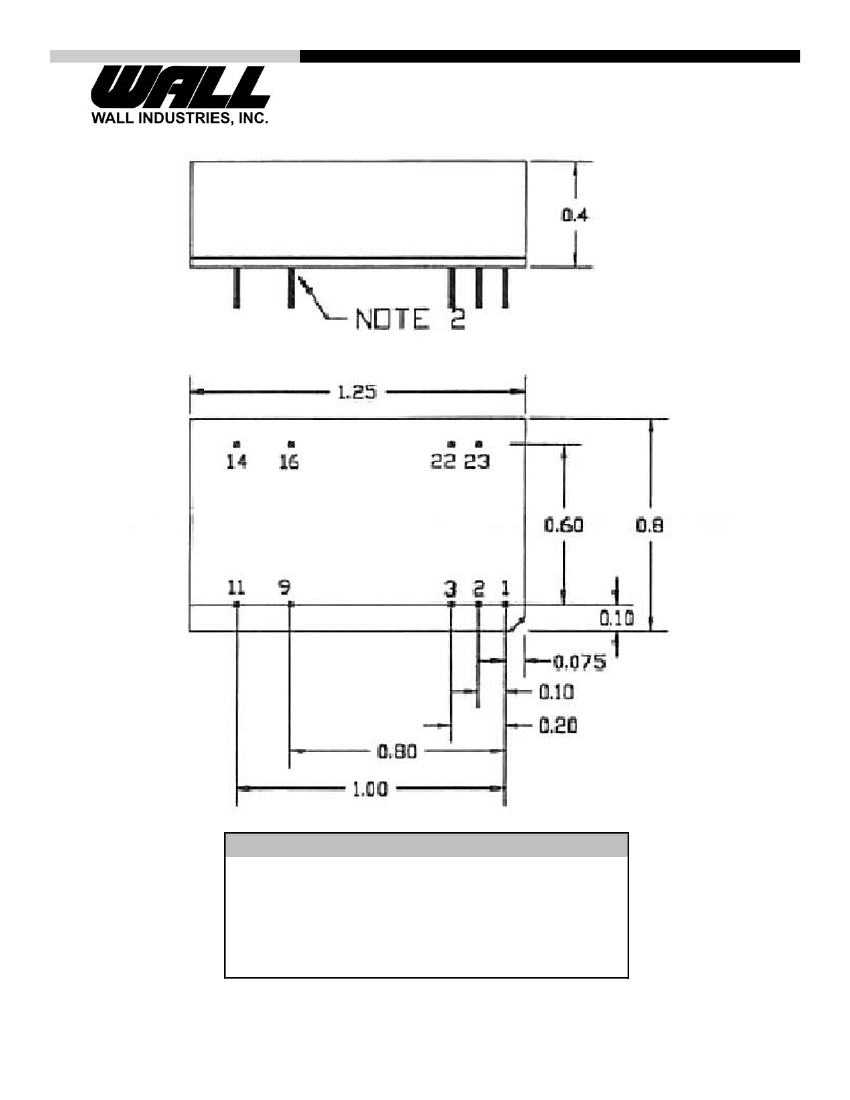

NOTES
1) All case and pin dimensions are for reference only
unless otherwise noted.
2) Pin size is 0.020" dia. or 0.010 x 0.020" rectangular pin
x 0.15 long (min.) typical 9 places.
3) Pin to pin tolerance is ±0.010". Pin diameter tolerance
is ±0.005".
5/17/2005
603 778 2300
www.wallindustries.com
3
APPLICATION NOTES
LANC 8 WATT SERIES REMOTE
ON CONTROL : 3.5 ~ 12V
OFF CONTROL : 0 ~1.2V
ON / OFF CONTROL
REMOTE ON / OFF CONTROL APPLICATION:

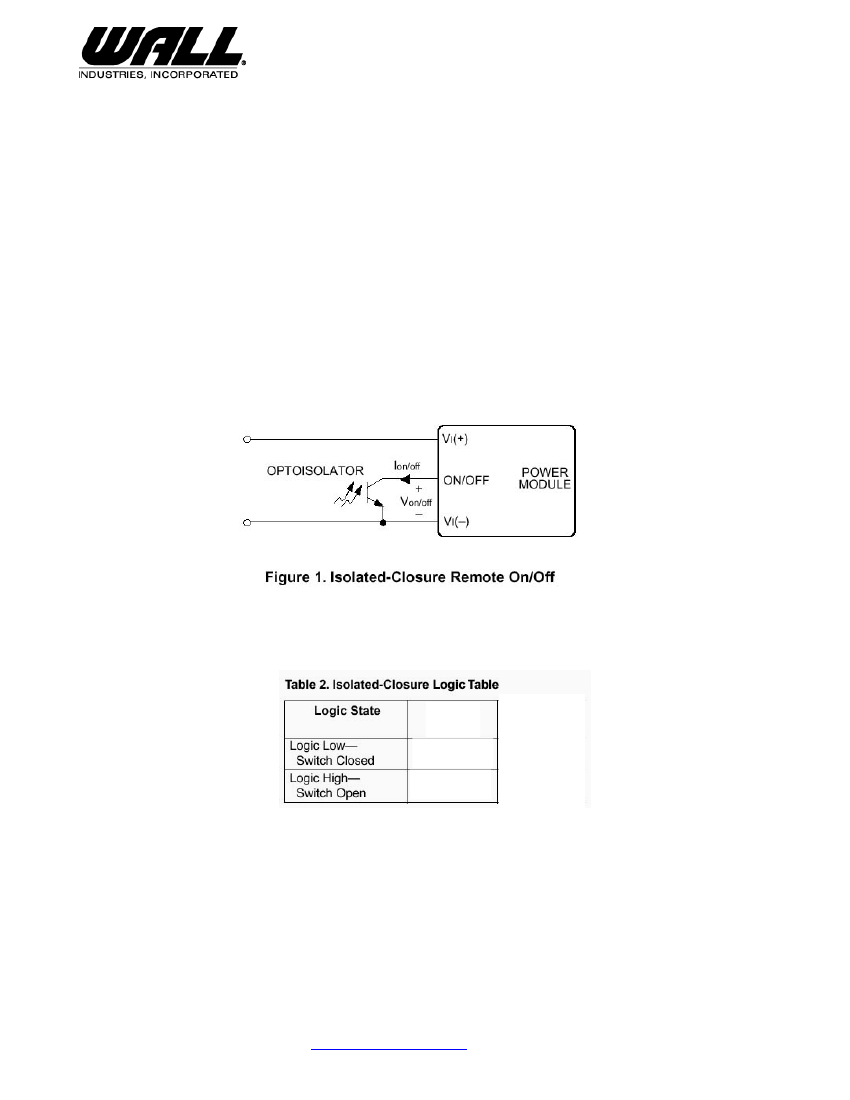

Isolated-Closure Remote On/Off
An isolated closure is a closure with both high- and low-impedance states that
sinks current, but does not source current. For on/off control, the closure is
between the ON/OFF pin and VI(–), and can be pro-vided by a device such as a
mechanical switch, an open-collector transistor, or an optoisolator. Figure 1
shows an example of an optoisolator connected. Note that Von/off is defined as the
voltage at the ON/OFF pin with respect to the VI(–) pin. Ion/off is the
current flowing out of the ON/OFF pin.
LANC 8 WATT when Von/off is left isolated to float high, the unit operates, and
when Von/off is pulled low or shorted to VI(–), the unit is off. Table 2 summarizes
the logic levels and module states.
Postive
Logic
Module
off
Module
on
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
www.wallindustries.com
(888) 597-9255
5/16/2004
APPLICATION NOTES
Isolated-Closure Remote On/Off
0
3.5
1.2
12
on
3.5
12
1.2
off
0
Isolated-Closure Remote On/Off

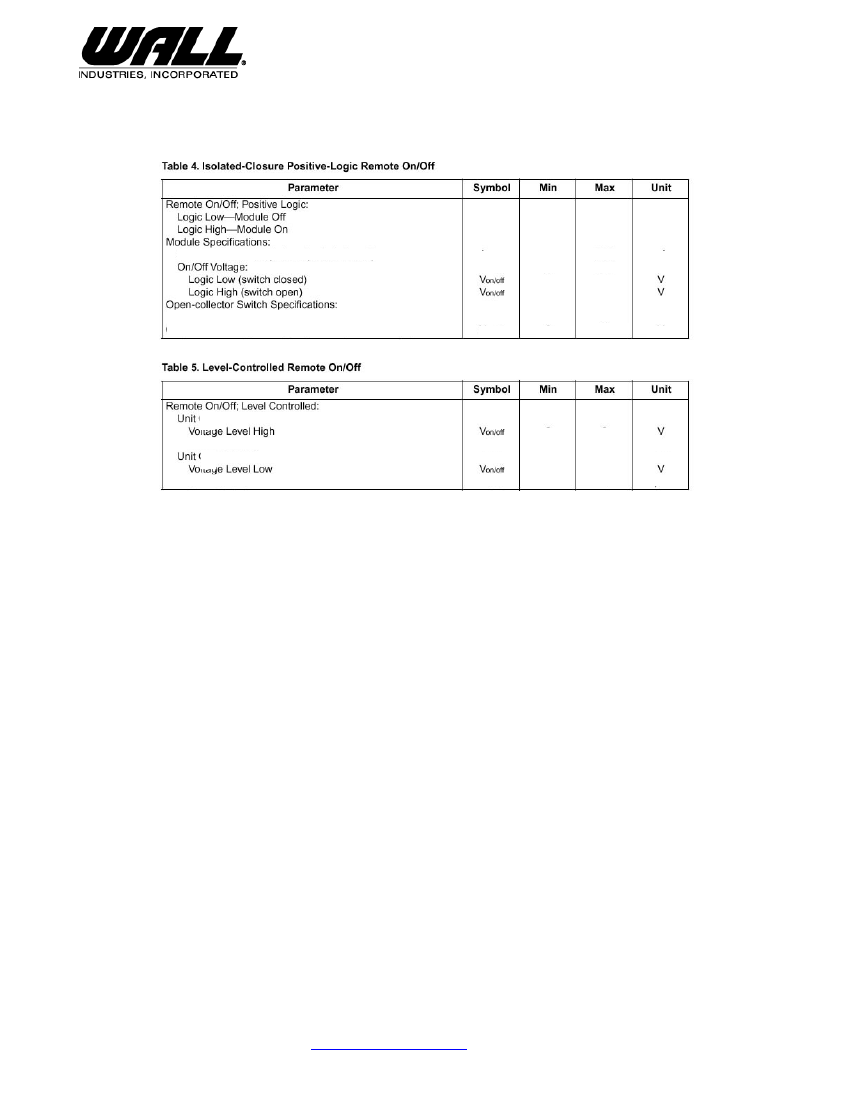

Table 4 summarizes the electrical specifica-tions for the ON/OFF pin and the
switch for isolated closure positive-logic on/off. In order to satisfy the requirements
for the low-impedance state, the closure must maintain a voltage less than the
maximum logic-low on/off voltage.The logic-high on/off voltage defines the
maximum voltage to which the ON/OFF pin floats when the isolated closure is in
the high-impedance state.The isolated closure must be rated to handle the
logic-low on/off current during its low-impedance state and withstand the logic-high
on/off voltage during its high-impedance state.
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
www.wallindustries.com
(888) 597-9255
5/16/2004
