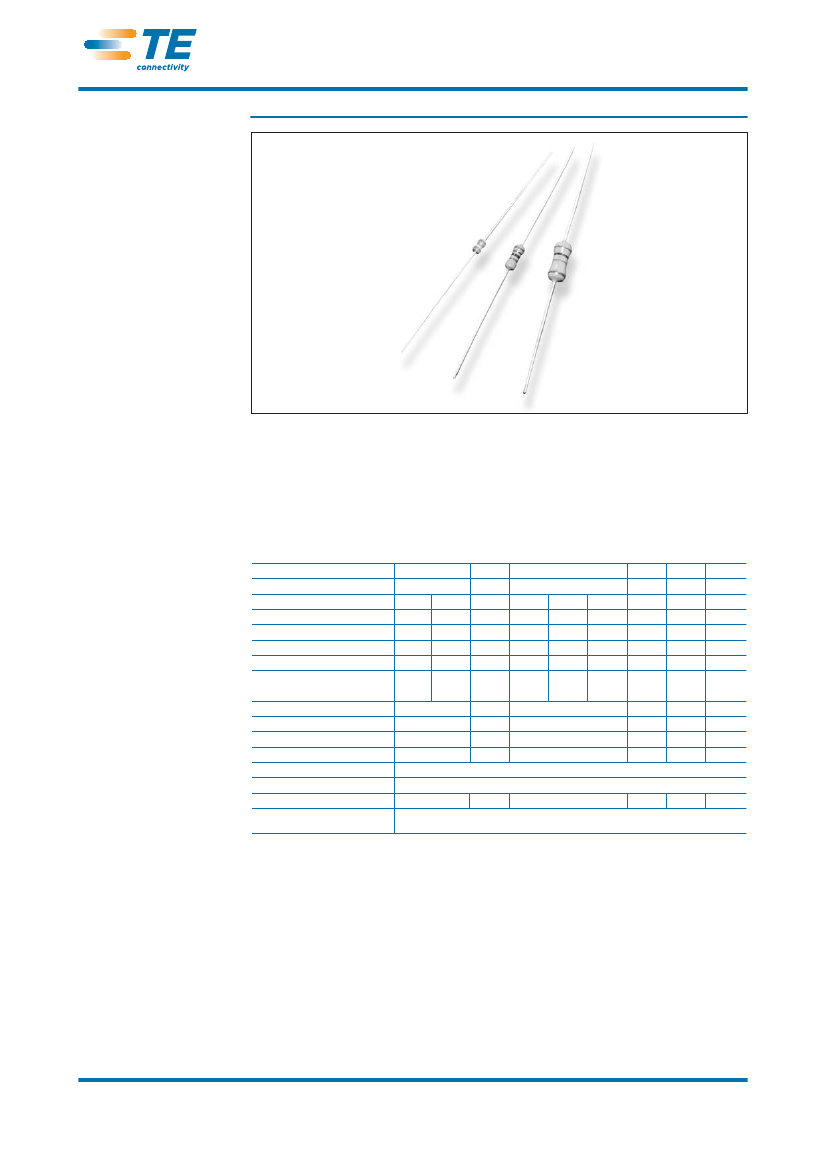

Metal Film Fixed Resistors
Type LR Series
Key Features
I
Superior quality metal
film resistors with 1%
tolerance and
temperature coefficients
down to 50 ppm. 3 case
sizes are available in
0.25, 0.6, 0.75W. The
LR1L series is a
low ohmic value range
from 0.1 to 0.82 ohm.
Ideally suited where low
resistance and small size
are required.
Metal film resistors have
excellent stability under
load and severe
environmental
conditions. They exhibit
very low noise current
and voltage coefficients.
They are available in a
wide range of resistance
values and are suitable
for general purpose
and precision
applications.
I
The resistive element comprises a thin film of nickel-chrome alloy evaporated onto a high
thermal conductivity ceramic element. Metal end caps are force fitted to the element prior
to spiralling to value. Tinned copper lead wires are welded to the end caps and the
components are then coated. One coat of phenolic resin is followed by three coats of
epoxy resin. All resistors are tested for value and tolerance.
Characteristics - Electrical
LR0204
Rated Power @ 70°C (W)
Resistance Range (Ohms) Min
Max
Tolerance (%)
Code Letter
Temp. Coefficient (ppm/°C)
Selection Series
On Request
Limiting Element Voltage
Max Permitted Element Voltage
Max Overload Voltage
Max Intermittent Overload Voltage
Operating Temp. Range (°C)
Climatic Category
Dielectric Strength (V)
Insulation Resistance
Min Dry (Mohms)
500
700
200
200
400
500
1R0
9R1
1
F
± 100
E24
0.25
10R
1M0
1
F
± 100
E24
E96
350
350
500
750
LR1L
0.5
R10
R82
5
J
± 200
E12
1R0
9R1
LR1
0.6
10R
1M0
1M1
10M
LR2
0.75
1R0
1M0
2
G
E24
E96
350
350
700
750
LR100
1
10R
1M0
1
F
E24
E96
500
500
1000
1000
5
J
LR200
2
10R
1M0
1
F
E24
E96
500
500
1000
1000
5
J
1
1
1
0.5 1
2
2 0.5 1
2
2 0.5 1
5
5
1
F
D F
G
D F
G
D F
J
J
F
G
F
G
F
± 100
E24
± 50
E24
E96
350
350
700
750
-55 to +155
55/155/56
700
1000
700
± 100
E24
± 100 25/50/100 25/50/100
700
700
1773241 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Metal Film Fixed Resistors
Type LR Series
Dimensions
Style
LR0204
LR1
LR1L
LR2
LR100
LR200
L*
3.5 +/-0.2
6.2 +/-0.5
6.2 +/-0.5
9.7 +/-0.3
12.0 max
12.0 max
D
2.0 max
2.3 +/-0.2
2.3 +/-0.2
3.5 +/-0.2
5.0 max
5.5 max
d Nom
0.45
0.55
0.55
0.55
0.7
0.7
l
28 +/-3.0
28 +/-3.0
28 +/-3.0
28 +/-3.0
28 +/-3.0
28 +/-3.0
* Length is measured in accordance with IEC 294.
Power Derating Curve
100
80
Rated Power (%)
60
40
20
0
0
20
40
60 70 80
100
120 125
Ambient Temperature (°C)
Surface Temperature Rise Vs Load
Temperature Rise above Ambient (°C)
100
80
60
LR0204
LR1L
LR1
LR2
40
20
0
0
0 0.2
0.25
0.4
0.6
0.75
Power Dissipation (W)
1773241 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Metal Film Fixed Resistors
Type LR Series
Mounting
The resistors are suitable for processing on automatic insertion equipment and cutting and bending machines.
Marking
The resistors are marked with a colour band code in accordance with JIS C 0802.
Packaging
LR0204, LR1L and LR1 resistors are normally supplied taped in 'ammo' boxes of 4000 pieces.
LR2 resistors are normally supplied taped in 'ammo' boxes of 1000 pieces.
Other package styles on request.
All tape specifications are in accordance with IEC 286-1.
Performance Characteristics
The evaluation of the performance characteristics is carried out with reference to IEC
Specifications QC 400 000 and QC 400 100.
TEST REF
4.23
4.24
4.25.1
4.25.3
TEST REF
4.13
4.16
4.18
4.19
4.22
Long Term Tests ±(1% + 0.05 ohm)
Climatic sequence
Damp heat, steady state
Endurance at 70°C
Endurance at 125°C
Short Term Tests ±(0.25% + 0.05 ohm)
Overload
Robustness of terminations
Resistance to soldering heat
Rapid change of temperature
Vibration
* For LR1L the limits are ± (5% + 0.1 ohm) and ± (1% + 0.05 ohm)
respectively. All resistance values are measured at a distance of 12mm
from the end cap.
How to Order
LR
Common Part
1
Style
0204 - 0.25W
1L - 0.5W
LR - Metal Film
Fixed Resistor
1 - 0.6W
2 - 0.75W
100 - 1W
200 - 2W
J - 5%
G - 2%
F - 1%
D - 0.5%
F
Tolerance
100R
Value
100 ohm
(100 ohms) 100R
1K0
(1000 ohms) 1K0
100 K ohm
(100,000 ohms) 100K
