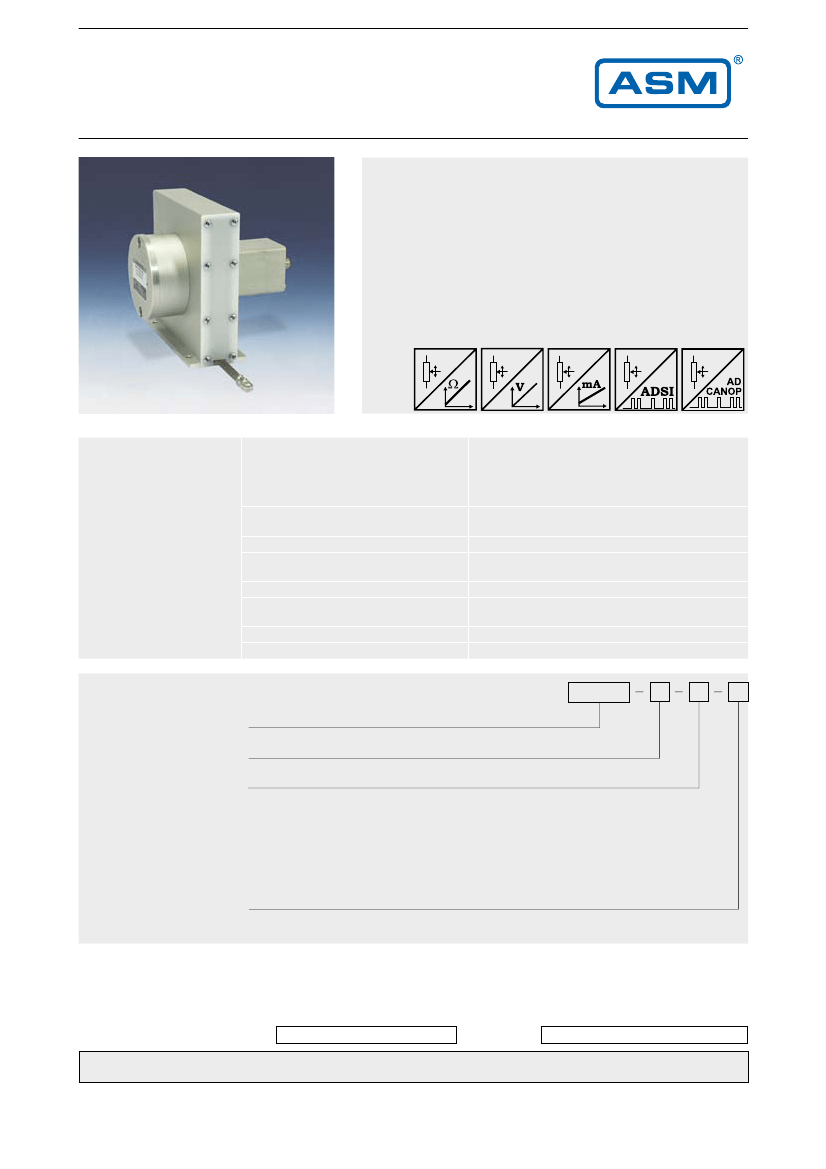

POSITAPE
®
WB17KT
withAnalog,SSIorCANopenOutput
P
ositionsensorwithmeasuringtapefor
teach-inoperations
•
•
•
•
ProtectionclassIP64
M
easurementranges0...3500mmto0...10000mm
Steelmeasuringtape
A
nalogoutputor
A/Dconvertedsynchronousserialoutput(SSI)or
A/DconvertedCANopenoutput
Specifications
Outputs
Resolution
Sensing device
Material
Protection class
Connection
Operation temperature
EMC
Potentiometer 1 kΩ
Voltage 0 ... 10 V
Current 4 ... 20 mA (3 wire)
A/D converted synchronous serial interface (SSI)
A/D converted CANopen bus
Analog: essentially infinite; ADSI16: max. 16 bit f.s.;
ADCANOP16 bit f.s.
Hybrid precision potentiometer
Aluminium, stainless steel und plastic
Measuring tape: steel, 10 mm wide, 0.1 mm thick
IP64
8 pin connector M12 (ADCANOP: 5 pin) /
cable output, length 3 m
-20 ... +85 °C
Refer to output specification
OrdercodeWB17KT
Modelname
WB17KT
Measurementrange(inmm)
3500 / 6500 / 10000
Outputs
R1K
= Potentiometer 1 kΩ
10V
= 0 ... 10 V signal conditioner
420A
= 4 ... 20 mA signal conditioner (2 wire)
420T
= 4 ... 20 mA signal conditioner (3 wire)
PMUV/PMUI = Programmable 0... 10 V or 4 ... 20 mA signal conditioner
ADSI16
= A/D converted synchronous serial interface (SSI)
ADCANOP = A/D converted CANopen bus
Connection
M12
= 8 pin connector M12 (ADCANOP: 5 pin)
KAB3M
= Cable output, standard length 3 m
Ordercodeconnectorcable
KAB-...M-M12/8F/G-LITZE
ADCANOP:
KAB-...M-M12/5F/G-M12/5M/G
Orderexample:WB17KT-6500-10V-M12
14
PN-E-09
