HDA316-71G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> HDA316-71G

HDA316-71G: DescriptionIC Socket, DIP16, 16 Contact(s); CategoryThe connector socket; File Size131KB，2 Pages; ManufacturerAdvanced Interconnections Corp.; Environmental Compliance

Download Datasheet Parametric View All

HDA316-71G Overview

IC Socket, DIP16, 16 Contact(s)

HDA316-71G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SOCKET ADAPTER, 94V-0
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP16
Shell material	PLASTIC
JESD-609 code	e4
Manufacturer's serial number	HDA
Number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

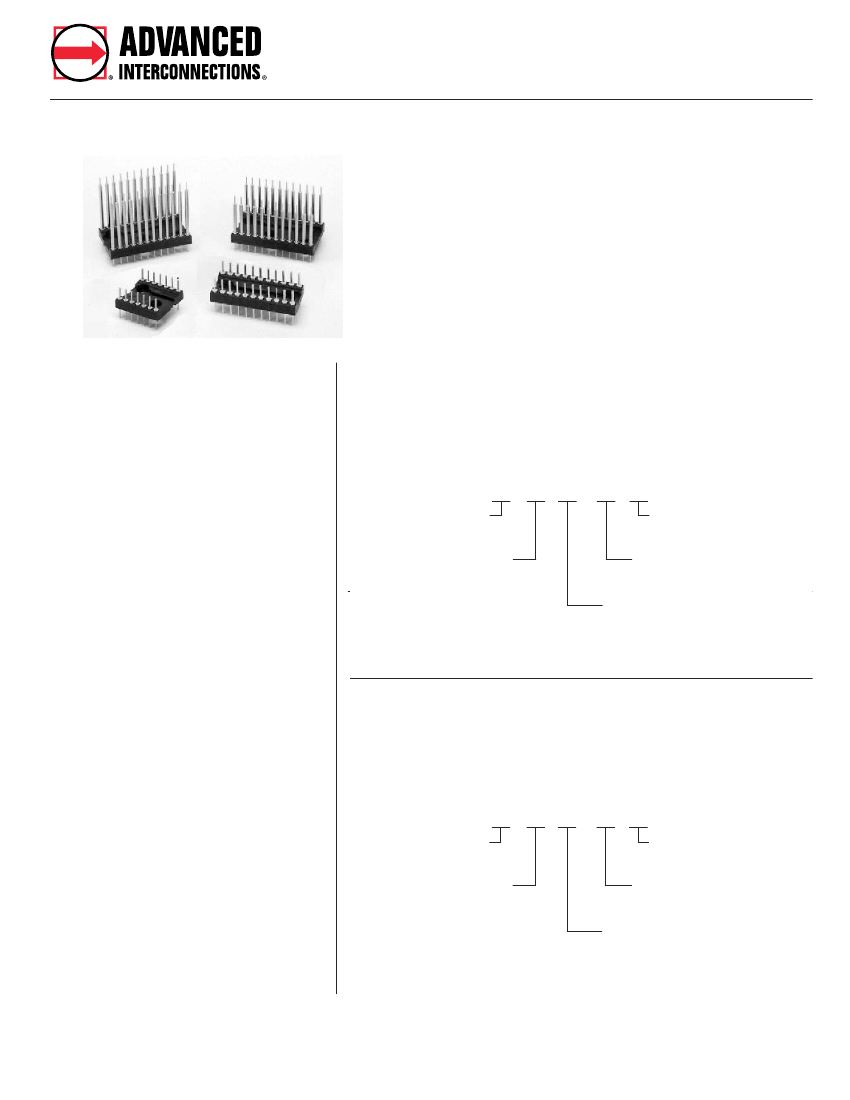

Dual In-Line Adapters

5 Energy Way, P.O. Box 1019, West Warwick, RI 02893 USA Tel. 800-424-9850/401-823-5200 • Fax 401-823-8723 • Email info@advintcorp.com • Internet http://www.advintcorp.com

Dual In-Line Adapters / Discrete Component Carriers

Features:

•

Standard Adapters

DA -

Insulator Material:

Glass Filled Thermoplastic Polyester (P.B.T.)

U.L. Rated 94V-O, -60˚C to 140˚C (-76˚F to 284˚F)

•

Low Profile.

Design allows for stacking on

.100”(2.54mm) grid.

Board to Board applicable.

For hand soldering or surface mount

applications use HDA only.

Easily customized to fit your application.

Also available in open frame see pages 82

and 83 for details.

How To Order

Body Type

DA - Standard

DIP Spacing

3 - .300" (7.62 mm)

4 - .400" (10.16 mm)

6 - .600" (15.24 mm)

-09

Terminal Plating

G - Gold

T - Tin-Lead

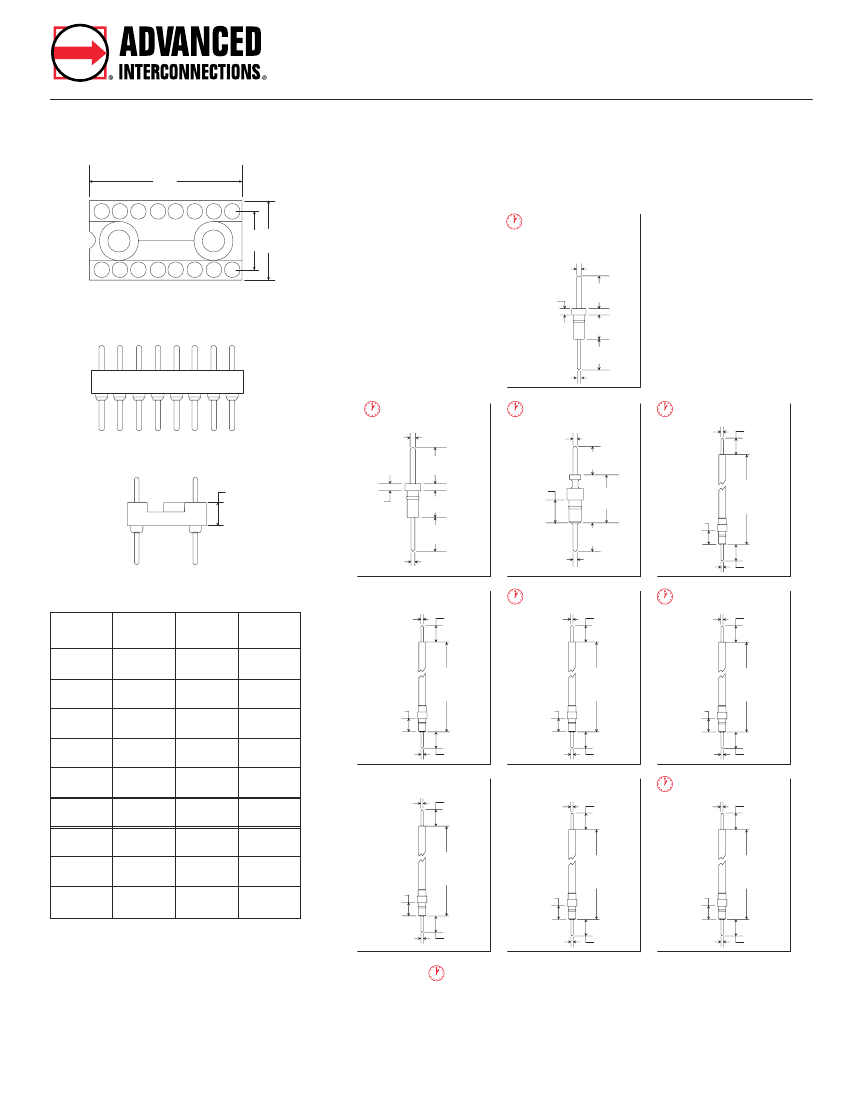

Terminal Type

See next page

for terminal types.

Terminals:

Brass - Copper Alloy (C36000),

ASTM-B-16

Number of Pins

(8 to 40)

Plating:

Gold over Nickel or

Tin-Lead over Nickel

High Temperature Adapters

HDA -

Insulator Material:

High Temp. Glass Filled Thermoplastic

U.L. Rated 94V-O, -60˚C to 260˚C (-76˚F to 500˚F)

How To Order

HDA

Body Type

HDA - High Temp.

DIP Spacing

3 - .300" (7.62 mm)

4 - .400" (10.16 mm)

6 - .600" (15.24 mm)

-09

Terminal Plating

G - Gold

T - Tin-Lead

Terminal Type

See next page

for terminal types.

Number of Pins

(8 to 40)

inch/(mm)

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.

Page 90
