40-Channel Universal Multiplexer
Key Features
• Offers high-density packing for the full C-band
• Provides high channel uniformity
• Complies with ITU-T G.694.1 100-GHz DWDM
transceivers
• Fits into EIA 19-in, 23-in, and ETSI 300-mm racks
• Power is not required; thermally stable passive optics
Applications
• Supports terminal mux/demux
applications
• Supports high-capacity optical
transmission systems
• Supports bidirectional transmission
on a single fiber and linear and ring
architectures requiring wavelength
reuse
The WaveReady 40-channel universal multiplexer is a scalable high-capacity terminal
dense wavelength division multiplexing (DWDM) solution that can multiplex up to
40 wavelengths onto a single fiber.
By providing access to forty 100-GHz spaced channels, this multiplexer
maximizes the capacity of the C-band range. In conjunction with the WaveReady
line of transponders and amplifiers, the 40-channel universal multiplexer
supports a wide range of architectures from simple point-to-point to amplified
ring configurations with dynamic add/drop.
The 40-channel universal multiplexer requires no electrical power and generates
no heat, noise, or radiated emissions. With its high channel uniformity, low
insertion loss, and virtually zero chromatic dispersion, the 40-channel universal
multiplexer maintains compatibility with all digital transmission standards and
data rates up to 10 Gbps.
Compliance
• ITU-T G694.1
• GR-1221 and 1209

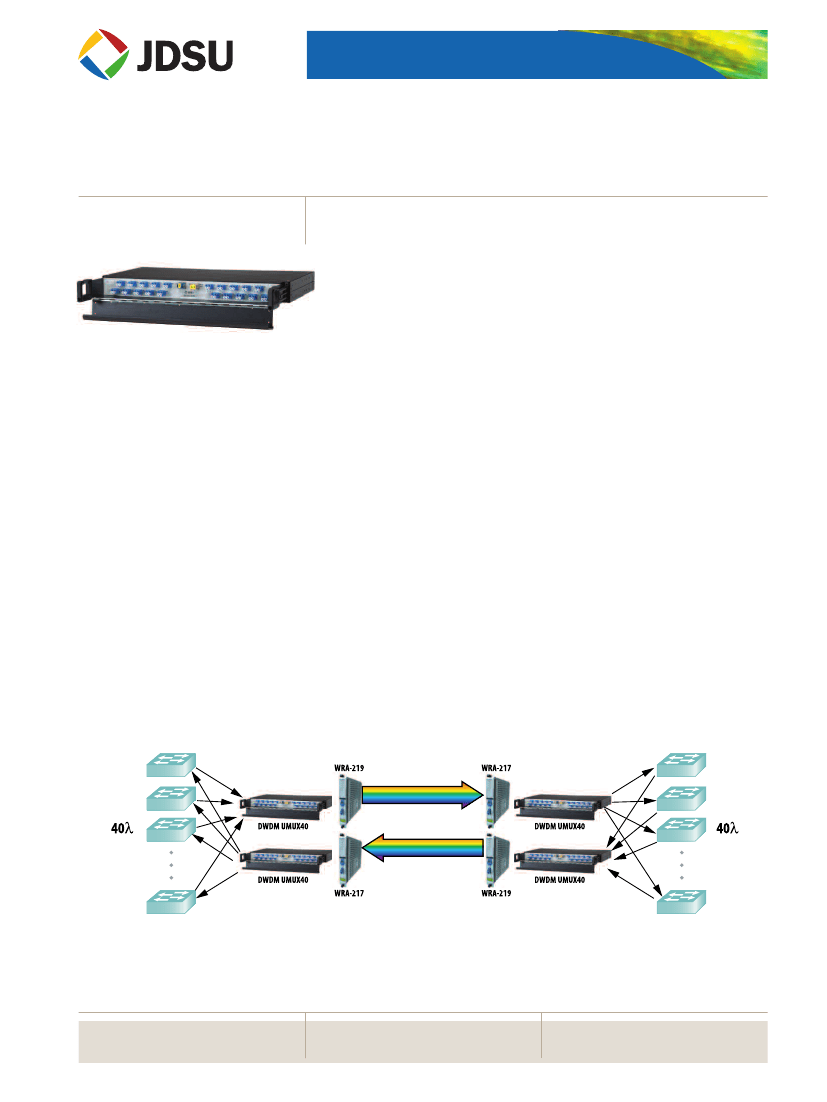

Point-to-point amplified link
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com/waveready
WaveReady 40-CHANNEL UNIVERSAL MULTIPLEXER
2
Specifications
Optical Performance
1
Parameter
Channel spacing
Insertion loss
Channel non-uniformity
Monitor tap ratio
Channel bandwidth
Adjacent channel isolation
Non-adjacent channel isolation
Polarization dependent loss
Polarization mode dispersion
Optical return loss
Input optical power—sum of all channel ports
Minimum
Typical
100 GHz
Maximum
5.1 dB
1.5 dB
19.5 dB
14 dB
26 dB
33 dB
17 dB
ITUλ ± 0.1 nm
0.5 dB
0.5 ps
40 dB
250 mW
Physical Characteristics
Size (H x W x L) excluding mounting brackets
Rack mounting options
Optical connector type (all ports)
4.45 x 44.2 x 30.5 cm
(1.75 x 17.4 x 12 in)
ETSI, 19- or 23-inch rack mount
LC/PC bulkhead
Environmental Characteristics
Operating ambient temperature (short term)
Operating ambient temperature (extended term)
Storage temperature
Relative humidity (non-condensing)
–5 to +55ºC
+10 to +40ºC
–40 to +85ºC
5 to 95%
1
Specifications are worst case, end-of-life over specified temperature and wavelength range
WaveReady 40-CHANNEL UNIVERSAL MULTIPLEXER
3
Channel Plan
Channel
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Frequency
(GHz)
192
192.1
192.2
192.3
192.4
192.5
192.6
192.7
192.8
192.9
193
193.1
193.2
193.3
193.4
193.5
193.6
193.7
193.8
193.9
Wavelength
(nm)
1561.42
1560.61
1559.79
1558.98
1558.17
1557.36
1556.55
1555.75
1554.94
1554.13
1553.33
1552.52
1551.72
1550.92
1550.12
1549.32
1548.51
1547.72
1546.92
1546.12
Channel
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
Frequency
(GHz)
194.0
194.1
194.2
194.3
194.4
194.5
194.6
194.7
194.8
194.9
195
195.1
195.2
195.3
195.4
195.5
195.6
195.7
195.8
195.9
Wavelength
(nm)
1545.32
1544.93
1543.73
1542.94
1542.14
1541.35
1540.56
1539.77
1538.98
1538.19
1537.40
1536.61
1535.82
1535.04
1534.25
1533.47
1532.68
1531.90
1531.12
1530.33
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or JDSU
directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at customer.service@jdsu.com.
Product Code
MDX-40UX100CB
Description
40-Channel Universal Multiplexer
Discrete Device
