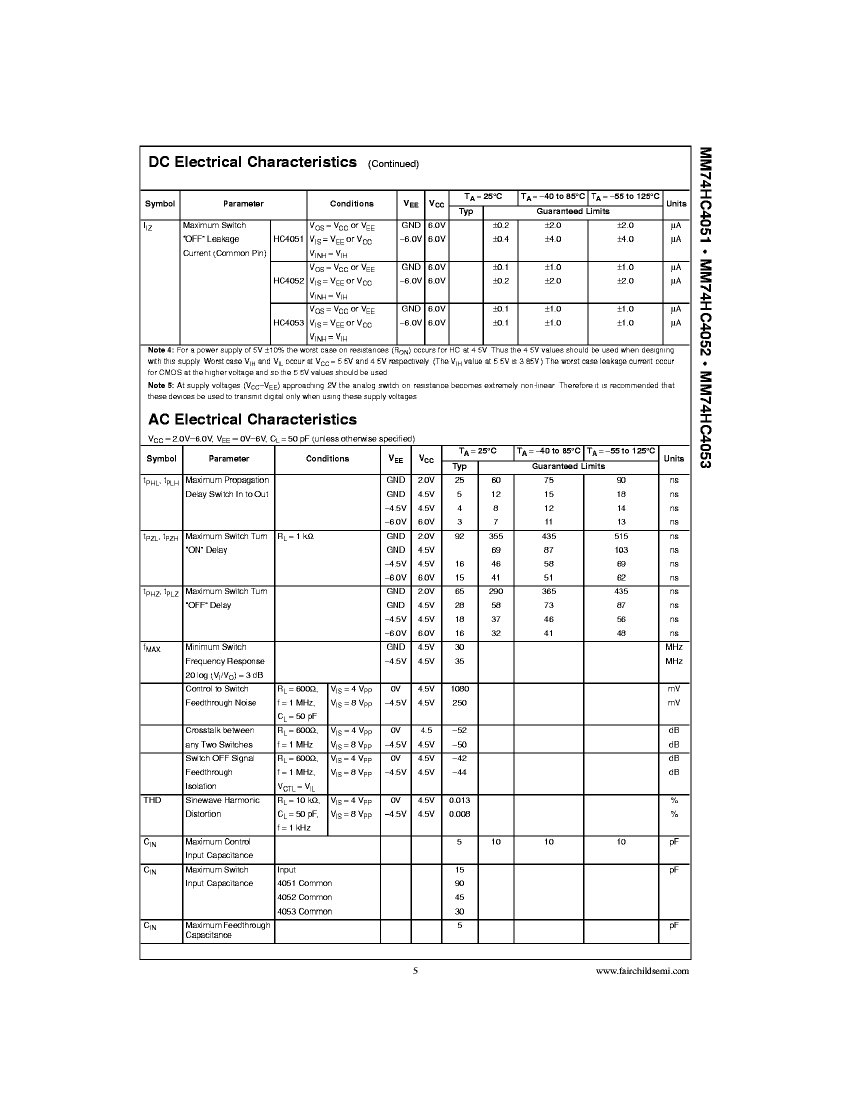

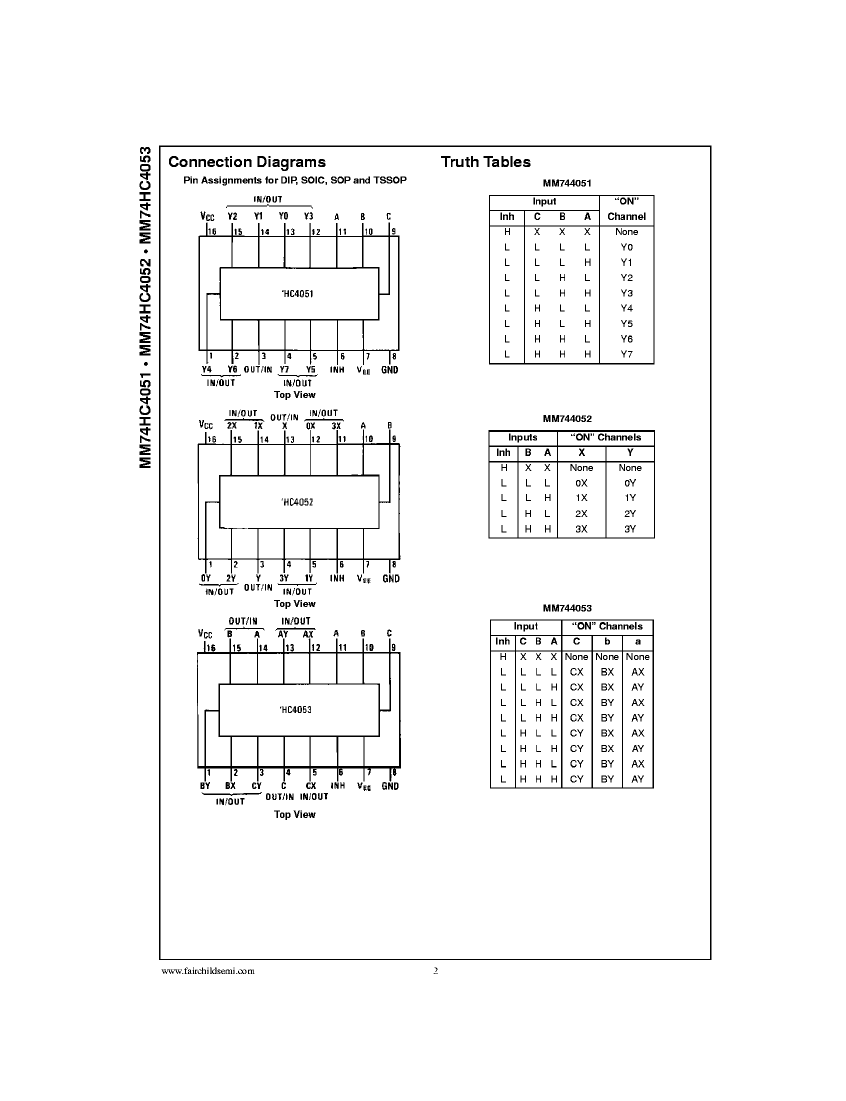

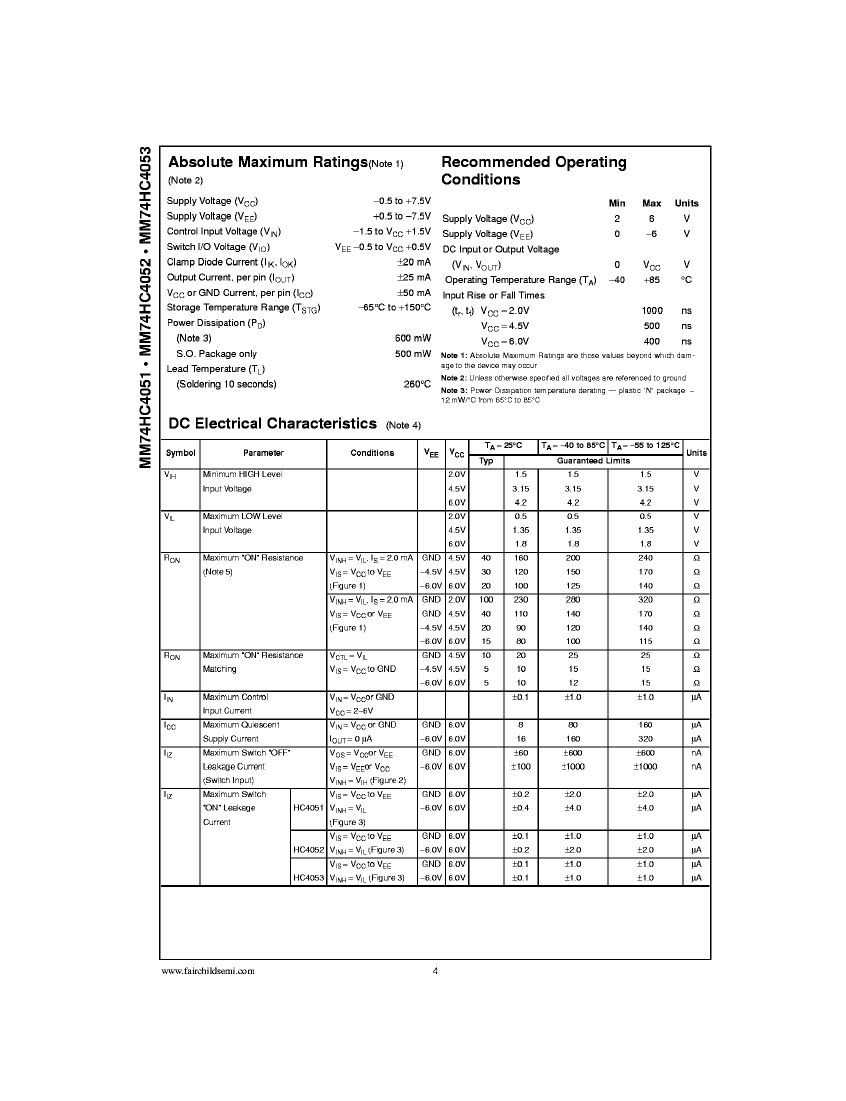

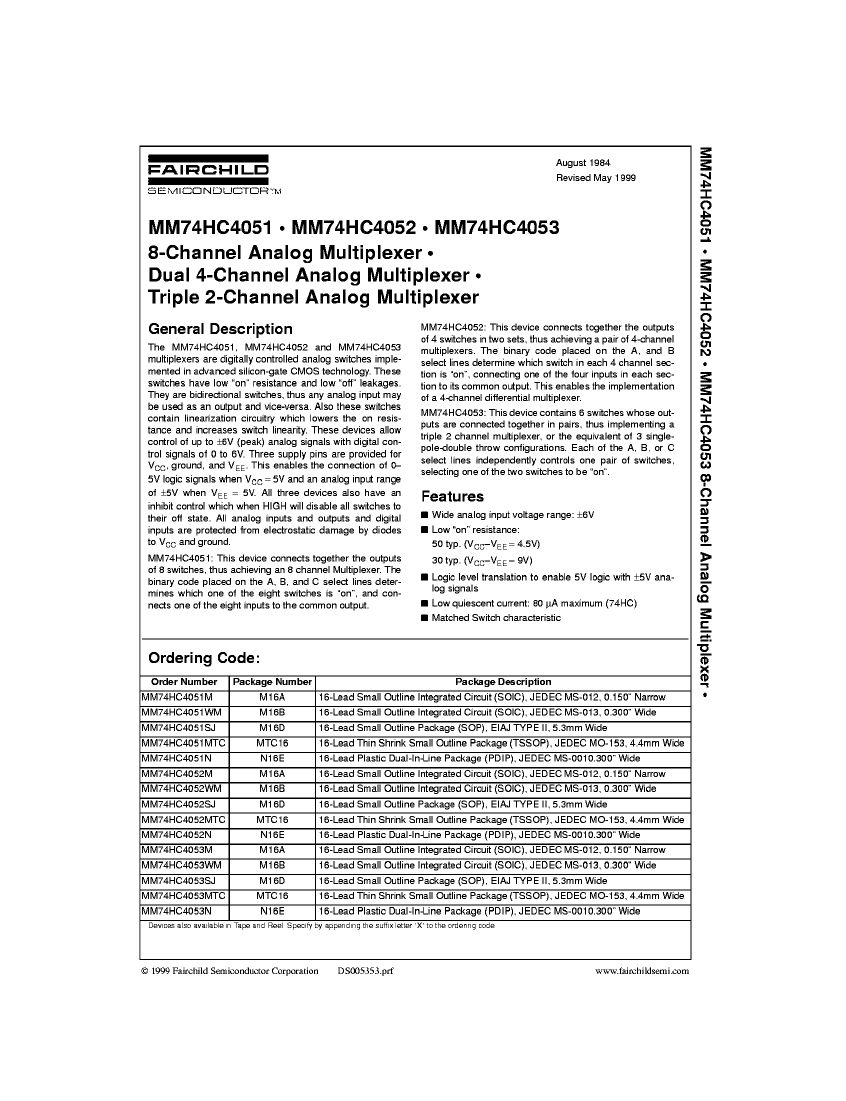

Preview

MM74HC4052WMX: DescriptionDifferential Multiplexer, 2 Func, 4 Channel, CMOS, PDSO16, 0.300 INCH, MS-013, SOIC-16; CategoryAnalog mixed-signal IC The signal circuit; File Size196KB，11 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Related ProductsFound9parts with similar functions to MM74HC4052WMX

Download Datasheet Parametric Compare View All

MM74HC4052WMX Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MM74HC4052WMX	-	-	View	Buy Now

MM74HC4052WMX Overview

Differential Multiplexer, 2 Func, 4 Channel, CMOS, PDSO16, 0.300 INCH, MS-013, SOIC-16

MM74HC4052WMX Parametric

Parameter Name	Attribute value
package instruction	SOP,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDSO-G16
length	10.3 mm
Maximum negative supply voltage (Vsup)	-6 V
Negative supply voltage minimum (Vsup)
Nominal Negative Supply Voltage (Vsup)	-4.5 V
Number of channels	4
Number of functions	2
Number of terminals	16
Nominal off-state isolation	42 dB
On-state resistance matching specifications	20 Ω
Maximum on-state resistance (Ron)	230 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
Maximum disconnect time	290 ns
Maximum connection time	355 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MM74HC4052WMX Related Products

	MM74HC4052WMX	MM74HC4052N	MM74HC4052M	MM74HC4052MTC	MM74HC4052MX	MM74HC4052CW	MM74HC4052WM
Description	Differential Multiplexer, 2 Func, 4 Channel, CMOS, PDSO16, 0.300 INCH, MS-013, SOIC-16	Differential Multiplexer, 2 Func, 4 Channel, CMOS, PDIP16, 0.300 INCH, PLASTIC, MS-001, DIP-16	Differential Multiplexer, 2 Func, 4 Channel, CMOS, PDSO16, 0.150 INCH, MS-012, SOIC-16	Differential Multiplexer, 2 Func, 4 Channel, CMOS, PDSO16, 4.40 MM, MO-153, TSSOP-16	Differential Multiplexer, 2 Func, 4 Channel, CMOS, PDSO16, 0.150 INCH, MS-012, SOIC-16	Differential Multiplexer, 2 Func, 4 Channel, CMOS, DIE-16	Differential Multiplexer, 2 Func, 4 Channel, CMOS, PDSO16, 0.300 INCH, MS-013, SOIC-16
package instruction	SOP,	DIP,	SOP,	TSSOP,	SOP,	DIE,	SOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	X-XUUC-N16	R-PDSO-G16
Maximum negative supply voltage (Vsup)	-6 V	-6 V	-6 V	-6 V	-6 V	-6 V	-6 V
Nominal Negative Supply Voltage (Vsup)	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V
Number of channels	4	4	4	4	4	4	4
Number of functions	2	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16	16
Nominal off-state isolation	42 dB	42 dB	42 dB	42 dB	42 dB	42 dB	42 dB
On-state resistance matching specifications	20 Ω	20 Ω	20 Ω	20 Ω	20 Ω	20 Ω	20 Ω
Maximum on-state resistance (Ron)	230 Ω	230 Ω	230 Ω	230 Ω	230 Ω	230 Ω	230 Ω
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	TSSOP	SOP	DIE	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	UNCASED CHIP	SMALL OUTLINE
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
surface mount	YES	NO	YES	YES	YES	YES	YES
Maximum disconnect time	290 ns	290 ns	290 ns	290 ns	290 ns	290 ns	290 ns
Maximum connection time	355 ns	355 ns	355 ns	355 ns	355 ns	355 ns	355 ns
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	NO LEAD	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	UPPER	DUAL
Base Number Matches	1	1	1	1	1	1	1
length	10.3 mm	19.305 mm	9.9 mm	5 mm	9.9 mm	-	10.3 mm
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C
Maximum seat height	2.65 mm	5.08 mm	1.75 mm	1.2 mm	1.75 mm	-	2.65 mm
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	0.65 mm	1.27 mm	-	1.27 mm
width	7.5 mm	7.62 mm	3.9 mm	4.4 mm	3.9 mm	-	7.5 mm
Maker	-	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	-
