MEC1-150-SM-D-EM2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MEC1-150-SM-D-EM2

MEC1-150-SM-D-EM2: DescriptionCard Edge Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size701KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

MEC1-150-SM-D-EM2 Overview

Card Edge Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,

MEC1-150-SM-D-EM2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	POLARIZED
body width	0.268 inch
subject depth	0.545 inch
body length	2.537 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	CENTRONIC
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	2.2 A
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
Base Number Matches	1

Preview

Download Datasheet

View All

REVISION P

DO NOT

SCALE FROM

THIS PRINT

((No OF POS + 2) x .03937[1.0000])

+ .490[12.45] REF

((No OF POS + 2) x .03937[1.0000])

+ .100[2.54] REF

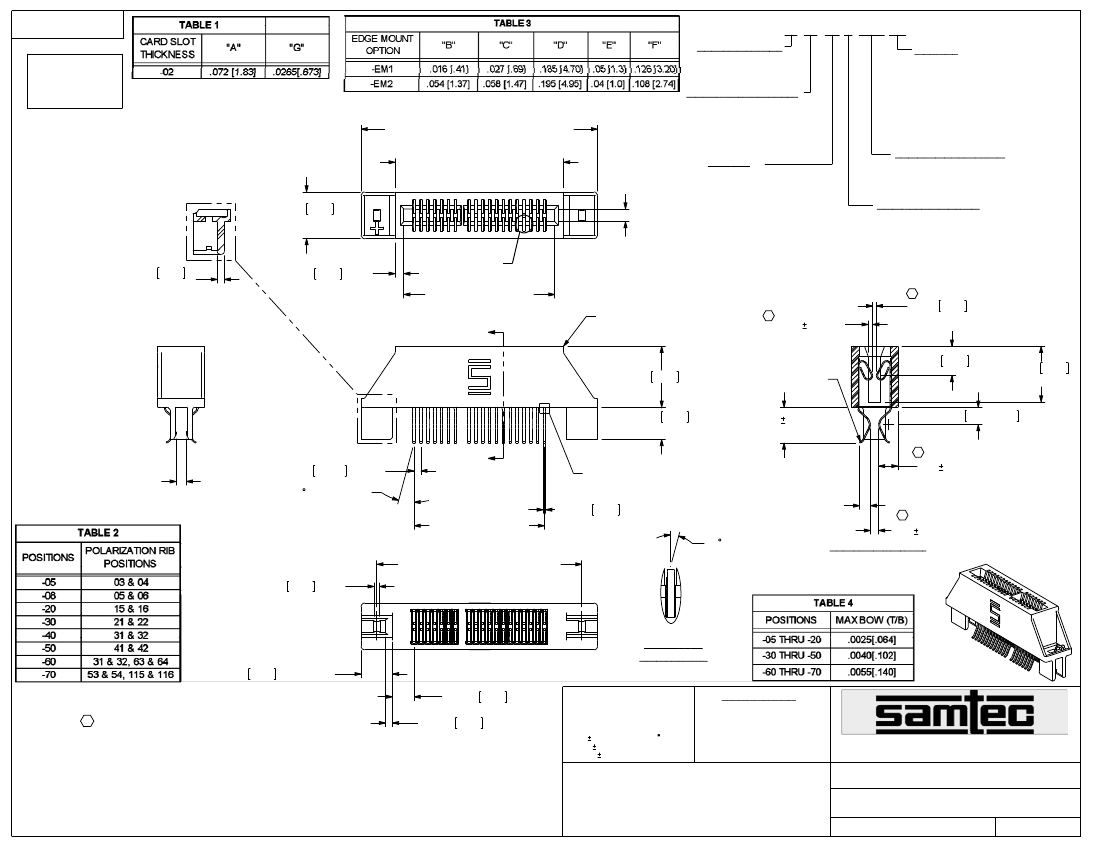

MEC1-1XX-XX-XX-D-EMX-XX

No OF POSITIONS

-05, -08, -20, -30,

-40, -50, -60 & -70

(PER ROW)

CARD SLOT THICKNESS

-02: .062 THICK CARD

(USE MEC1-XX-S-D-EMX-X)

(SEE TABLE 1)

OPTIONS

-NP: NO POLARIZED POSITION

(USE MEC1-XX-X-D-EMX-N)

(ONLY AVAILABLE ON -05,

-08, -20 & -30 POSITIONS)

-TR: ( SEE PAGE 2 -TR PACKAGE

VIEW, NOT AVAILABLE FOR

-60 OR -70 POS.)

-BLANK: BODY IS POLARIZED

.2680 6.81

REF

.0400 1.02

REF

[BREAKOUT VIEW]

.0500 1.27 REF

'A'

(No OF POS + 2) x

.03937[1.000] REF

"A"

EDGE MOUNT OPTION

PLATING

-EM1: .031 THICK PCB

-F: FLASH GOLD

-EM2: .062 THICK PCB

(USE C-150-07-F-P)

(SEE TABLE 3)

-L: LIGHT SELECTIVE GOLD

ROW SPECIFICATION

(USE C-150-07-L-P)

"A" REF

-D: DOUBLE

-S: SELECTIVE GOLD

(USE MEC1-XX-X-D-EMX-X)

(USE C-150-07-S-P)

-FM: FLASH GOLD SELECTIVE, MATTE TIN TAIL

(USE C-150-07-F-P)

-LM: LIGHT SELECTIVE GOLD, MATTE TIN TAIL

(USE C-150-07-L-P)

* NOT ENGINEERING APPROVED

-SM: SELECTIVE GOLD, MATTE TIN TAIL

(USE C-150-07-S-P)

.021 0.53

MEC1-XX-X-D-EMX-X

.005 [.13]

"G"

.003 [.08]

.1690 4.29 REF

.3500 8.89 REF

.1850 4.70

REF

C-150-07-XX-P

"D" .010

(SEE NOTE 5)

.3200 8.13

REF

.100±.010 2.54±0.25 REF

"A"

"C" REF

.0394 1.000 (TYP)

2 MAX SWAY

(No OF POS -1) x

.03937[1.0000]

(No OF POS x .03937[1.0000])

+ .389[9.87] REF

.0300 0.76 REF

.0140 0.36 REF

2 MAX SWAY

'B'

"E"

"F" .006[.015] (TYP)

[SEE CONTACT IN-PROCESS VIEW]

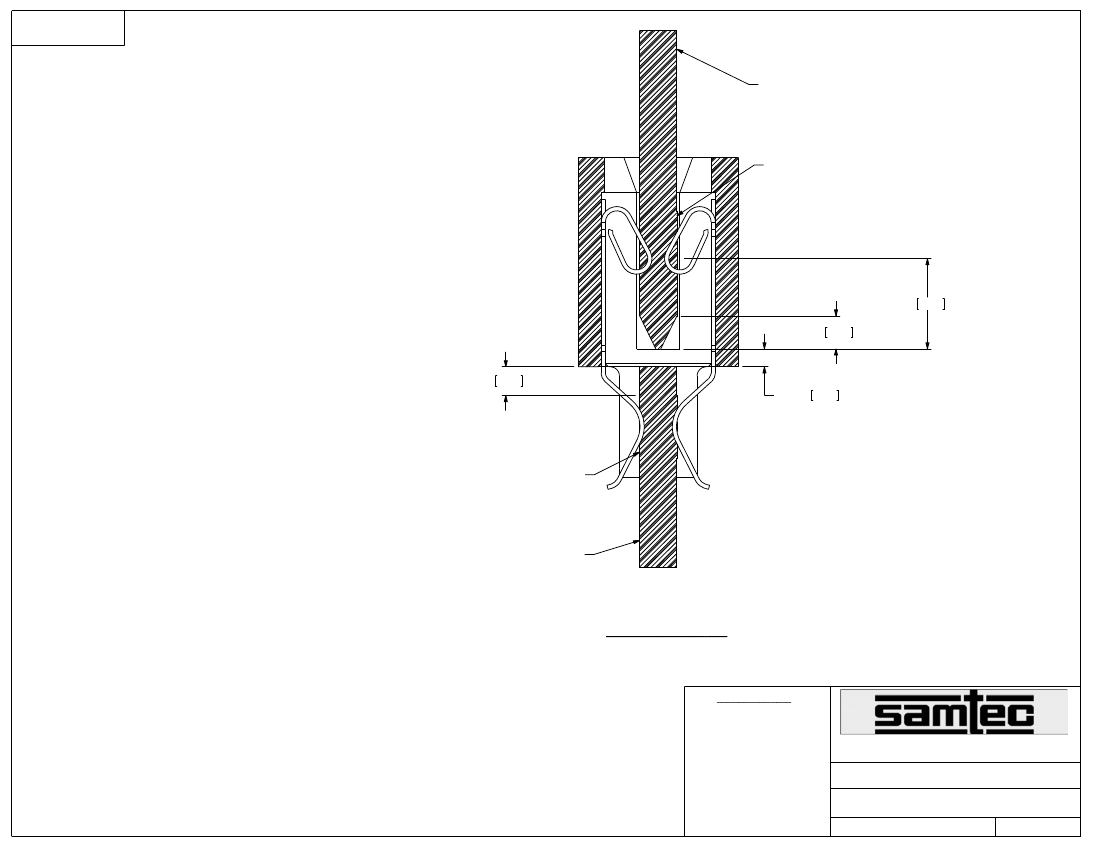

SECTION "A"-"A"

"B" .007 (SEE NOTE 5)

DETAIL 'A'

SCALE 6 : 1

.1800 4.57 REF (TYP)

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. BURR ALLOWANCE: .0015[.038] MAX.

3. MINIMUM PUSHOUT FORCE: .5 LB.

4. DELETED.

5. .020[.51] MAX VARIATION ON ONE PART.

6. .0040[.102] MAX ALLOWABLE BURR ON TAILS.

7. DELETED.

8. .0050[.127] MAX BARB PROTRUSION BELOW BODY.

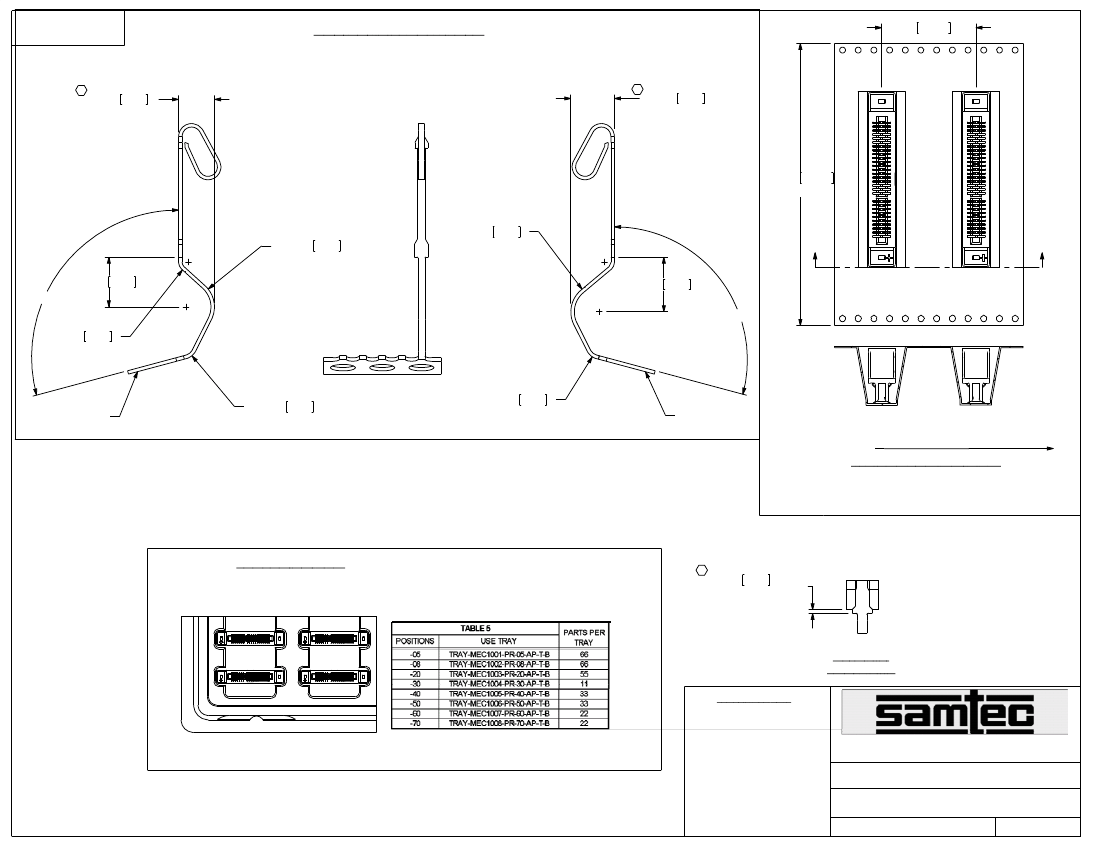

9. PART TO BE TRAY PACKAGED USING TRAY-XX-01.

.1238 3.14 REF

.0400 1.02 REF

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

ANGLES

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

MATERIAL:

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

code: 55322

e-Mail: info@SAMTEC.com

DESCRIPTION:

DWG. NO.

DO NOT SCALE DRAWING

SHEET SCALE: 1.75:1

INSULATOR: LCP, COLOR: BLACK

CONTACT: PHOS BRONZE

1mm MINI-EDGE, EDGE MOUNT ASSEMBLY

MEC1-1XX-XX-XX-D-EMX-XX

5/19/2000

SHEET

F:\DWG\MISC\MKTG\MEC1-1XX-XX-XX-D-EMX-XX-MKT.SLDDRW

BY:

KEVIN B
