CTOL

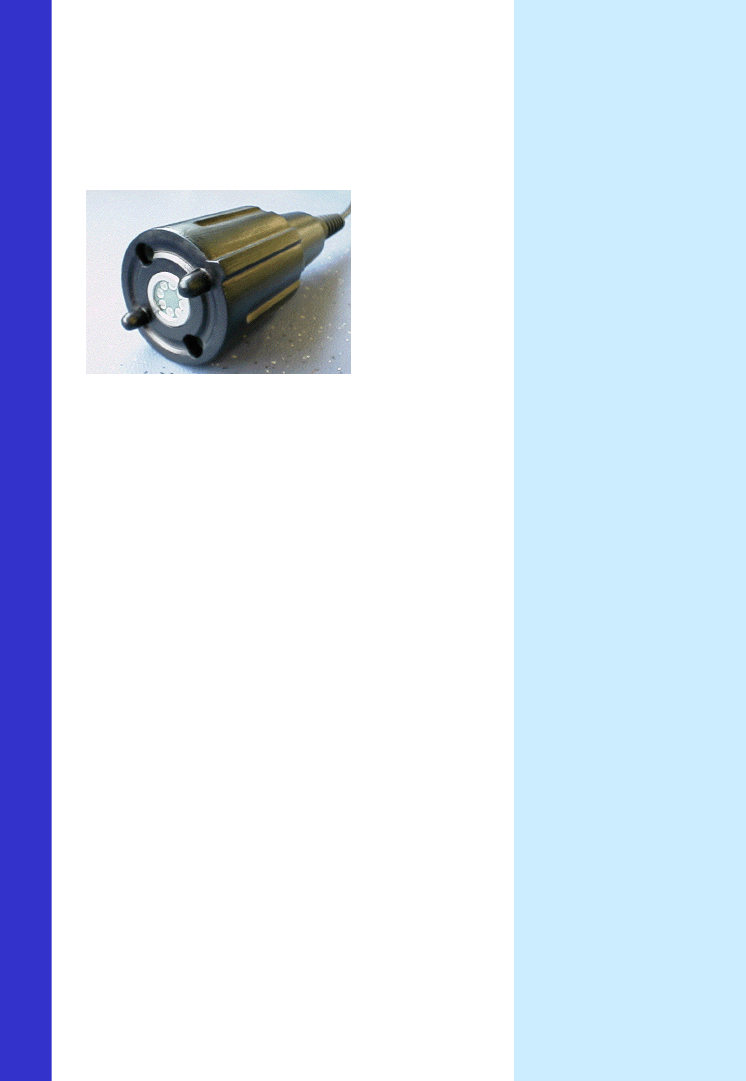

Multichannel Tactical Optical Connector
Features
This product offers a
very robust (o.d. 51
mm), up to 8
channels and easy
to mate optical
connection that
allows for rapid
deployment of high
speed transmission
links in adverse environments.
The specific design of the lenses garanties a large
beam diameter and a low loss connection insensitive to
dust and dirt. Ergonomic keys allow for blind mating.
The CTOL harnesses are easy to maintain on the field
with the FTOS splice kit.
The
flat
protective
windows mounted on
shock absorbers provide
a connector interface
easy to clean on the field
to improve performance
and protection.
The Amphenol CTOL
Fibre Optic expanded
beam connector is the 8
channels version of the
CTOS connector.
! ! ! ! ! ! ! !
976 Series
MAIN CHARACTERISTICS
Technical description
• 2, 4 or 8 channel Plugs and Receptacles and Tactical
Harnesses and Test caps for maintenance
• Hermaphroditic interface with rapid ramp coupling
• 2, 4 and 8 channel products are intermateable
• Large expanded beams with protective windows
• Stainless steel body with ergonomic rubber shell
• Typical Insertion Loss : 1.5 dB @ 1300 nm 50/125 fiber
• Durability : 10 000 mating/unmating cycles
• Operating Temperature : -40°C, +85°C
• Vibrations : 10 to 2000Hz, 10g, 1.5 mmp/p, 3 directions
• Bumps : 4000 Bumps, 40g, 6ms, 6 directions
• Mechanical shock : 50g, ½ sinus, 3 shocks by direction,
3 axes
• Free drops : 26 drops 1.2m on plywood/concrete (plug)
• Water immersion : > 1m depth
• Salt spray : 500 hours
• Mud Resistance : MIL C 83526/13
• Low pressure : 85 mbars 48 hours
• Termination, Maintenance accessories and tool kits
available
Applications
• Army, Navy and Airforce
optical networks
• EMI insensitive and light
tactical transmission links
• Long distance
• Radar deployment
systems
Amphenol
Amphenol Socapex
Promenade de l’Arve -B.P.29 - 74311 THYEZ - FRANCE - Tel. :33 (0) 4 50 89 28 53 - Fax : 33 (0) 4 50 89 28 23
Specifications are subject to change without notice. All statements, information and data system given herein are believed to be accurate and
reliable but are presented without garanty. No reproduction without agreement. E502/B . Printed in France by Amphenol Socapex.
CTOL
! ! ! ! ! ! ! !
Line Drawings
(dimensions in mm)
CTOL plug with protective cap
976 Series
CTOL plug to plug
CTOL jam nut receptacle – rear mount
How to order :
CTOL – XXX – XX – X – XX – X - XX - XXX
CTOL : 976 series
• Plug for tactical cable
• Jam nut receptacle
for pig-tails
• Jam nut receptacle
for tactical cable
: 06M
: 77P
: 77M
BPF : Cap for plug
BPE : Cap for Jam
Nut Receptacle
All cables are tight jacket.
28 : O.D. patchcord 2.8 mm
55 : O.D. tactical 5.5 mm
75 : O.D. tactical 7.5 mm
Other cables possible.
Straight backshell
Number of channel
2 channels : 2 4 channels : 4
: 00
Y : Wavelength 1300 nm
Z : Wavelength 840 – 1300 nm
8 channels : 8
01 : 50/125 µm
02 : 62.5/125 µm
Amphenol
Amphenol Socapex
Promenade de l’Arve -B.P.29 - 74311 THYEZ - FRANCE - Tel. :33 (0) 4 50 89 28 53 - Fax : 33 (0) 4 50 89 28 23
Specifications are subject to change without notice. All statements, information and data system given herein are believed to be accurate and
reliable but are presented without garanty. No reproduction without agreement. E502/B . Printed in France by Amphenol Socapex.
