Foliensteckverbinder
Eco-Lock 1,0
Eco-Lock
FFC / FPC-Connectors

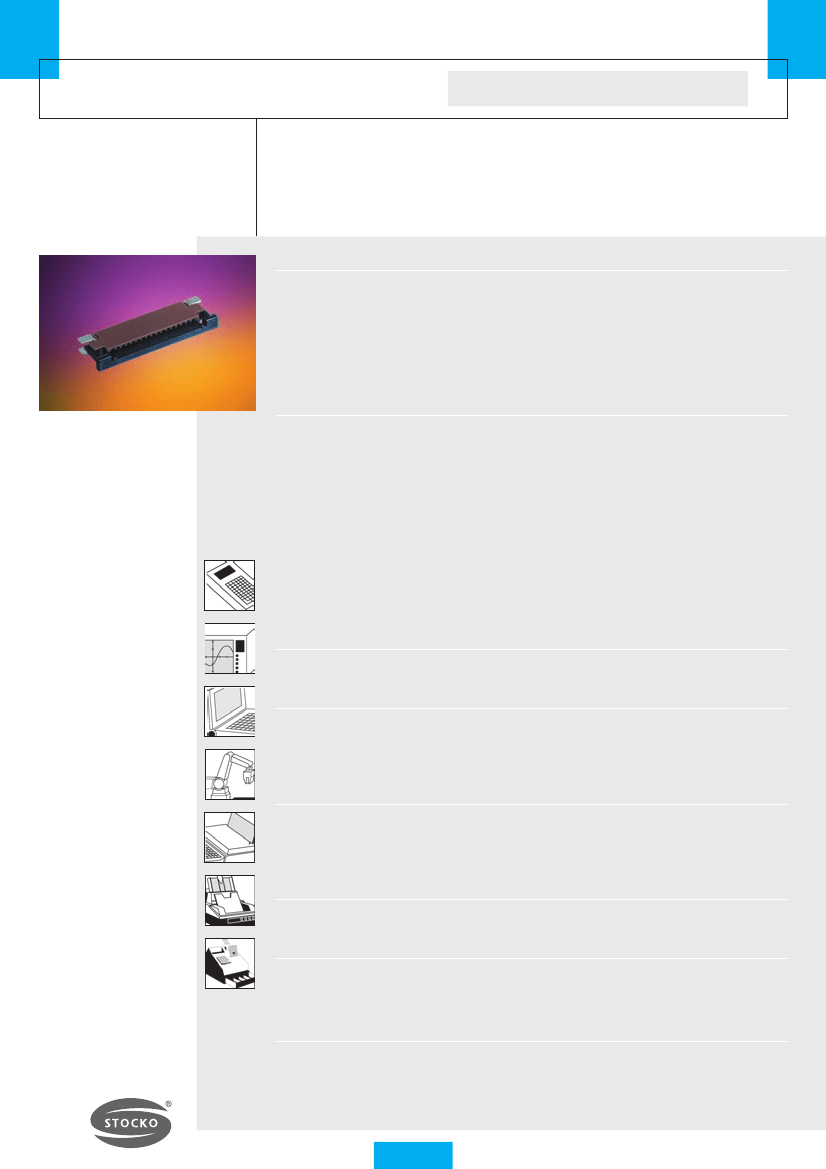

Produktvorteile
Foliensteckverbinder im Raster 1 mm
Ausführung 4-30 polig
Stecken der Folie ohne Kraft (ZIF-Konzept)
Einwandfreier Kontaktübergang nach Schließen des Deckels
Durch Zurückziehen des Deckels können die Kontakte wieder geöffnet und die Folien freigegeben werden
Liegende Ausführung (stehende Ausführung auf Anfrage)
Hohe Formbeständigkeit der Gehäuse
Anschlußart: SMT
Zusätzliche Löt-Pads (liegende Ausführung)
Product features
FFC / FPC-Connectors in 1 mm pitch
4-30 way versions
Insertion of the flexible board without force (ZIF concept)
Perfect interconnection on pressing down the cover
Rectracting the cover enables the contacts to open again, thus releasing
the flexible board
Horizontal version (vertical version on request)
Housings of high dimensional stability
Termination: SMT
Additional solder pads (horizontal version)

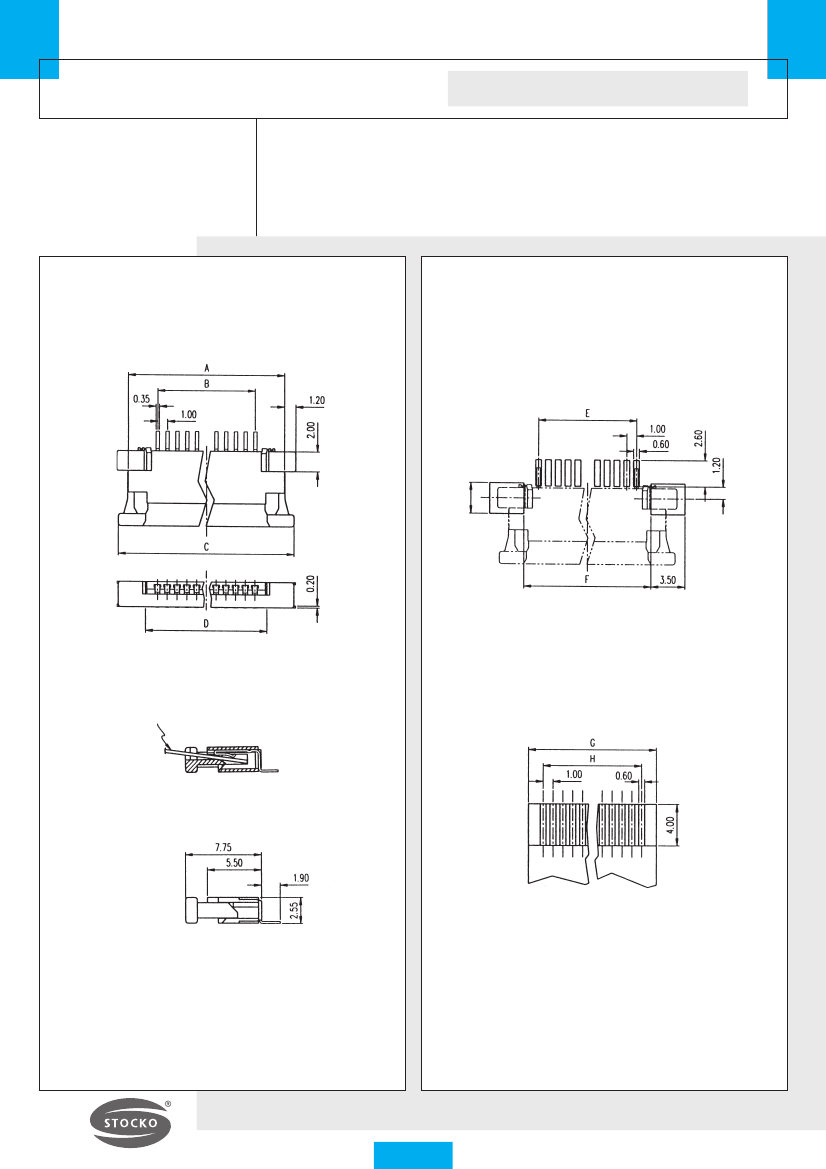

Technische Daten
Mechanisch
Raster
Polzahl
Auszugskraft/Kontakt
Anschlußart
Folienkontaktierung
Foliendicke
Betriebstemperatur
Strombelastbarkeit
Isolationswiderstand
Durchgangswiderstand
Betriebsspannung
Isolierkörper
Brennbarkeit UL 94
Kontakte
Kontaktoberfläche
Gehäusefarbe
Deckelfarbe
Pitch
Positions
Withdrawal force / Contact
Termination
Contacts for flexible circuits
Thickness of flexible circuitry
Operating temperature
Current load
Insulation resistance
Contact resistance
Voltage rating
Housing
Inflammability acc. to UL 94
Contacts
Contact finishing
Colour of housing
Colour of top cover
1 mm
4-30
> 0,5 N
SMT
einseitig
0,25 - 0,35 mm im Kontaktbereich
-40 °C... + 85 °C
0,5 A
500 M
Ω
< 30 m
Ω
100 V / DC
PPS
V0
CuSn
verzinnt
Braun
Schwarz
1 mm
4-30
> 0.5 N
SMT
single sided
0.25 - 0.35 mm connection area
- 40 °C... + 85 °C
0.5 A
500 M
Ω
< 30 m
Ω
100 V / DC
PPS
V0
CuSn
tin plated
brown
black
Elektrisch
Werkstoffe
Technical data
Mechanical
Electrical
Materials
