835-00231 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 835-00231

835-00231: DescriptionPower Transformer; CategoryPower management transformer; File Size548KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric Compare View All

835-00231 Overview

Power Transformer

835-00231 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1:1:1:1:1
Center click function 1	NO
Center click function 2	NO
high	11.1 mm
Insulation voltage	500 V
length	21.69 mm
Manufacturer's serial number	835-00231
Installation features	SURFACE MOUNT
Number of secondary windings	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	21.69mm X 28.5mm X 11.1mm
surface mount	YES
Transformer type	POWER TRANSFORMER
width	28.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

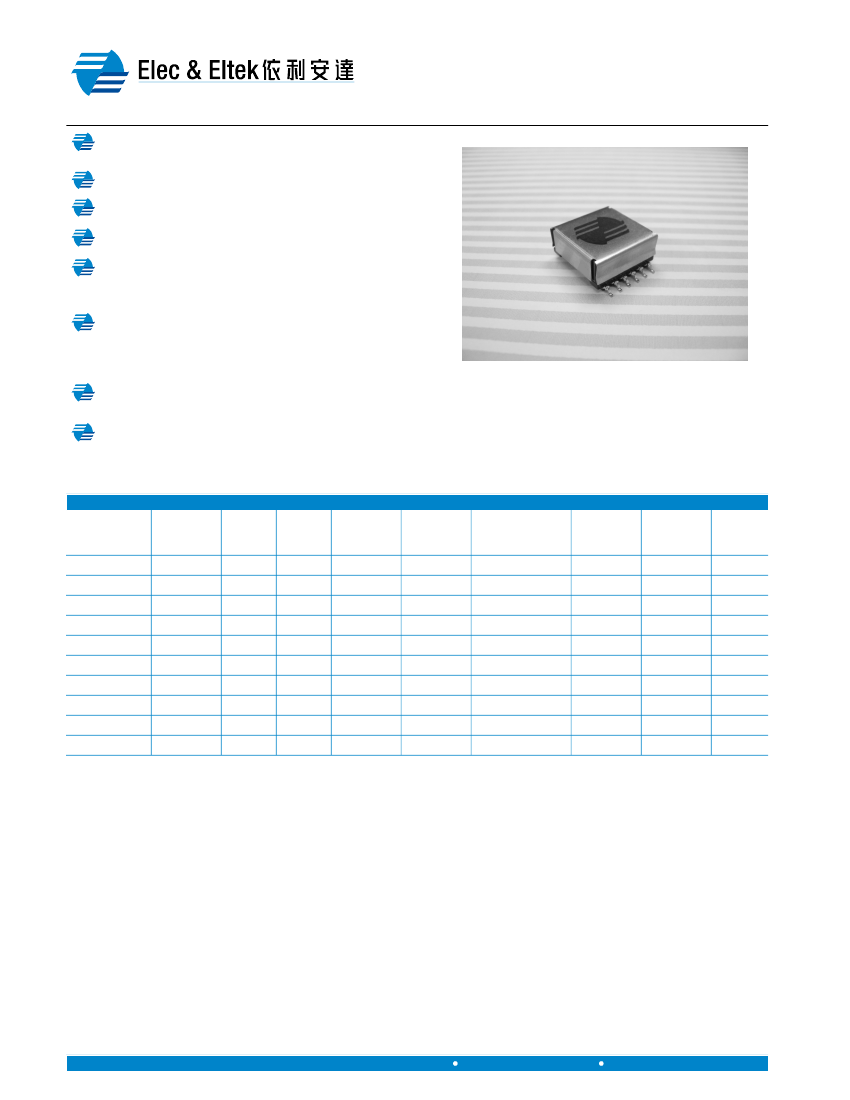

E & E Magnetic Products Limited

SURFACE MOUNT

POWER TRANSFORMER

12 PIN, EXT. TEMP.

Six winding design offers numerous usable inductor

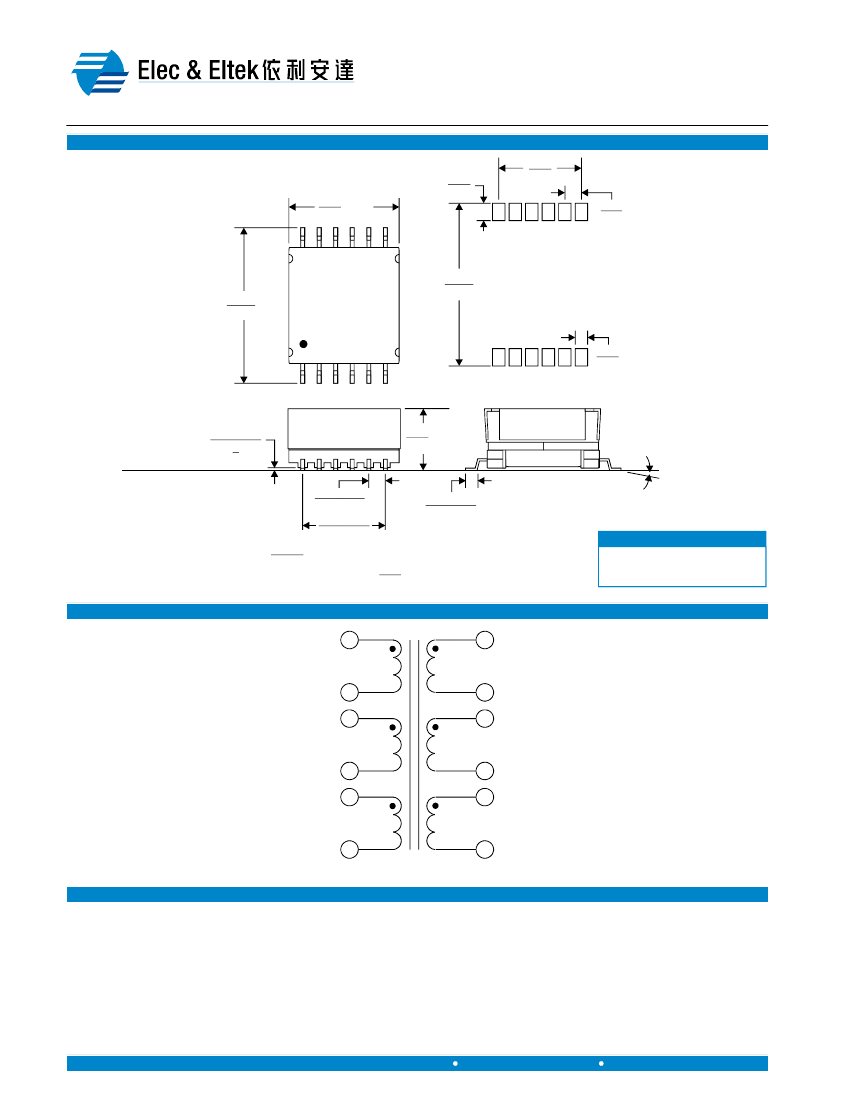

CHEMATICS

or transformer configurations

High power density and low profile

Frequency range to over 1MHz

500 VAC isolation between winding

Inductor applications: buck, boost, coupled, choke,

filter, resonant, noise filtering, differential, forward,

common mode

Transformer applications: flyback, feed forward, push-

pull, multiple output, inverter, step-up, step-down,

gate drive, base drive wide band, pulse, control,

impedance, isolation, bridging, ringer, converter, auto

Operating temperature range: -40°C to +85°C(range is

application specific)

Lead(Pb)-free versions are available

LECTRICAL

PECIFICATION @

25°C

Part

Number

835-00224

835-00225

835-00226

835-00227

835-00228

835-00229

835-00230

835-00231

835-00232

835-00233

OCL

Isat

Irms

(

H) Nom. (A) Typ. (A) Typ.

173±30%

76.8±30%

22.3±20%

9.9±20%

12±20%

5.3±20%

9.65±20%

4.3±20%

7.63±20%

3.4±20%

0.14

0.20

1.05

1.60

1.96

2.95

2.43

3.63

3.07

4.59

1.70

2.08

1.70

2.08

1.70

2.08

1.70

2.08

1.70

2.08

DCR

E.T.

Maximum energy Leakage

Thermal

Marking

capacity

Inductance Resistance

(xxx)

Ω)

Max. (V·

s) Max.

(

J) Typ.

(

H) Typ. (°C/W) Typ.

30.3

224

71.1

98.4

1.11

0.235

47.0

71.1

47.0

71.1

47.0

71.1

47.0

71.1

47.0

65.6

98.4

65.6

98.4

65.6

98.4

65.6

98.4

65.6

1.11

8.83

16.07

19.83

25.10

0.105

0.235

0.105

0.235

0.105

0.235

0.105

0.235

0.105

30.3

225

226

227

228

229

230

231

232

233

Notes:

Peak current, Isat, is the current that result in 30% saturation of the core, assumes that equal current flows in all

six winding.

RMS current, Irms, will result in a surface temperature of approximately 40°C above ambient when it flows

through each of the six winding.

Maximum energy capacity of each winding is based on 30% saturation of the core.

Thermal resistance is the approximate surface temperature rise per Watt of heat loss under still-air conditions,

assumes the underlying PCB copper area equals 150% of the component area.

The internal “hot spot” temperature defines the maximum allowable currents, which are limited to 130°C,

including ambient.

Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2954 3333

Fax: (852) 2954 3304

PX105(02)

Revised in 04/06

835-00231 Related Products

	835-00231	835-00224	835-00225	835-00226	835-00227	835-00228	835-00229	835-00230	835-00232	835-00233
Description	Power Transformer	Power Transformer	Power Transformer	Power Transformer	Power Transformer	Power Transformer	Power Transformer	Power Transformer,	Power Transformer	Power Transformer
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1:1:1:1:1	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1:1:1:1:1	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1:1:1:1:1	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1:1:1:1:1	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1:1:1:1:1	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1:1:1:1:1	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1:1:1:1:1	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1:1:1:1:1	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1:1:1:1:1	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1:1:1:1:1
Center click function 1	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Center click function 2	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
high	11.1 mm	11.1 mm	11.1 mm	11.1 mm	11.1 mm	11.1 mm	11.1 mm	11.1 mm	11.1 mm	11.1 mm
Insulation voltage	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V
length	21.69 mm	21.69 mm	21.69 mm	21.69 mm	21.69 mm	21.69 mm	21.69 mm	21.69 mm	21.69 mm	21.69 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of secondary windings	3	3	3	3	3	3	3	3	3	3
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL
physical size	21.69mm X 28.5mm X 11.1mm	21.69mm X 28.5mm X 11.1mm	21.69mm X 28.5mm X 11.1mm	21.69mm X 28.5mm X 11.1mm	21.69mm X 28.5mm X 11.1mm	21.69mm X 28.5mm X 11.1mm	21.69mm X 28.5mm X 11.1mm	L21.69XB28.5XH11.1 (mm)	21.69mm X 28.5mm X 11.1mm	21.69mm X 28.5mm X 11.1mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Transformer type	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER	POWER TRANSFORMER
width	28.5 mm	28.5 mm	28.5 mm	28.5 mm	28.5 mm	28.5 mm	28.5 mm	28.5 mm	28.5 mm	28.5 mm
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Manufacturer's serial number	835-00231	835-00224	835-00225	835-00226	835-00227	835-00228	835-00229	-	835-00232	835-00233
