8T14B datasheet, PDF - EEWORLD Datasheet

8T14B: DescriptionIC LINE RECEIVER, PDIP16, Line Driver or Receiver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size68KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

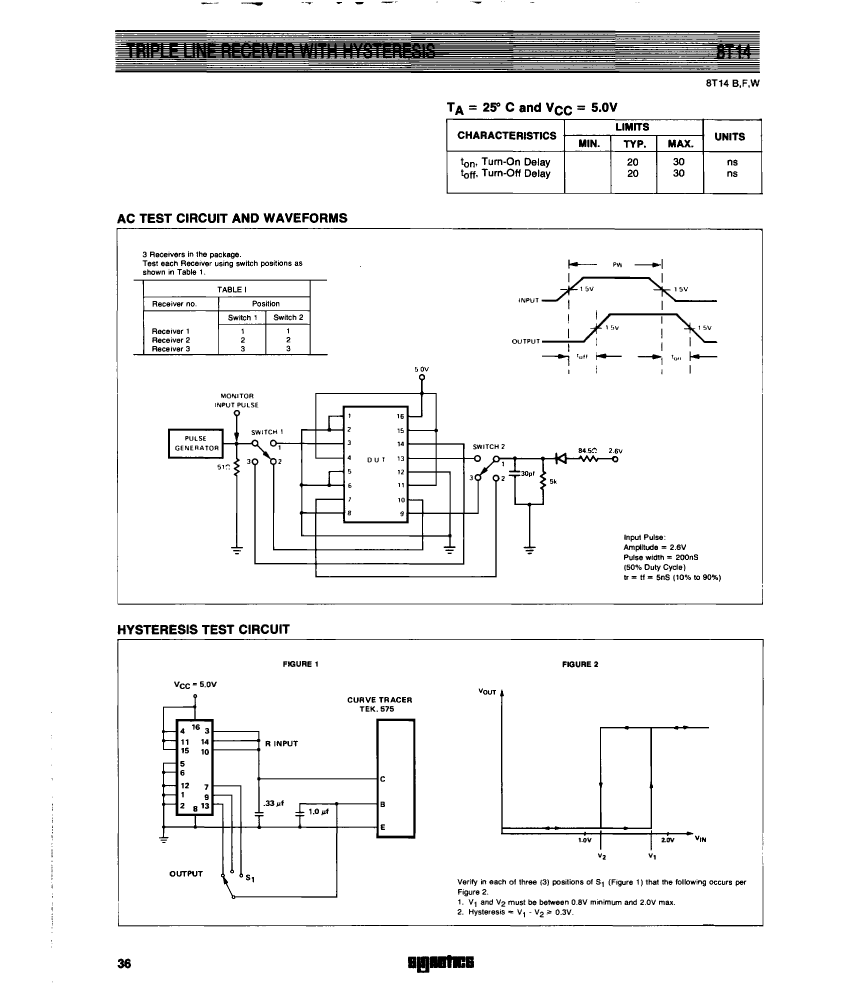

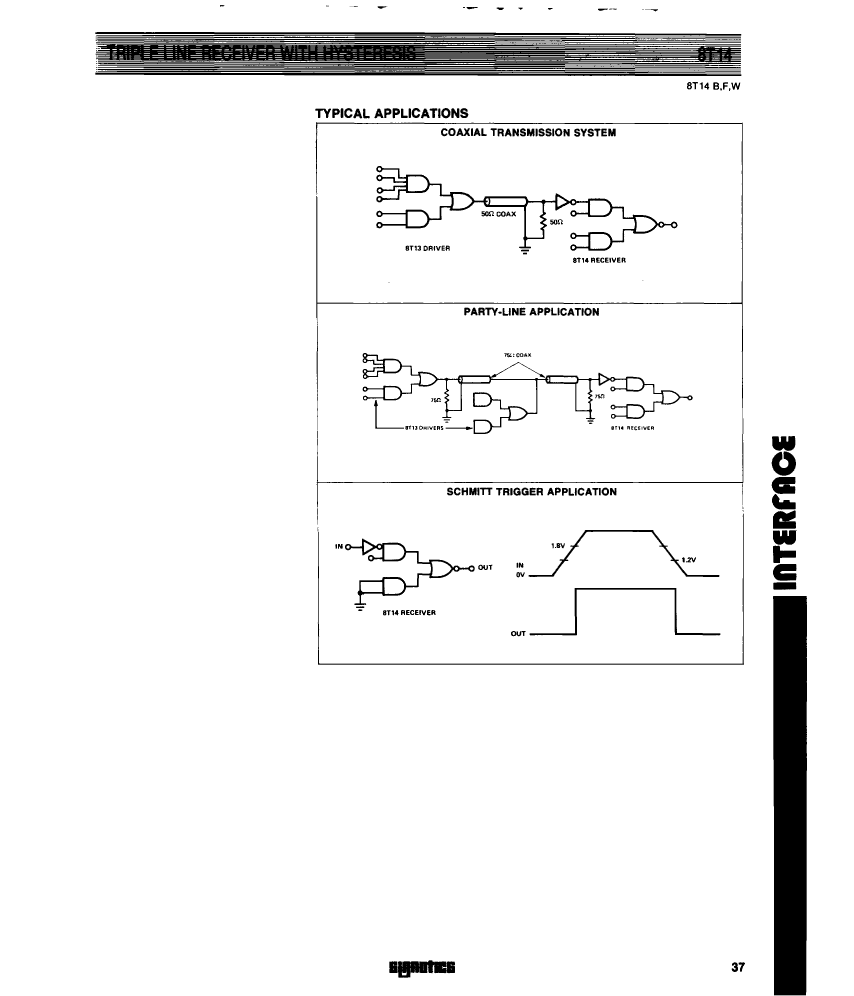

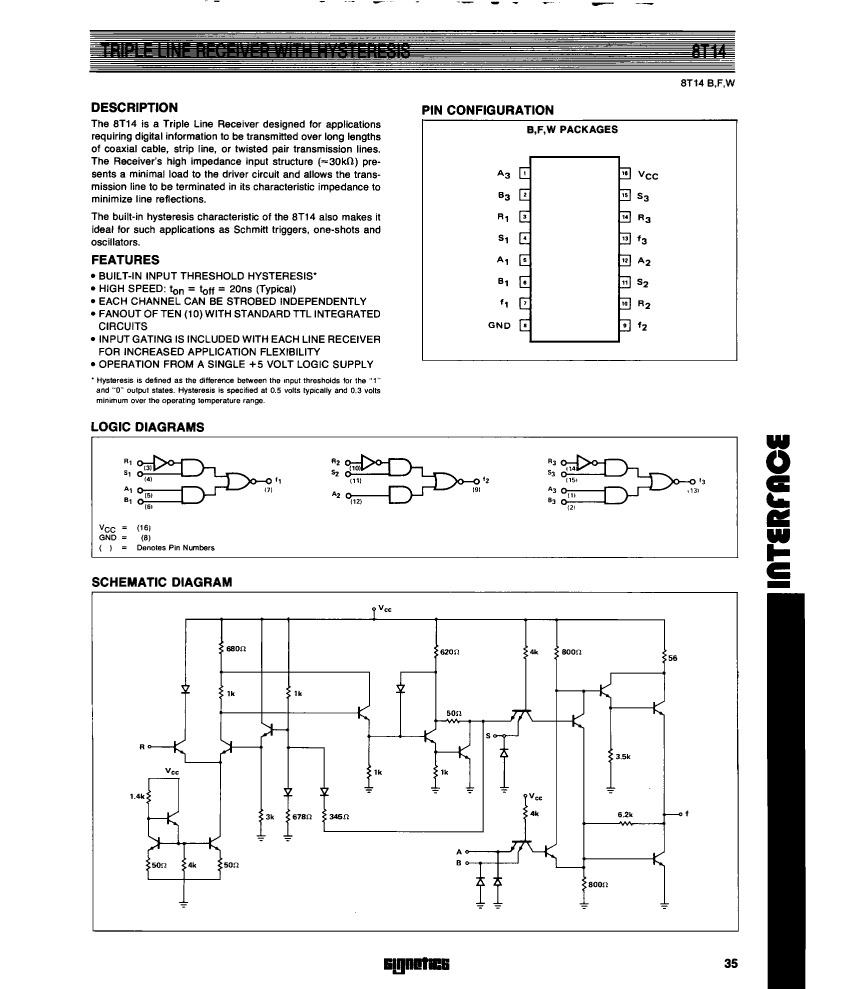

8T14B Overview

IC LINE RECEIVER, PDIP16, Line Driver or Receiver

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Input properties	GATED SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-PDIP-T16
Number of functions	3
Number of terminals	16
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum receive delay
Number of receiver bits	3
Nominal supply voltage	5 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	8T14B	8T14W	8T14F
Description	IC LINE RECEIVER, PDIP16, Line Driver or Receiver	IC LINE RECEIVER, CDFP16, Line Driver or Receiver	IC LINE RECEIVER, CDIP16, Line Driver or Receiver
package instruction	DIP,	DFP,	DIP,
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Input properties	GATED SCHMITT TRIGGER	GATED SCHMITT TRIGGER	GATED SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER
Interface standards	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
JESD-30 code	R-PDIP-T16	R-CDFP-F16	R-GDIP-T16
Number of functions	3	3	3
Number of terminals	16	16	16
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Number of receiver bits	3	3	3
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	YES	NO
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
