PLY17BS4912R4A2B: DescriptionSingle Phase EMI Filter, 250V,; CategoryAnalog mixed-signal IC filter; File Size220KB，3 Pages; ManufacturerTokyo Parts Industrial Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PLY17BS4912R4A2B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PLY17BS4912R4A2B	-	-	View	Buy Now

PLY17BS4912R4A2B Overview

Single Phase EMI Filter, 250V,

PLY17BS4912R4A2B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
filter type	SINGLE PHASE EMI FILTER
high	12.5 mm
JESD-609 code	e2
length	24.5 mm
Installation type	THROUGH HOLE MOUNT
Maximum operating temperature	120 °C
Minimum operating temperature	-25 °C
method of packing	BOX
physical size	L24.5XB22.5XH12.5 (mm)/L0.965XB0.886XH0.492 (inch)
Rated current	2.4 A
Rated voltage	250 V
Terminal surface	Tin/Copper (Sn/Cu)
width	22.5 mm
Base Number Matches	1

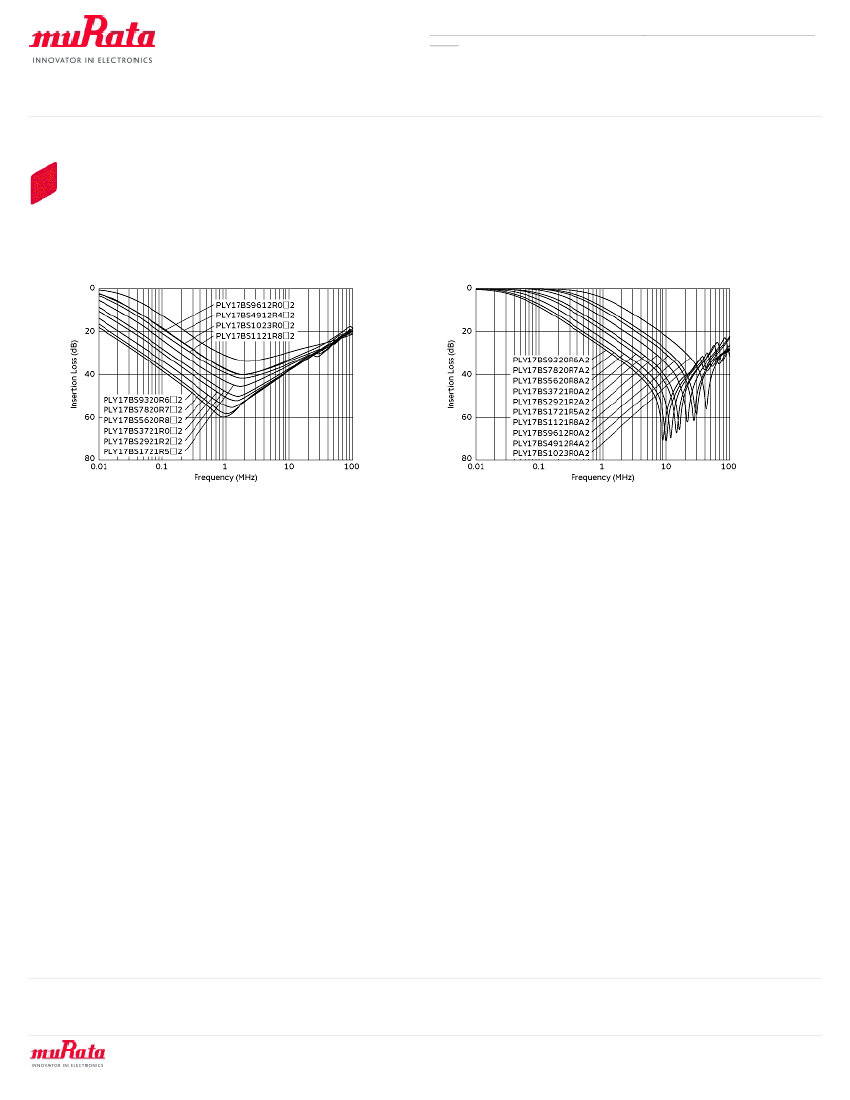

Preview

Download Datasheet

View All

Product Search Data Sheet

Note: This datasheet may be out of date.

Please download the latest datasheet of PLY17BS4912R4A2B from the official website of Murata Manufacturing

Co., Ltd.

https://www.murata.com/en-us/products/productdetail?partno=PLY17BS4912R4A2B

PLY17BS4912R4A2B

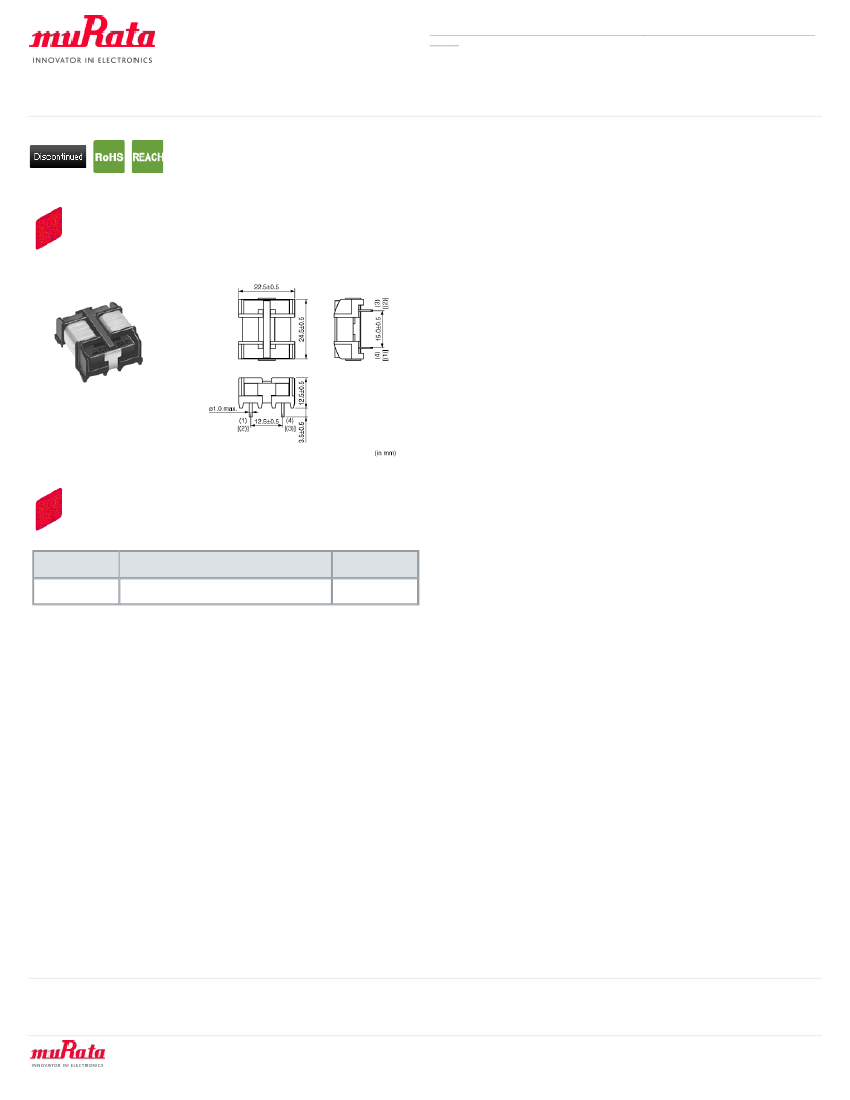

Appearance & Shape

Packaging Information

Packaging

-

Specifications

Box

Minimum

Order Quantity

1080

1 of 3

Atten ti o n

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated

：

2018/02/09
