V-Infinity, LLC, 20050 SW 112th Ave., Tualatin, OR 97062
www.v-infinity.com
1-866-372-1258
2/3

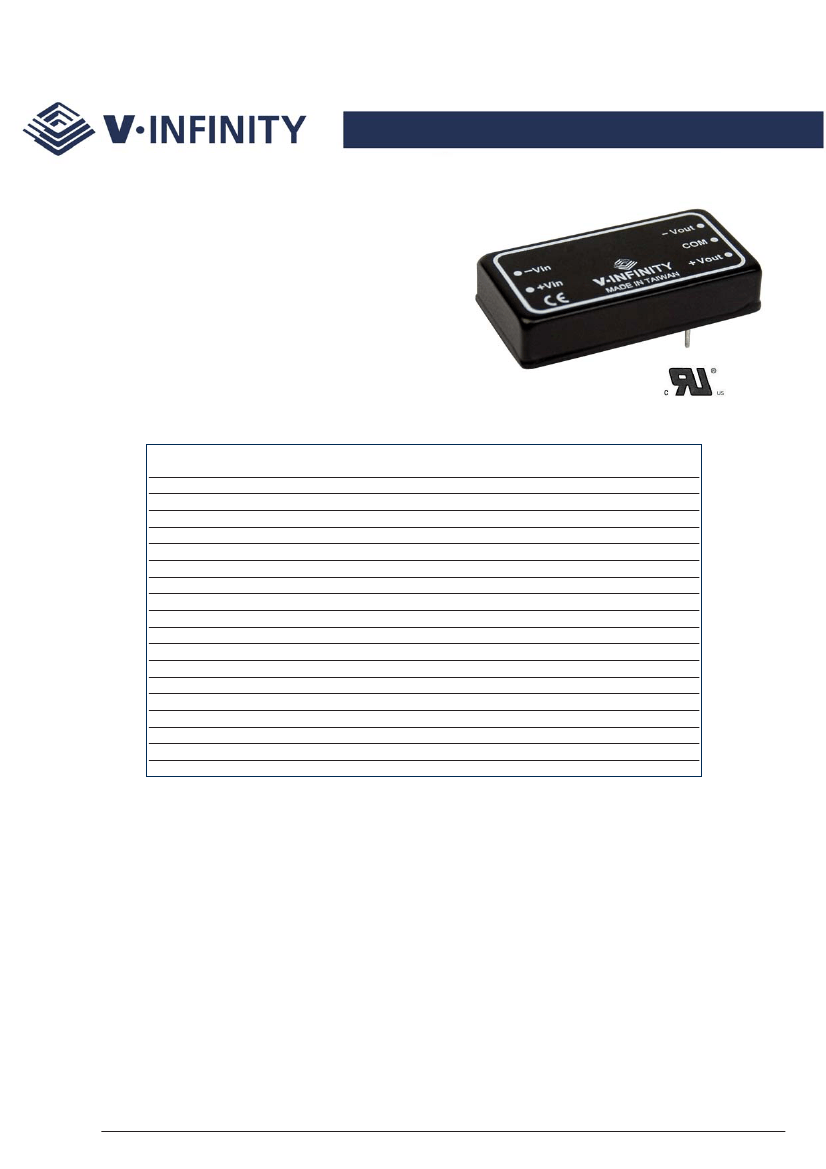

VBED10 Series DC-DC Converter
Rev. 06-2006
Input
Input Voltage Range
12V: 9-18V
24V: 18-36V
48V: 36-72V
Pi Type
Input Filter
Output
Single Output
Dual +Output
-Output
Voltage Balence (Dual)
Transient Response: Single, 25% Step Load Change
Dual, FL-1/2±1% Error Band
Ripple & Noise
20MHz BW
Temperature Coefficient
Short Circuit Protection
Line Regulation
1
Single/Dual output
2
Load Regulation
Single/Dual output
Voltage Accuracy
±1.0% max.
±1.0% max.
±1.0% max.
±1.0%max
<500µ sec.
<500µ sec.
100 mV p-p max
±0.02%/°C
continuous
±0.2% max.
±1.0% max.
General Specifications
Efficiency
Isolation Voltage
Isolation Resistance
Switching Frequency
Operating Temperature Range
Case Temperature
Storage Temperature
Cooling
EMI/RFI
Dimensions
Case Material
see table
500VDC min.
10
9
Ohm min.
200KHz, min.
-25°C to +71°C
100°C max.
-40°C to +100°C
Free air convection
Six Sided Continuous Shield
2x1x0.4 inches
(50.8x25.4x10.2mm)
Black coated copper with non-
conductive base
NOTES:
1. Measured from high line to low line
2. Measured from full load to 1/4 load
3. A minimum load on the output is necessarry to maintain regulation
V-Infinity, LLC, 9615 SW Allen Blvd Suite 103, Beaverton, OR 97005
www.v-infinity.com
1-866-372-1258

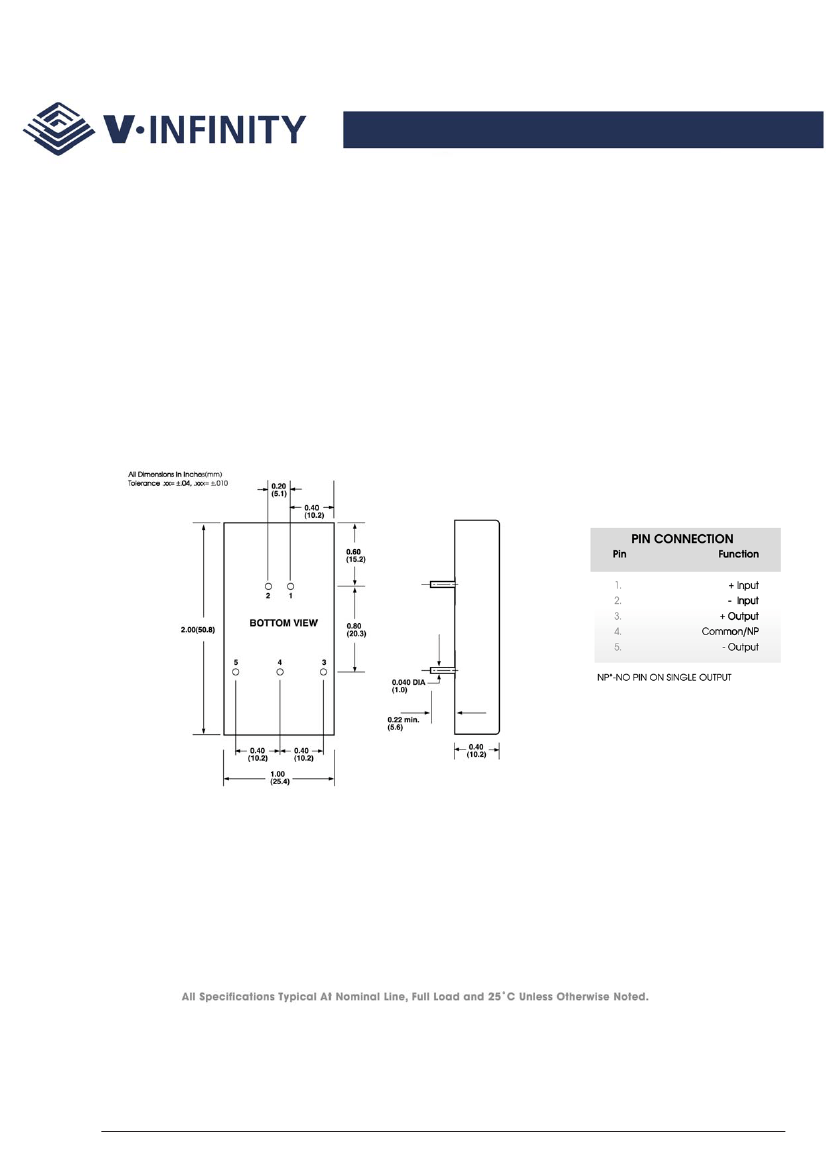

3/3
VBED10 Series DC-DC Converter
Rev. 06-2006
V-Infinity reserves the right to make changes to its products or to discontinue any product or service without notice, and to advise customers to ver-
ify the most up-to-date product information before placing orders. V-Infinity assumes no liability or responsibility for customer’s applications using V-
Infinity products other than repair or replacing (at V-I’s option) V-Infinity products not meeting V-I’s published specifications. Nothing will be covered
outside of standard product warranty.
