AE101LD1CGN datasheet, PDF - EEWORLD Datasheet

AE101LD1CGN: DescriptionTOGGLE SWITCH,STRAIGHT,SPDT,ON-ON,PC TAIL TERMINAL,TOGGLE,3; CategoryMechanical and electronic products switch; File Size316KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

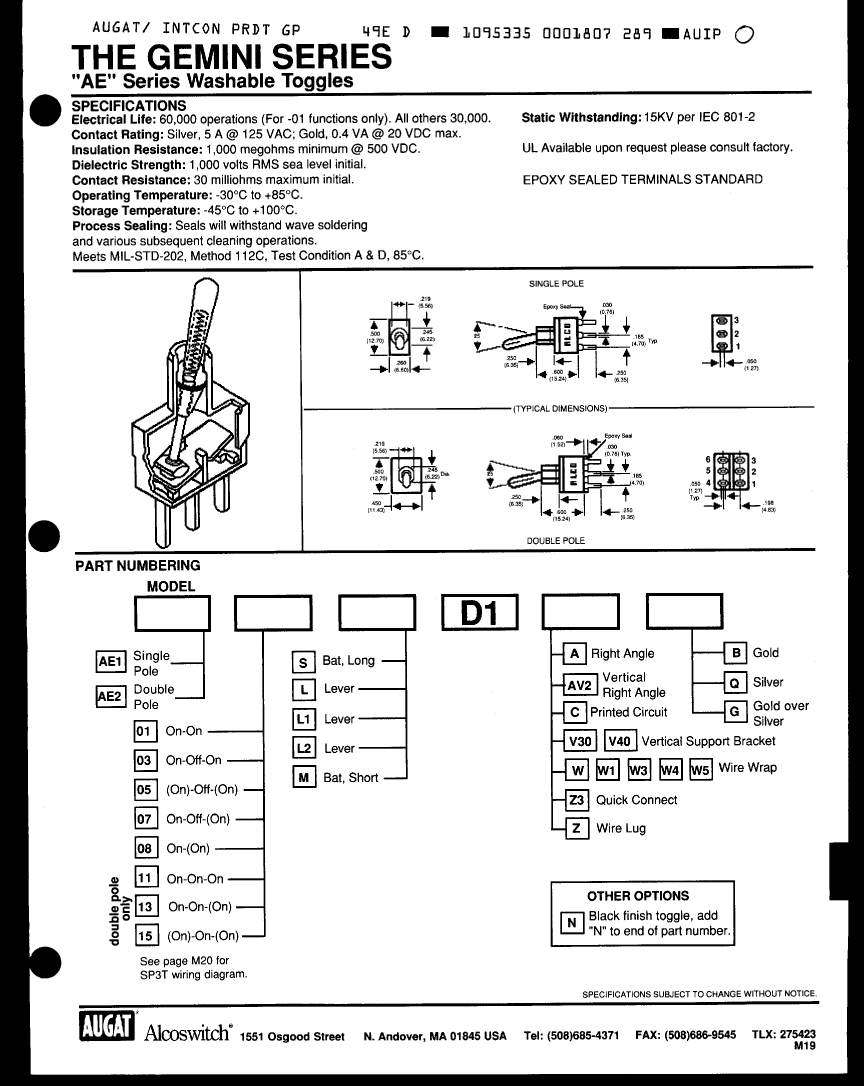

AE101LD1CGN Overview

TOGGLE SWITCH,STRAIGHT,SPDT,ON-ON,PC TAIL TERMINAL,TOGGLE,3

Parameter Name	Attribute value
Reach Compliance Code	unknown
Actuator color	BLACK
Actuator type	TOGGLE
body width	6.604 mm
body height	8.89 mm
Body length or diameter	12.7 mm
Casing diameter	0.245 inch
Nozzle length	0.25 inch
Casing type	UNTHREADED
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER SILVER
Contact (AC) maximum rated power R load	0.4VA@20VAC

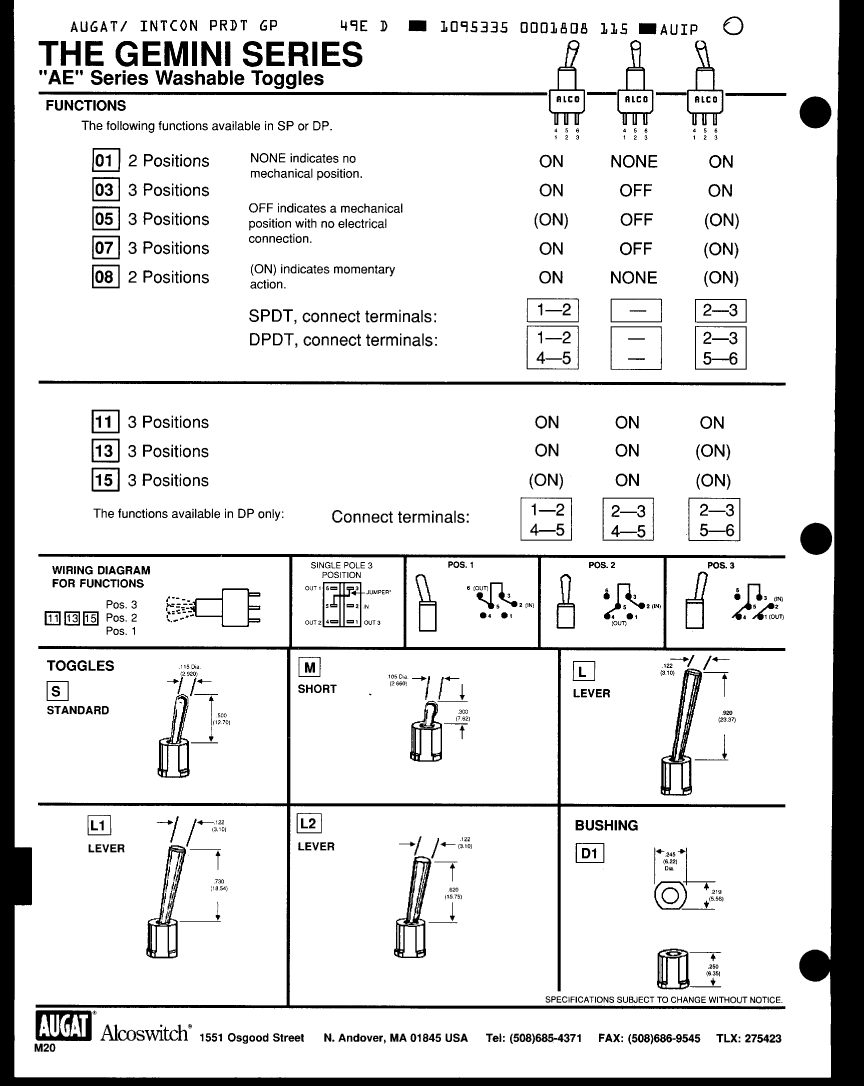

Contact function	ON-ON
Contact resistance	0.03 mΩ
contact time	BREAK-BEFORE-MAKE
Dielectric withstand voltage	1000VRMS V
Electrical life	60000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER SILVER
Insulation resistance	1000000000 Ω
Manufacturer's serial number	AE

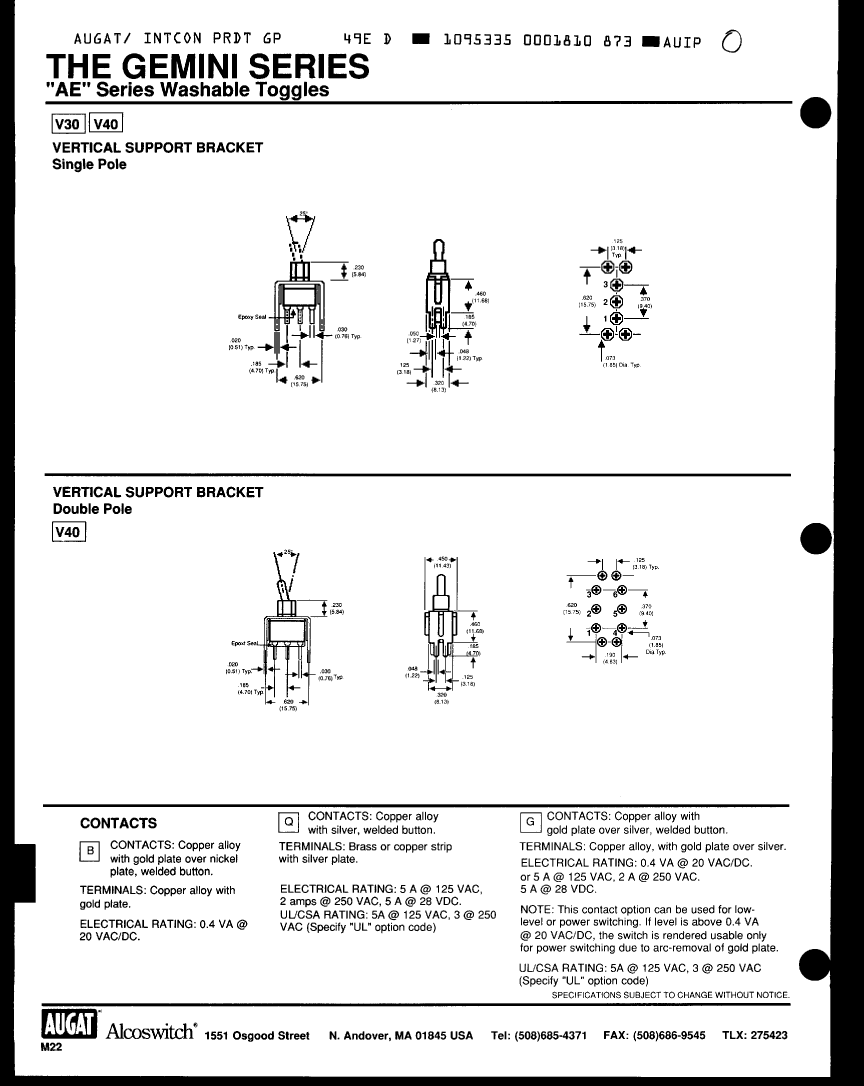

Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	3
seal	EPOXY
Solderability	WAVE
surface mount	NO
Switch action	MAINTAINED
switch function	SPDT
Switch type	TOGGLE SWITCH

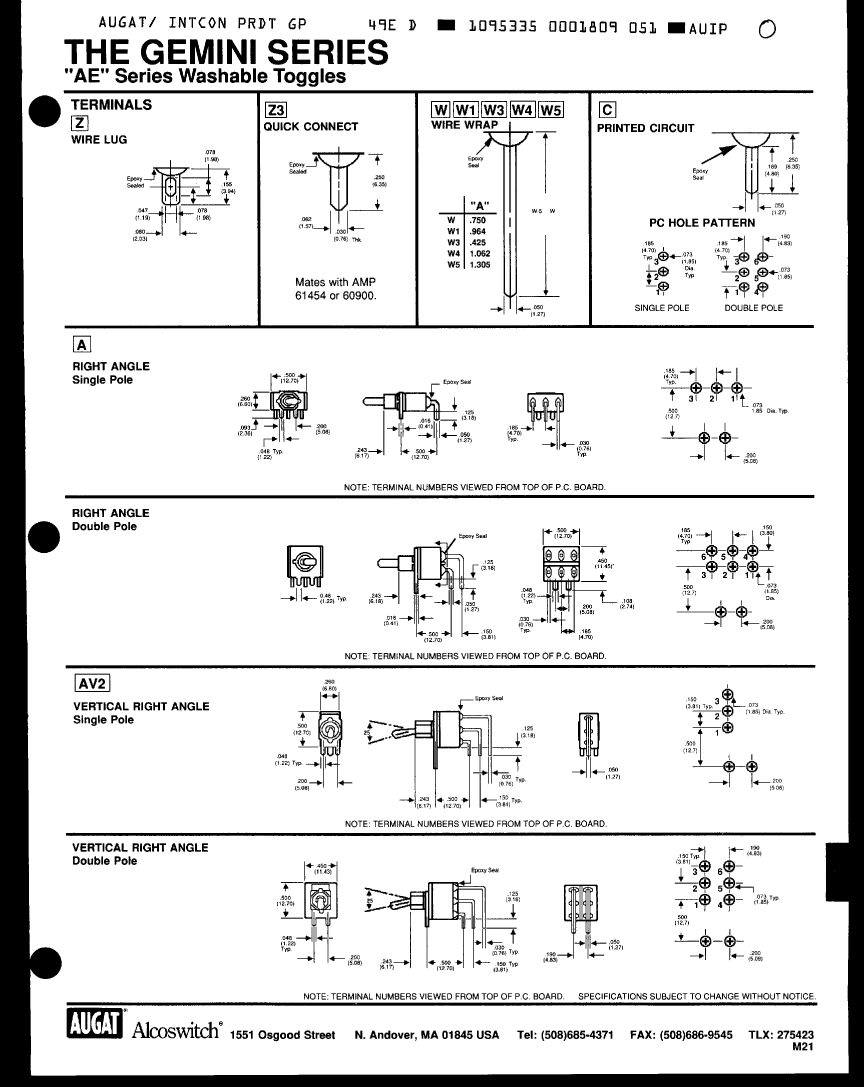

Terminal length	0.25 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1
