Features
•
•
•
•
•
Vcc = 5V ± 5%
Military Temperature Range
Fully Compatible with the TS68040
Five Low Skew Outputs
– Five Outputs (Q0-Q4) with Output-to-Output Skew < 500 ps Each Being Phase End
Frequency Locked to the SYNC Input
Three Additional Outputs are Available:
– The 2X_Q Output Runs Twice the System “Q” Frequency
– The Q/2 Output Runs At 1/2 the System “Q” Frequency
– The Q5 Output is Inverted (180° Phase Shift)
Two Selectable Clock Inputs
– Two Selectable CLOCK Inputs are Available for Test or Redundancy Purposes
– Test Mode Pin (PLL_EN) Provided for Low Frequency Testing
– All Outputs Can Go Into High Impedance (3-state) for Board Test Purposes
Input Frequency Range From 5 MHz to 2X_Q FMAX
Three Input/Output Ratios
– Input/Output Phase-locked Frequency Ratios of 1:2, 1:1 and 2:1 are Available
Low Part-to-part Skew
– The Phase Variation from Part-to-part Between the SYNC and FEEDBACK Inputs is
Less than 550 ps (Derived From the tPD Specification, which Defines the
Part-to-part Skew)
CMOS and TTL Compatible
– All Outputs Can Drive Either CMOS or TTL Inputs
– All Inputs are TTL-level Compatible
LOCK Indicator (LOCK) Indicates a Phase-locked State
•
•
•
•
•
•
Low Skew
CMOS PLL
Clock Driver
Tri-State 70 and
100 MHz
Versions
TS88915T
Description
The TS88915T Clock Driver utilizes a phazed-locked loop (PLL) technology to lock its
low skew outputs’ frequency and phase onto an input reference clock. It is designed to
provide clock distribution for high performance microprocessors such as TS68040,
TSPC603E,TSPC603P,TSPC603R, PCI bridge, RAM’s, MMU’s.
Screening/Quality
This Product is Manufactured:
•
•
Based Upon the Generic Flow of MIL-STD-883
or According to Atmel-Grenoble Standard

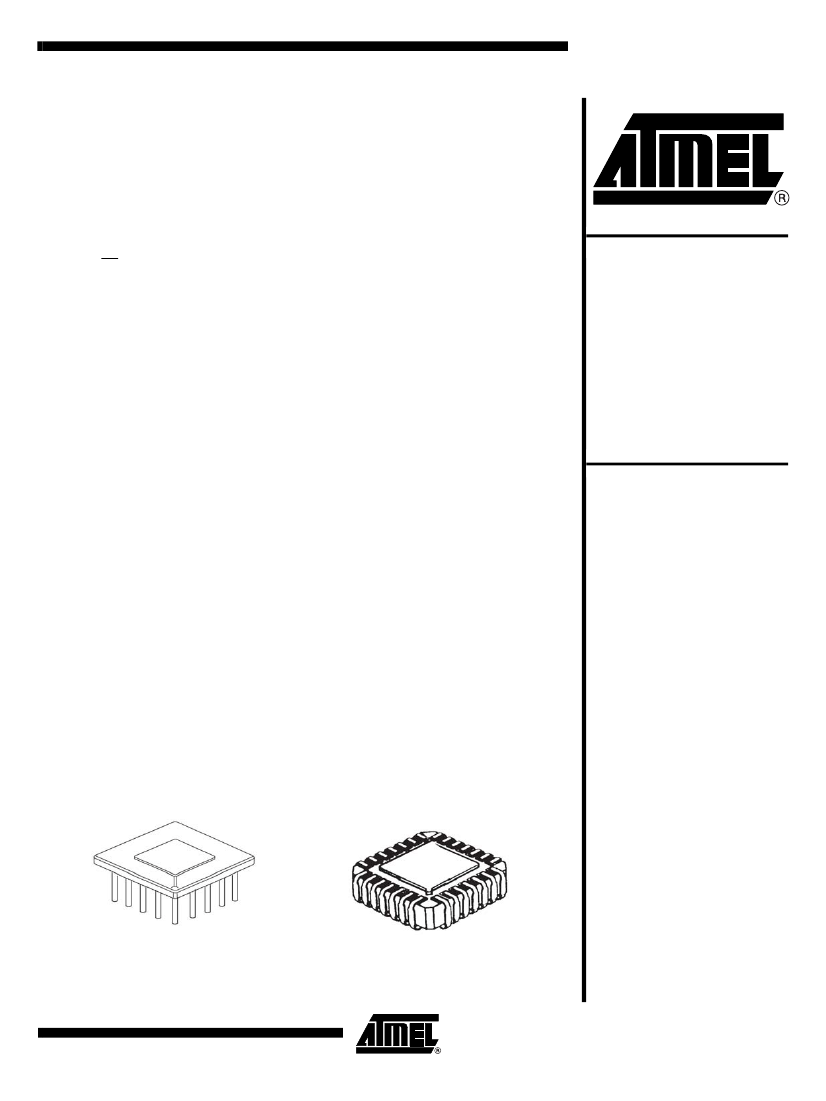

R suffix
PGA 29
Ceramic Pin Grid Array
W suffix
LDCC 28
Leaded Ceramic Chip Carrier
Rev. 2122A–HIREL–06/02
1
Introduction
The TS88915T is a CMOS PLL Clock Driver using phase-locked loop (PLL) technology.
The PLL allows the high current and low skew outputs to lock onto a single input and
distribute it with essentially zero delay to multiple components on a board. The PLL also
allows the TS88915T to multiply a low frequency input clock and distribute it locally at a
higher (2X) system frequency. Multiple 88915’s can lock onto a single reference clock,
which is ideal for applications when a central system clock must be distributed synchro-
nously to multiple boards (see Figure 12).
Figure 1.
TS88915T Block Diagram (All Versions)
FEEDBACK
LOCK
SYNC[0]
0
M
U
1 X
PHASE/FREQ.
DETECTOR
CHARGE PUMP/
LOOP FILTER
SYNC[1]
VOLTAGE
CONTROLLED
OSCILLATOR
REF_SEL
EXT. REC NETWORK
(RC1 pin)
PLL_EN
0
MUX
1
2X_Q
D
(÷1)
1
M
U
0 X
D
CP
FREQ_SEL
OE/RST
D
CP
R
R
CP
R
Q
Q
Q0
DIVIDE
BY TWO
(÷2)
Q
Q
Q1
Q
Q
Q2
D
CP
R
Q
Q
Q3
D
CP
R
Q
Q
Q4
D
CP
R
Q
Q
Q5
D
CP
R
Q
Q
Q/2
2
TS88915T
2122A–HIREL–06/02
TS88915T
Pin Assignments
29-lead Pin Grid Array
(PGA)
Figure 2.
29-lead PGA (Bottom View)
F
F/SL
E
GNDA
D
VCCA
C
SYC0
B
FDBK
A
NC
VCC
GND
Q4
Q*2
RST
Q5
VCC
Q/2
GND
R/SL
Q3
VCC
RC1
TS88915T
(BOTTOM VIEW)
GND
Q2
SYC1
GND
Q1
P/EN
LOCK
Q0
VCC
GND
1
2
3
4
5
6
28-lead Ceramic Leaded
Chip Carrier (LDCC)
Figure 3.
28-lead LDCC (Top View)
OE/RST VCC Q5 GND Q4
4
3
2
1
28
VCC 2X_Q
27
26 25
24
23
TS88915T
(TOP VIEW)
22
21
20
19
12
13
14
15
16
17
18
FEEDBACK
REF_SEL
SYNC[0]
VCC (AN)
RC1
GND (AN)
SYNC[1]
5
6
7
8
9
10
11
Q/2
GND
Q3
VCC
Q2
GND
LOCK
FREQ_SEL GND Q0 VCC
Q1 GND PLL_EN
3
2122A–HIREL–06/02
Signal Description
Table 1.
Signal Index
Pin Name
SYNC[0]
SYNC[1]
REF_SEL
FREQ_SEL
FEEDBACK
RC1
Q(0-4)
Q5
2x_Q
Q/2
LOCK
OE/RST
PLL_EN
VCC, GND
Num
1
1
1
1
1
1
5
1
1
1
1
1
1
11
I/O
Input
Input
Input
Input
Input
Input
Output
Output
Output
Output
Output
Input
Input
Power
Signal Function
Reference Clock Input
Reference Clock Input
Chooses Reference Between SYNC[0] and SYNC[1]
Doubles VCO Internal Frequency
Feedback Input to Phase Detector
Input for External RC Network
Clock Output (Locked to SYNC)
Inverse of Clock Output
2 x Clock Output (Q) Frequency (Synchronous)
Clock Output (Q) Frequency ÷ 2 (Synchronous)
Indicates Phase Lock has been Achieved (High when Locked)
Output Enable/Asynchronous Reset (Active Low)
Disables Phase-lock for Low Frequency Testing
Power and Ground pins
Pins 8 and 10 are “analog” supply pins for internal PLL only
Scope
Applicable
Documents
Requirements
General
Design and Construction
Terminal Connections
This drawing describes the specific requirements for the clock driver TS88915T, in com-
pliance with MIL-STD-883 class B or Atmel standard screening.
1. MIL-STD-883: Test methods and procedures for electronics.
2. MIL-PRF-38535 appendix A: General specifications for microcircuits.
The microcircuits are in accordance with the applicable documents and as specified
herein.
Depending on the package, the terminal connections shall be as shown in Figure 2 and
Figure 3.
Lead material and finish shall be as specified in MIL-STD-1835 (see “Package Mechan-
ical Data” on page 17).
The macrocircuits are packaged in hermetically sealed ceramic packages, which con-
form to case outlines of MIL-STD-1835, but “Package Mechanical Data” on page 17.
The precise case outlines are described at the end of the specification (see “Package
Mechanical Data” on page 178) and into MIL-STD-1835.
Lead Material and Finish
Package
4
TS88915T
2122A–HIREL–06/02
TS88915T
Absolute Maximum
Ratings
Stresses above the absolute maximum rating may cause permanent damage to the
device. Extended operation at the maximum levels may degrade performance and affect
reliability.
Table 2.
Absolute Maximum Rating for the TS88915T
Parameter
Supply Voltage
Input Voltage
Storage Temperature Range
Power Dissipation
PGA Package
LDCC Package
Thermal Resistance Junction-Case
PGA29
LDCC28
Note:
Symbol
V
CC
V
in
T
stg
P
D
Min
-0.5
-0.5
-65
Max
6.0
V
CC
+
0.5
+150
500
Unit
V
V
°C
mW
Θ
JC
-
-
7
7
°C/W
Functional operating conditions are given in AC and DC electrical specifications.
Stresses beyond the absolute maximums listed may affect device reliability or cause per-
manent damage to the device.
Caution:
Input voltage must not be greater than the supply voltage by more than 2.5V at
all times including during power-on reset.
Mechanical and
Environment
Marking
The microcircuits shall meet all environmental requirements of either MIL-STD-883 for
class B devices or for Atmel standard screening.
The document that defines the markings is identified in the related reference docu-
ments. Each microcircuit is legible and permanently marked with the following
information as minimum:
•
•
•
•
•
•
Atmel Logo
Manufacturer’s Part Number
Class B Identification
Date-code of Inspection Lot
ESD Identifier If Available
Country of Manufacturing
Electrical
Characteristics
General Requirements
All static and dynamic electrical characteristics specified for inspection purposes and the
relevant measurement conditions are given below:
•
•
Table Static Electrical Characteristics for the Electrical Variants
Table Dynamic Electrical Characteristics for TS88915T (70 MHz and 100 MHz
Versions)
5
2122A–HIREL–06/02
