51720-10304003AB datasheet, PDF

51720-10304003AB: DescriptionBoard Connector, 46 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size347KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

51720-10304003AB Overview

Board Connector, 46 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
body width	0.574 inch
subject depth	0.93 inch
body length	3.15 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S40P6
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	2 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	51720
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	46
UL Flammability Code	94V-0
Evacuation force-minimum value	.17792 N
Base Number Matches	1

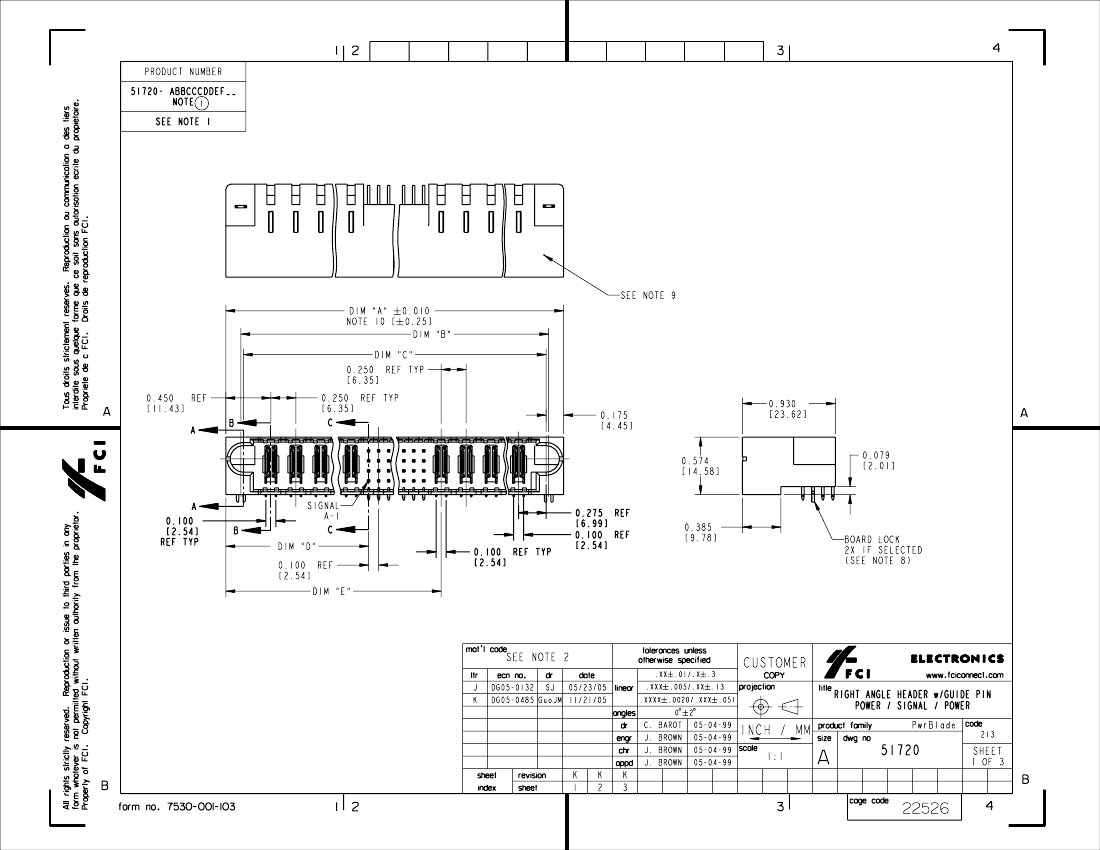

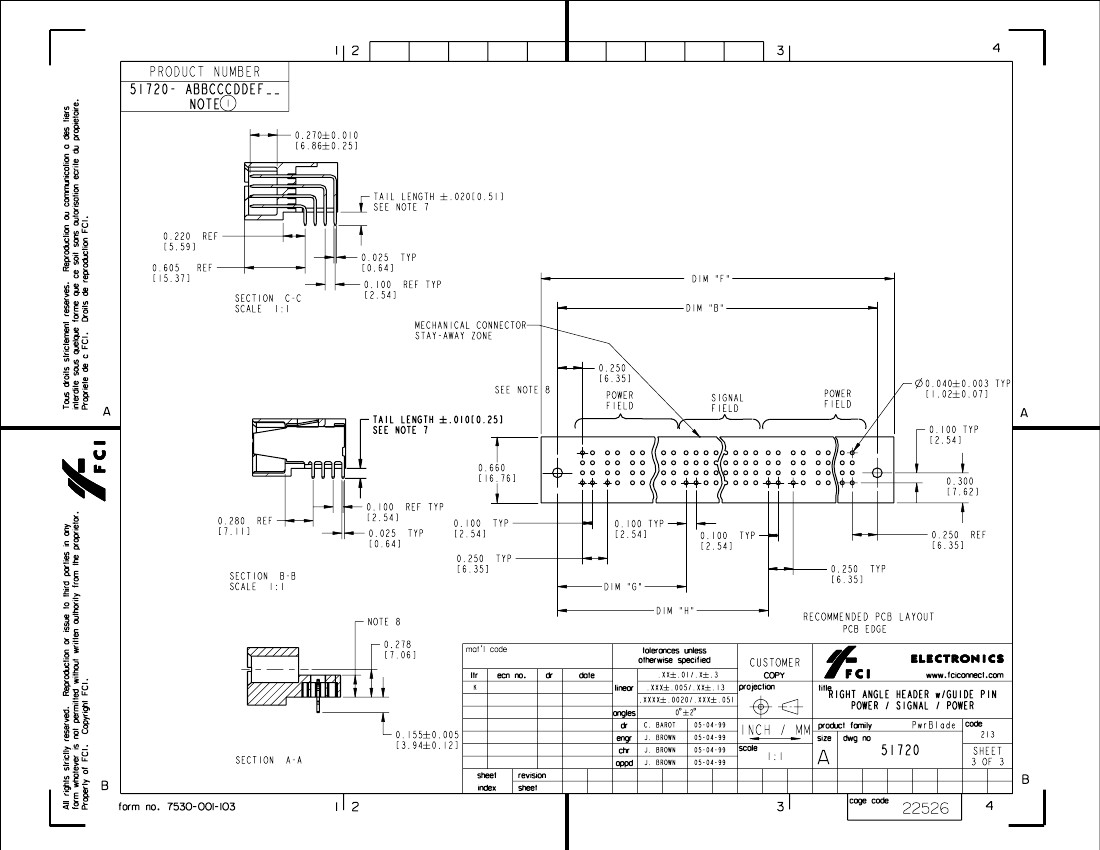

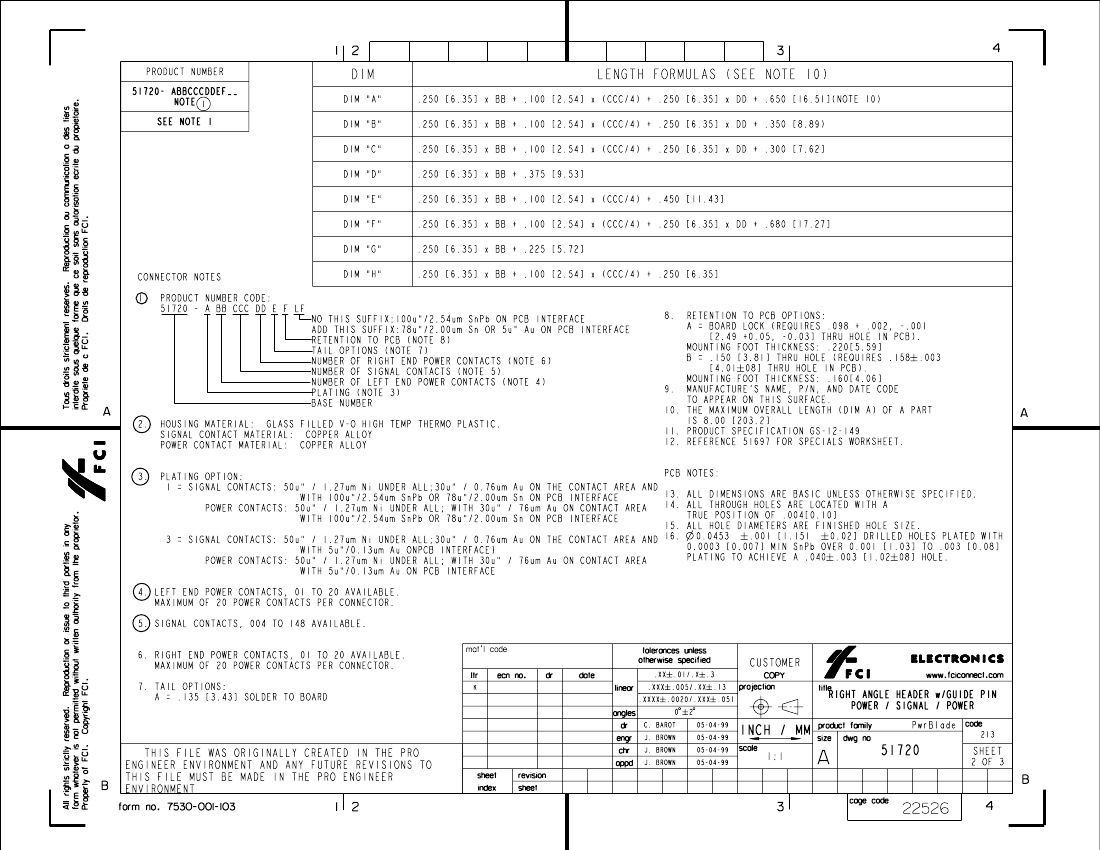

PDM: Rev:K

STATUS:

Released

Printed: Oct 07, 2006
