V48A15H500BN2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> V48A15H500BN2

V48A15H500BN2: Description1-OUTPUT 500 W DC-DC REG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size577KB，11 Pages; ManufacturerVICOR; Websitehttp://www.vicorpower.com/

Download Datasheet Parametric View All

V48A15H500BN2 Overview

1-OUTPUT 500 W DC-DC REG PWR SUPPLY MODULE

V48A15H500BN2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	VICOR
Parts packaging code	MODULE
package instruction	MODULE-9
Contacts	9
Reach Compliance Code	_compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	APSM DCDC
control mode	VOLTAGE-MODE
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDFM-P9
JESD-609 code	e4
Maximum grid adjustment rate	0.2%
Maximum load regulation	0.2%
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum output voltage	16.5 V
Minimum output voltage	1.5 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
encapsulated code	DFM
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	Gold (Au)
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	500 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

Data Sheet

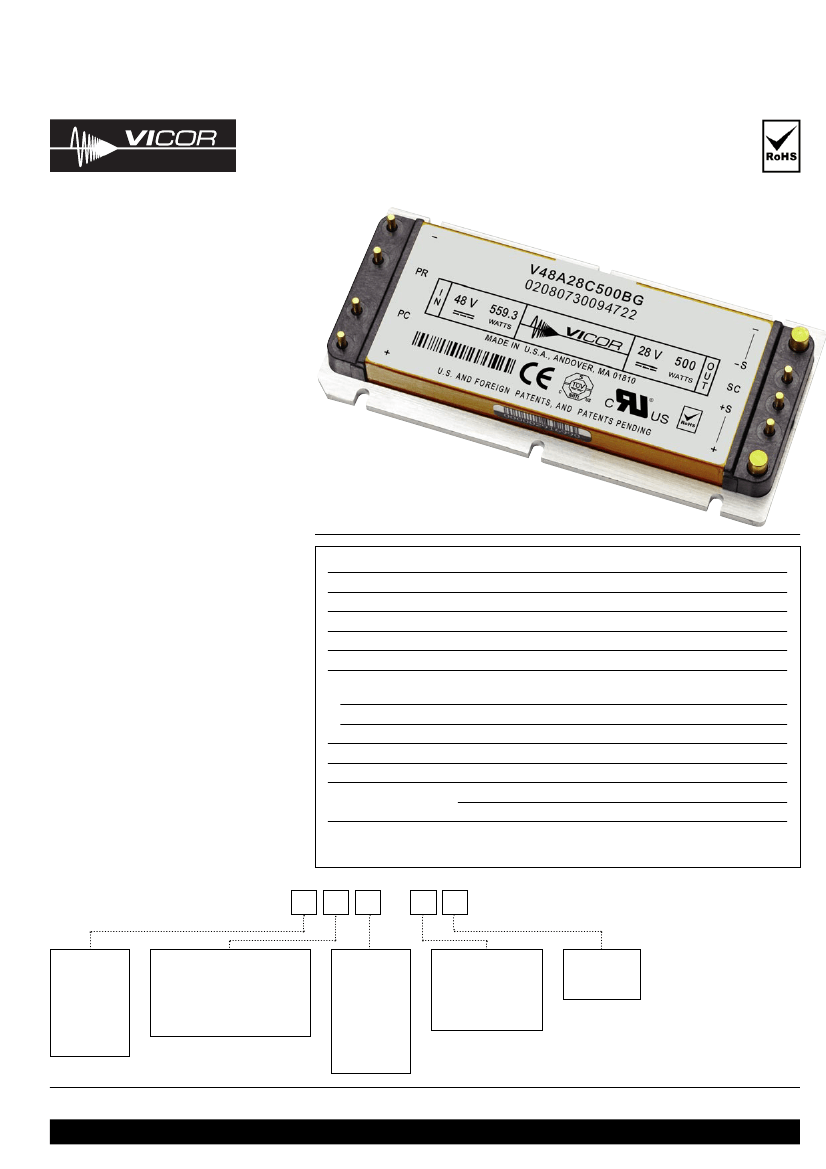

48V Input Maxi Family

DC-DC Converter Module

Features

•

RoHS Compliant (with F or G pin option)

DC input range: 36 – 75 V

Input surge withstand: 100 V for 100 ms

DC output: 3.3 – 48 V

Programmable output: 10 to 110%

Regulation: ±0.3% no load to full load

Efficiency: Up to 89%

Maximum operating temp: 100°C, full load

Power density: up to 100 W per cubic inch

Height above board: 0.43 in. (10,9 mm)

Parallelable, with N+M fault tolerance

Low noise ZCS/ZVS architecture

Shown actual size:

4.6 x 2.2 x 0.5 in

117 x 56 x 12,7 mm

Product Overview

These DC-DC converter modules use

advanced power processing, control and

packaging technologies to provide the

performance, flexibility, reliability and cost

effectiveness of a mature power component.

High frequency ZCS/ZVS switching

provides high power density with low

noise and high efficiency.

Absolute Maximum Ratings

Parameter

+In to –In voltage

PC to –In voltage

PR to –In voltage

SC to -Out voltage

-Sense to -Out voltage

Isolation voltage

in to out

in to base

out to base

Operating Temperature

Storage Temperature

Pin soldering temperature

Rating

-0.5 to +105

-0.5 to +7.0

-0.5 to +1.5

1.0

3000

1500

500

-55 to +100

-65 to +125

500 (260)

750 (390)

Mounting torque

5 (0.57)

Unit

Vdc

Vrms

°C

°F (°C)

in-lbs (N-m)

Test voltage

M-Grade

< 5 sec; wave solder

< 7 sec; hand solder

6 each

Notes

Applications

Distributed power, medical, ATE,

communications, defense, aerospace

Part Numbering

e.g. V48A12T500BL2

V48A

Output Voltage

3 V 3

= 3.3 V

= 5V

= 8V

= 12 V

= 15 V

= 24 V

= 28 V

= 36 V

= 48 V

Product Grade Temperatures (°C)

Grade Operating

Storage

10 to +100

20 to +125

20 to +100

40 to +125

40 to +100

40 to +125

40 to +100

55 to +125

55 to +100

65 to +125

Output Power

Vout

Pout

3.3 V

264

400

12 V

500

15 V

500

24 V

500

28 V

500

36 V

500

48 V

500

Pin Style

Blank:

Short Tin/Lead

Long Tin/Lead

Short ModuMate

Long ModuMate

Short RoHS

Long RoHS

Baseplate

Blank:

Slotted

Threaded

Through-hole

For a description of pin

options, see page 9.

Baseplate options include

slotted flanges, threaded

and through-hole.

See page 10 for dimensions.

For other package sizes and

power levels, see the Mini

(half size) and Micro

(quarter size) datasheets.

Vicor Corp.

Tel: 800-735-6200, 978-470-2900 Fax: 978-475-6715

48V Maxi Family

Rev. 7.4

Page 1 of 11
