18635AU2510: DescriptionPushbutton Switch, SPST, Momentary-tactile, 7A, 30VDC, Solder Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size138KB，2 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric View All

18635AU2510 Overview

Pushbutton Switch, SPST, Momentary-tactile, 7A, 30VDC, Solder Terminal, Panel Mount-threaded

18635AU2510 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
body width	7.35 mm
body height	10.65 mm
Body length or diameter	12.7 mm
Contact (AC) maximum rated R load	6A@125VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	7 A
Contact (DC) maximum rated R load	7A@30VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	30 V
Electrical life	60000 Cycle(s)
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

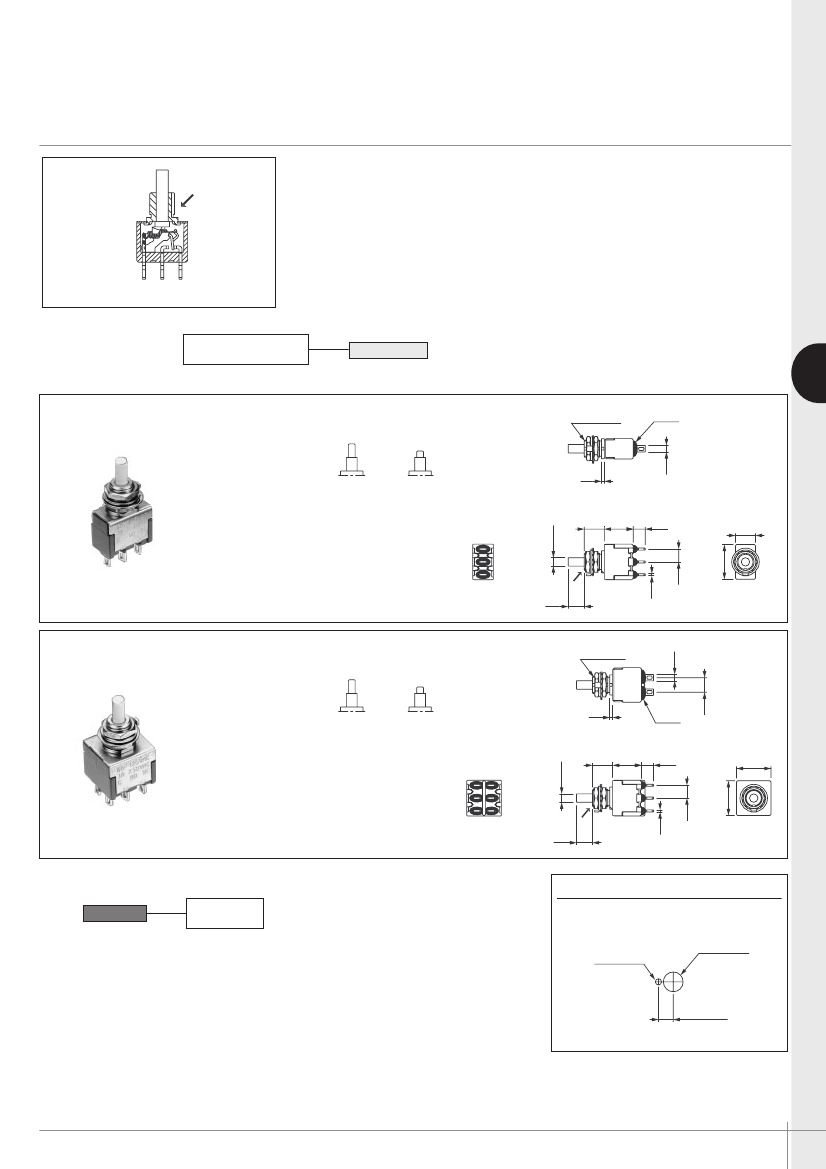

18000 series

Snap-action momentary pushbutton switches

❑

For high currents

❑

Tactile feedback

B

ELECTRICAL SPECIFICATIONS

GENERAL SPECIFICATIONS

• Max. current/voltage rating with resistive load :

3A 250VAC - 6A 125VAC - 7A 30VDC

• Initial contact resistance : 20 mΩ max. at 0,1A 3VDC

• Insulation resistance : 200.000 MΩ min. between terminals and frame

• Dielectric strength : 1.500 Vrms 50 Hz min.

• Electrical life : 60.000 cycles at full load

• Travel : 0,90 mm (.035)

approx.

• Operating temperature :

-30°C to +85°C

MATERIALS

• Case : diallylphthalate (DAP)

• Actuator : glass filled polyester

• Bushing : brass, nickel plated

• Housing : stainless steel

• Contacts : silver

• Terminal seal : epoxy
