ODU-FLAKAFIX
®
IC- SOCKET CONNECTORS - SERIES 533
Features
q
Mates with all standard IC-Sockets
q
heavy duty pins
q
Compatible with leading manufacturers
q
Available with or without strain relief
q
recognized
OD
U
16
Technical Data
Electrical Specifications
Current Rating:
≤
1 A max. for conductor
0,08 mm
2
(AWG 28)
≤
1,5 A max. for conductor
0,14 mm
2
(AWG 26)
1000 Volt eff.
(Shown in terminated condition)
6
0,58
2,54
B
A
Cond. 1
8
7
6
5
4
3
2
1
Test Voltage:
0,4
7,62
10,7
Mechanical Specifications
Operating Temperature: -40°C to +145°C
Humidity:
75% rel. humidity acc. to
DIN 40 040
MIL-C-21 097B
ODU
16
Materials and Surface Finish
Contact Finish
Contact Area:
20 µ"(0,5 µm) Au over 50µ"
( 1,25 µm) Ni
MIL-G-45 204B Class 00
120µ" (3,0 µm Sn) over 50µ"
( 1,25 µm) Ni
PBT glass-filled
grey
UL flammability rated 94 V-O
Cu alloy
Cond. 2
900 80216
9 10 11 12 13 14 15 16
Strain Relief Clip
C
Termination Area:
Insulation Body:
Contact:

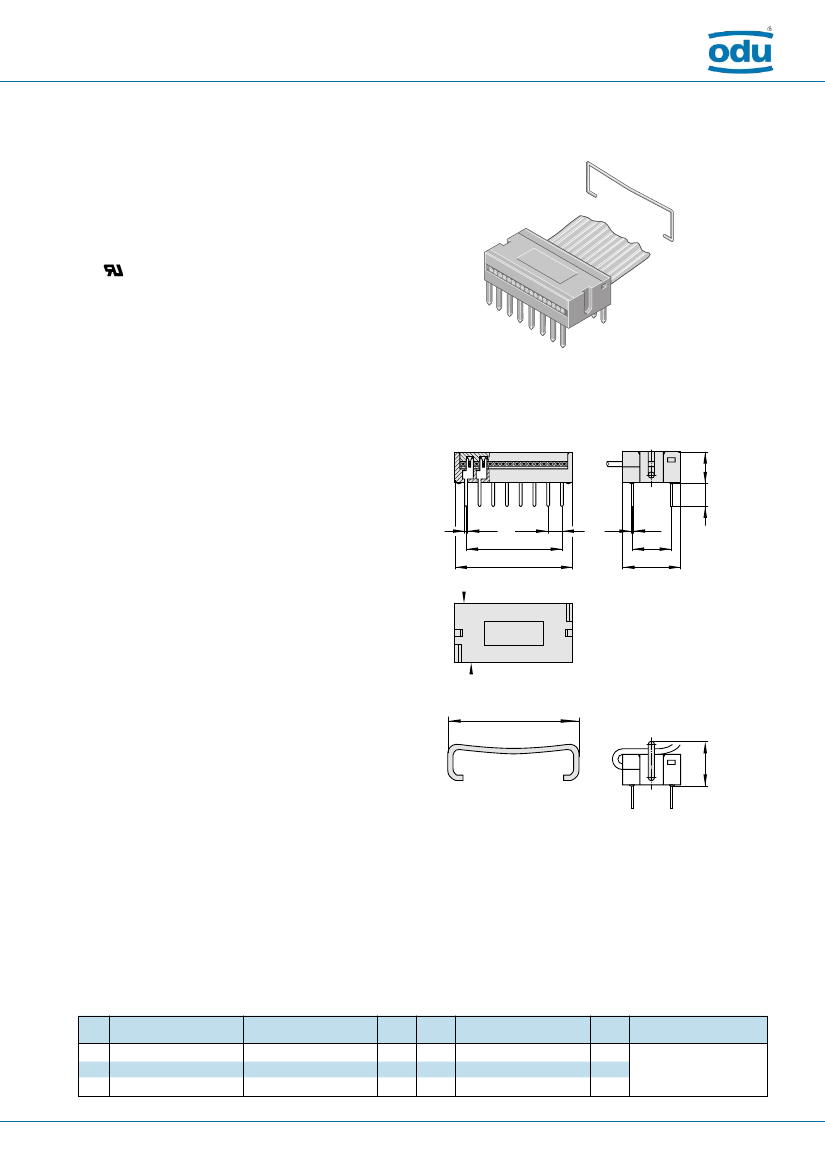

Ordering Information and Dimensions
(All Dimensions in mm)
Pos.
Part Number
Au plated, Dim. X = 3,0
10 533.059.003.010.000
14 533.059.003.014.000
16 533.059.003.016.000
Part Number
Au plated, Dim. X = 4,4
533.060.003.010.000
533.060.003.014.000
533.060.003.016.000
Dim. Dim.
Part Number
A
B
Strain Relief
14,4 10,16 533.060.710.700.000
19,5 15,24 533.060.714.700.000
22,1 17,78 533.060.716.700.000
Dim.
C
15,1
20,1
22,7
Additional information
Additional version
with different finish
see page 60
8
X
ODU -Steckverbindungssysteme GmbH & Co KG, Pregelstr. 11, D-84453 Mühldorf/Inn, Tel. +49/86 31/61 56-0, Fax +49/86 31/61 56 49
Page 39
