53866-0890 datasheet, PDF - EEWORLD Datasheet

53866-0890: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.125 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

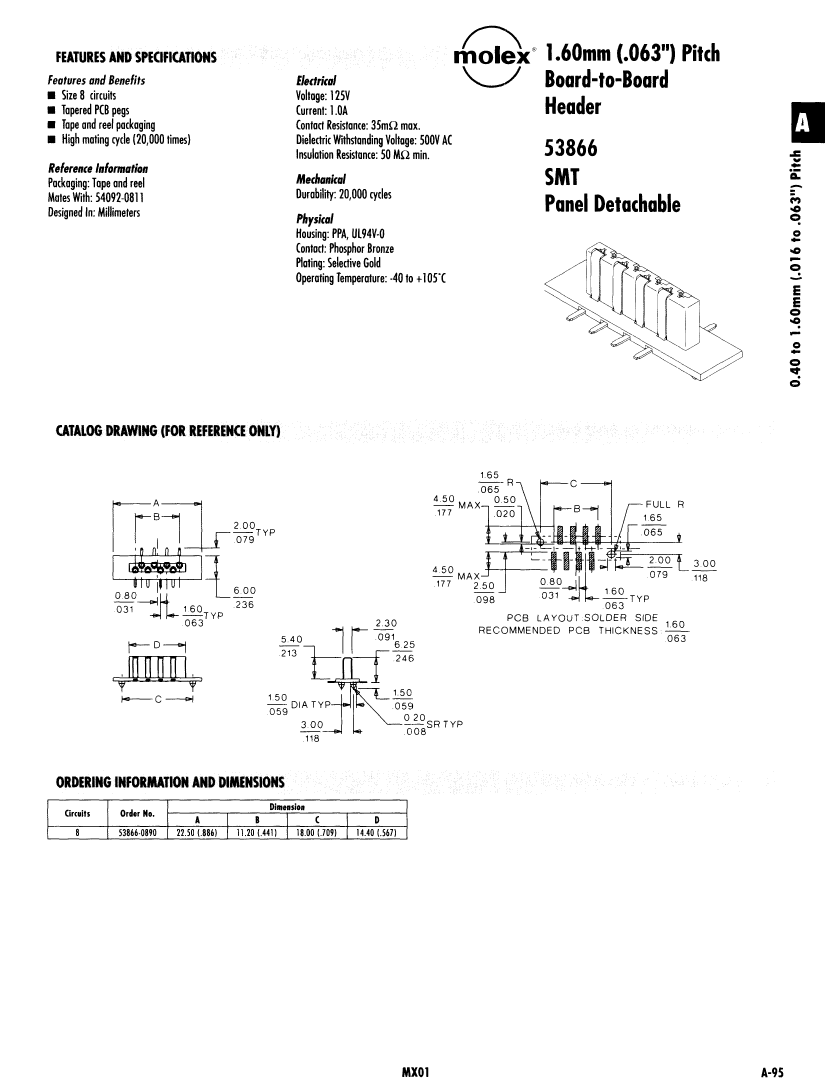

Download Datasheet Parametric View All

53866-0890 Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.125 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
Board mount options	PEG
body width	0.236 inch
subject depth	0.246 inch
body length	0.886 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	35 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	20000 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000 Ω
Insulator color	BLACK
insulator material	POLYPHTHALAMIDE
MIL compliance	NO
Manufacturer's serial number	53866
Plug contact pitch	0.125 inch
Plug information	54092-0811
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	6.5024 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	3.2 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1
