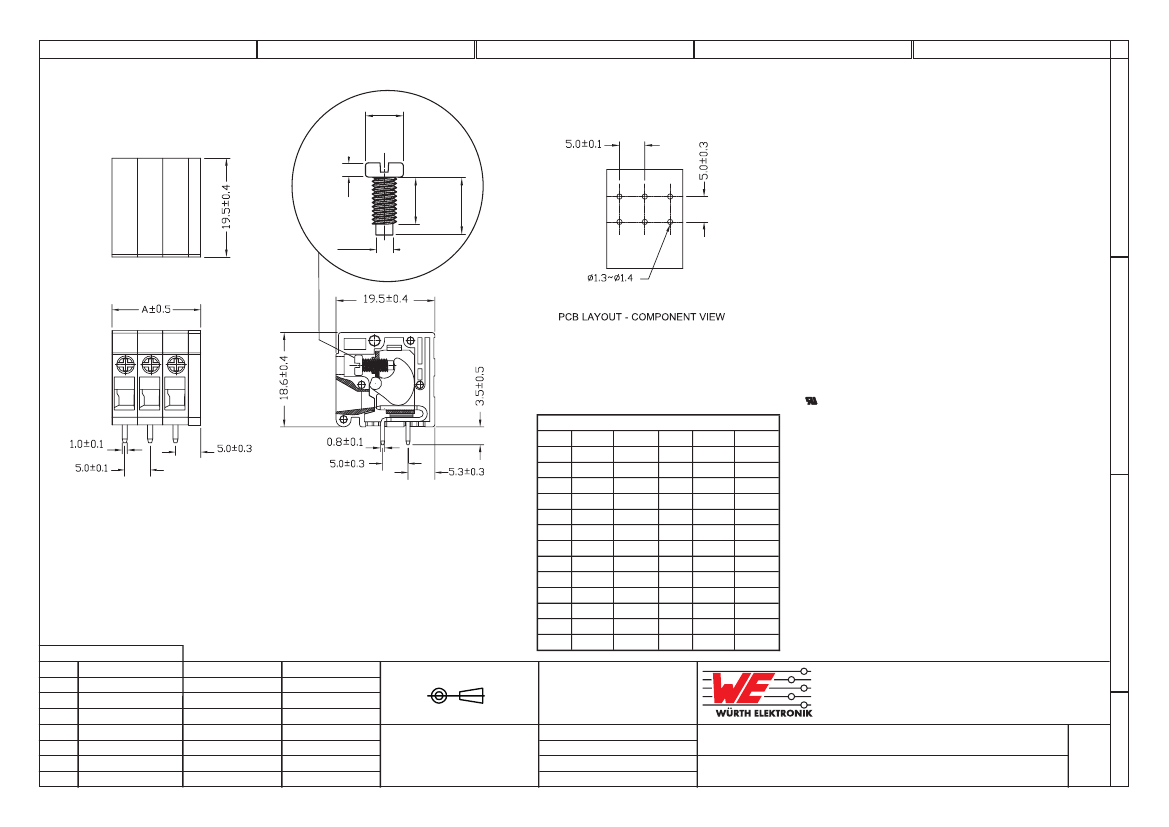

Ø4.1±0.06
TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 66
FLAMABILITY RATING: UL94-V0
COLOR: GREEN
METAL HOUSING: STEEL ZINC PLATING
CONTACT PIN: BRASS (CuZn)
SURFACE OF SOLDER TAIL PLATING: TIN
TERMINAL SCREW: STEEL ZINC PLATING
TERMINAL SCREW SLOT TYPE: "+"
WIRE GUARD: STEEL
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
cULus
20A
300VAC
2.0KV
20 mOhm max
A
1.50
4.60±0.10
Ø1.80±0.05
8.10±0.10
B
STANDARD
c
us
CERTIFIED E315414 / Model number 69112671
RoHS Compliant
G
F
E
D
C
B
A
REV
17-JUL-14
20-JUN-12
DATE
DRAWING
PDF
FILE
AS
GG
BY
APPROVAL: RJ
PROJECTION:
Pitch：5.00mm (0.197inch)
Poles A(mm) A(inch) Poles
2
12.50 0.492
15
3
17.50 0.689
16
4
22.50 0.886
17
5
27.50 1.083
18
6
32.50 1.280
19
7
37.50 1.476
20
8
42.50 1.673
21
9
47.50 1.870
22
10
52.50 2.067
23
11
57.50 2.264
24
12
62.50 2.461
13
67.50 2.657
14
72.50 2.854
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
SCALE:
SHEET: 1/1
DRAW: MARVIN
A(mm) A(inch)
77.50 3.051
82.50 3.248
87.50 3.445
92.50 3.642
97.50 3.839
102.50 4.035
107.50 4.232
112.50 4.429
117.50 4.626
122.50 4.823
MECHANICAL
SOLID WIRE:
STRANDED WIRE:
TORQUE:
WIRE STRIPE LENGTH: 9MM
PITCH: 5.00MM
PACKAGING: BOX
SERIE 126B
30-12 AWG / 0.05-3.3MM²
30-12 AWG / 0.05-3.3MM²
4.0Lb-In / 0.45Nm
C
DESCRIPTION: SERIE 126B - 5,0mm Horizontal Entry with Stamping Clamp
WERI PART NO: 691 126 710 0xx B
SIZE
A4
D
Motor Drive Control（Motor Control）
