63KS256-140 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 63KS256-140

63KS256-140: DescriptionRotary Position Encoder, Single, 2 Channels,; CategoryLED optoelectronic/LED photoelectric; File Size63KB，2 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

63KS256-140 Overview

Rotary Position Encoder, Single, 2 Channels,

63KS256-140 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Configuration	SINGLE, 2 CHANNELS
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	ROTARY POSITION ENCODER
Base Number Matches	1

Preview

Download Datasheet

View All

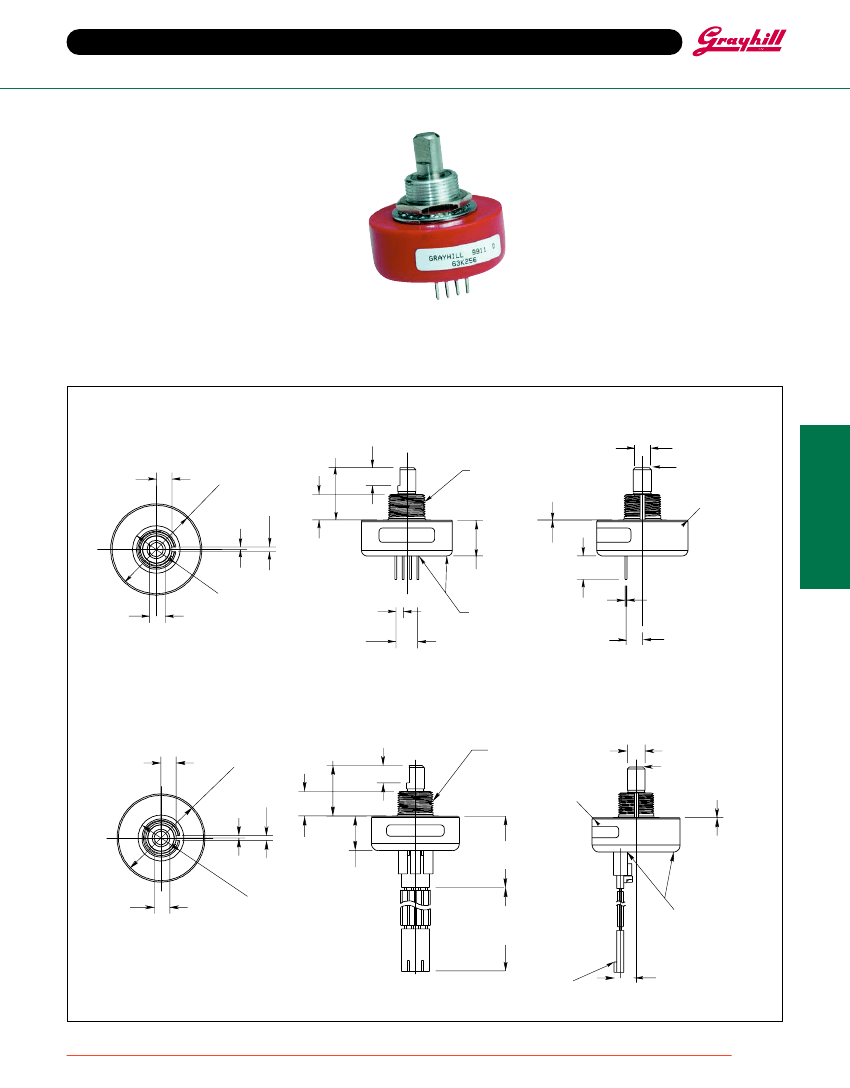

Optical Encoders

SERIES 63K

High Resolution, Ball Bearing,

4-Pin

FEATURES

• 25, 32, 50, 64, 100, 128 and 256

Cycles per Revolution Available

• Sealed Version Available

• Rugged Construction

• Cable or Pin Version

• 300 Million Life Cycles

• 5,000 RPM Shaft Rotation

DIMENSIONS

In inches (and millimeters)

Top View

.215 (5,46)

(KEYWAY

DEPTH)

1.250 (31,75)

DIA.

.066

.033 (1,68)

(0,84)

.250

.725 ± .025 (6,35)

(18,42 ± 0,64)

1/2-32

UN-2A

THREADS

.249/.250

(6,32/6,35)

.025 (0,64) X 45˚

CHAMFER

Optical and Mechanical

Encoders

.020 (0,51) RADIUS

GRAYHILL XXXX X-X

63KXXX

.350

(8,89)

.497

(12,62)

.001/.004

(0,25/0,10)

(MOUNTING

SURFACE

ON TOP OF

HOUSING)

XXXX X-X

XXX

PIN 1

PIN 2

PIN 3

PIN 4

.219

(5,56)

.650 (16,51) DIA.

MOUNTING

SURFACE

.100 (2,54)

3 PLCS.

.300

(7,62)

EPOXY SEAL

AROUND PINS

AND BACKPLATE

PERIMETER

.310

± .025

(7,87

± 0,64)

.025 (0,64) SQ.

4 PLCS.

.225 (5,72)

Top View

.215 (5,46)

(KEYWAY

DEPTH)

1.250 (31,75)

DIA.

.066

.033 (1,68)

(0,84)

.725 ± .025

(18,42 ± 0,64)

.250

(6,35)

1/2-32

UN-2A

THREADS

.249/.250

(6,32/6,35)

.025 (0,64) X 45˚

CHAMFER

.020 RADIUS

(0, 51)

GRAYHILL XXXX X-X

63RSXXX-XXX

XX X-X

XX-XXX

.350

(8,89)

.497

(12,62)

.219

(5,56)

.650 (16,51) DIA.

MOUNTING

SURFACE

1.132 MAX.

(28,75)

.001/.004

(0,25/0,10)

(MOUNTING

SURFACE

ON TOP OF

HOUSING)

EPOXY SEAL

AROUND HEADER

AND BACKPLATE

PERIMETER

*See ordering

information

for cable length.

DIM. XXX* ±.250

(6,25)

CONNECTOR:

MOLEX PIN

14-56-3046

Unless otherwise specified, dimension tolerances are as follows: linear ± .010 (0,25), diameters ± .010 (0,25), angular ± 5˚

.225 (5,72)

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

E-26
