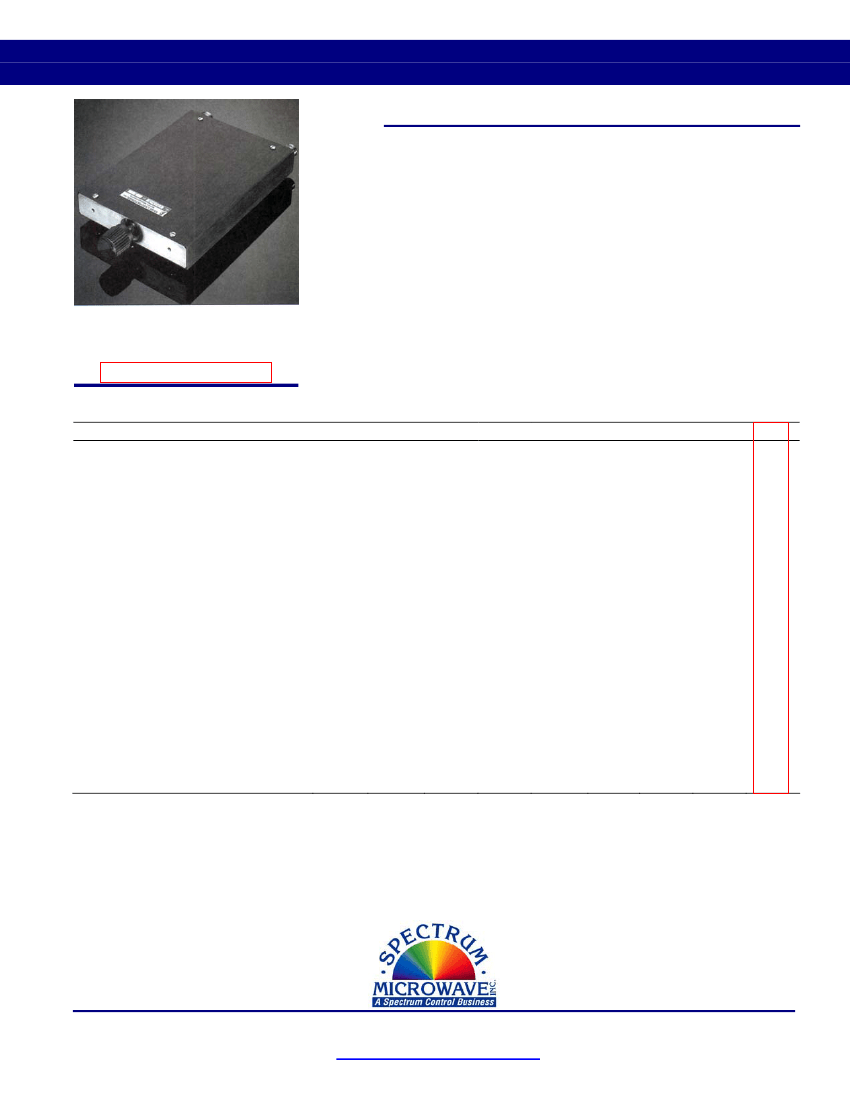

PRODUCT
SPECIFICATION
•
•
•
•
•
PHASE SHIFTER
DC TO 2, 4 AND 8 GHz, COAXIAL HIGH POWER
FEATURES
Type N Connectors Standard
Options from DC to 8 GHz
High Power, Trombone Style Coaxial Structure
Military Grade Materials and Processing
-40 to +125º C Operating Temperature Range
6602,3,4 SERIES
6702,3,4 SERIES
6802,3,4 SERIES
SPECIFICATIONS
Model
Frequency Range (GHz)
Phase Shift, min (
o
/GHz)
Phase Shift, min (
o
/GHz/Shaft Turn)
Insertion Phase, Nominal
@ Min Phase Setting (
o
/GHz)
Number of Turns, min
VSWR max
Insertion Loss, max (dB)
Power
Average (Watts)
Peak (Watts)
Time Delay, Nominal @ Min Phase
Setting (nsec)
Length (L)
Inches
Centimeters
Length (L1)
Inches
Centimeters
Weight
Ounces
Grams
NOTES:
1.
2.
1 Degree per GHz of Phase Shift equals 2.78 picoseconds of time delay.
Average and Peak Power are given at ambient temperature and altitude with Type N Connectors. Power is further limited by the power
threshold level of selected connector style.
6602
DC-2
290
5.7
950
50
1.35
0.5
350
2500
2.6
6.55
16,64
---
---
33
934
6702
DC-2
290
5.7
950
50
1.35
0.5
350
2500
2.6
9.55
24,26
9.17
23,29
45
1274
6802
DC-2
290
5.7
980
48
1.35
0.5
350
2500
2.7
6.35
16,13
---
---
38
1075
6603
DC-4
190
5.7
790
33
1.60
0.5
350
2500
2.2
4.93
12,52
---
---
27
764
6703
DC-4
190
3.8
700
50
1.60
0.5
350
2500
1.9
6.94
17,63
6.56
16,66
42
1188
6803
DC-4
190
5.7
820
32
1.60
0.5
350
2500
2.3
4.73
12,01
---
---
32
906
6604
DC-8
95
1.9
450
50
2.00
1.0
350
2500
1.2
6.55
16,64
---
---
42
1189
6704
DC-8
95
1.9
450
50
2.00
1.0
350
2500
1.2
9.55
24,26
9.17
23,29
46
1302
6804
DC-8
95
1.9
480
48
2.00
1.0
350
2500
1.3
6.35
16,13
---
---
40
1132
Spectrum Microwave 8 Executive Drive Hudson, NH 03051
Phone: 603-459-1600 Fax: 603.459.1605
www.SpectrumMicrowave.com
PRODUCT
SPECIFICATION

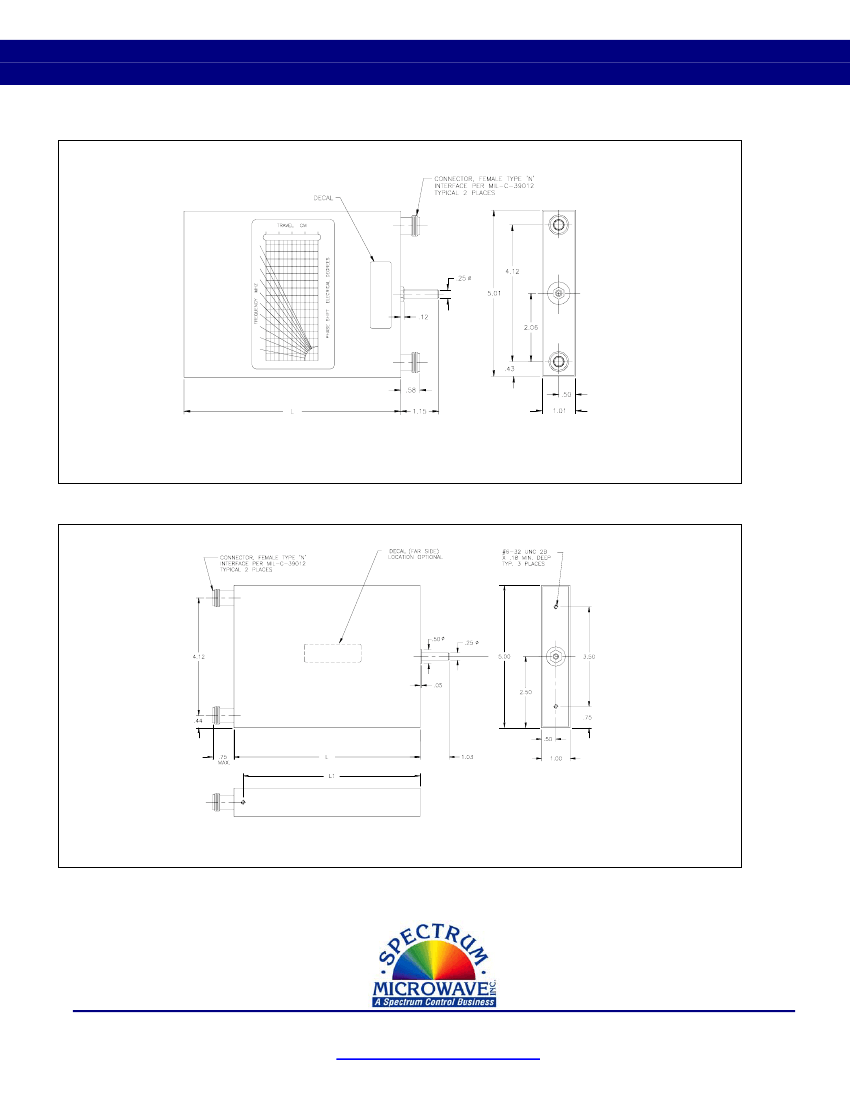

OUTLINE DRAWINGS
PHASE SHIFTER
DC TO 2, 4 AND 8 GHz, COAXIAL HIGH POWER
MODELS 6602, 6603, 6604
MODELS 6702, 6703, 6704
MODELS 6702, 6703, 6704
Spectrum Microwave 8 Executive Drive Hudson, NH 03051
Phone: 603-459-1600 Fax: 603.459.1605
www.SpectrumMicrowave.com
PRODUCT
SPECIFICATION
PHASE SHIFTER
DC TO 2, 4 AND 8 GHz, COAXIAL HIGH POWER

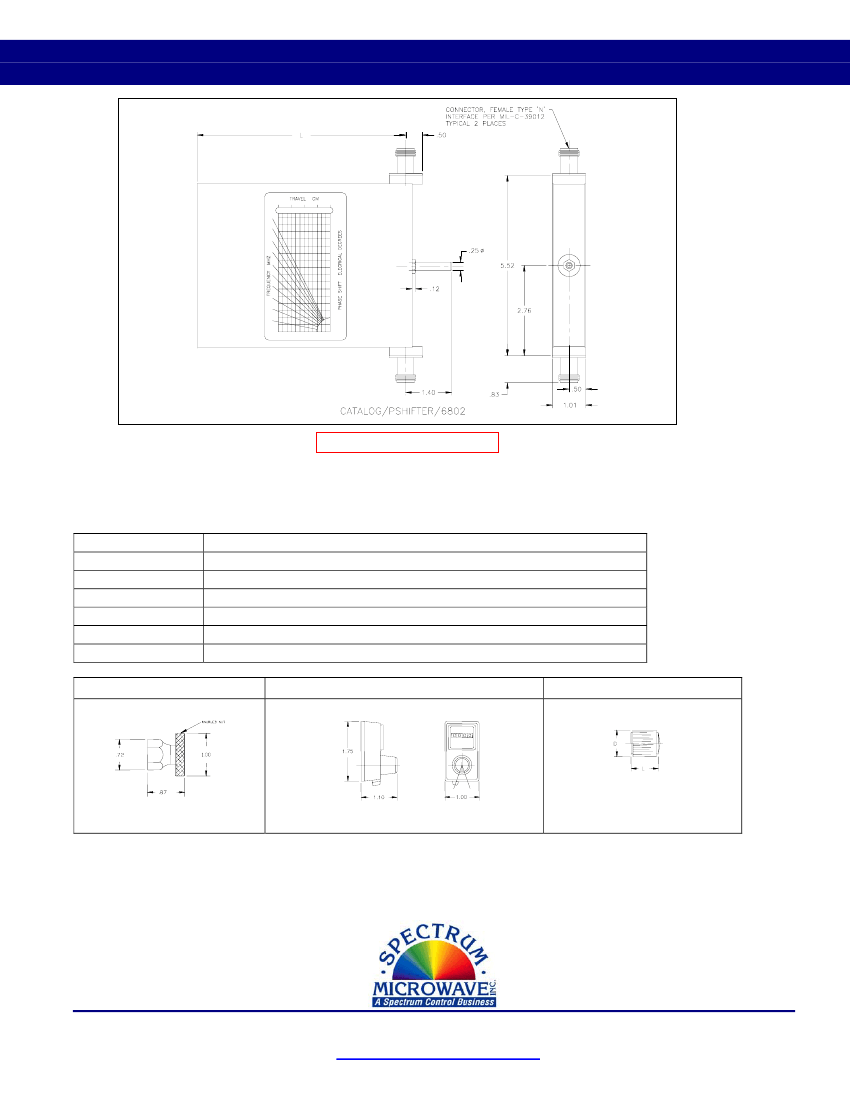

MODELS 6802, 6803, 6804
ORDERING INFORMATION
DRIVE SHAFT AND CONNECTOR OPTIONS:
1.
2.
Only the following standard control options are available. The base model is available without additional options.
Add suffix as designated below to the ordering model number.
MODEL # PLUS
-2
-3
-5
-15
-135
-23
DESCRIPTION
Turns Counter With Built In Shaft Lock
SMA Type RF Connectors
Control Knob with No Locking Feature
Shaft Lock With Control Knob
Shaft Lock With Control Knob and SMA Type RF Connectors
Turns Counter With Built In Shaft Lock and SMA Type RF Connectors.
(-1) SHAFT LOCK
(-2) TURNS COUNTER W/ SHAFT LOCK
(-5) CONTROL KNOB
D= 0.9” L=1.0”
MISCELLANEOUS:
1.
Spectrum Microwave “Standard Warranty and Order Terms and Conditions” apply to all orders.
2.
All specifications subject to change without notice.
3.
Check “Ordering and Availability Listing” for delivery and ordering information.
4.
Contact our local Manufacturers Representative for pricing.
Specification Revision - 070710
Spectrum Microwave 8 Executive Drive Hudson, NH 03051
Phone: 603-459-1600 Fax: 603.459.1605
www.SpectrumMicrowave.com
