621-015-268-540 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 621-015-268-540

621-015-268-540: DescriptionD Subminiature Connector,; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

621-015-268-540 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	621-015-268-540	-	-	View	Buy Now

621-015-268-540 Overview

D Subminiature Connector,

621-015-268-540 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

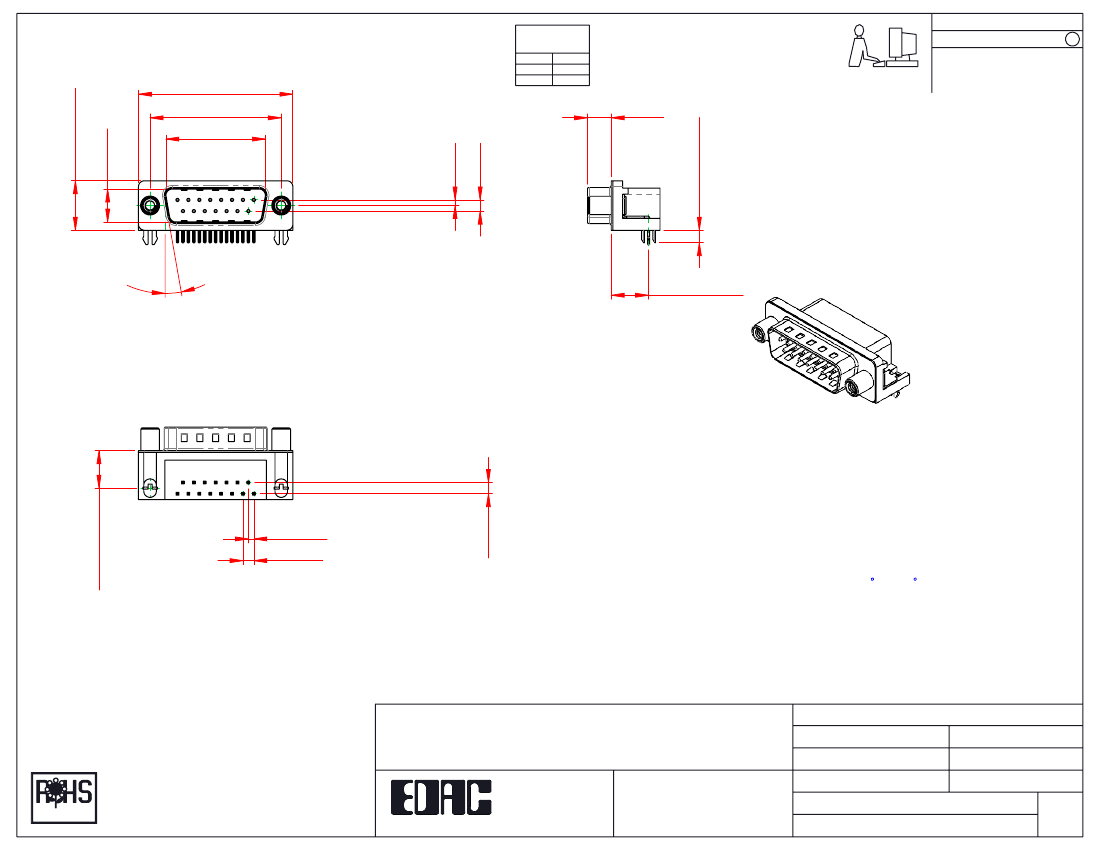

UNLESS OTHERWISE

SPECIFIED

TOLERANCE

THIS IS A C.A.D. GENERATED DRAWING

DO NOT MAKE MANUAL REVISIONS TO MASTER.

ISSUE NUMBER

ORIGINAL

12.55

±0.38

39.19

±0.38

8.36

33.32

±0.25

25.25

1.42

2.84

.XX

.XXX

±0.25

±0.13

±0.10

6.0

3.18

±0.38

9.50

±0.25

NOTES:

MATERIAL:

HOUSING: THERMOPLASTIC POLYESTER, UL94V-0

SHELL: STEEL, Sn or Ni PLATED

CONTACT: COPPER ALLOY SEE ORDERING GUIDE FOR PLATING

OPERATING TEMPERATURE: -55 C ~ 85 C

CURRENT RATING: 3A PER CONTACT

CONTACT RESISTANCE: 25mΩ MAX.

INSULATOR RESISTANCE: 5000MΩ min.

DIELECTRIC

WITHSTANDING VOLTAGE: 1000V AC rms

SW REFERENCE NO.:

621 ASSEMBLY

DATE:

SHEET

AUG. 01/2018

10°

9.50

±0.25

1.385

2.77

621 SERIES D-SUB CONNECTOR

THIS SERIES FULLY CONFORMS TO

THE EUROPEAN UNION DIRECTIVES

COMPLIANT

2011/65/EU FOR RoHS COMPLIANCY.

EDAC INC

TORONTO, ONTARIO

CANADA

YOUR CONNECTION TO QUALITY & SERVICE

THESE DRAWINGS AND SPECIFICATIONS

ARE THE PROPERTY OF EDAC INC.,AND

SHALL NOT BE REPRODUCED,OR COPIED

OR USED AS THE BASIS FOR THE

MANUFACTURE OR SALE OF APPARATUS

WITHOUT WRITTEN PERMISSION.

2.84

DRAWN:

CHECKED:

SCALE:

C.B

1:1

ISSUE

DRAWING NUMBER:

PART NUMBER:

621-015-268-540
