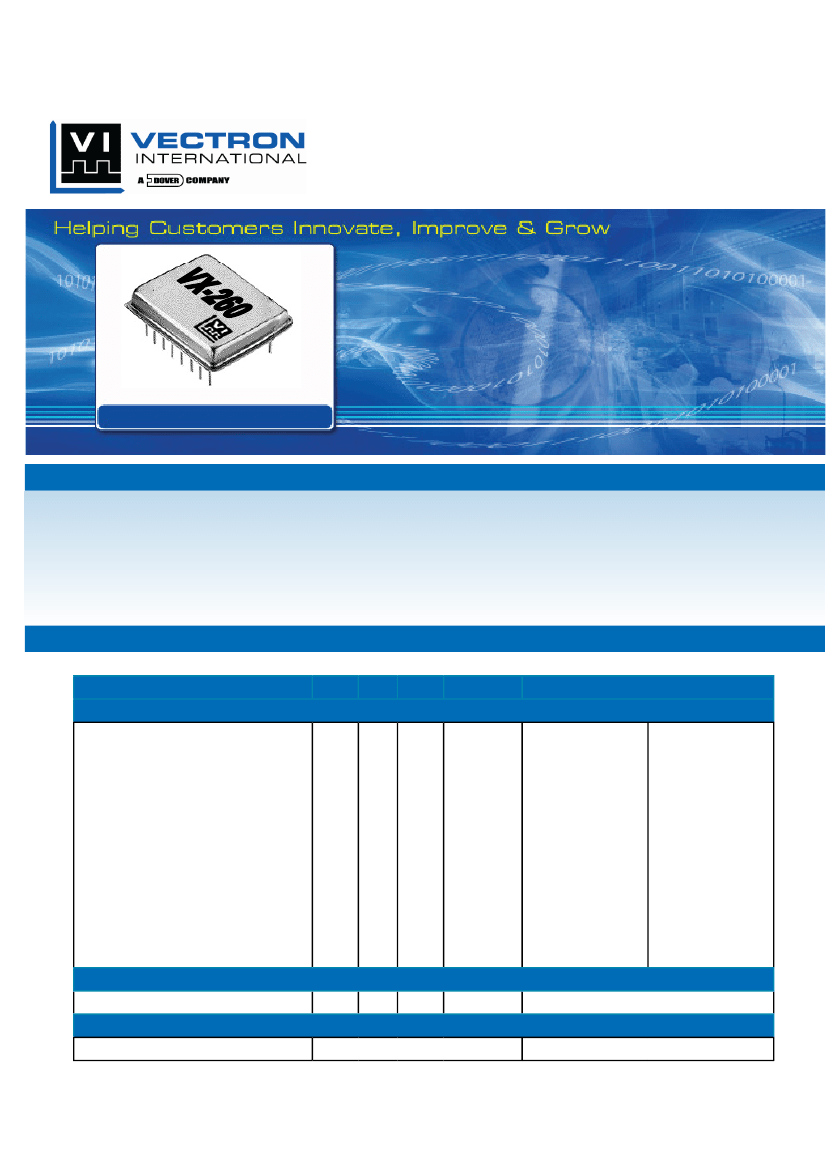

VX-260
Voltage Controlled Crystal Oscillator
VX-260
Features
•
•
•
•
Low Pro le hybrid
16 pin DDIP
Frequency Range: 8 MHZ to 200 MHZ
Previous Model: CO-484V
• Phase Locking
Applications
Performance Speci cations
Parameter
Min
Typ
Max
Units
Condition
Minimum Deviation
±200
±100
±200
±100
±60
±200
±100
±60
±200
±100
±40
±200
±100
±50
±30
Frequency Stabilities
1
vs. Deviation/Stability
-50
-50
-50
-50
-40
-40
-40
-30
-40
-40
-20
-35
-35
-20
-10
+50
+50
+50
+50
+40
+40
+40
+30
+40
+40
+20
+35
+35
+20
+10
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
-55… +85°C
-55… +85°C
-40… +85°C
-40… +85°C
-40… +85°C
-20… +70°C
-20… +70°C
-20… +70°C
0… +70°C
0… +70°C
0… +70°C
0… +50°C
0… +50°C
0… +50°C
0… +50°C
Supply Voltage (Vs)
Supply voltage
14.25
15.0
15.75
RF Output
Signal
Sinewave
VDC
(±5%), (+12 Vdc to +24 Vdc optional)
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Speci cations
Parameter
Output
Harmonics & Sub-Harmonics
Min
Typ
+7
+13
Max
Units
dBm
dBm
Condition
Standard - 0.5 Vrms/50ohm
Option - (<=160 MHz) (custom number
required)
Standard
Option (custom number required)
-20
-40
dBc
dBc
Frequency Tuning (EFC)
Control Voltage Range
±0.0
±3
±6
±10
Positive
Transfer Function
Negative
±20
Linearity
±10
%
%
V
V
Standard
Option (custom number required)
Standard
With bipolar control voltage option
and linearity is ±10%
(custom number required)
Standard
With bipolar control voltage option
and deviation/stability of ±200ppm
(custom number required)
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com

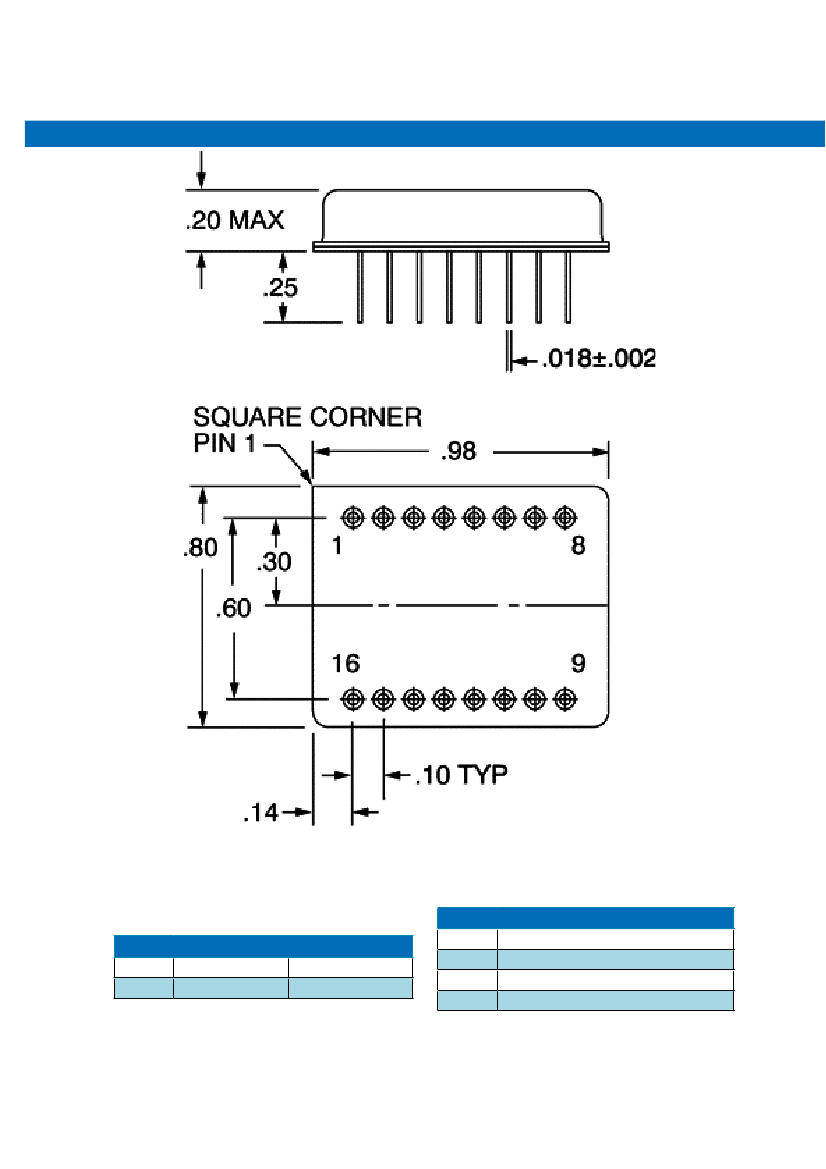

Outline Drawing / Enclosure
Dimension in inches
Pin Connections
Type A
Code
0
Height “H”
0.20”
Pin Length
0.25”
6
8
9
16
VCXO input
Ground
Output
Supply(+)
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Ordering Information
VX - 260 0 - A E J - M X X X - 10M0000000
Frequency
Product Family
VX: VCXO
Package
20 x 24 mm
Height
0: A 0.20”
Supply Voltage
A: 15 Vdc
Option Code
X: No Option
Screening Option
X: No Screening
Enable Code
X: No Enable
RF Output Code
E: Sinewave
Temperature Range
A: -55… +85°C
E: -40… +85°C
J: -20… +70°C
T: 0… +70°C
P: 0… +50°C
Pullability Code
G: ±30ppm
J: ±40ppm
K: ±50ppm
M: ±60ppm
S: ±100ppm
V: ±200ppm
Notes:
1. Contact factory for improved stabilities or additional product options. Not all options and codes are available at all
frequencies.
2. Unless other stated all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, temperature (25°C).
3. Phase noise degrades with increasing output frequency.
4. Subject to technical modi cation.
5. Contact factory for availability.
For Additional Information, Please Contact
USA:
Vectron International
267 Lowell Road
Hudson, NH 03051
Tel: 1.888.328.7661
Fax: 1.888.329.8328
Europe:
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 3328.4784.17
Fax: +49 (0) 3328.4784.30
Asia:
Vectron International
1F-2F, No 8 Workshop, No 308 Fenju Road
WaiGaoQiao Free Trade Zone
Pudong, Shanghai, China 200131
Tel: 86.21.5048.0777
Fax: 86.21.5048.1881
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Rev: 12/12/2008 daf
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
