SMC62L34F datasheet, PDF - EEWORLD Datasheet

SMC62L34F: DescriptionIC,MICROCONTROLLER,4-BIT,E0C6200/SMC6200 CPU,CMOS,QFP,100PIN,PLASTIC; CategoryThe embedded processor and controller Microcontrollers and processors; File Size512KB，7 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

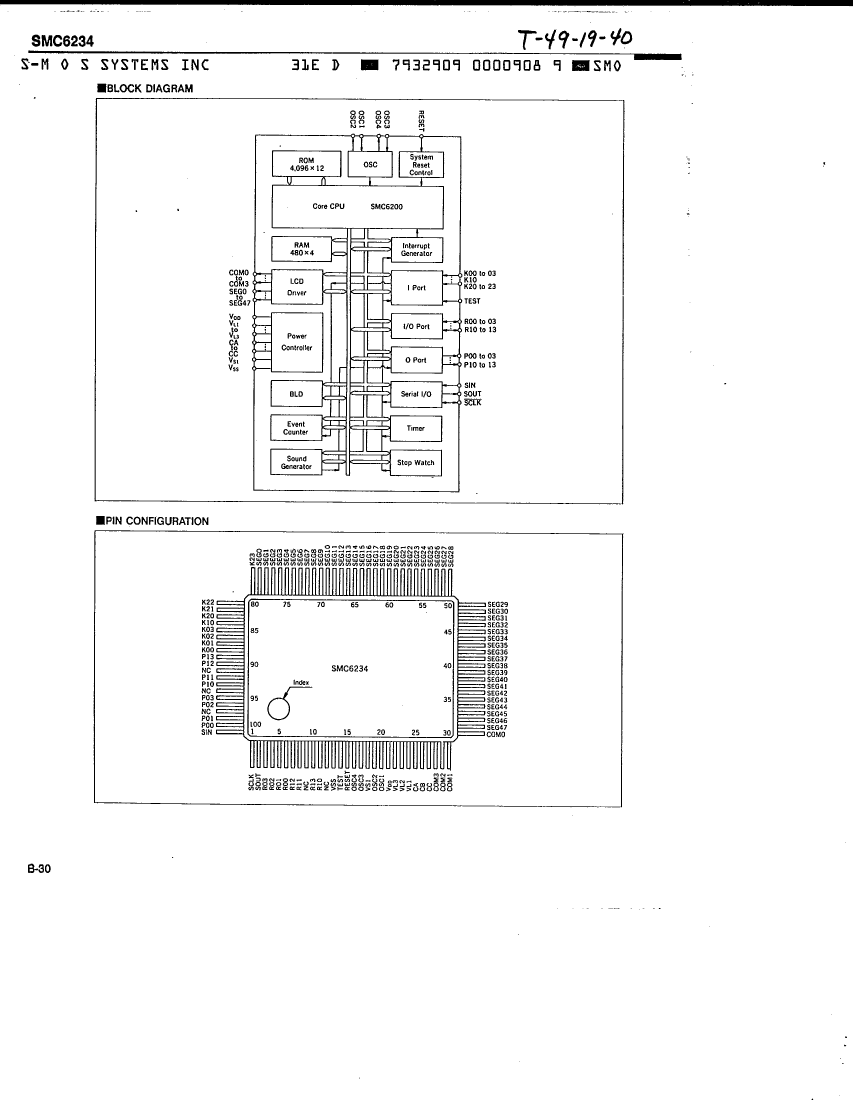

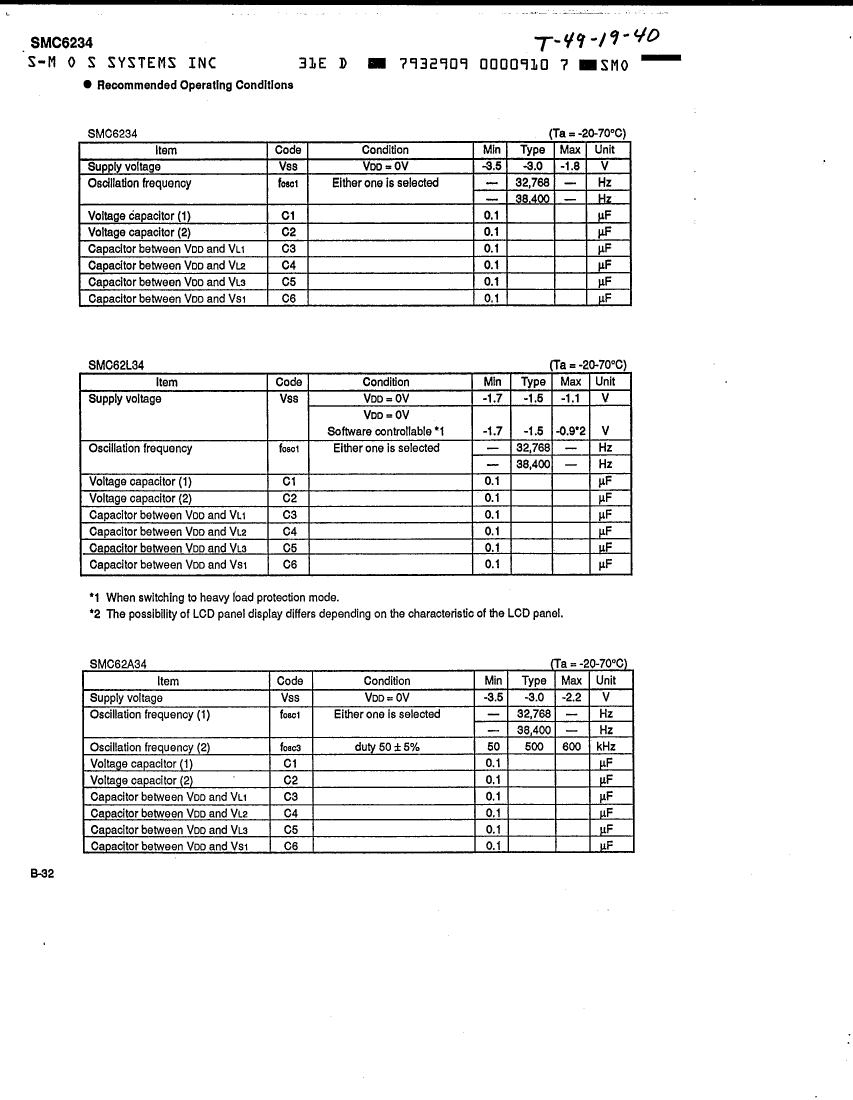

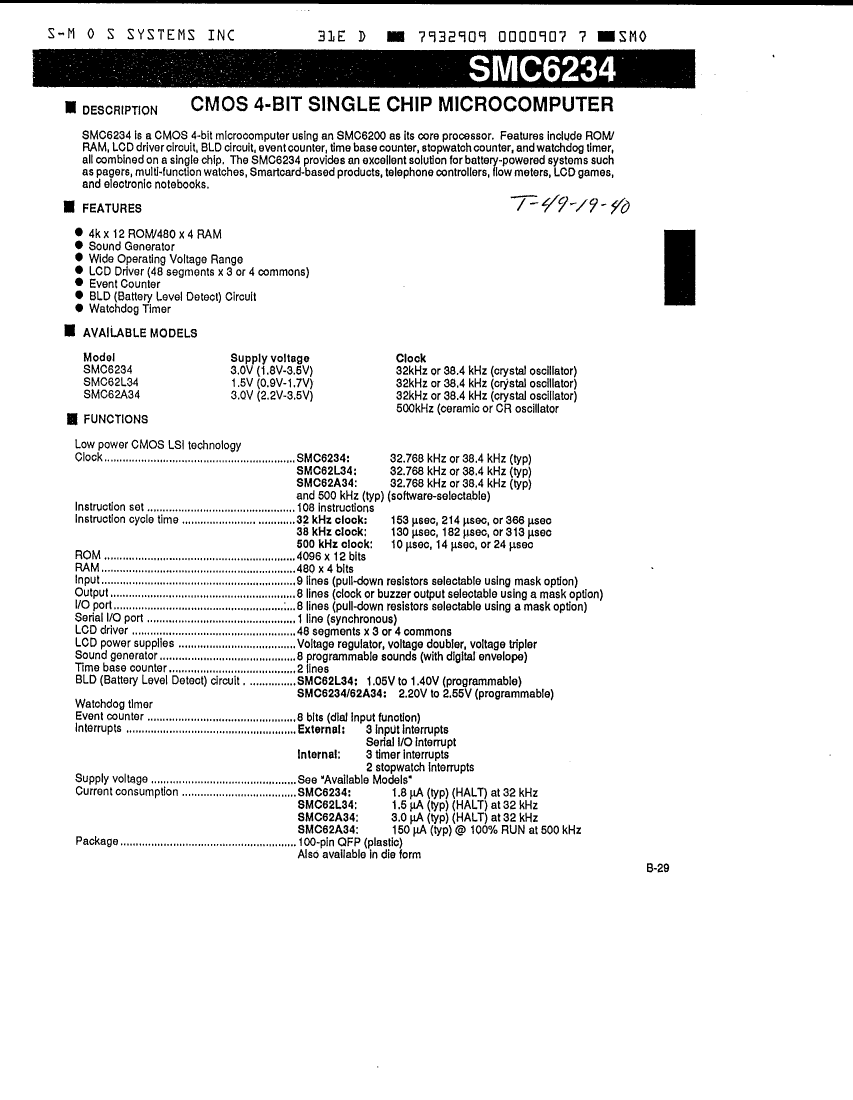

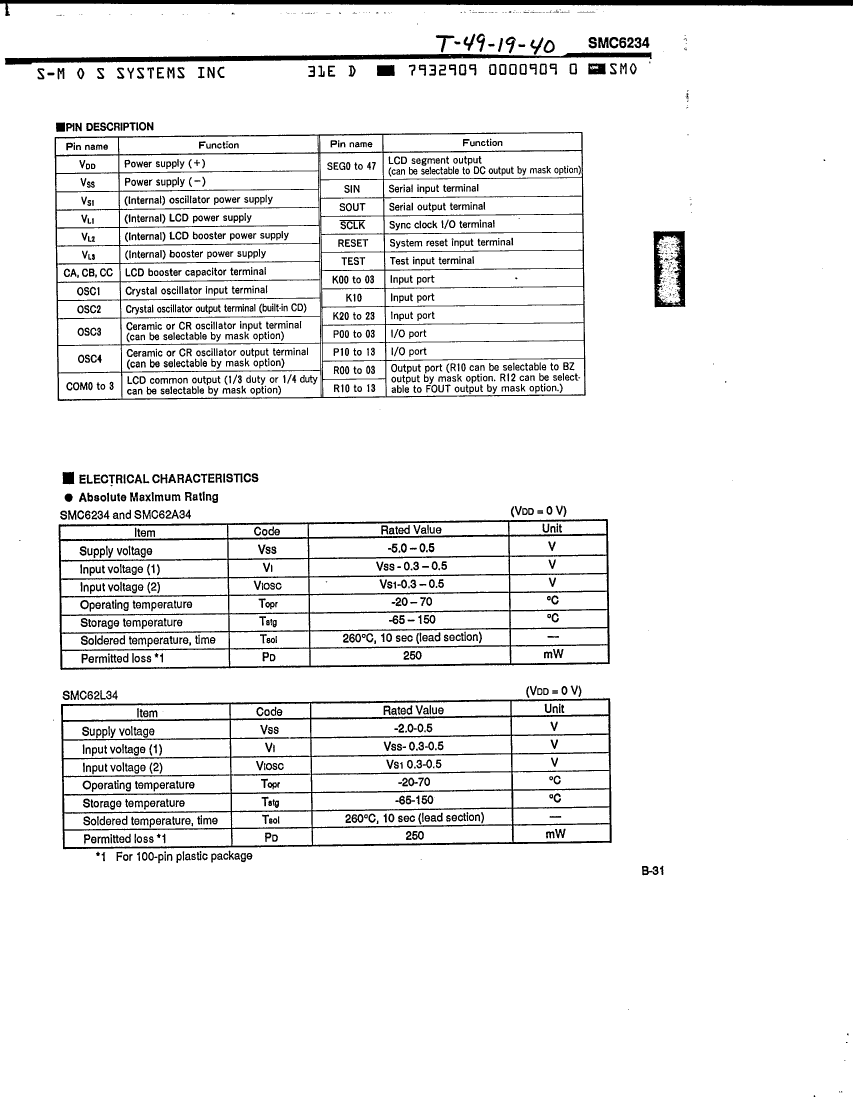

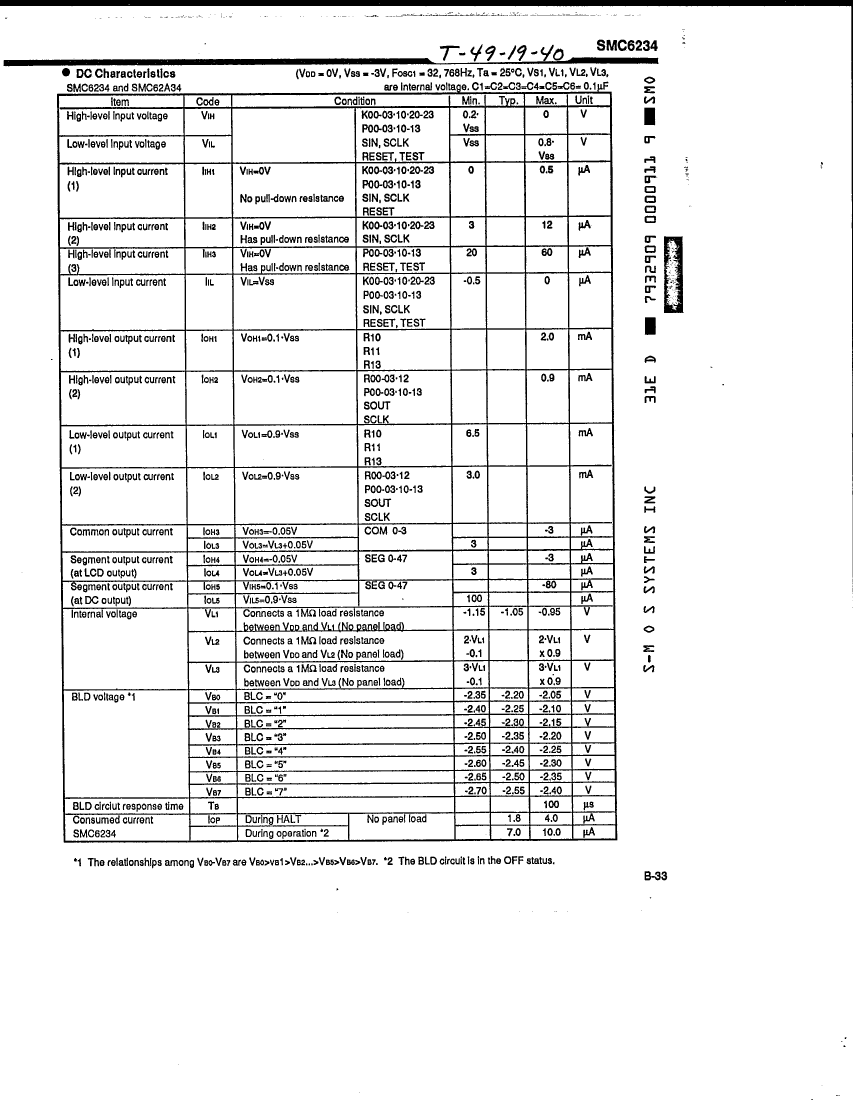

SMC62L34F Overview

IC,MICROCONTROLLER,4-BIT,E0C6200/SMC6200 CPU,CMOS,QFP,100PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QFP, QFP100,.8X1.0
Reach Compliance Code	compliant
bit size	4
CPU series	E0C6200/SMC6200
JESD-30 code	R-PQFP-G100
JESD-609 code	e0
Negative supply voltage rating	-1.5 V
Number of terminals	100
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP100,.8X1.0
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	-1.5 V
Certification status	Not Qualified
RAM (bytes)	240
rom(word)	4096
ROM programmability	MROM
Maximum slew rate	0.008 mA
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
Base Number Matches	1

	SMC62L34F	SMC6234F
Description	IC,MICROCONTROLLER,4-BIT,E0C6200/SMC6200 CPU,CMOS,QFP,100PIN,PLASTIC	IC,MICROCONTROLLER,4-BIT,E0C6200/SMC6200 CPU,CMOS,QFP,100PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible
package instruction	QFP, QFP100,.8X1.0	LQFP, QFP100,.8X1.0
Reach Compliance Code	compliant	compliant
bit size	4	4
CPU series	E0C6200/SMC6200	E0C6200/SMC6200
JESD-30 code	R-PQFP-G100	R-PQFP-G100
JESD-609 code	e0	e0
Negative supply voltage rating	-1.5 V	-3 V
Number of terminals	100	100
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	LQFP
Encapsulate equivalent code	QFP100,.8X1.0	QFP100,.8X1.0
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK, LOW PROFILE
power supply	-1.5 V	-3 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	240	240
rom(word)	4096	4096
ROM programmability	MROM	MROM
Maximum slew rate	0.008 mA	0.01 mA
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULLWING
Terminal pitch	0.635 mm	0.65 mm
Terminal location	QUAD	QUAD
